Description & Details
MBWS ASUS Intel 1700 PRO WS W680-ACE Description

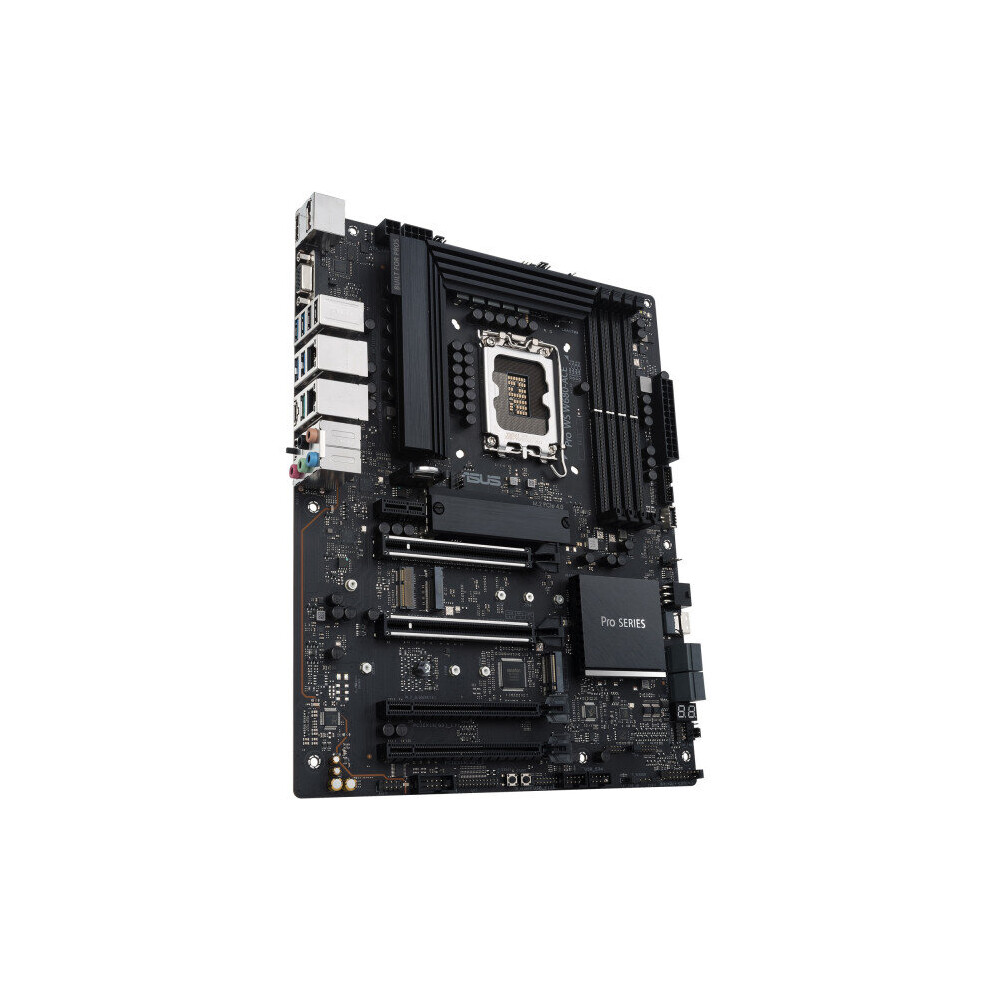

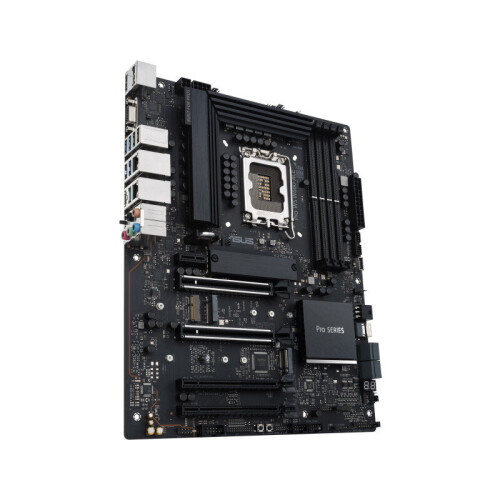

MBWS ASUS Intel 1700 PRO WS W680-ACE
Details
| OPC | PBXSPZW |
|---|---|
| Brand | |
| Codes | 4711387006177 (EAN) |
| Links | ASUS Motherboards |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Other features
| Weight | 997 g |
|---|---|
| Back-to-BIOS button | Yes |
| Number of M.2 (E) slots | 1 |
Features
| Motherboard chipset | Intel W680 |
|---|---|
| Motherboard form factor | ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
Packaging data
| Package weight | 1.18 kg |
|---|---|
| Package depth | 266 mm |
| Package height | 76 mm |
| Package width | 331 mm |
Processor
| Processor manufacturer | Intel |
|---|---|
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
BIOS
| BIOS memory size | 256 Mbit |
|---|---|
| BIOS type | UEFI AMI |
Rear panel I/O ports
| Line-in | Yes |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Network
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
Memory
| Maximum internal memory | 128 GB |
|---|---|
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
Weight & dimensions
| Height | 50 mm |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Storage controllers
| RAID levels | 0, 1, 5, 10 |
|---|---|
| Number of HDDs supported | 8 |
| RAID support | Yes |
| Number of storage drives supported | 11 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, NVMe, SATA III |
Packaging content
| Cables included | SATA |
|---|---|
| User guide | Yes |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Integrated SAS ports | 1 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
Graphics
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | No |
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 2 |
