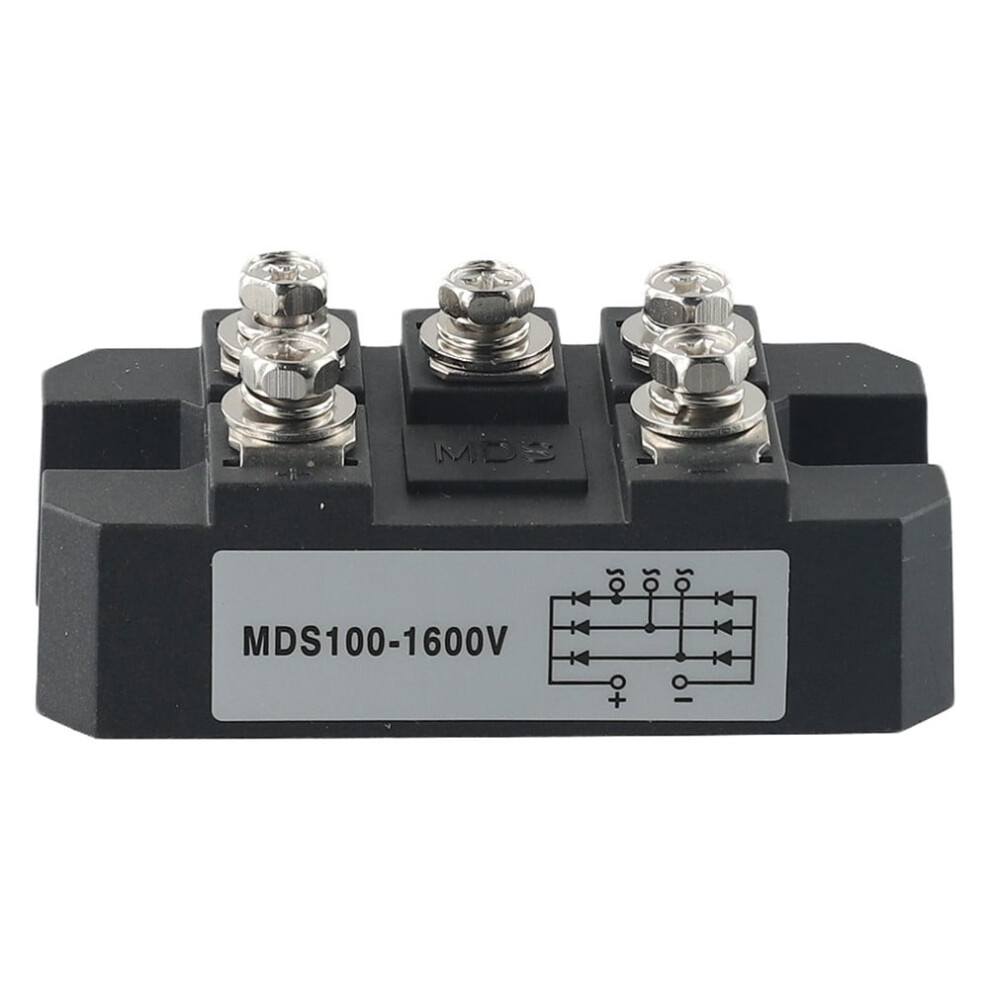

MDS-100A Diode Module Rectifier 1600V 5-Terminal 3-Phase
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 133,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 10th - Sat 12th Sep
Returns: 30 days
180-day payment protection
You might also like
Summary
- COMPREHENSIVE PACKAGE】 This module includes 1 x Bridge Rectifier designed for seamless integration into your electrical systems.
- RELIABLE PERFORMANCE】 The MDS-100A is engineered for full-wave rectification, utilizing six diodes in a phase bridge configuration to ensure stable operation.
- HIGH CURRENT CAPACITY】 With a maximum output DC current of 100A and voltage capability of up to 1600V, it meets demanding power requirements effectively.
- APPLICATION VERSATILITY】 for AC/DC motor drive applications, battery charging, and phase rectification in various electrical setups.
- SIZING REMINDER】 Please verify your specifications against the provided dimensions to ensure compatibility.
MDS-100A Diode Module Rectifier 1600V 5-Terminal 3-Phase Description
MDS100A High Performance Diode Module with Exceptional Power Characteristics Features: * Practical, portable, very convenient to install and repair. * Welded structure, excellent power cycle and temperature characteristics * Can be used for PWM inverter current input, battery charging, etc. * Power diode module MDS-100A is designed for three-phase full-wave rectification, in which six diodes are connected in a three-phase bridge configuration. * Output DC current is 100A. Maximum voltage is up to 1,600V. Isolation mounting base, unique glass passivation ensures high reliability. * Application: AC, DC motor drive/AVR/Switch- for three-phase rectification. Specifications: Part Name: Bridge Rectifier Model: MDS-100A Material: ABS+Metal Color: Black Size: Standard Maximum Current: 100A Maximum Voltage: 1600V Terminals: 5 Number of Phases: 3 Phases Package Contents: 1 x Bridge Rectifier Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
Details
| OPC | PXRWJJJ |
|---|---|
| Codes | 959110904374 (UPC) |
