MH MX8 Wireless Bluetooth Lossless Decoder Module Kit M18/M28/M38 for High-Quality Audio
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£6.41
£9.57
33% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 11th - Tue 14th Jul
Returns: 30 days
180-day payment protection
Most Popular in Network Bluetooth Adapters
Description & Details
Summary
- M18: MUTE mute control terminal: used to control the power amplifier board. When muting, MUTE outputs a high level of 3.3V, and outputs a low level during playback. KEY button control: This function requires additional connection of resistors and buttons to achieve Volume power off function: The default output is 100% volume. Press the button to control the volume increase and decrease. If the c
- M28: Power supply: It can be directly powered by the MICRO USB for Android cable 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery. Audio output: The earphone can be directly connected to the 3.5mm audio interface, or it can be wired for the audio input of the power amplifier board.
- M38 Power supply: It can be directly powered by the MICRO USB for Android cable 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery. The maximum working current is 5V2A. It is recommended to use 5V2A regulated power supply for better sound quality. Support USB sound card, free drive (plug and play) Connect the module to the computer with the USB cable, and the computer can
- For Bluetooth V4.2 version of for Bluetooth automatic technology, supports WAV / WMA / FLAC / APE / MP3 lossless decoding, stereo two-channel output
- After powering on the module, the phone searches for the for Bluetooth name MH‑M18 / MH‑M28 / MH‑M38, and can play music when connected to for Bluetooth.
MH MX8 Wireless Bluetooth Lossless Decoder Module Kit M18/M28/M38 for High-Quality Audio Description

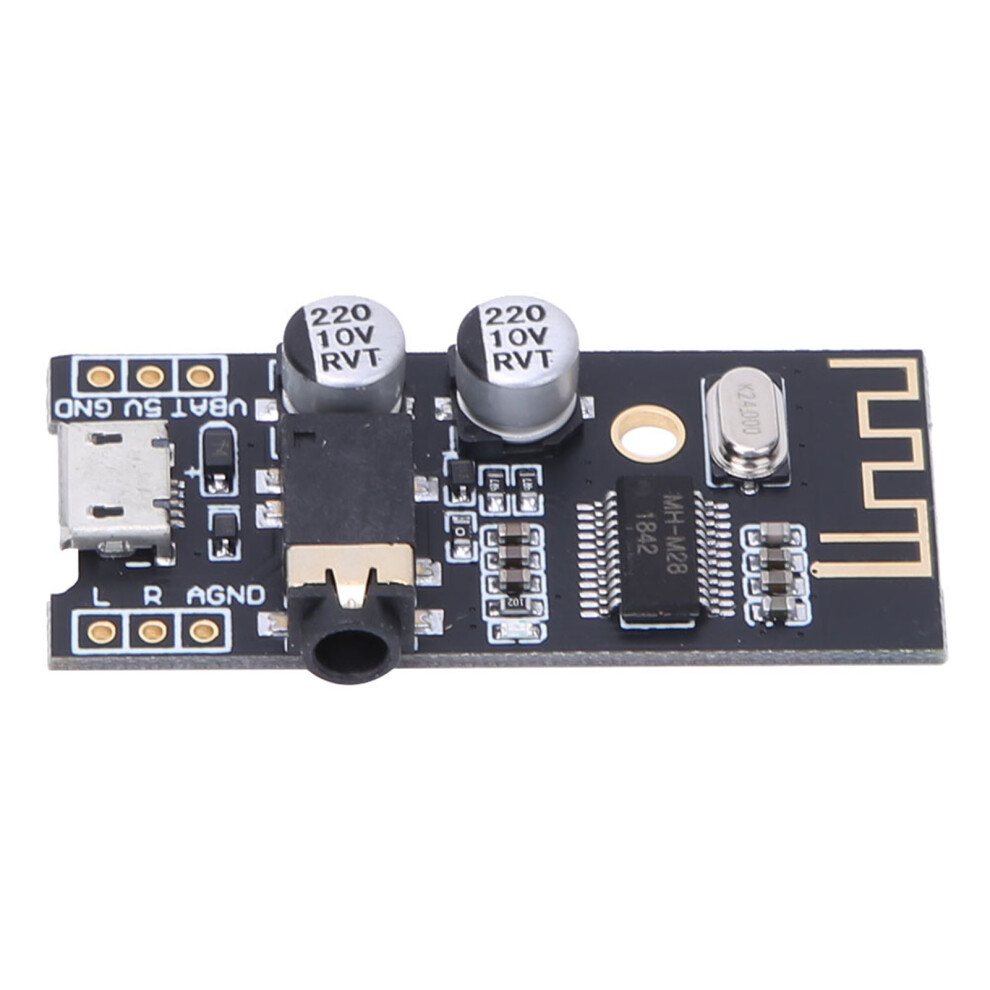

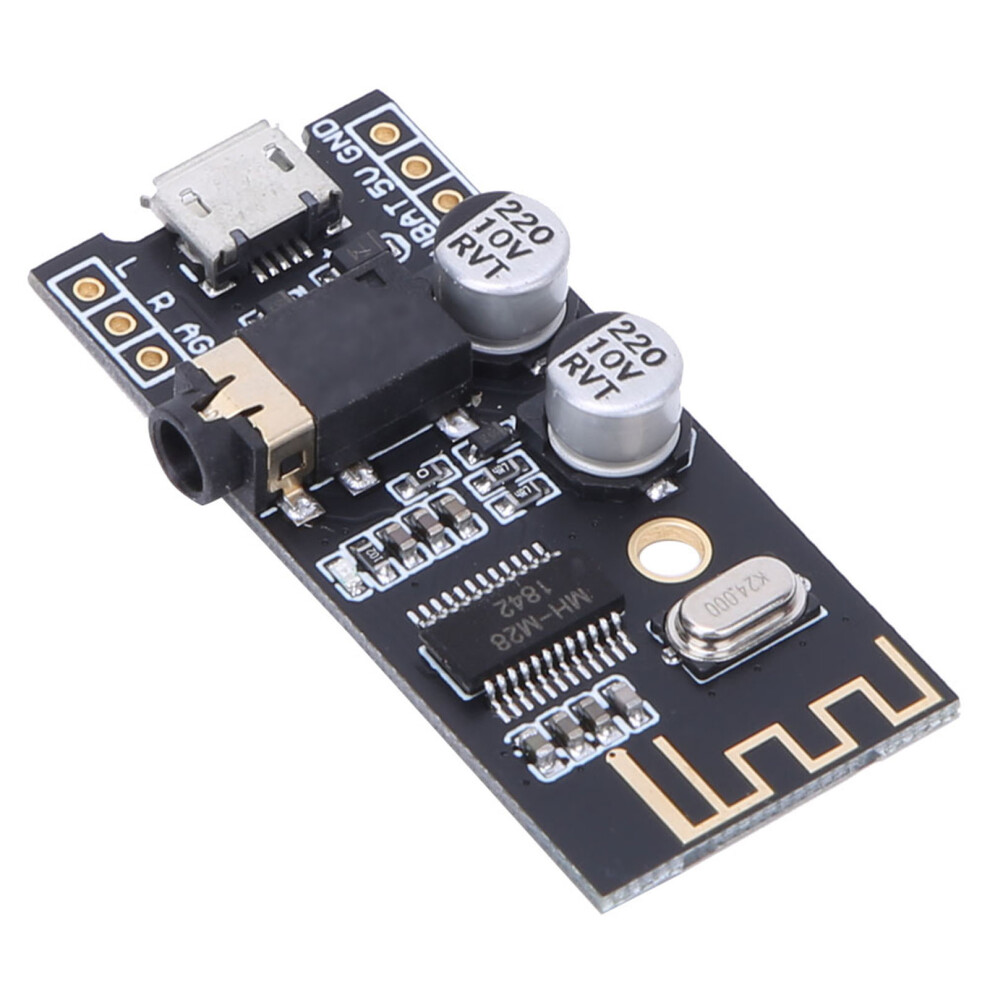

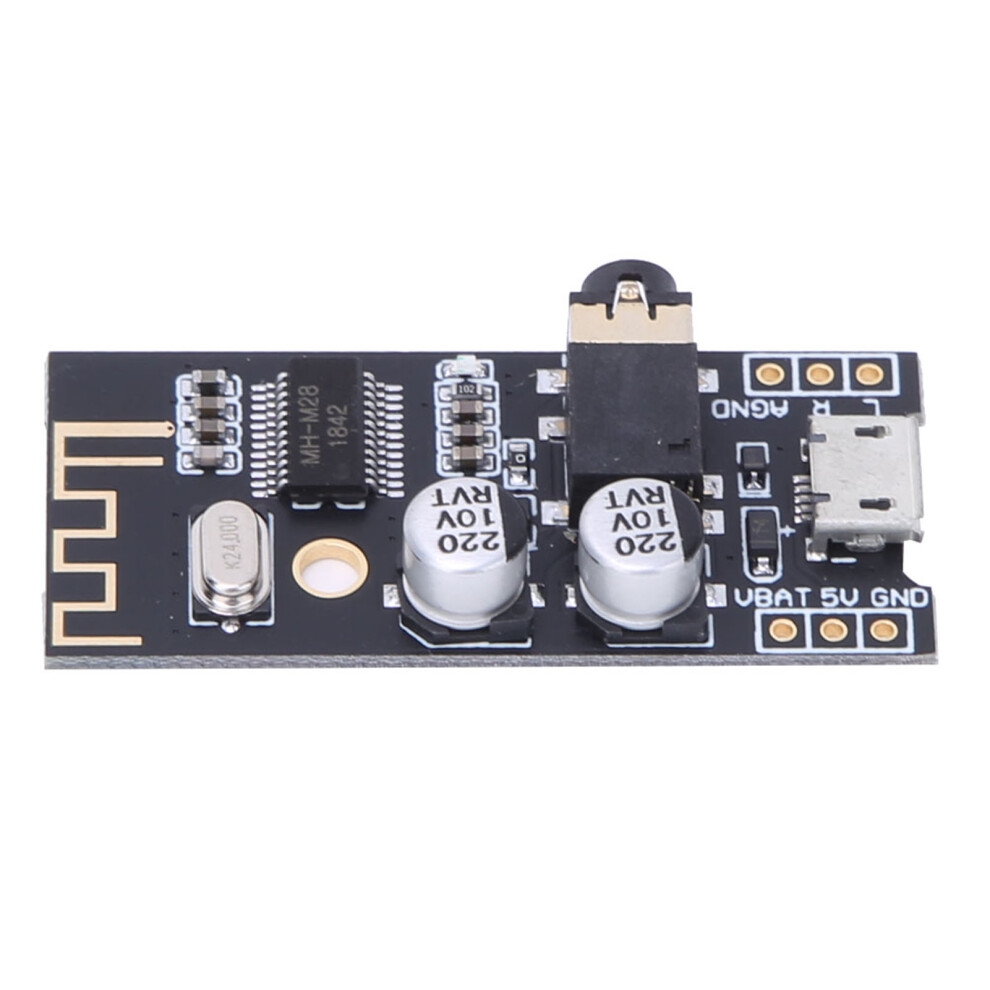

MH MX8 Module Wireless for Bluetooth Audio Receiver Board Lossless Decoder Kit M18 M28 M38(M28 Headphone Interface Type )
Item Type: Module

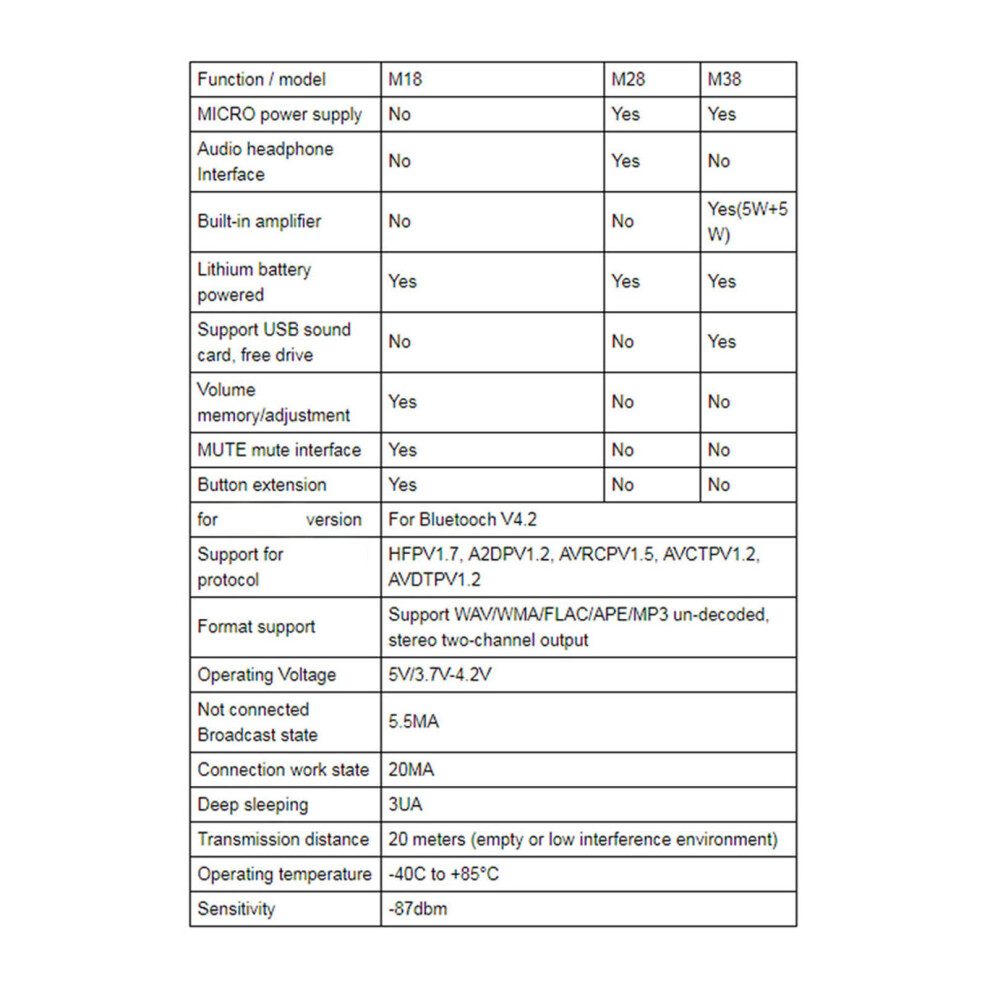

Function / model
M18
M28
M38
MICRO power supply
No
Yes
Yes
Audio headphone Interface
No
Yes
No
Built-in amplifier
No
No
Yes(5W+5W)
Lithium battery powered
Yes
Yes
Yes
Support USB sound card, free drive
No
No
Yes
Volume memory/adjustment
Yes
No
No
MUTE mute interface
Yes
No
No
Button extension
Yes
No
No
for Bluetooth version
For Bluetooch V4.2
Support for Bluetooth protocol
HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2
Format support
Support WAV/WMA/FLAC/APE/MP3 un-decoded, stereo two-channel output
Operating Voltage
5V/3.7V-4.2V
Not connected Broadcast state
5.5MA
Connection work state
20MA
Deep sleeping
3UA
Transmission distance
20 meters (empty or low interference environment)
Operating temperature
-40C to +85C
Sensitivity
-87dbm
MH-M18:
Number
Pin
Description
1
KEY
Button control terminal (4 button functions, additional resistance required)
2
MUTE
Mute control terminal (output high level 3.3V when muting, output low level during playback)
3
VCC
Positive power supply 5V (lithium battery 3.7V power supply requires short circuit diode)
4
GND
Negative power supply
5
L
Left channel output
6
R
Right channel output
MH-M28:
Number
Pin
Description
1
5V
Power positive 5V
2
GND
Negative power supply
3
VBAT
Lithium battery positive 3.7-4.2V
4
L
Left channel output
5
R
Right channel output
6
AGND
Audio ground
MH-M38:
Number
Pin
Description
1
5V
Power positive 5V
2
GND
Negative power supply
3
VBAT
Lithium battery positive 3.7-4.2V
4
L+/L-
Left channel output (direct speaker)
5
R+/R-
Right channel output (direct speaker)
Blue Module:
The light blinks when for Bluetooth is not connected
The indicator light usually lights up when for Bluetooth is connected
For Bluetooth appears during playback, slow flashing
