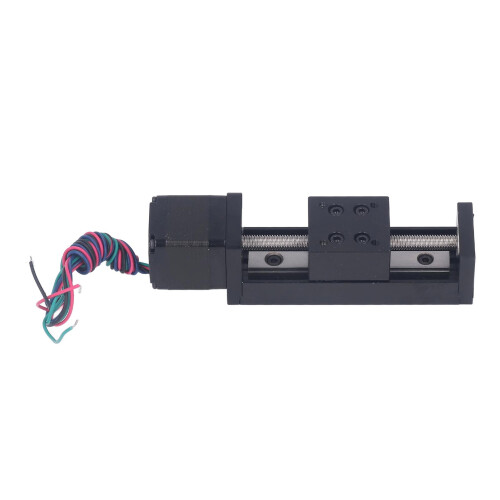

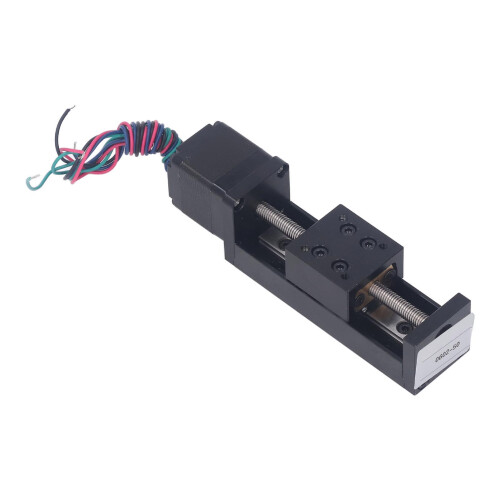

Mini Linear Rail Guide Slide Actuator 28 Stepper Motor 50mm Stroke DIY

Mini Linear Rail Guide Slide Actuator 28 Stepper Motor 50mm Stroke DIY Description

1、TECHNICAL PARAMETERS: Linear slide stage actuator effective travel for 50mm, step angle for 1.8 degrees, diameter 6mm, helical pitch 1mm, pitch 1mm(guide screw can move 1mm a circle) 2、LOW NOISE MONORAIL: Linear slide adopt single guide design, bring stable operation, low noise, suitable for X, Y and Z axes 3、STABLE METAL STRUCTURE: The linear motion table is made of excellent alloy with a thickened bottom plate to ensure stability during operation 4、ACCURATE AND EFFICIENT: The slide table has the advantages of large horizontal and vertical load, high positioning accuracy, high efficiency and good stability 5、APPLICABLE SCENARIO: Mini linear rail guide slide actuator is widely used in DIY CNC milling machine, inspection equipment, optical measurement, fine tuning displacement, mechanical positioning and so on
Item Type: Mini Linear Rail Guide Slide Actuator
Material: Alloy
Effective Travel: Approx. 50mm / 1.97in
Load: Horizontal: 5KG; Vertical: 1KG
Positioning Accuracy: 0.1mm
Holding Torsion: 6N.cm
Current: 0.6A
Resistance: 5.5Ω
Inductance: 3.2MH
Speed: 0-120mm/s
Step Angle: 1.8 Degrees
Diameter: Approx. 6mm / 0.24in
Helical Pitch: Approx. 1mm / 0.04in
Pitch: Approx. 1mm / 0.04in
1 x Mini Linear Rail Guide Slide Actuator
