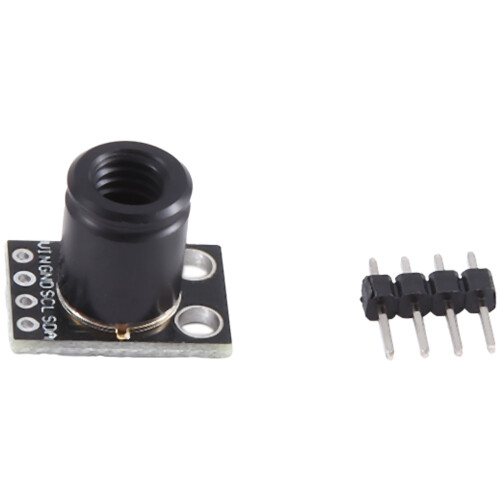

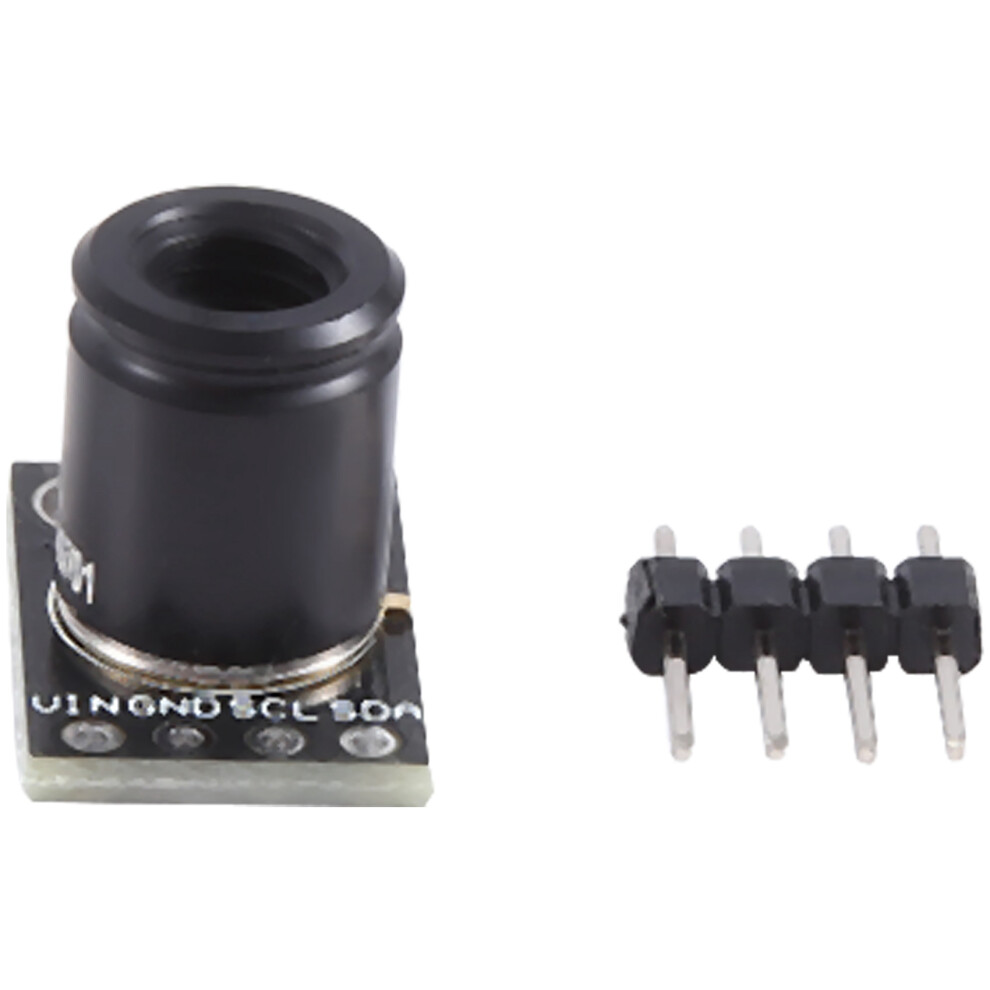

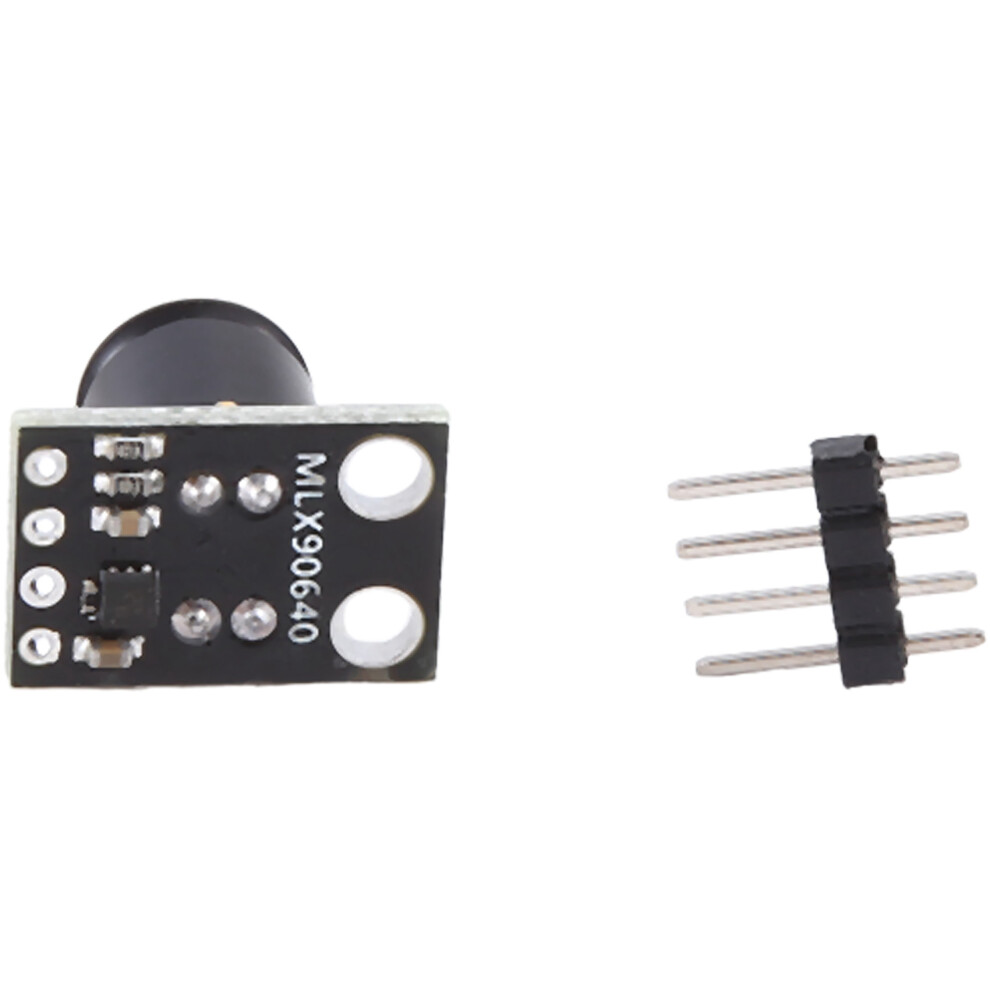

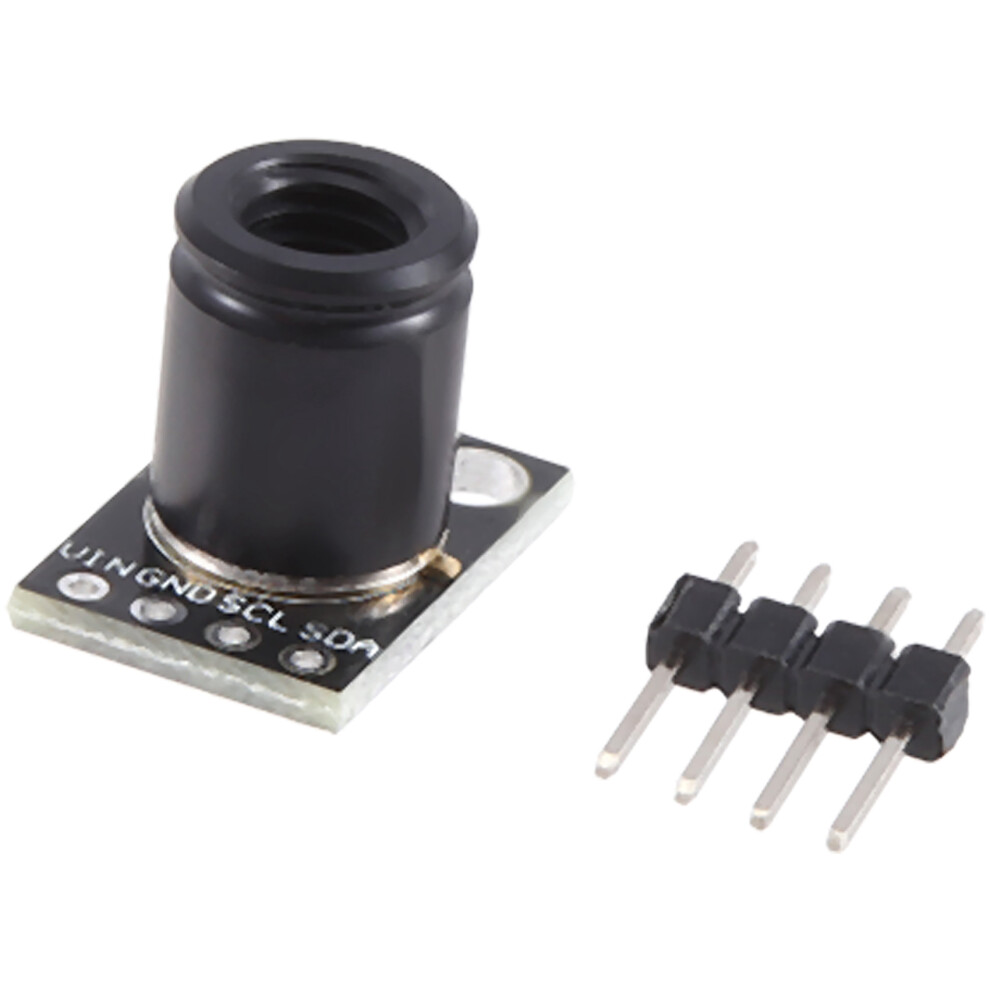

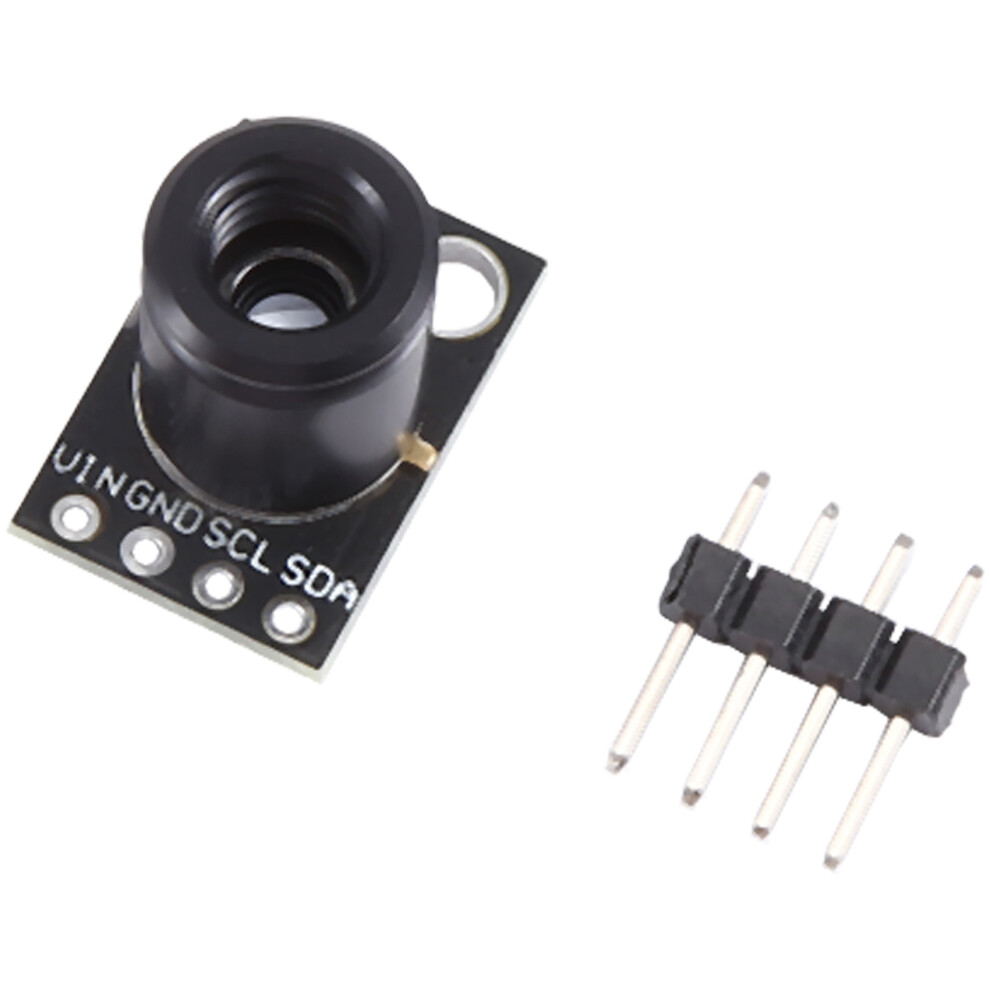

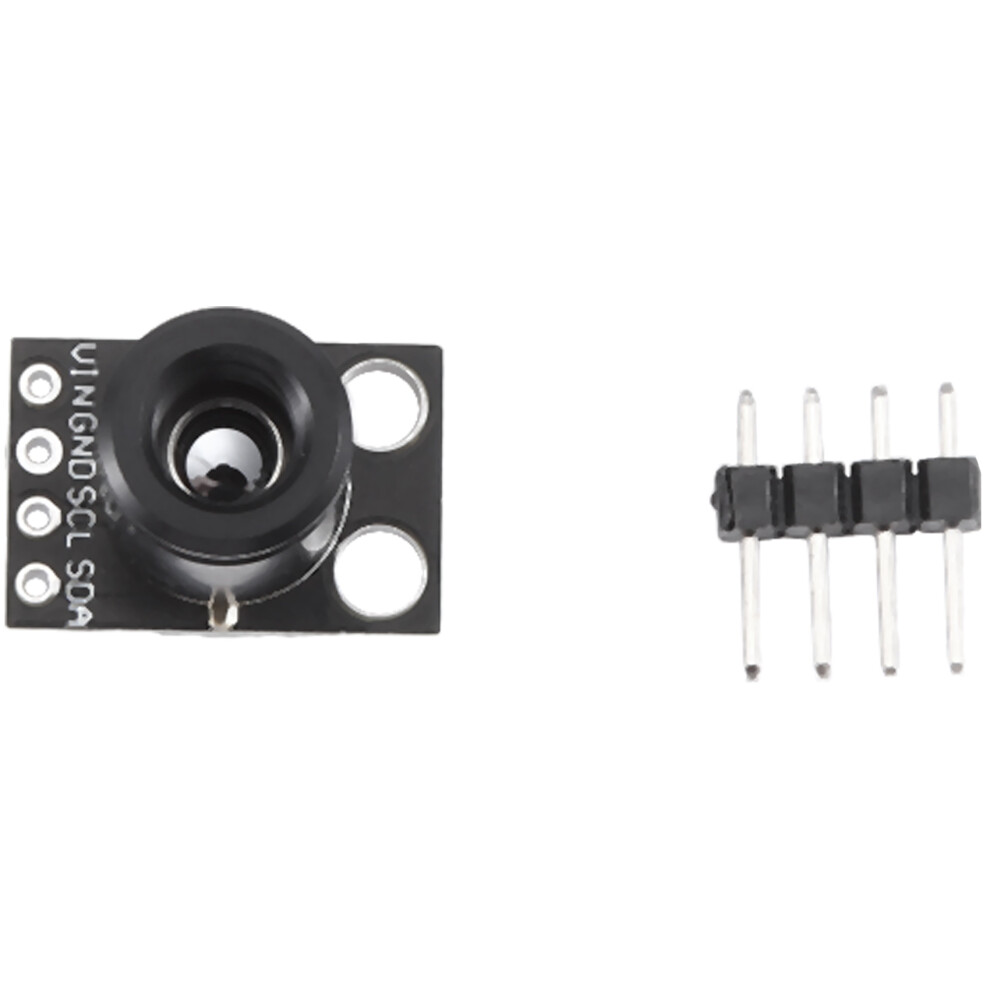

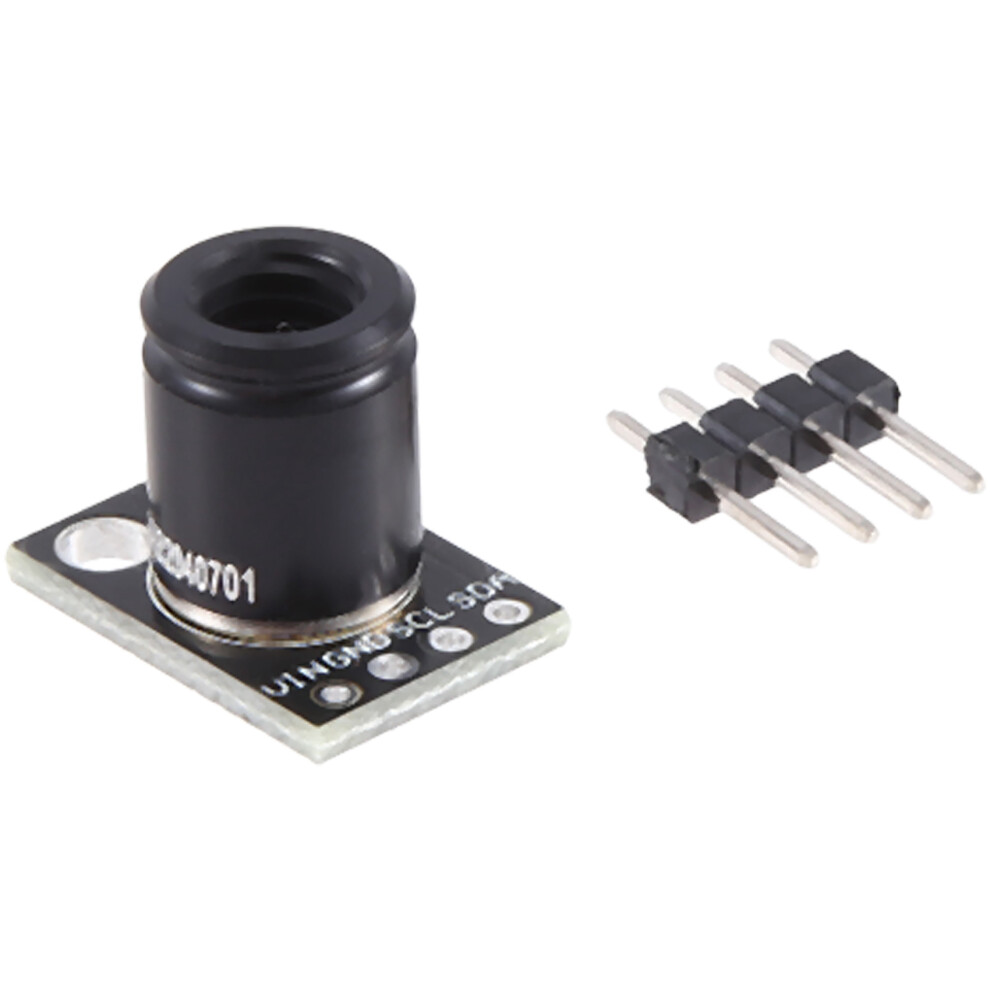

Mlx90640ESF-BAB Infrared Thermal Line Sensor Module Imaging/IR Image Meter

Mlx90640ESF-BAB Infrared Thermal Line Sensor Module Imaging/IR Image Meter Description

Using MLX90640 far-infrared thermal sensor array, 32x24 pixels
Supports I2C interface communication and can be set to fast mode (rate up to 1MHz)
Noise equivalent temperature difference (NETD) is only 0.1K RMS@1Hz refresh rate, good noise performance
Onboard level conversion circuit, compatible with 3.3V/5V working level
Programmable frame rate 0.5~64Hz (0.25~32FPS)

Working voltage: 3.3V/5V
Field of view (FOV): 55x35
Communication interface: I2C (default 0x33)
Target temperature: -40~300
Current size: Less than 23mA
Absolute accuracy: 2 (room temperature 0~50)
Refresh rate: 0.5~64Hz (0.25~32FPS)
Working temperature: -40~85
Fixing hole size: 2.0mm
Material: plastic+metal
colour: Black

Package Contents:
1 x Sensor Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
