MMC56x3 Triaxial Magnetometer MMC5603 for STEMMA Q

MMC56x3 Triaxial Magnetometer MMC5603 for STEMMA Q Description

1. Use high-quality materials with guaranteed quality
2. A magnetometer can sense where the strongest magnetic force comes from and can be used to measure magnetic fields
3. This product does not require welding! Simply connect to your favorite microcontroller to quickly obtain magnetic measurements
4. The sensor can sense within a range of 30 Gauss ( 3000uT or 3mT) without the need for range setting, and can output up to 1000Hz rate readings in all 20 bits. This range is very suitable for reading the Earth's magnetic field (with a maximum value of approximately 0.6 Gauss) or some basic magnets
5. This product has been fully assembled and tested. Comes with a little 0.1inch standard connector in case you want to use it with a Breadboard or perforated plate. Four 2.5 mm (0.1 inch) mounting holes make installation easier

L2C address 0x30
Monolithic integrated 3- magnetic sensor
Excellent dynamic range and accuracy:
30 G
20 Bitwise operation mode
0.0625mG per LSB resolution
Implementation of 2mG total RMS noise
Heading accuracy of 1
The true frequency response of the sensor can reach up to 1KHz
L2C peripheral, fast ( 400 KHz) mode
On chip automatic demagnetization with built-in SET/RESET function
Eliminating offset errors caused by thermal changes (open field output)
Removing residual magnetization generated by strong external fields
On chip sensitivity compensation, on chip temperature sensor
(Due to different lighting or displays, there may be color differences in the actual product, which not affect the use)
Color:
Material: PCB

Package Contents:

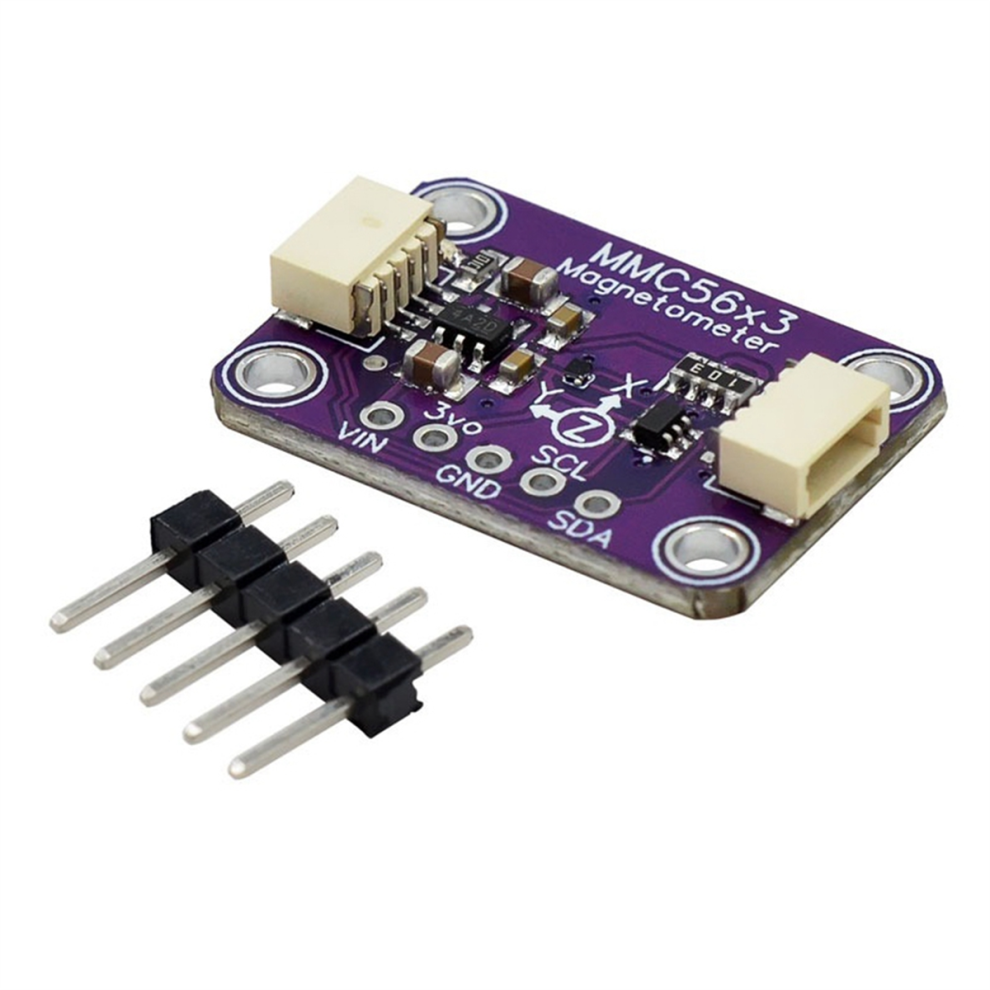

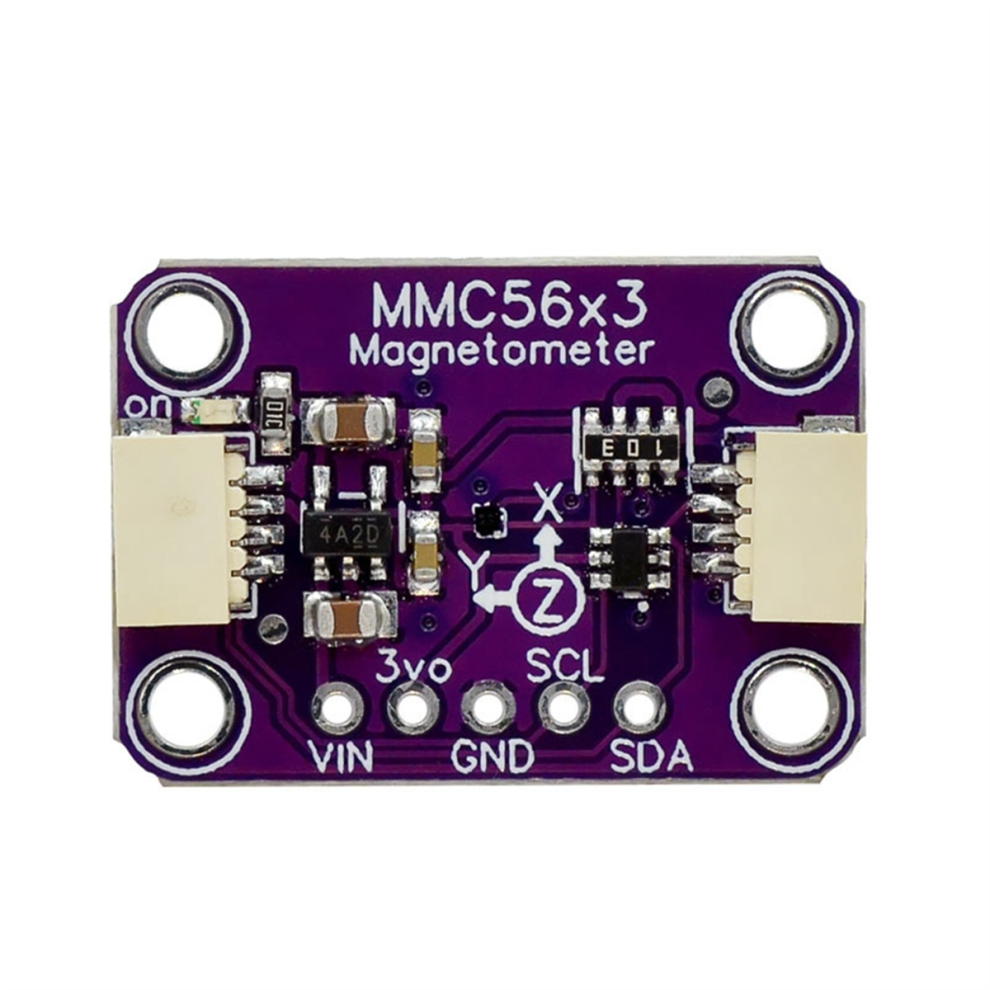

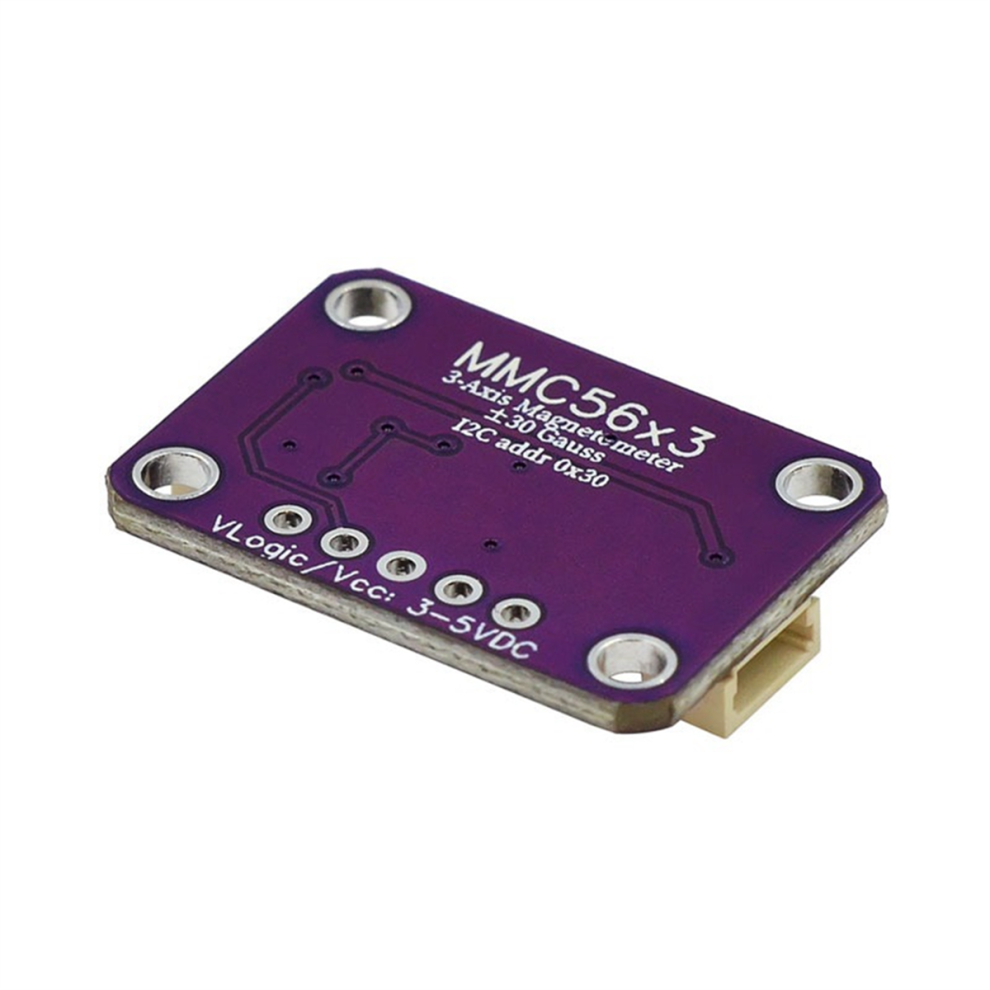

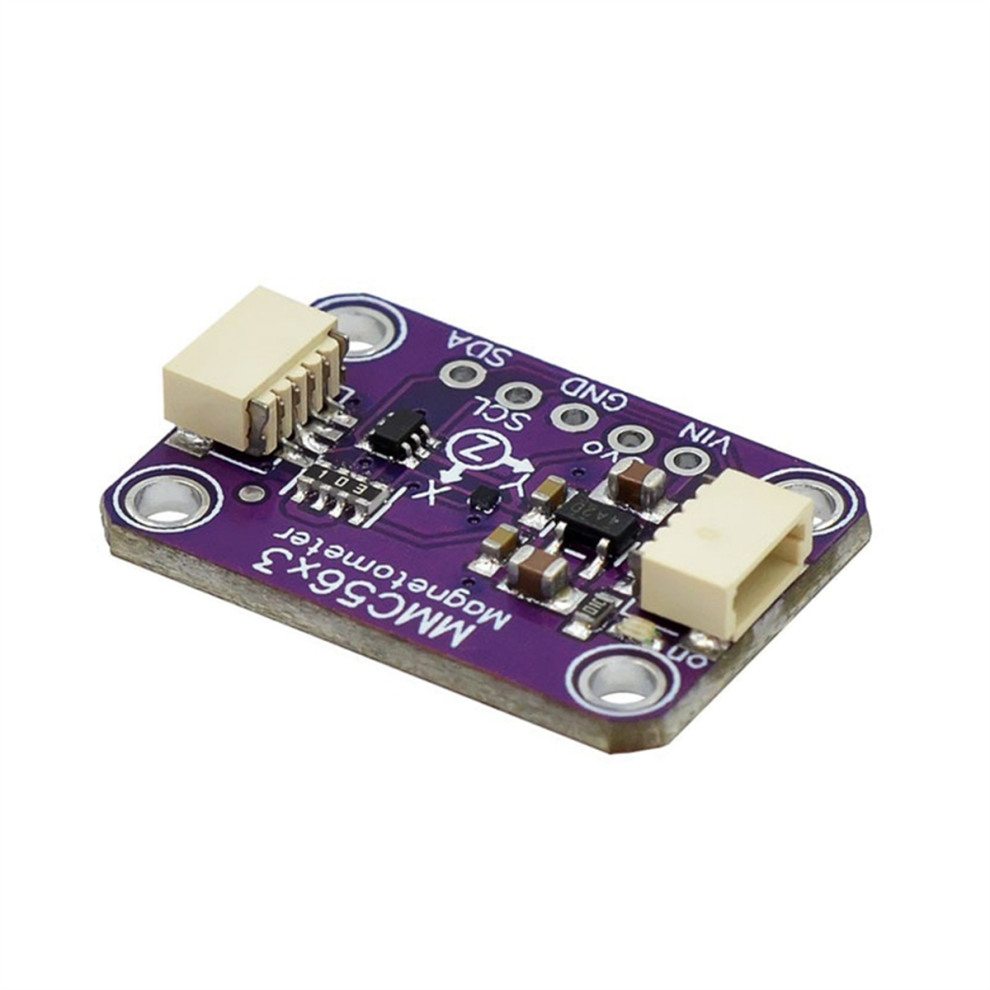

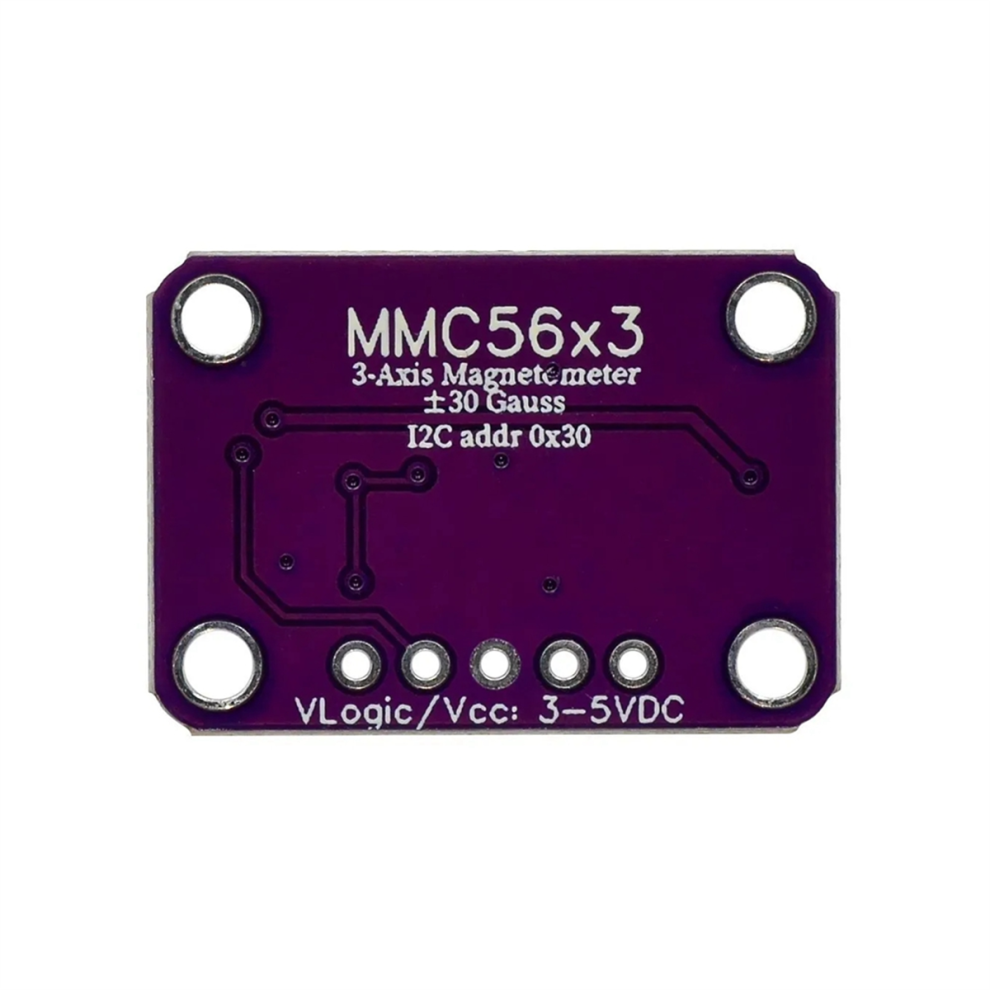

1 * Triaxial magnetometer with pin

Only the above package content, other products are not included.
