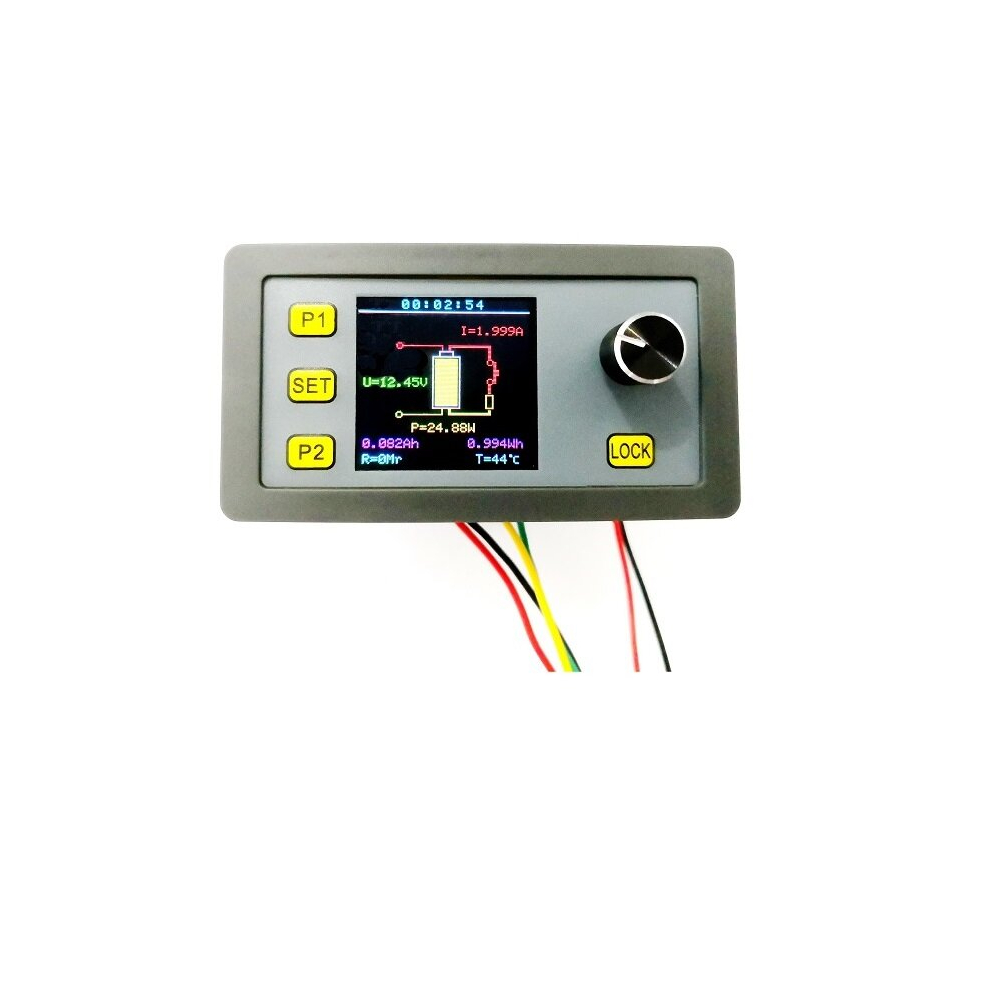

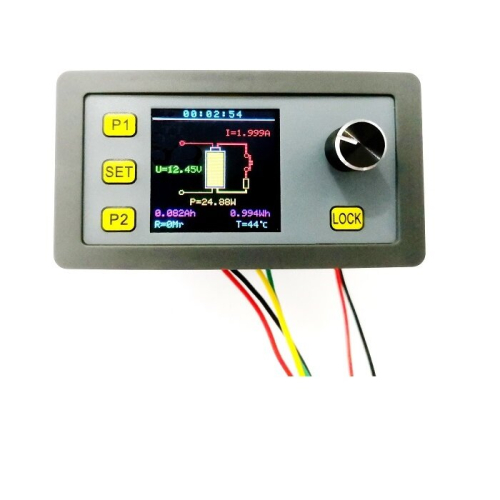

Multi-function Adjustable Constant Current Electronic Load Color Screen LCD Display Multiple Protection Support RS485 Modbus Communication

Multi-function Adjustable Constant Current Electronic Load Color Screen LCD Display Multiple Protection Support RS485 Modbus Communication Description

Description : 1, can display voltage, current, power, ampere-hour, watt-hour, discharge time, internal resistance, temperature 2, can set the discharge current, constant current discharge 3, discharge safety, discharge time automatic statistics 4, can be suspended, can accumulate discharge data 5, fan intelligent temperature control, more than 45 degrees fan start 6, a variety of protection mechanisms, anti-reverse protection, over-current protection, under-voltage protection, over-power protection, over-heat protection 7, with RS485 serial port, can achieve MODBUS protocol communication Release Notes: This electronic load module is divided into two versions, the electronic load version and the version with MODBUS function. The difference is that the power supply with MODBUS version has RS485 communication interface, which can be set or data collected by the host computer software. Communicate with computers, PLCs, DCS, smart meters and other devices! Other than that, the other features are the same! Product parameters: Module supply voltage: 6V-30V Measuring voltage: 0-30V Discharge current: 0A-5A continuously adjustable Discharge power: up to 30W (Note: Do not use super power!!) Working temperature: -10~+75 degrees Resolution: voltage 0.01V, current 0.001A Accuracy: voltage 1% ± 1 word, current 1% ± 1 word Undervoltage protection: Yes (1.5-30V) Over power protection: Yes (1-30W) Overheat protection: Yes (more than 45 degrees fan start, overheat protection is 75 degrees) Input anti-reverse: Yes Wiring method: small screen printing B+B- for measuring voltage, large screen printing B+B- for measuring current Fan: 4010 double roller fan, speed 8000 Module size: length 79mm width 43mm height 70mm Opening size: length 76mm width 39mm Weight: 95g Please Click Here to Download the Software Details Pictures:
