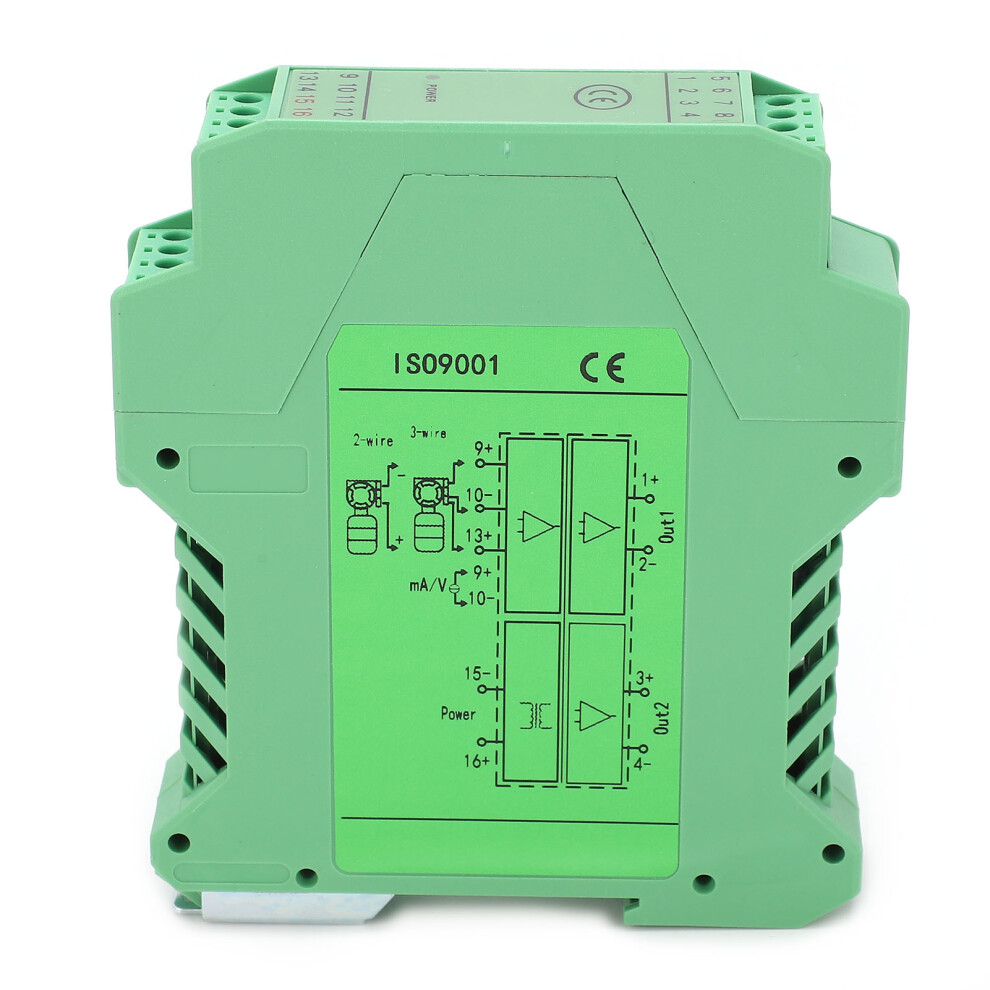

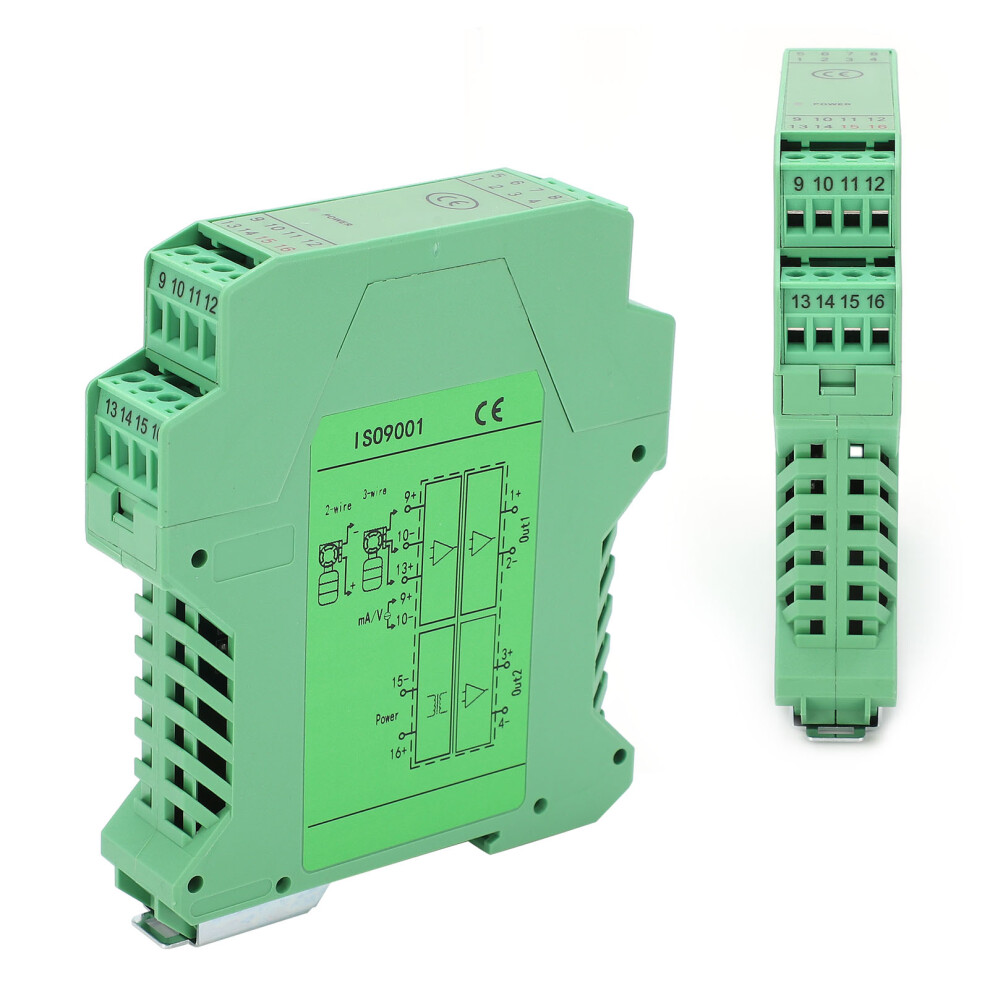

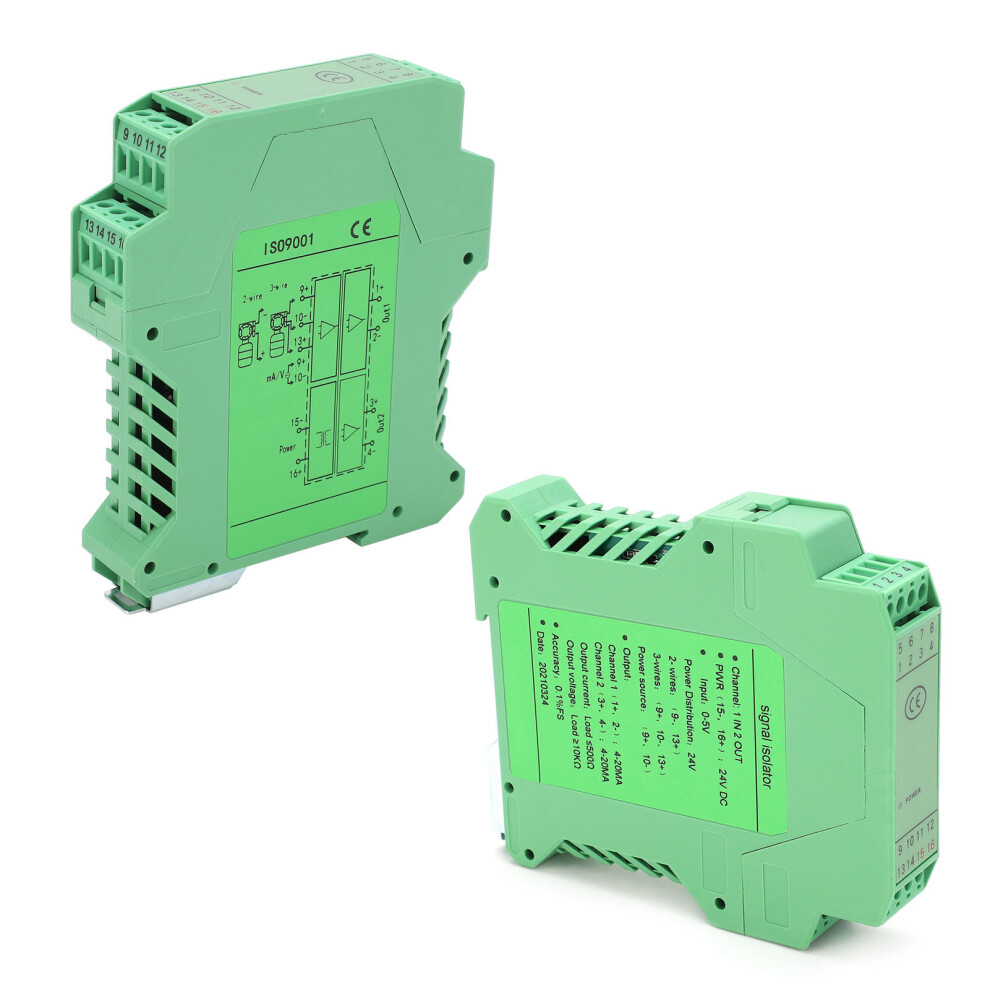

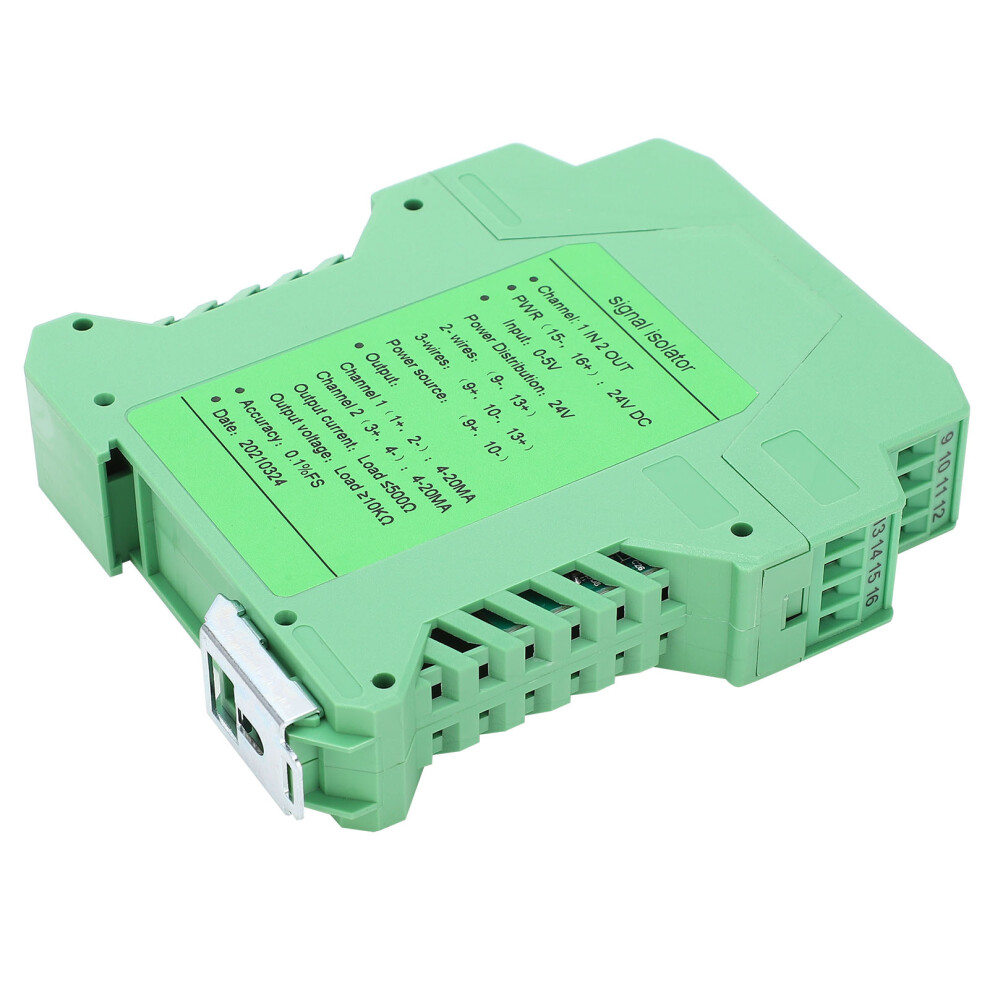

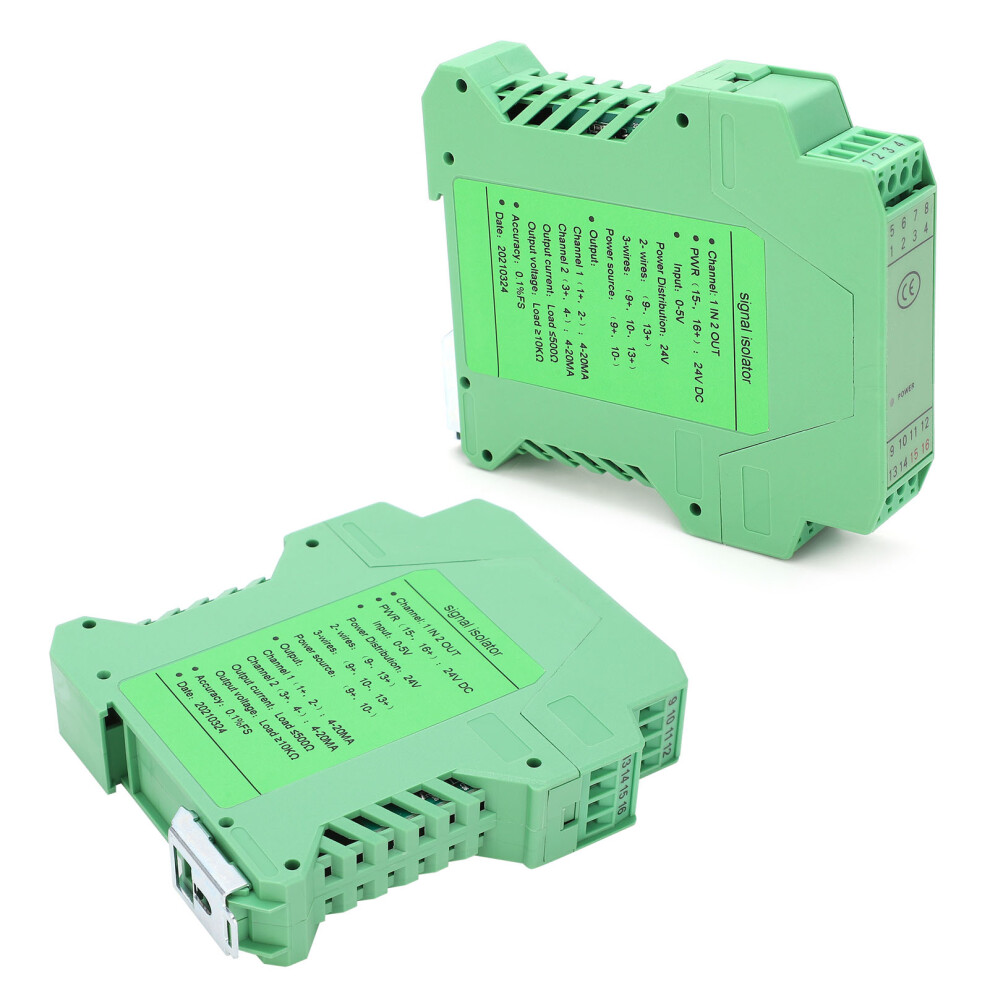

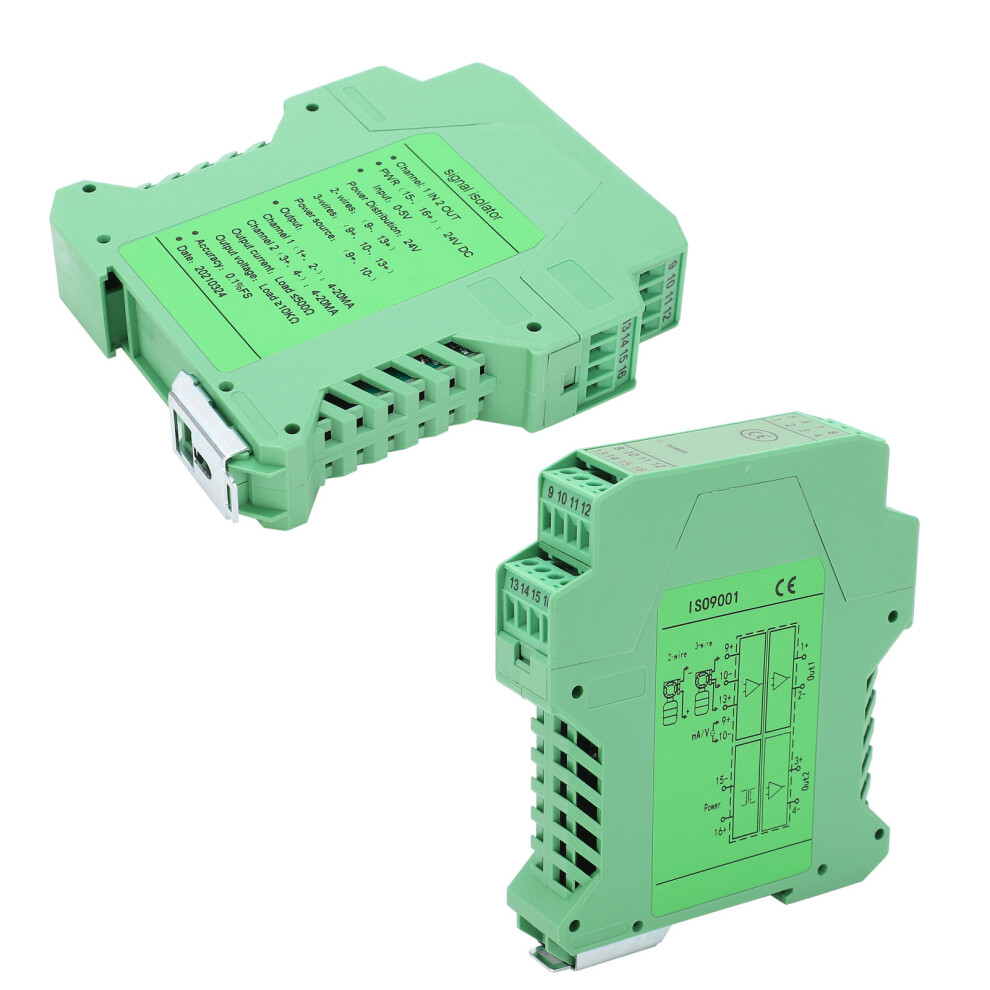

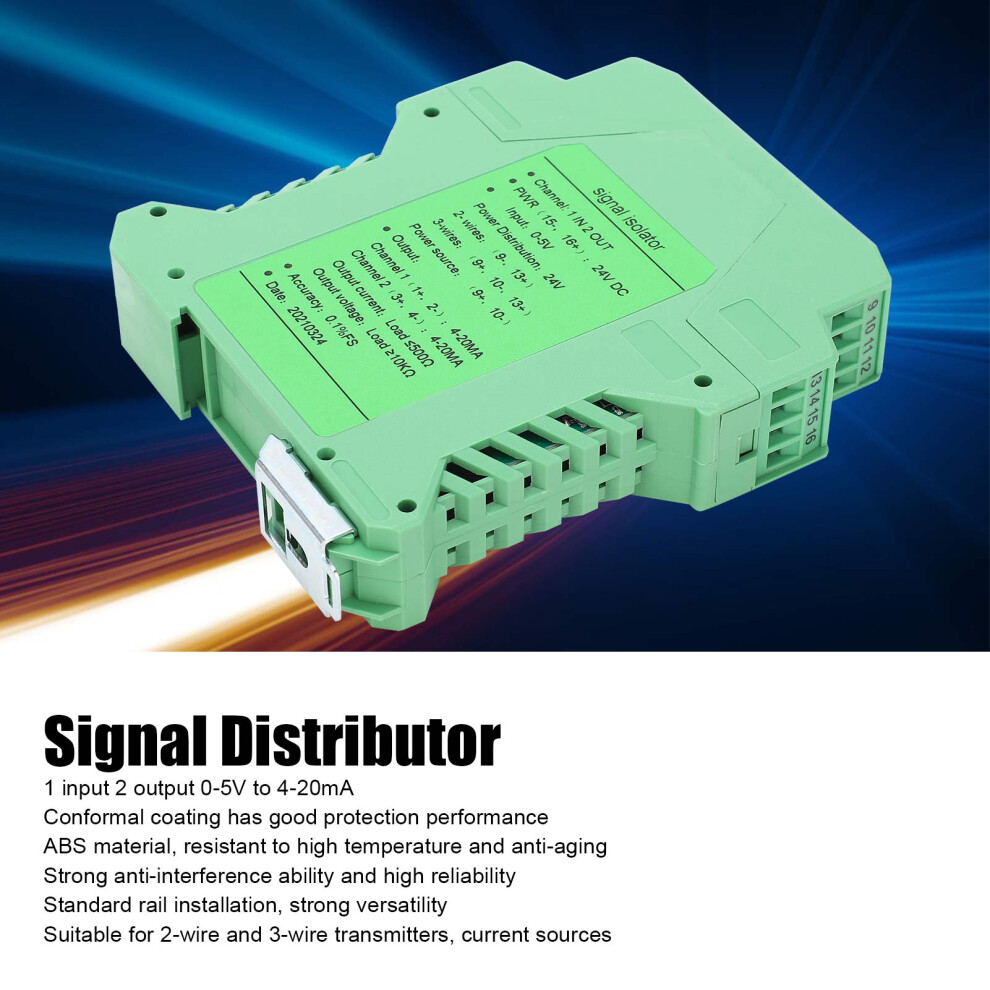

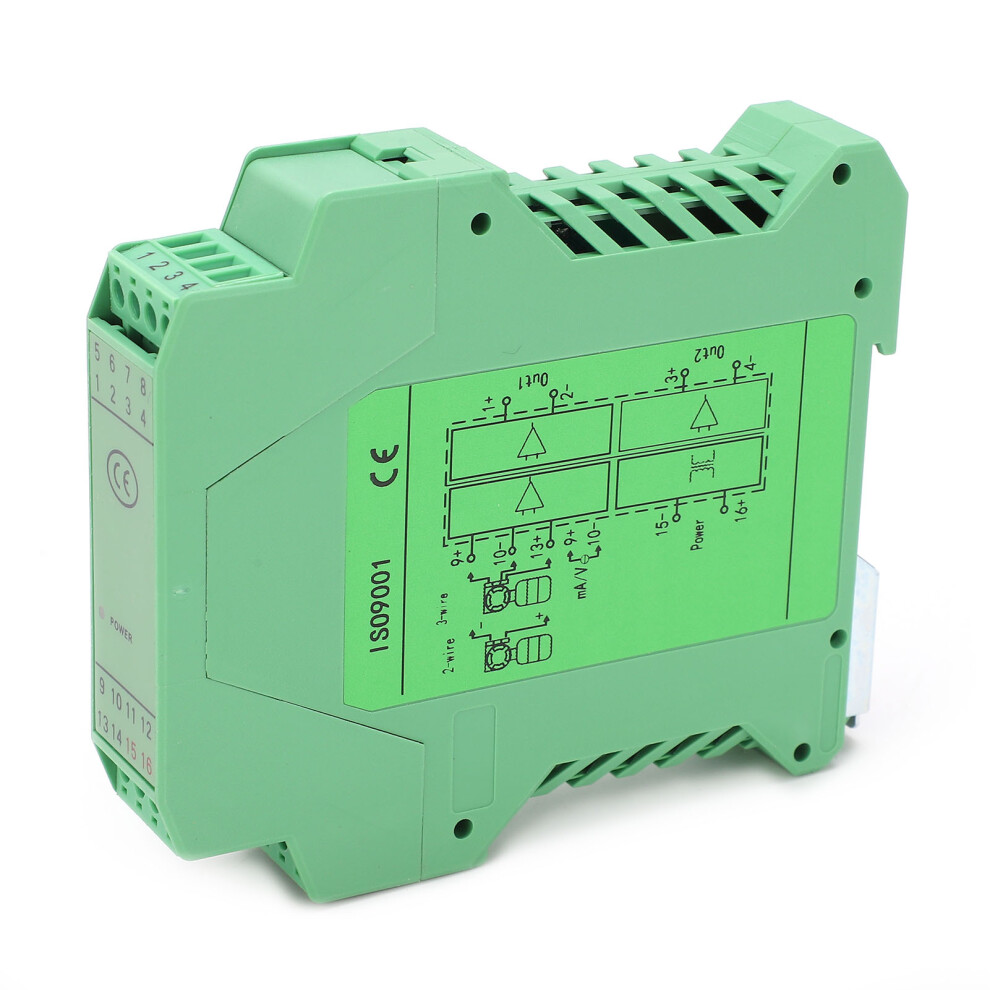

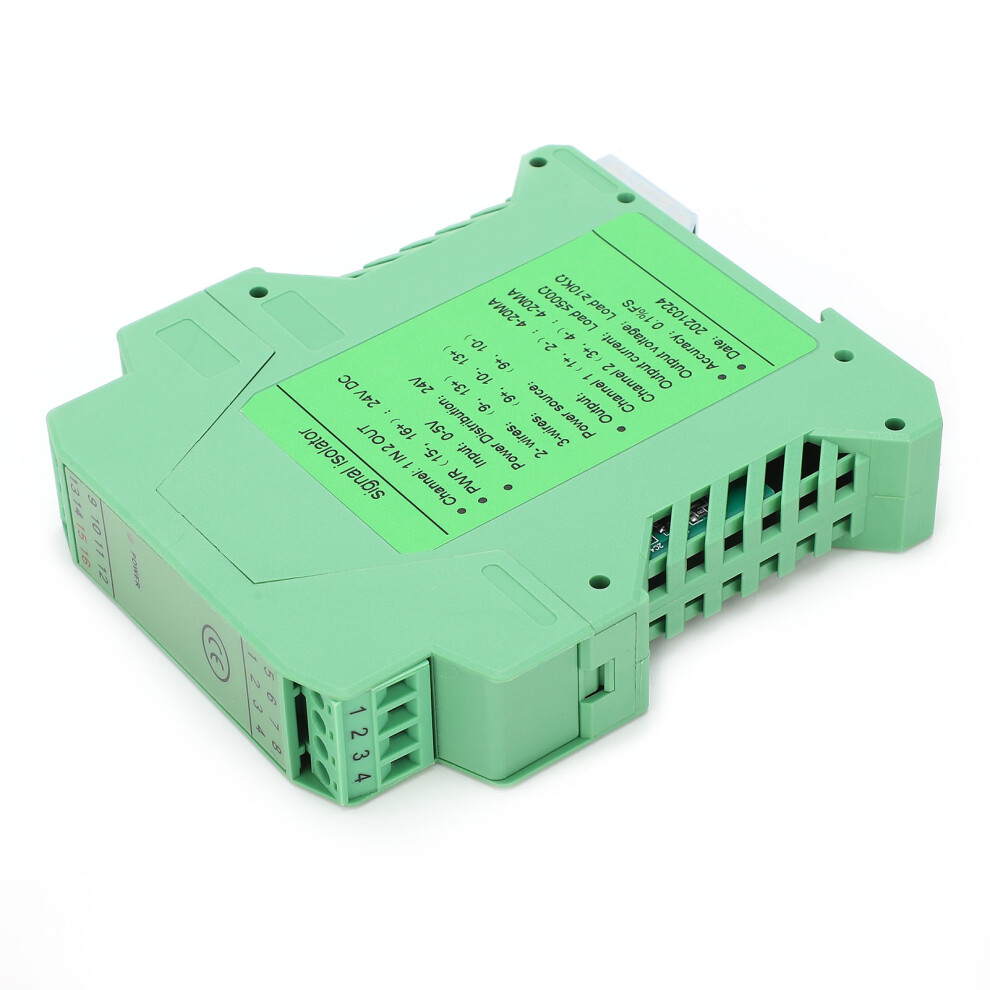

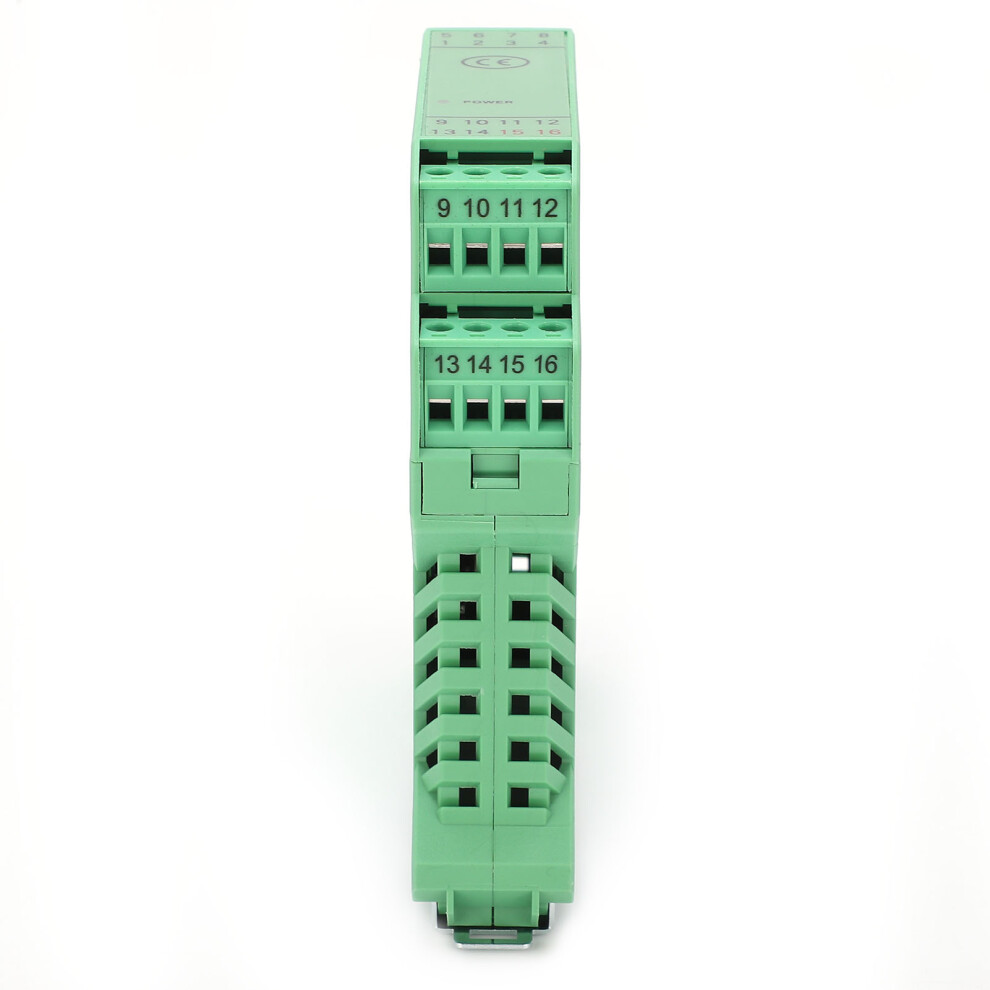

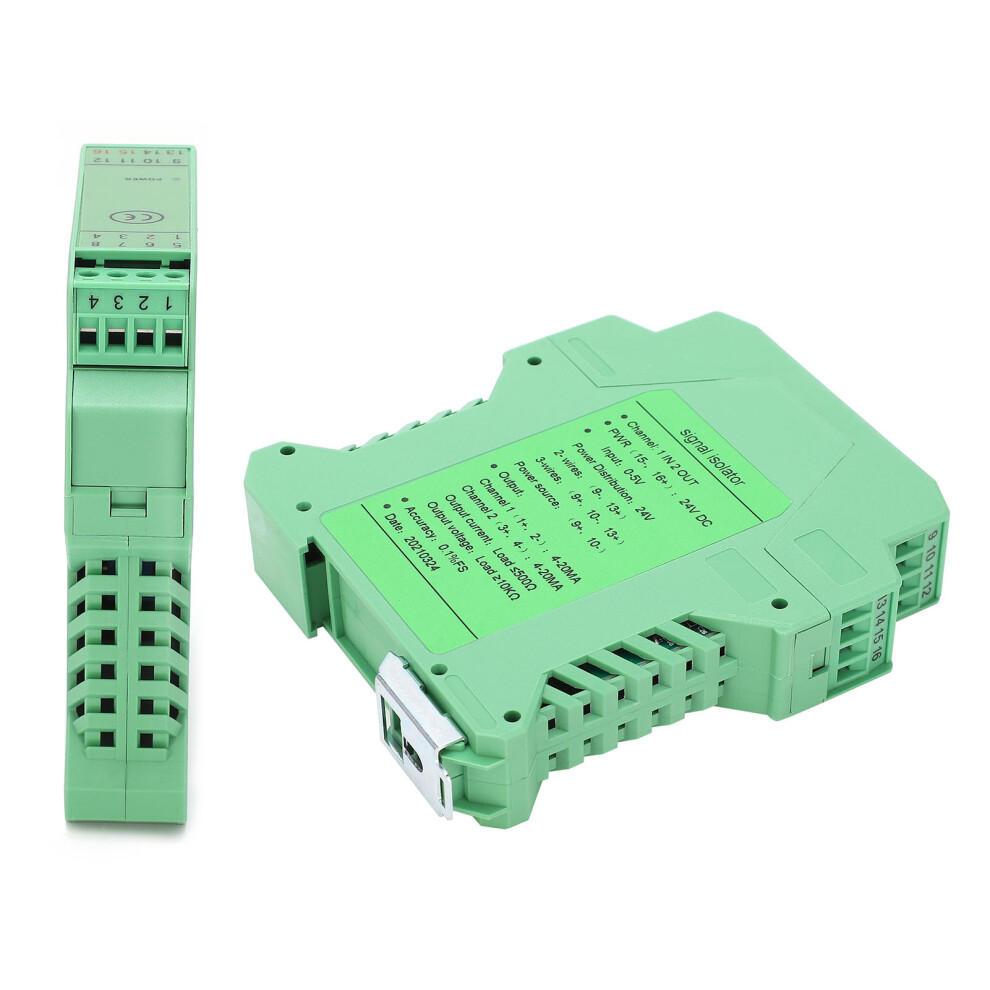

DC Signal Isolator Current Transmitter Circuit Protection 1 Input 2 Output 0‑5V to 4‑20mA

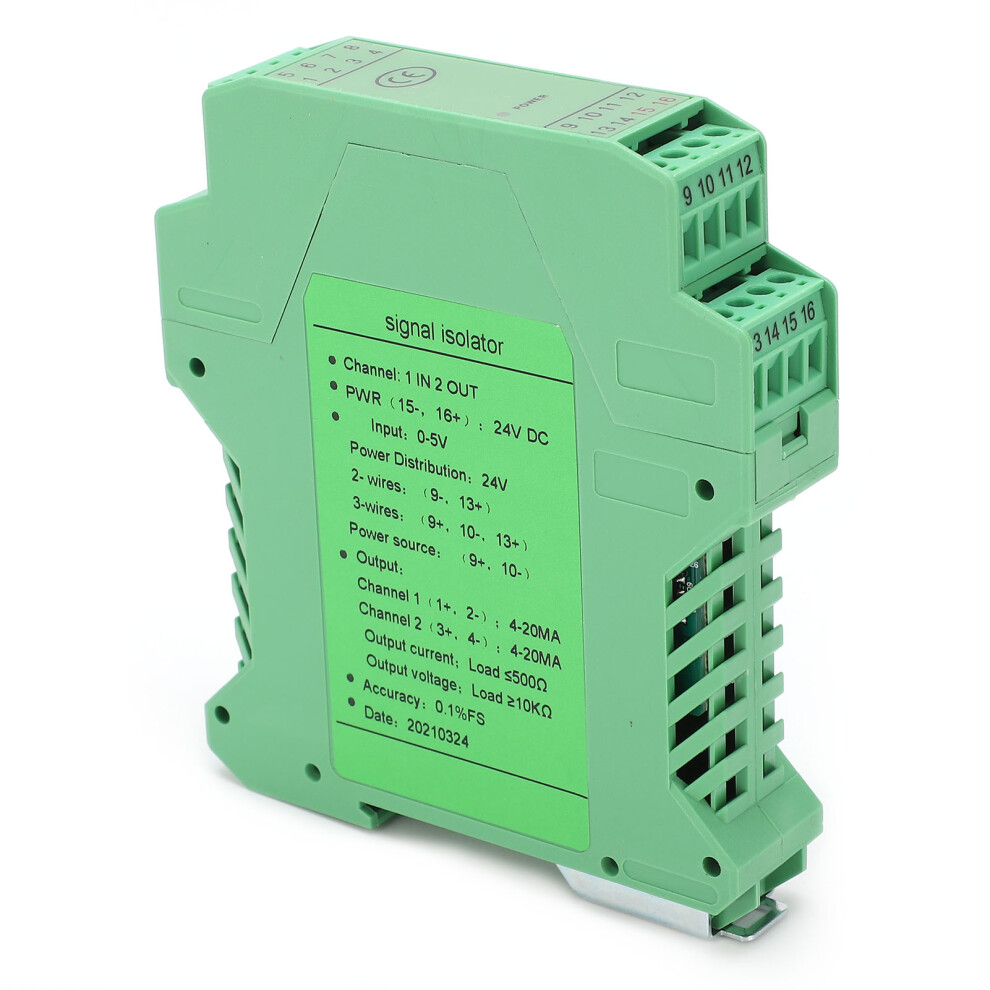

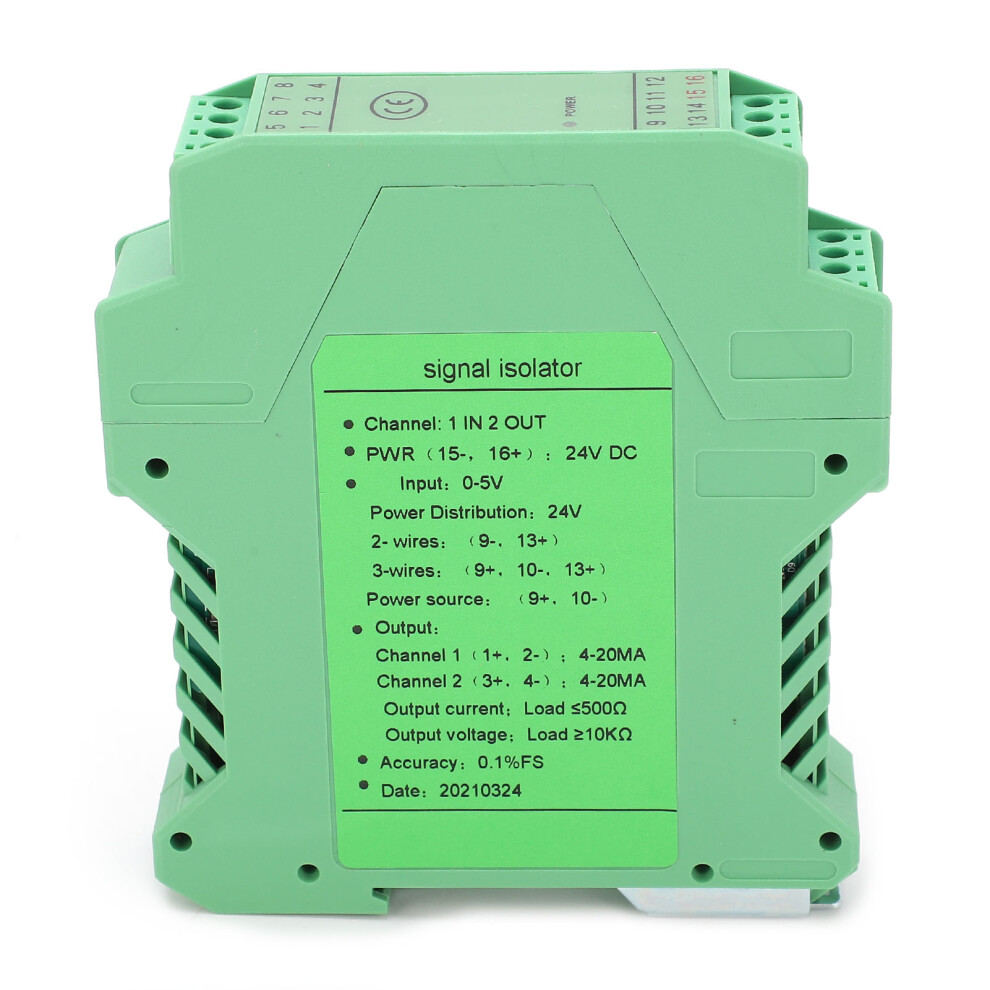

Item Type: DC Signal Isolator
Material: ABS
Model: GLG
Channel: 1 in 2 out
PWR (15-, 16+): 24V DC
Input: 0-5V
Distribution Voltage: DC 24V

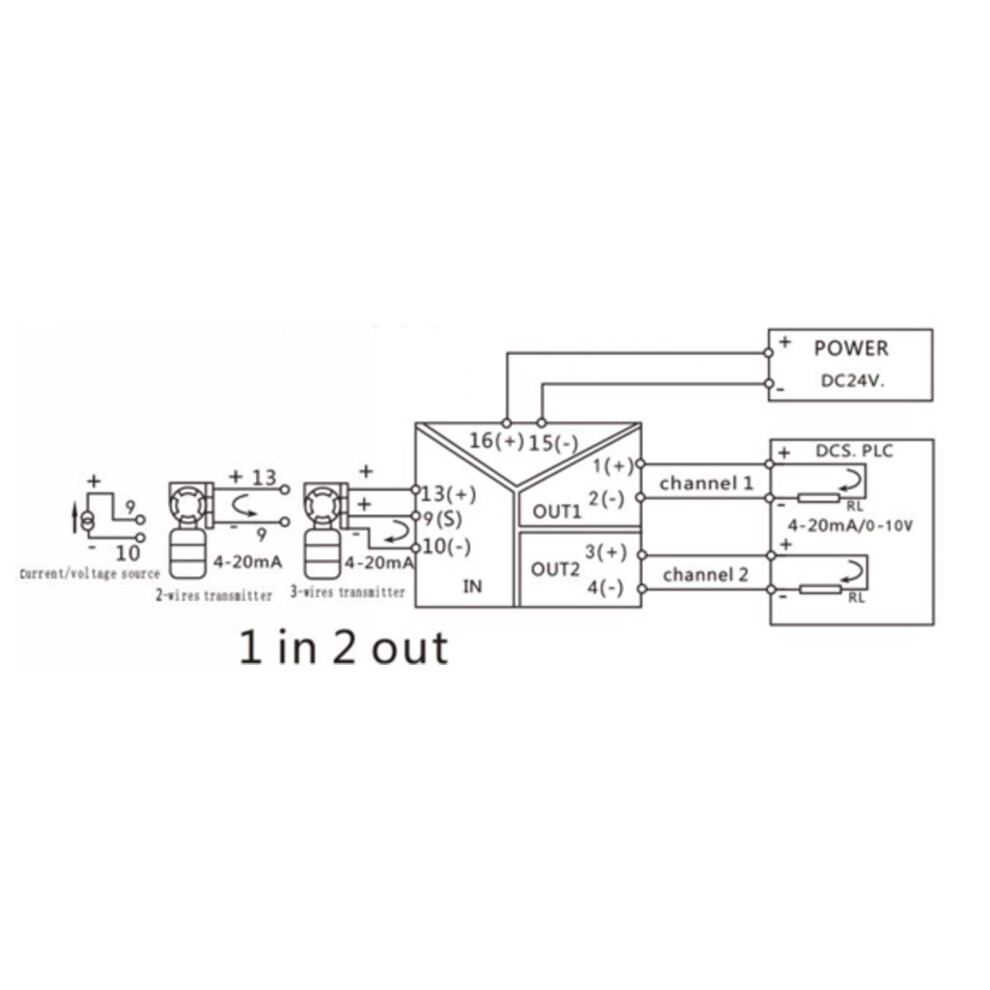

2-Wire: (9-, 13+)
3-Wire: (9+, 10-, 13+)
Power Supply: (9+, 10-)
Output:
Channel 1 (1+, 2-): 4-20mA
Channel 2 (3+, 4-): 4-20mA
Output Current: Load500Ω
Output Voltage: Load10KΩ
Accuracy: 0.1% FS
Working Temperature Range: -20-+55
Electromagnetic Compatibility: Comply with GB/T 18268 (1EC61326-1)
Applicable Field Equipment: 2-wire, 3-wire transmitter, current source
Product Description:

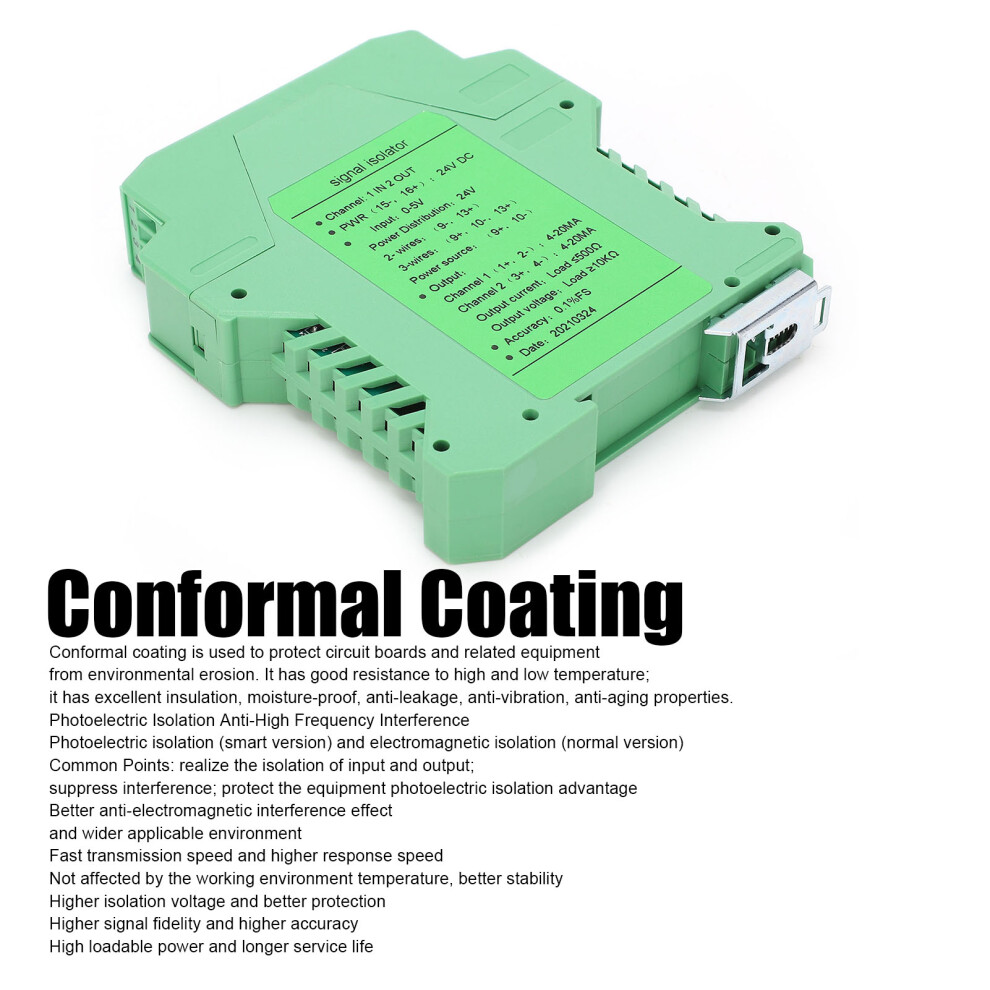

DC24V power supply, provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current signal generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface current source, 2-wire system, 3-wire system transmitter General purpose; internal use of high-efficiency magnetic isolation technology, isolation between input, output, and power supply, with high accuracy, high linearity, low temperature drift and other characteristics.
