Multi- Instrument Odometer LCD Screen Display Tachometer Motorcycle Supplies

Multi- Instrument Odometer LCD Screen Display Tachometer Motorcycle Supplies Description

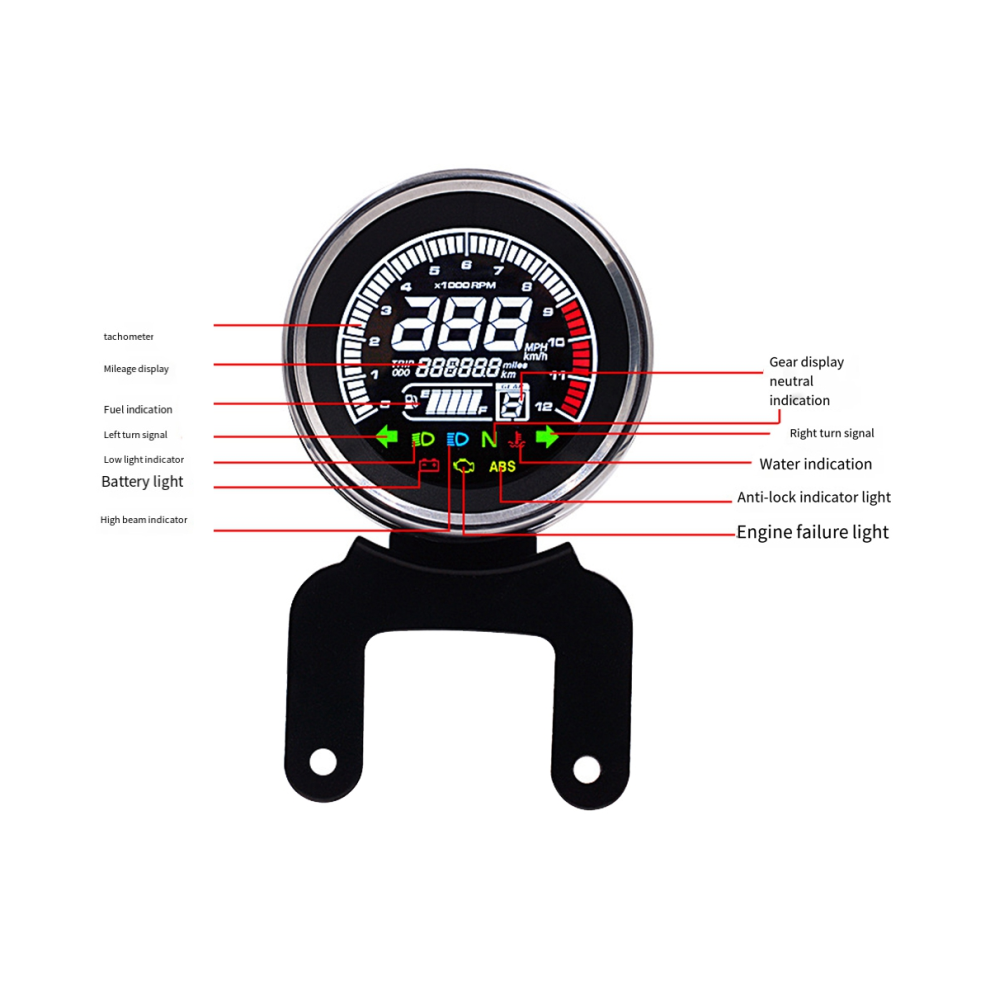

Features: 1. Complete functions: the function includes (speedometer, tachometer, fuel gauge, water temperature gauge), the LCD screen is very clear, the viewing angle is and the soft vision, relieve eye fatigue.
2. Left and right turn signals: show where the vehicle's turn signals are located. Usually in the flameout state, when the owner lights the turn signal, the indicator will light up in the corresponding direction.
3. Gear position (N, 1-6 gear position display function, and there is no need to add another gear positioner)
4. Oil quantity indicator: shows the amount of oil stored in the vehicle. When the electric door is opened and the meter performs self-test, the fuel gauge function prompts you whether you need to refuel.
5. : display the status of the vehicle , usually extinguished, when the owner turns on the , the indicator light indicates that the vehicle is on; 6. KM / H to (metric system display switch)

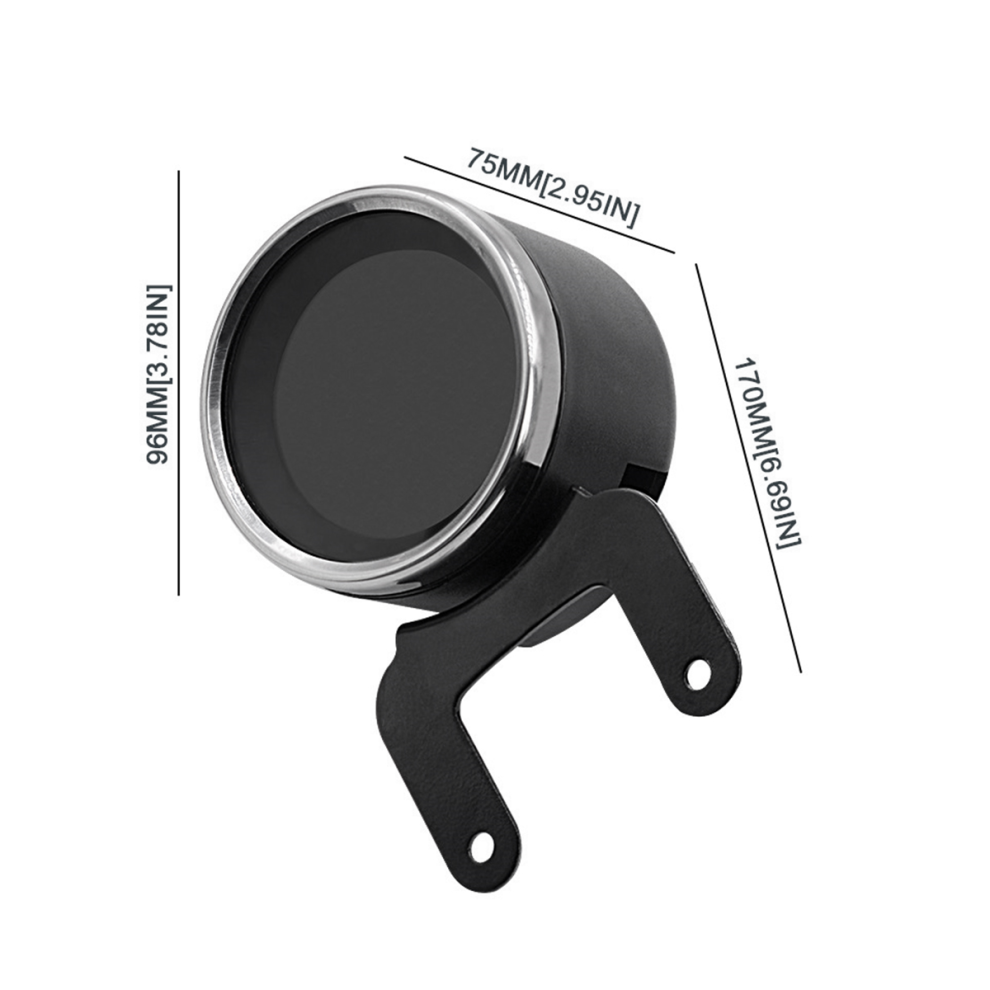

Specifications: Product size: surface diameter: 96mm/3.78inch; thickness: 75mm/2.95inch; height: 170mm/6.69inch
LED backlight: white light
Input voltage: DC 12V
Working voltage: 12V
Speedometer: Tire model 120/80/17, 34Hz means 60KM/H. 5%, 34Hz means 63KM/H
Fuel gauge: LCD display F point 8?-E point 98?
Water temperature 165?, long indicator display
Main switch off, standby power consumption is less than 4mA
Button Function:
A. Short press the button to switch between total and subtotal.
B. In the total interface, press and hold the button for 4 seconds, the metric system switches, the default is in metric system; after switching, it can be saved even if it is completely powered off.
C. In the subtotal interface, press and hold the button for 4 seconds, and the subtotal is cleared.
Color: Black
Material: plastic

Package Contents:
1 x Odometer

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
