NE5532 2.1 Channel Preamp Board with Low Noise Audio Processing and Subwoofer Control

NE5532 2.1 Channel Preamp Board with Low Noise Audio Processing and Subwoofer Control Description

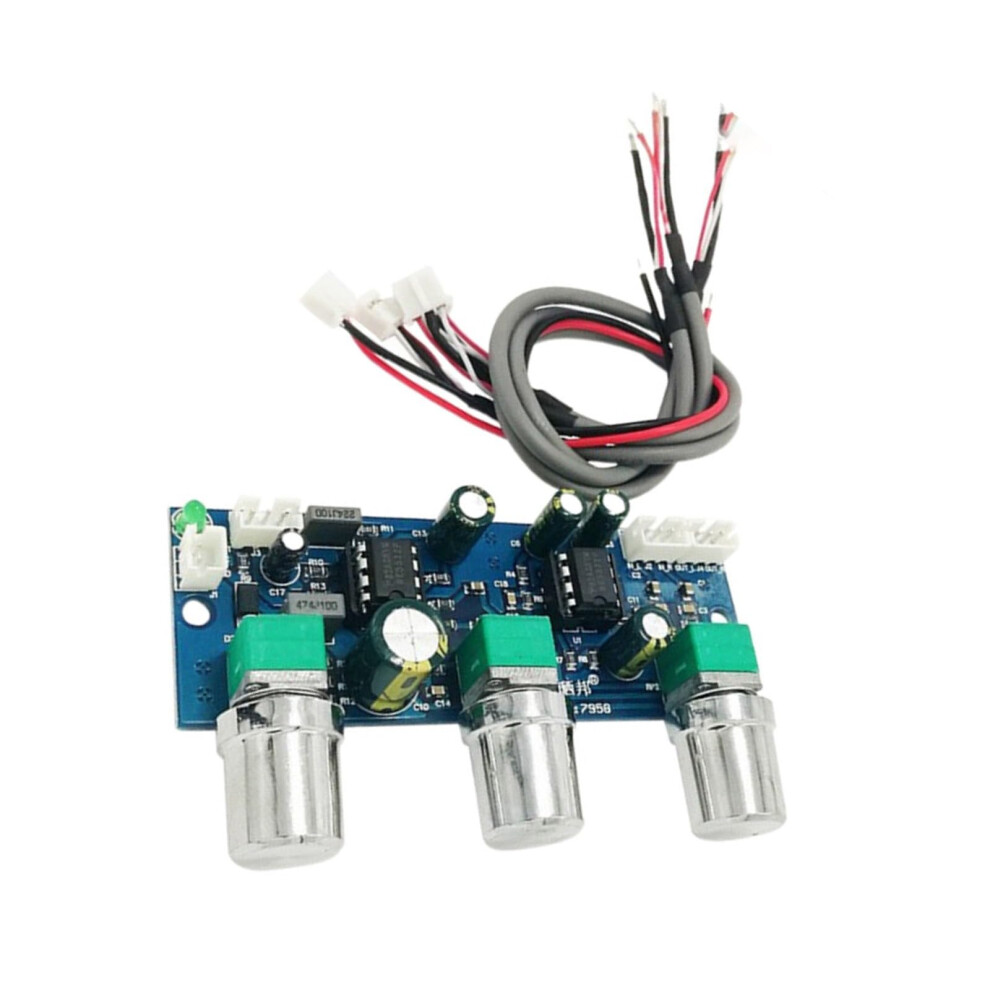

2.1 Channel Preamp Board (NE5522) Overview This 2.1 channel preamp board uses an NE5522 operational amplifier to provide precise audio signal processing. It combines lowpass filtering and subwoofer optimization in a single power design and acts as a tuned passive mixing stage that shapes and low frequency content before sending the signal to an amplifier board. Key benefits Precise signal handling: NE5522 op amp provides stable, lownoise processing for clearer audio transmission. Integrated filtering and subwoofer control: Builtin lowpass filtering and subwoofer optimization reduce the need for separate crossover modules. Passive tuning for tonal balance: The tuned passive mixing stage adjusts highs and lows of the input signal so the amplifier receives the intended frequency balance. Improved conversion efficiency: Frequency selection through capacitors helps deliver the desired and low bands and improves conversion rates to the amplifier stage. Easy integration: Designed to be used ahead of amplifier boards in 2.1 speaker systems and audio projects that require subwoofer management. Functions and attributes Function: Preamplification, passive mixing, lowpass filtering, and subwoofer optimization for 2.1 channel setups. Core component: NE5522 operational amplifier for precise processing. Filtering method: Frequency selection achieved through capacitors and the onboard filter network. Design: PCBbased preamp board configured as a tuned passive mixing stage that feeds an external amplifier board. Compatibility: Intended for use with standard amplifier boards and 2.1 speaker systems where a dedicated lowpass/subwoofer path is required. Performance: Provides targeted and low frequency separation and stable preamplevel output for downstream amplification. Practical applications Home audio 2.1 systems: Add refined subwoofer control and lowpass filtering ahead of the power amplifier for smoother bass integration. Desktop or multimedia speaker setups: Improve bass management and overall tonal balance before sending signals to active or passive amplifiers. DIY audio and custom amplifier builds: Use as a compact preamp and passive mixer to shape frequency response prior to amplification. What it solves Eliminates the need for separate crossover modules by combining lowpass filtering and subwoofer optimization on one board. Reduces noise and preserves signal integrity using a reliable NE5522 op amp. Provides a simple, passive method to balance highs and lows before amplification, improving overall system coherence. Specifications summary Channel configuration: 2.1 preamp Op amp: NE5522 Core features: Lowpass filtering, subwoofer optimization, passive mixing via capacitorbased filtering Intended use: Preamp stage before amplifier board in 2.1 audio systems and related projects
