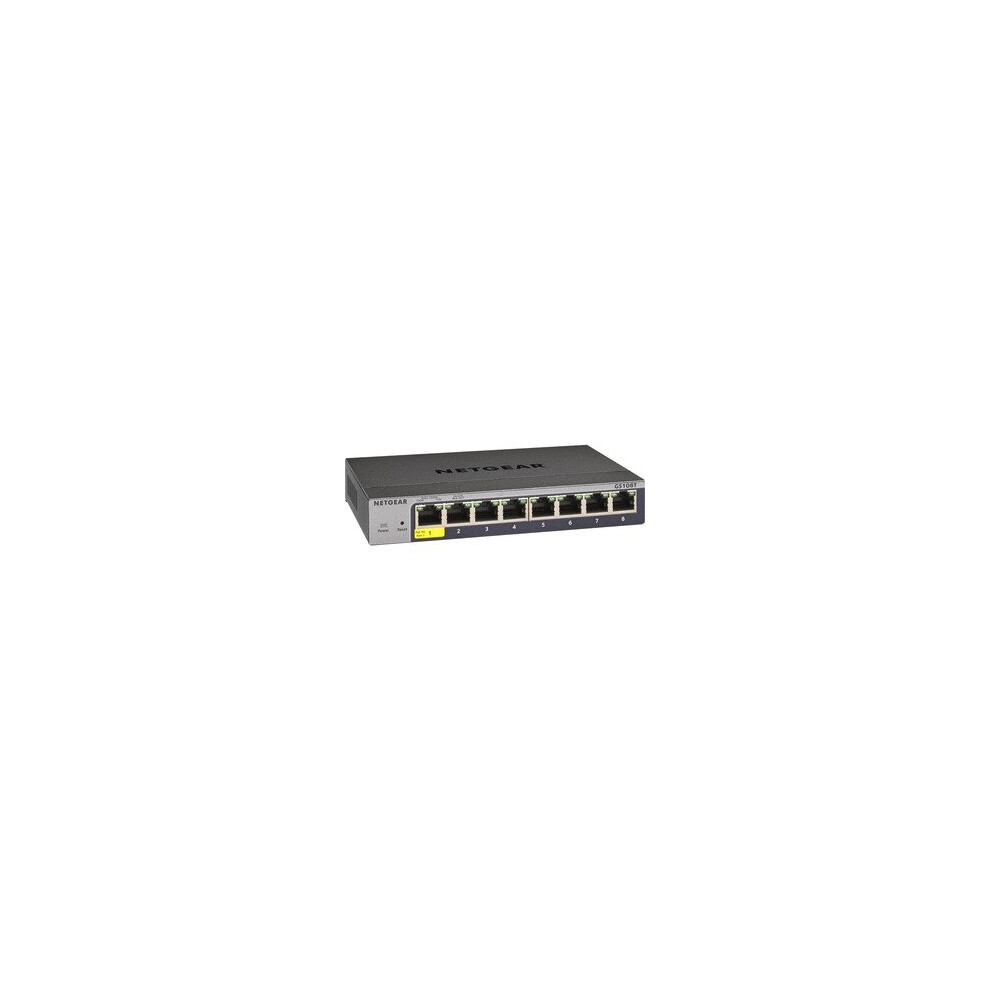

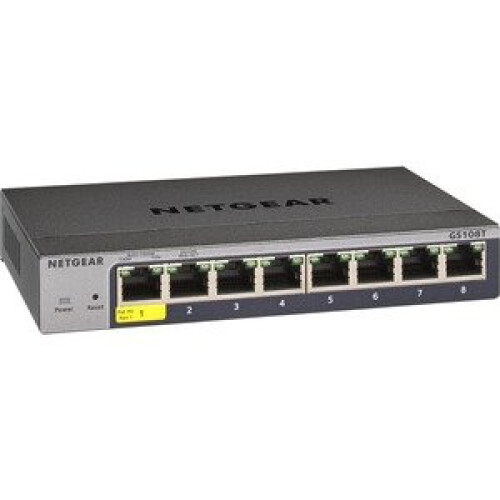

Netgear Gs108T-300. Switch Type: Managed Switch Layer: L2. Basic Switching GS108T-300UKS

Netgear Gs108T-300. Switch Type: Managed Switch Layer: L2. Basic Switching GS108T-300UKS Description

Netgear GS108T-300. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x. DC input voltage: 12 V. Power connector: DC-in jack The NETGEAR GS108Tv3 8-Port Gigabit Smart Managed Pro Switch with Cloud Management is fanless, supporting perfectly silent desktop operation or wall mounting. The GS108Tv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and QoS for wireless converged networks and mobility. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing,IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS108Tv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR ProSAFE Limited Lifetime Warranty and 24/7 support including lifetime chat.
Power over Ethernet (PoE)

Power over Ethernet (PoE)N

Design

LED indicatorsActivity,Link,Power,Speed
Product colourGrey

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportY

Multicast features

Number of multicast groups filtered256
Multicast supportY
IPv4 multicast entries32

Ports & interfaces

Power connectorDC-in jack
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity8

Packaging data

Cables includedAC
Package typeBox
Quick start guideY
Rack mount kitY

Protocols

Supported network protocolsHTTP, HTTPS
GARP VLAN Registration Protocol (GVRP)Y
Data link protocolsEthernet, Fast Ethernet, Gigabit Ethernet
Management protocolsSNMP

Networking

Spanning tree protocolY
Rate limitingY
Port mirroringY
MAC address auto-learning supportedY
Networking standardsIEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x
Number of VLANs64
Copper ethernet cabling technology10BASE-T,100BASE-T,1000BASE-T
Fast leaveY
Flow control supportY
Full duplexY
Link aggregationY
Broadcast storm controlY
Address Resolution Protocol (ARP) entries (max)512


Weight & dimensions

Height27 mm
Weight4.3 kg
Width158 mm
Depth101 mm

Data transmission

Jumbo frames supportY
Switching capacity16 Gbit/s
Store-and-forwardY
Packet buffer memory0.5 MB
MAC address table8000 entries

Power

AC input frequency50/60 Hz
Input current1 A
AC input voltage100 - 240 V
Power supply includedY
DC input voltage12 V

Security

Security algorithms802.1x RADIUS
Access Control List (ACL) IPv6 entries100
DHCP featuresDHCP client
IGMP snoopingY
Access Control List (ACL)Y

Operational conditions

Storage temperature (T-T)-20 - 70 -C
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 40 -C
Storage relative humidity (H-H)0 - 95%
Non-operating altitude0 - 3000 m
Heat dissipation18.66 BTU/h

Performance

Firmware upgradeableY
Built-in processorY
Internal memory128 MB
Flash memory32 MB
Mean time between failures (MTBF)2388657 h
Memory typeRAM
Processor frequency500 MHz
