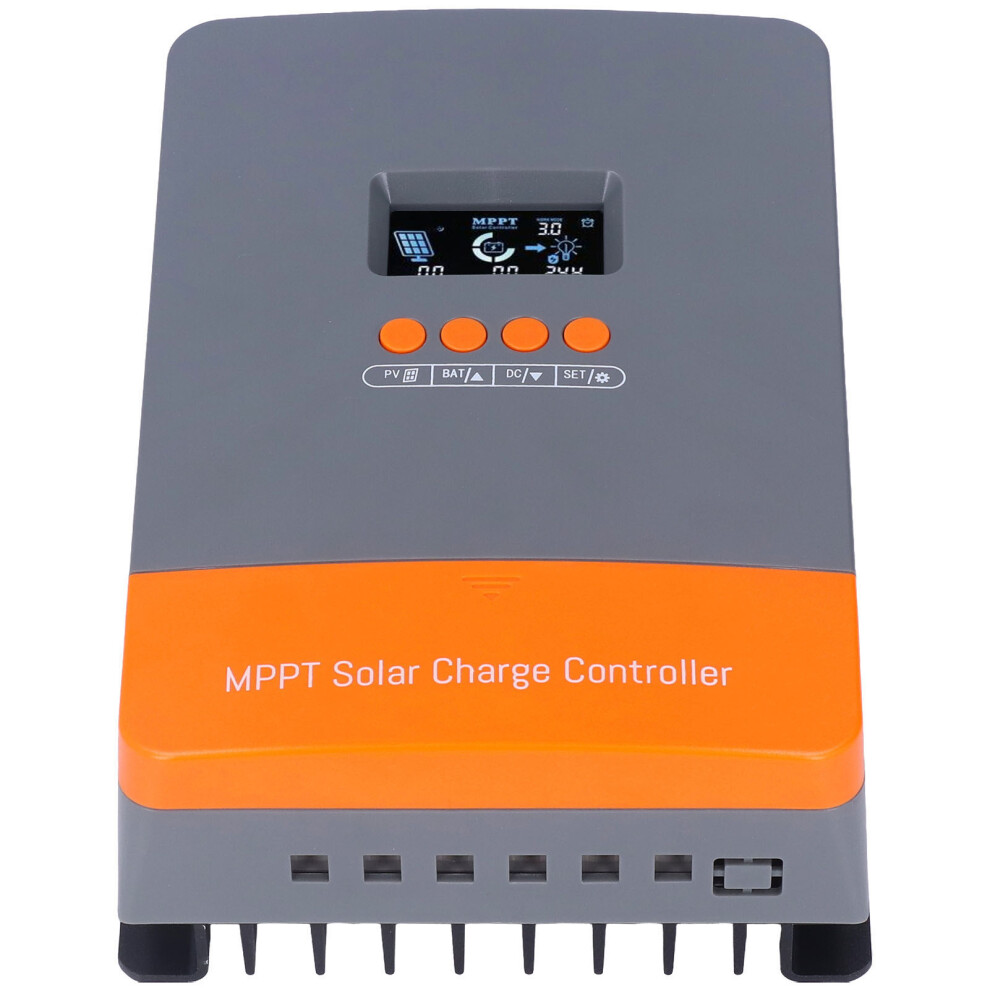

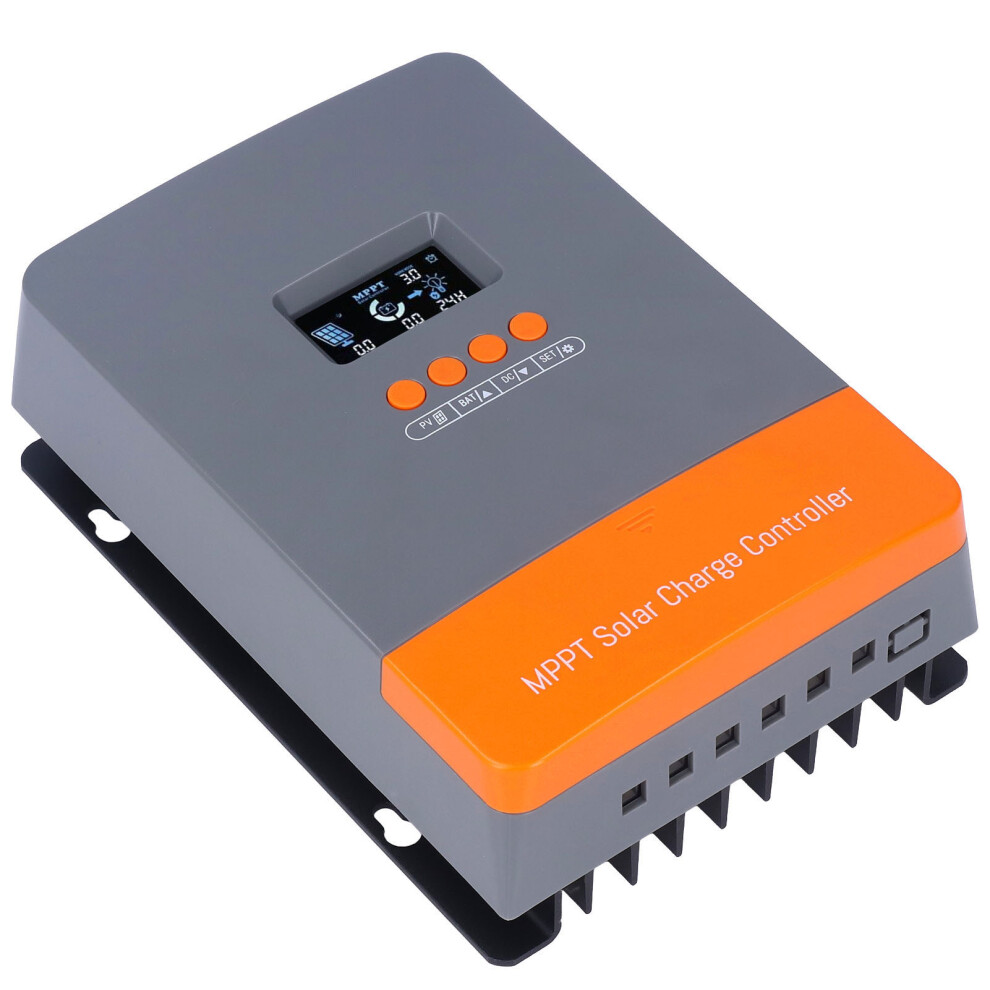

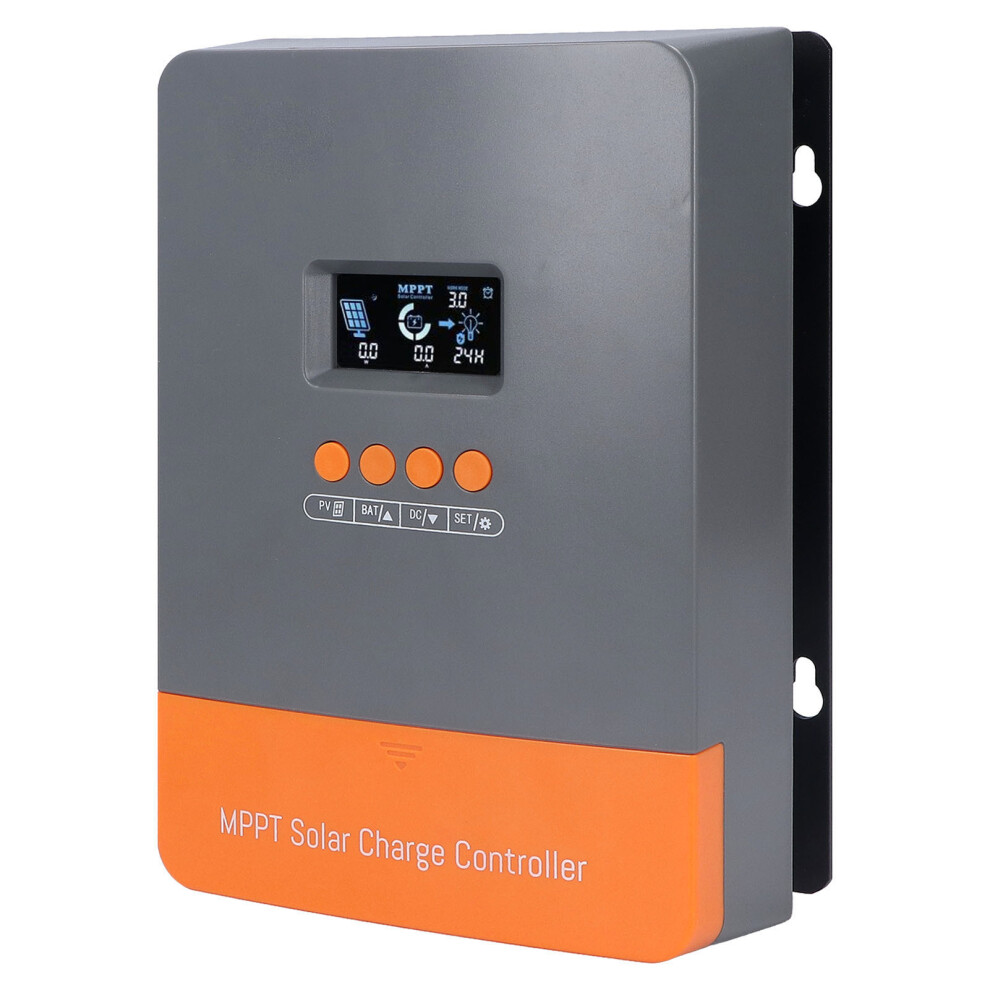

O Layer MPPT Solar Charge Controller LCD Display

O Layer MPPT Solar Charge Controller LCD Display Description

1、APPROPRIATE TYPES: MPPT solar charge and discharge controller for 720W (12V), 1440W (24V), 2100W (36V), 2800W (48V), with 160V maximum input voltage. 2、TRACKING AND EFFICIENCY: The tracking rate of the maximum power is 99%, the maximum conversion rate is 98%, with high efficiency and good stability. 3、MULTIPLE PROTECTION: This solar controller has overcharge, overdischarge, overload, short circuit, reverse polarity, overheat and overvoltage protection. 4、LCD DISPLAY: Clearly view data and status, with real time energy statistics function and multiple load control modes, display daily power generation and current curve. 5、3 STAGE CHARGING MODE: With constant current (MPPT), constant voltage, floating charging mode, MPPT automatic maximum power point tracking, easy to operate.
Item Type: Solar Charge Controller
MPPT Controller Model: POW-M60-PRO
Charging Mode: MPPT automatic maximum power point tracking
3 Stage Charging Mode: Constant current (MPPT), constant voltage, floating charge
System Type: DC12V/24V/36V/48V
12V System: DC9V~DC15V
24V System: DC18V~DC29V
36V System: DC30V~DC39V
48V System: DC40V~DC60V
Soft Start Time: 1S
Dynamic Response Recovery Time: 100us
Photovoltaic Module Utilization Rate: 99%
Rated Current: 60A
Display: LCD Display
Overshoot Protection: Yes
Maximum Input Voltage: DC160V
Solar Panel Input Power: 720-2800W
Input Anti Backflow Protection: Yes
Temperature Protection: 75
Temperature Rise Protection: Above 70, reduce power output, below 55 normal power output
Fan On Temperature: >40
Fan Off Temperature:
