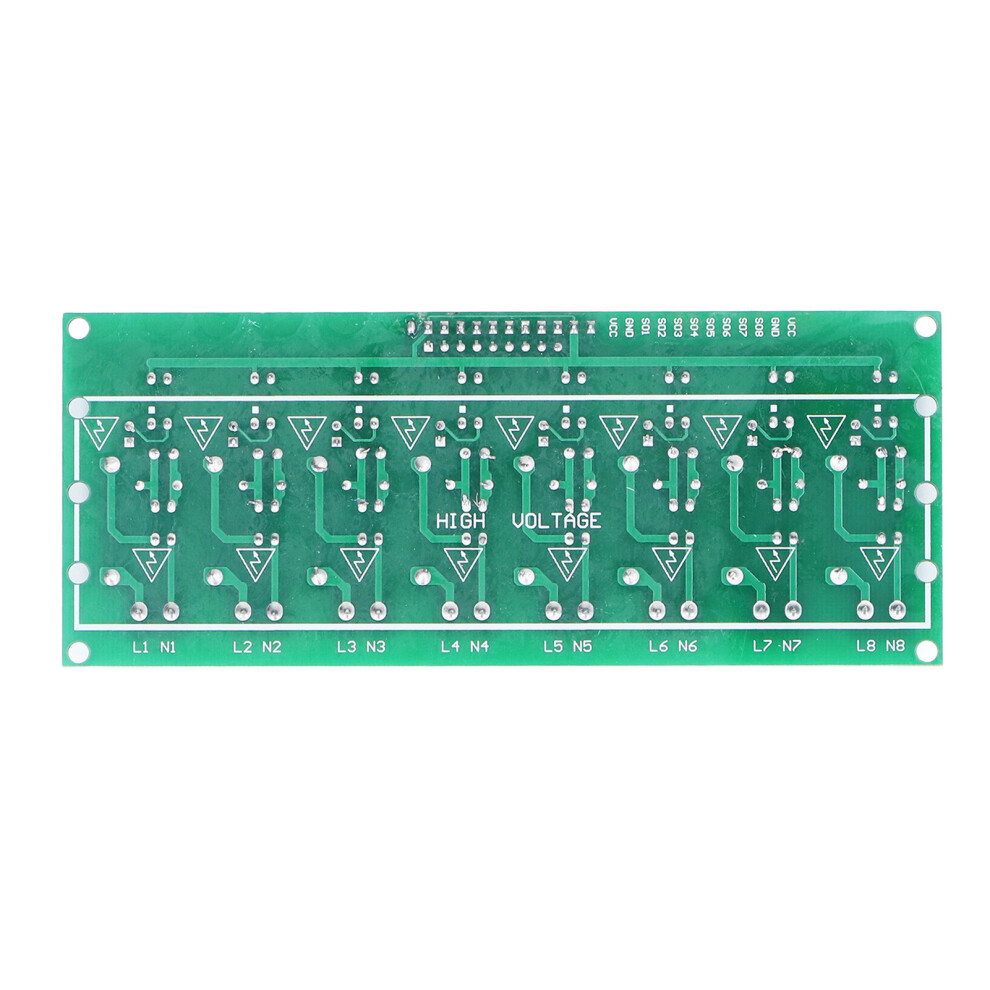

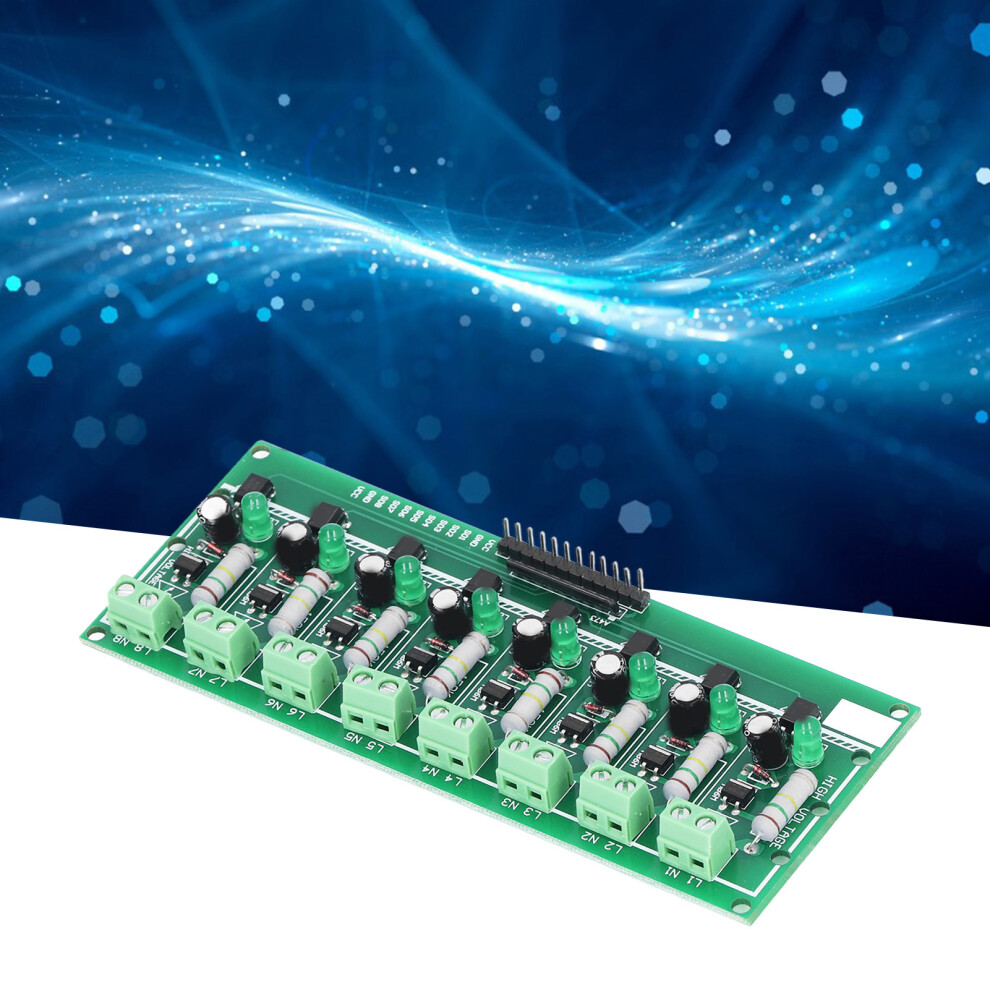

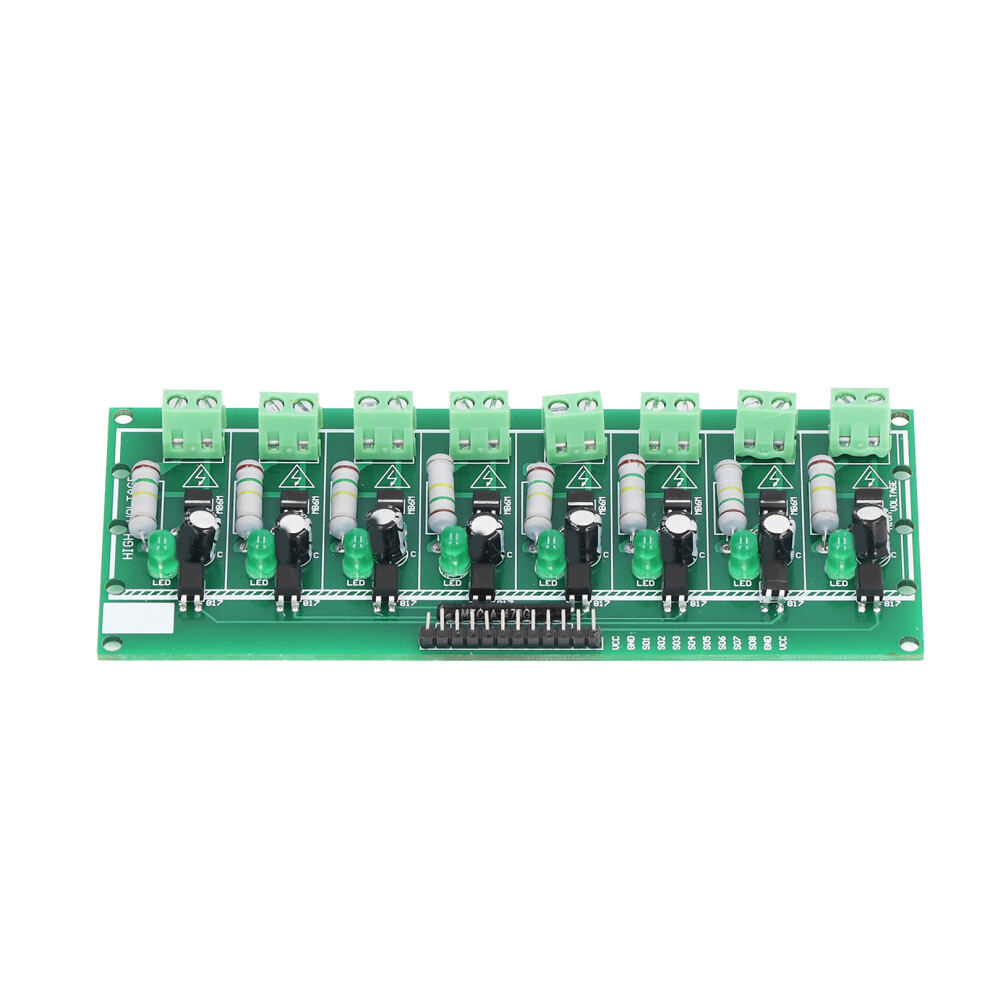

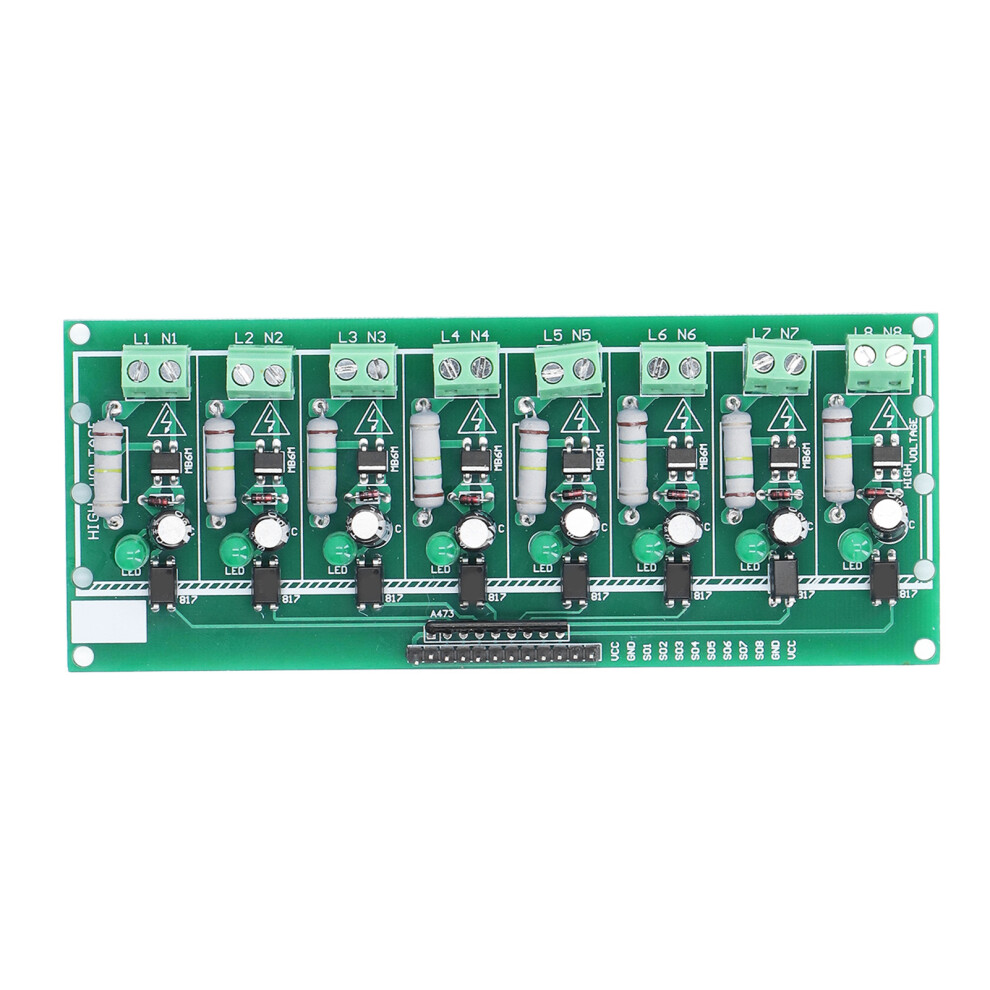

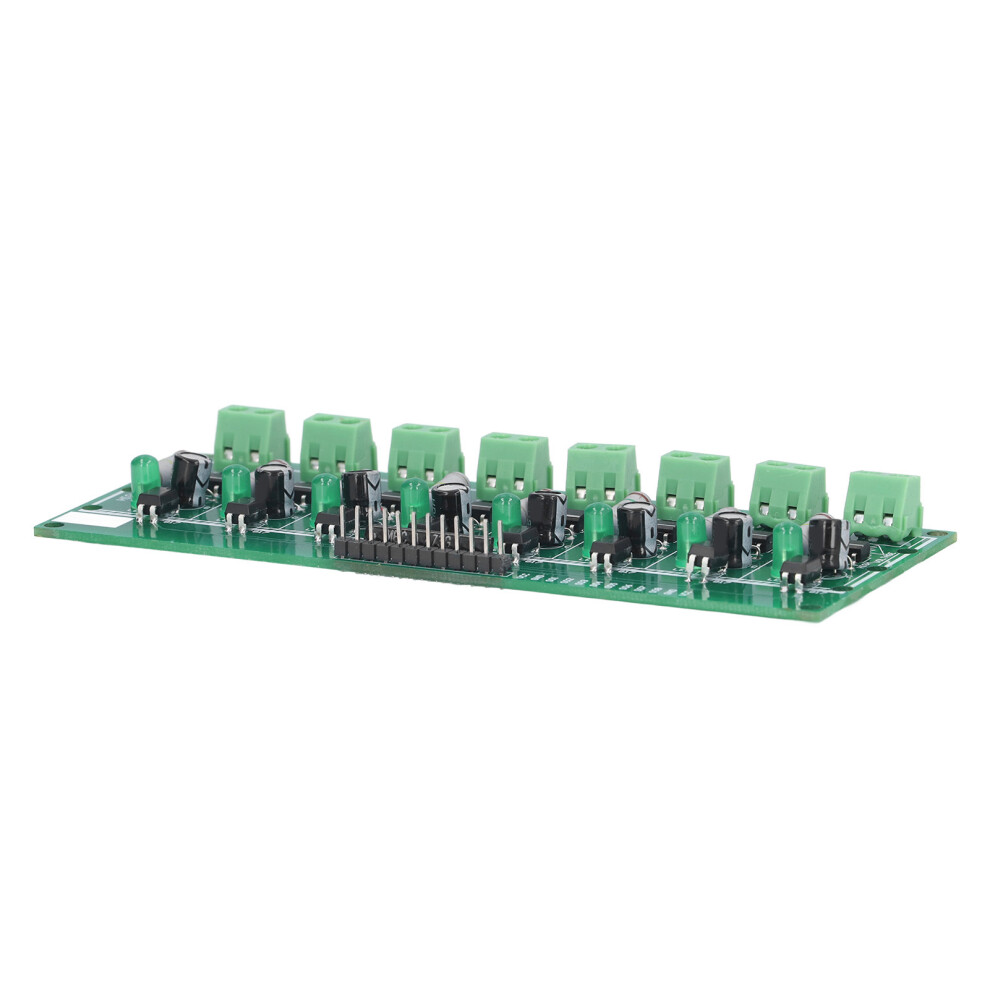

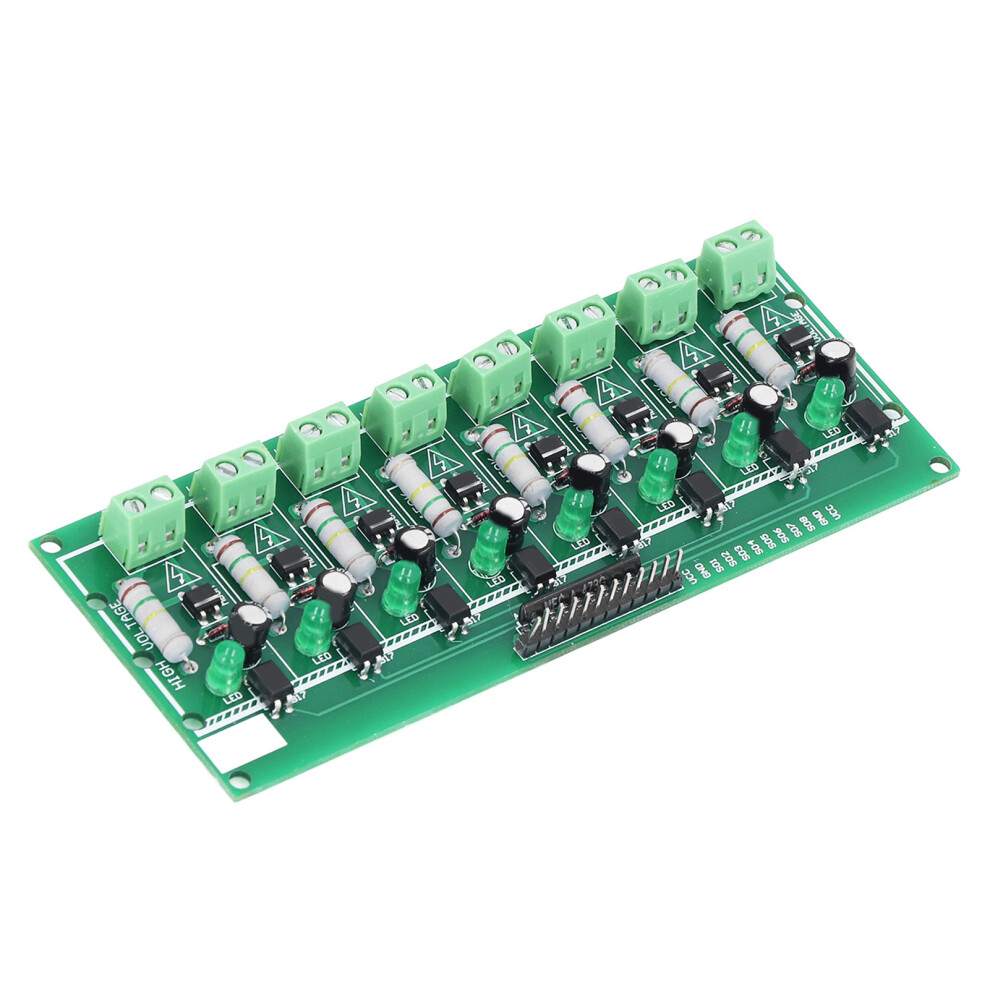

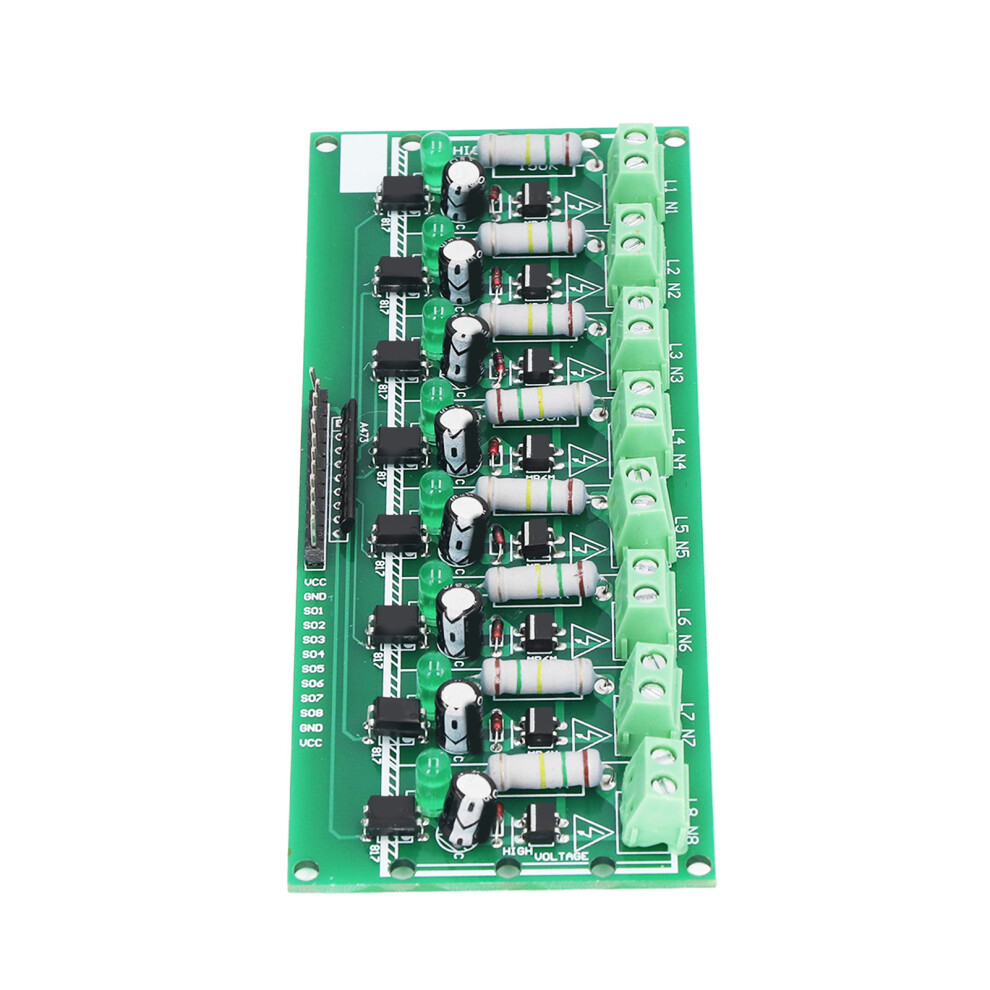

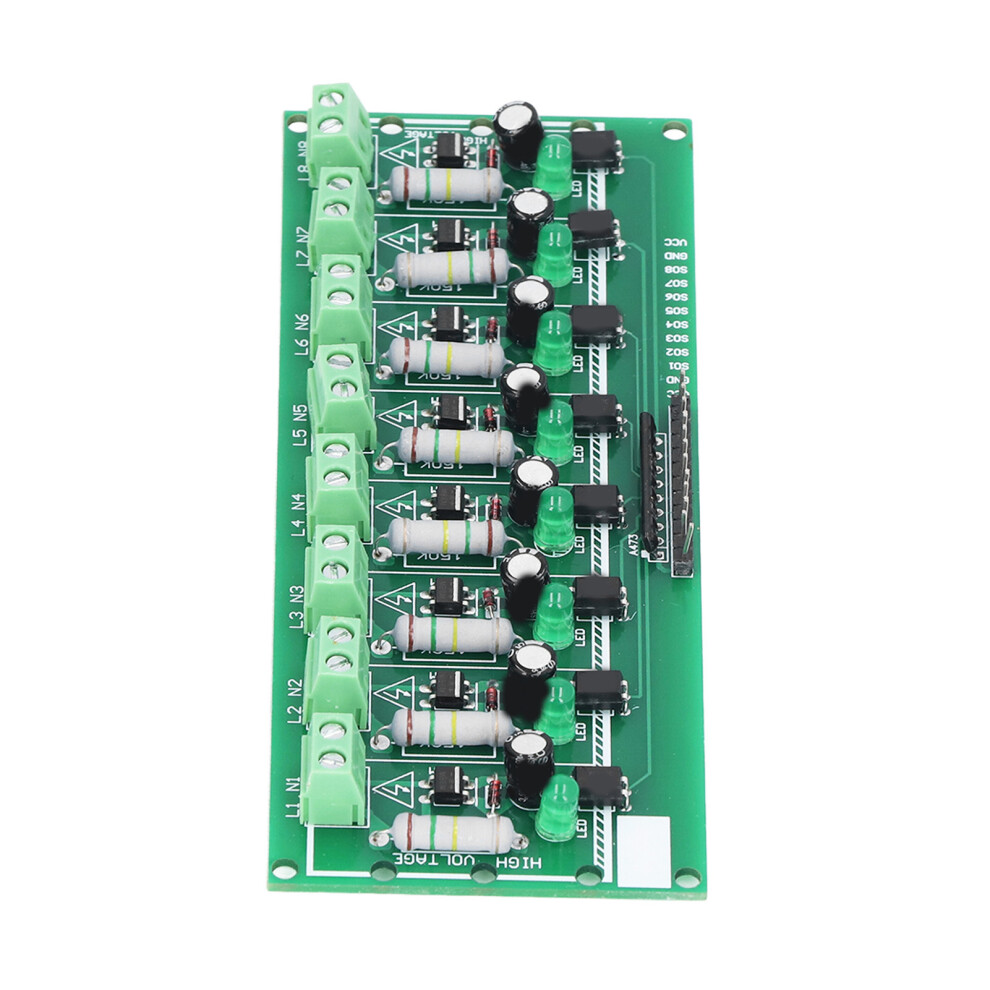

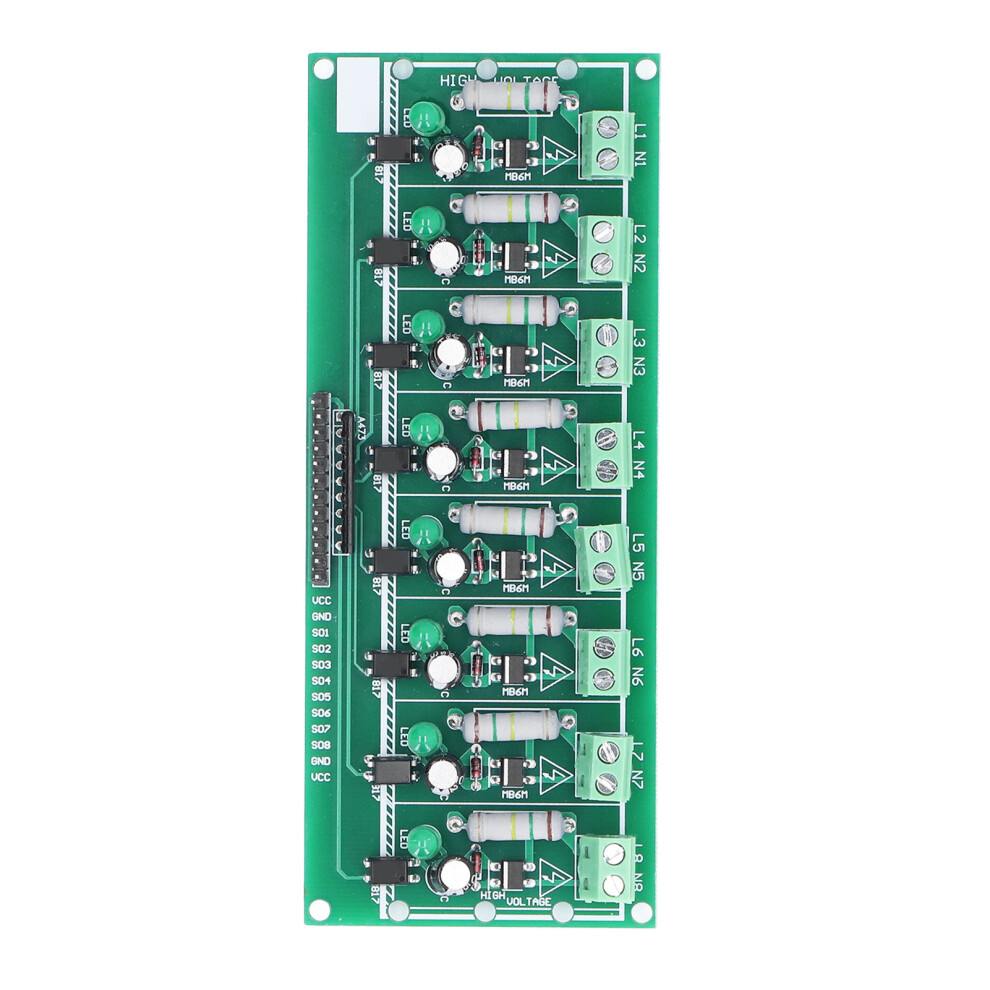

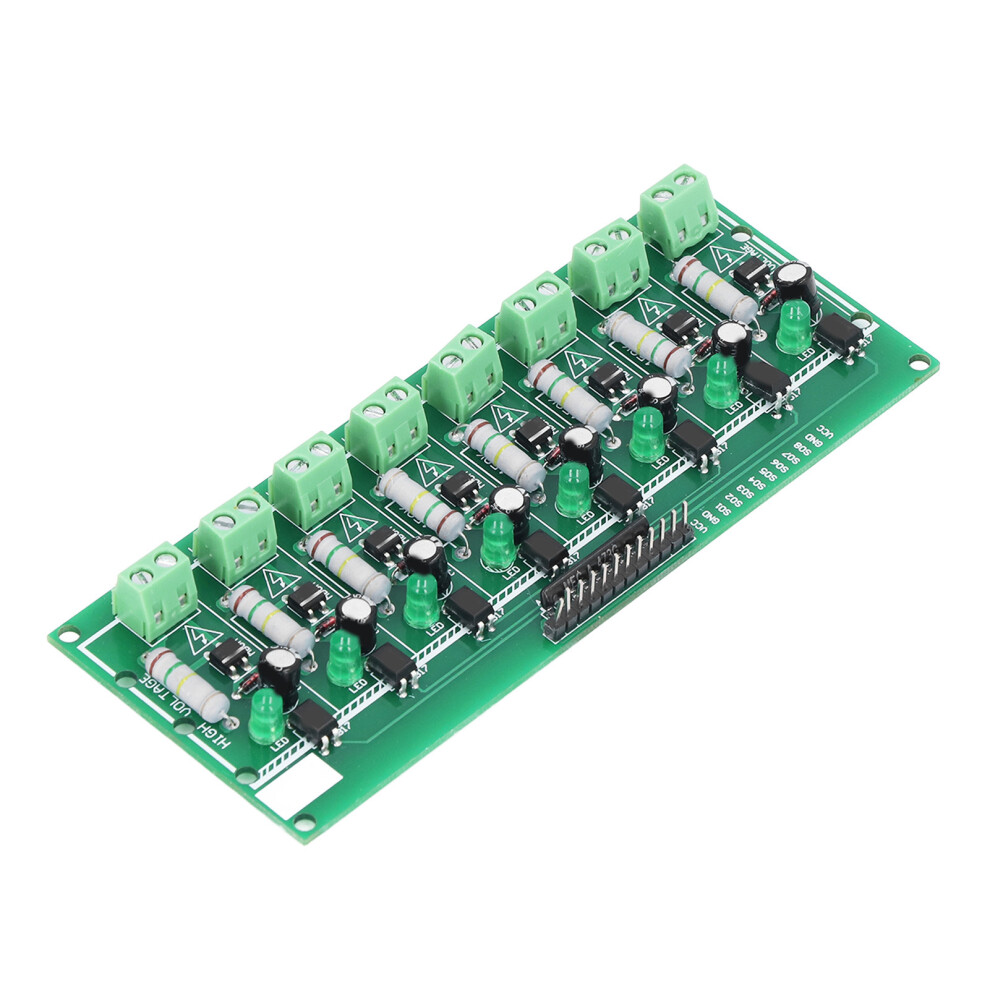

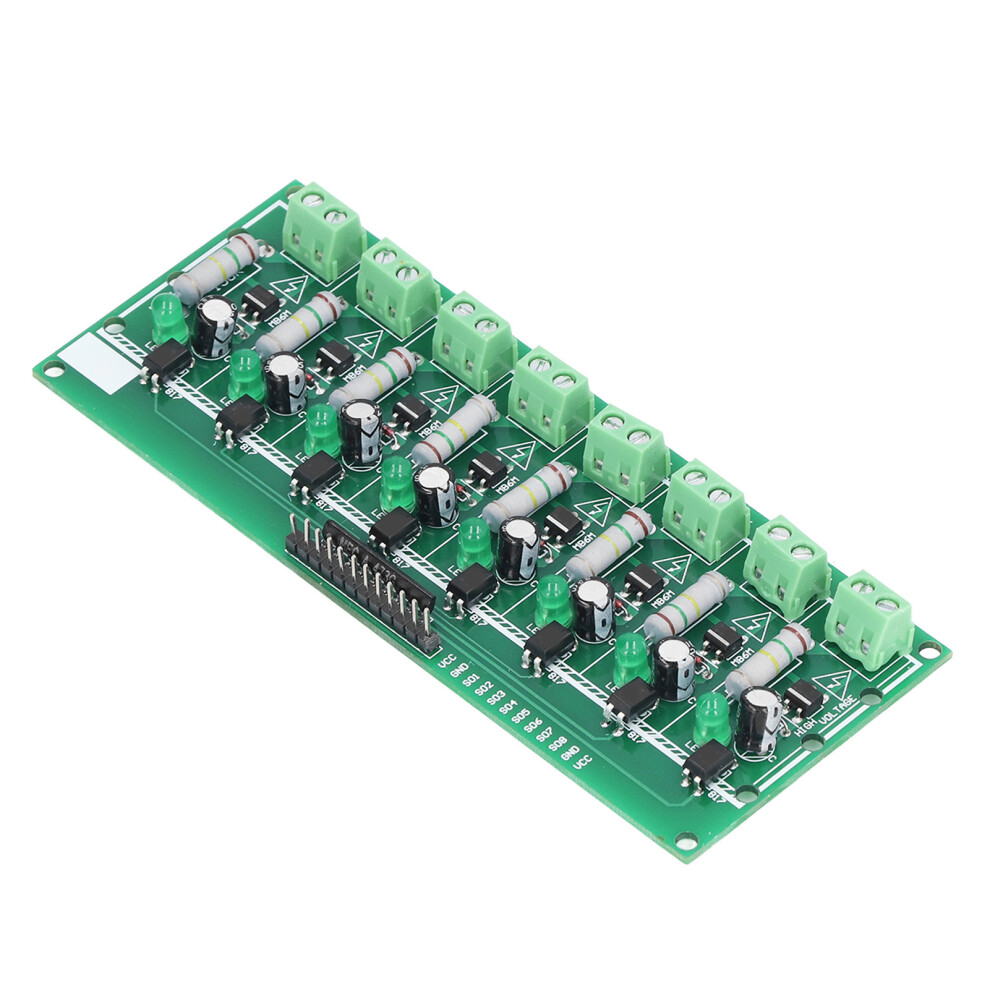

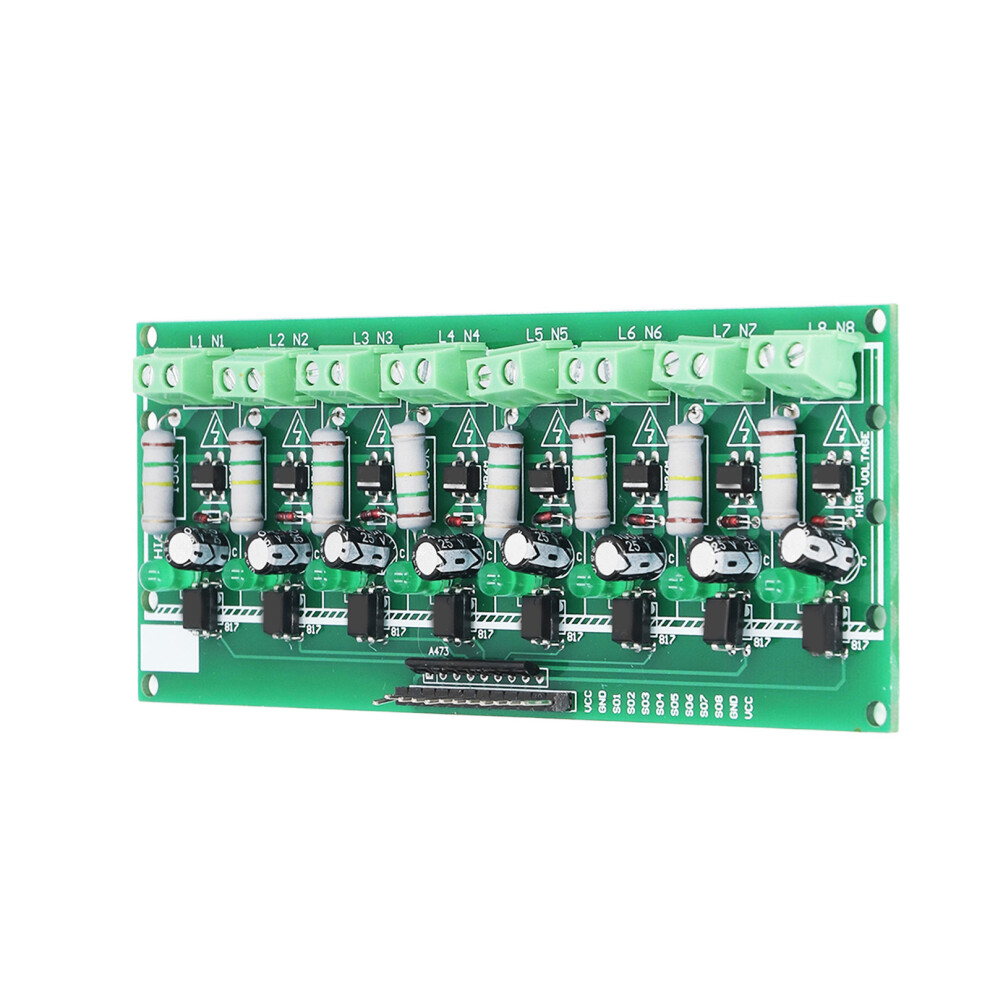

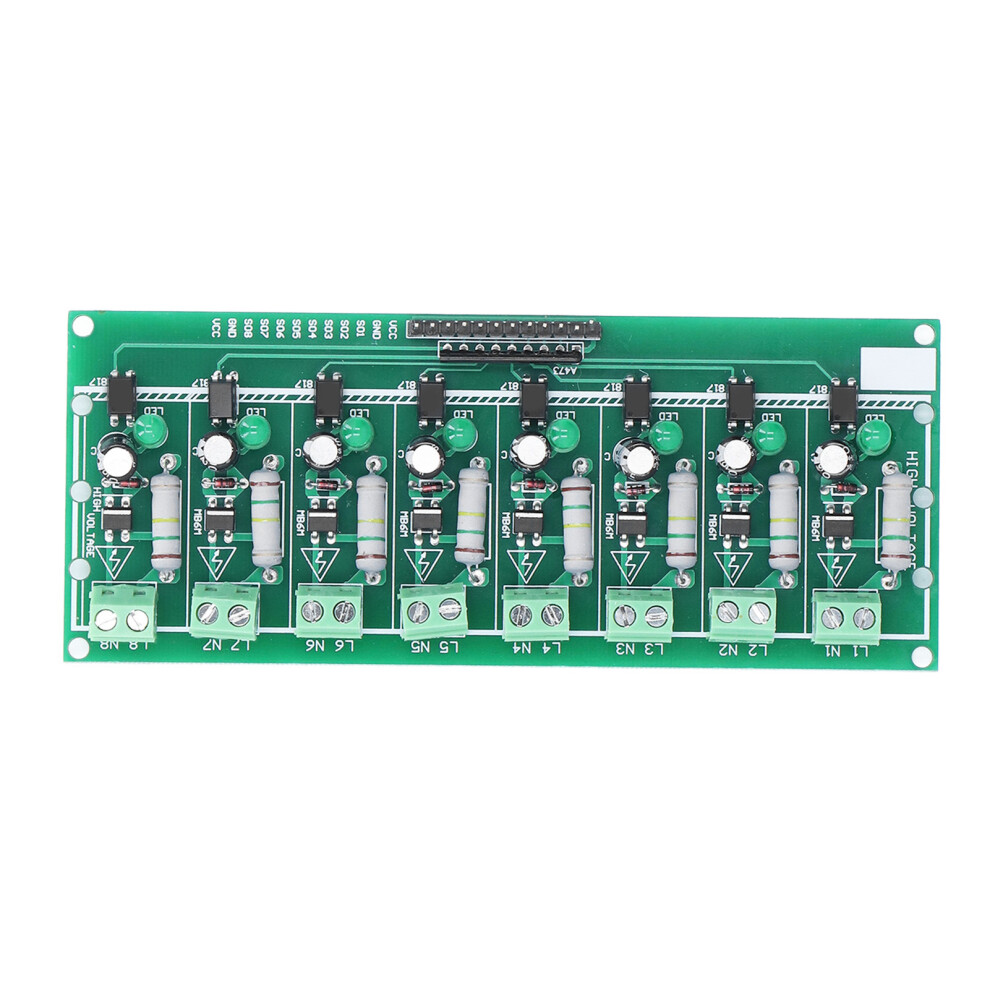

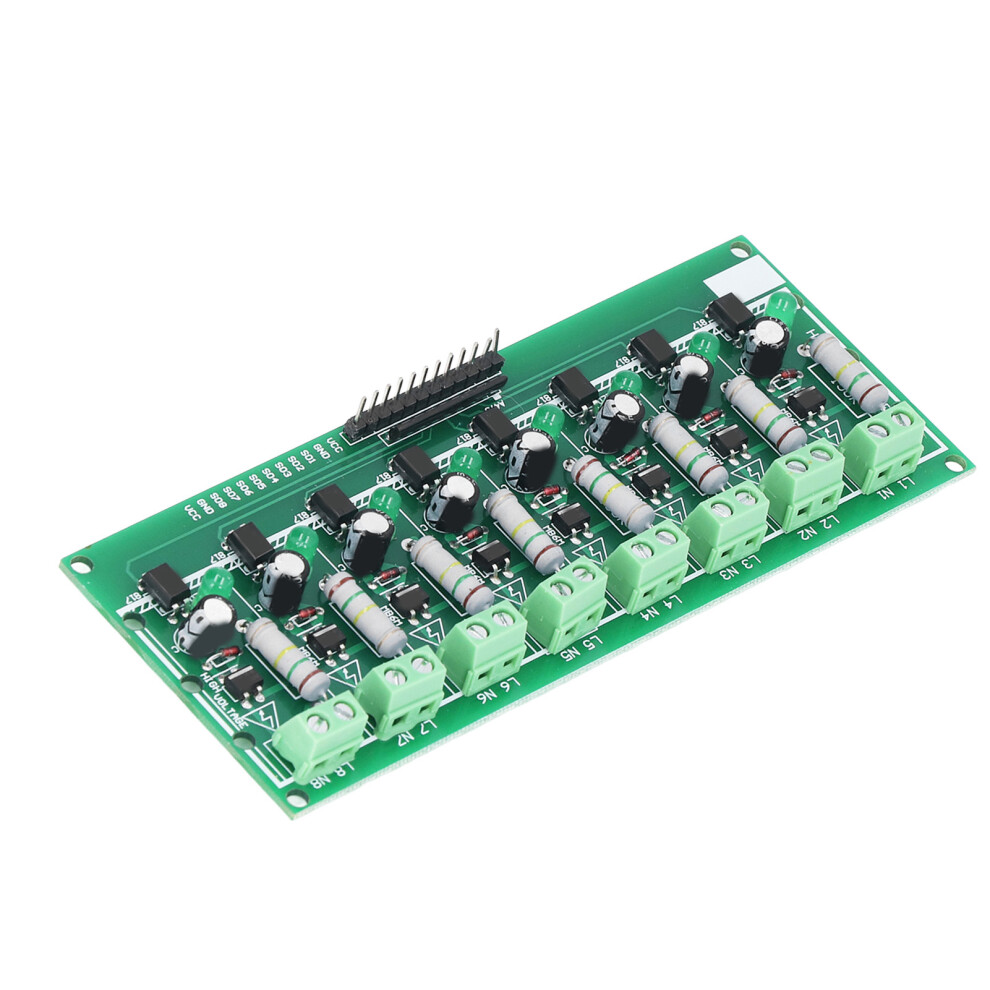

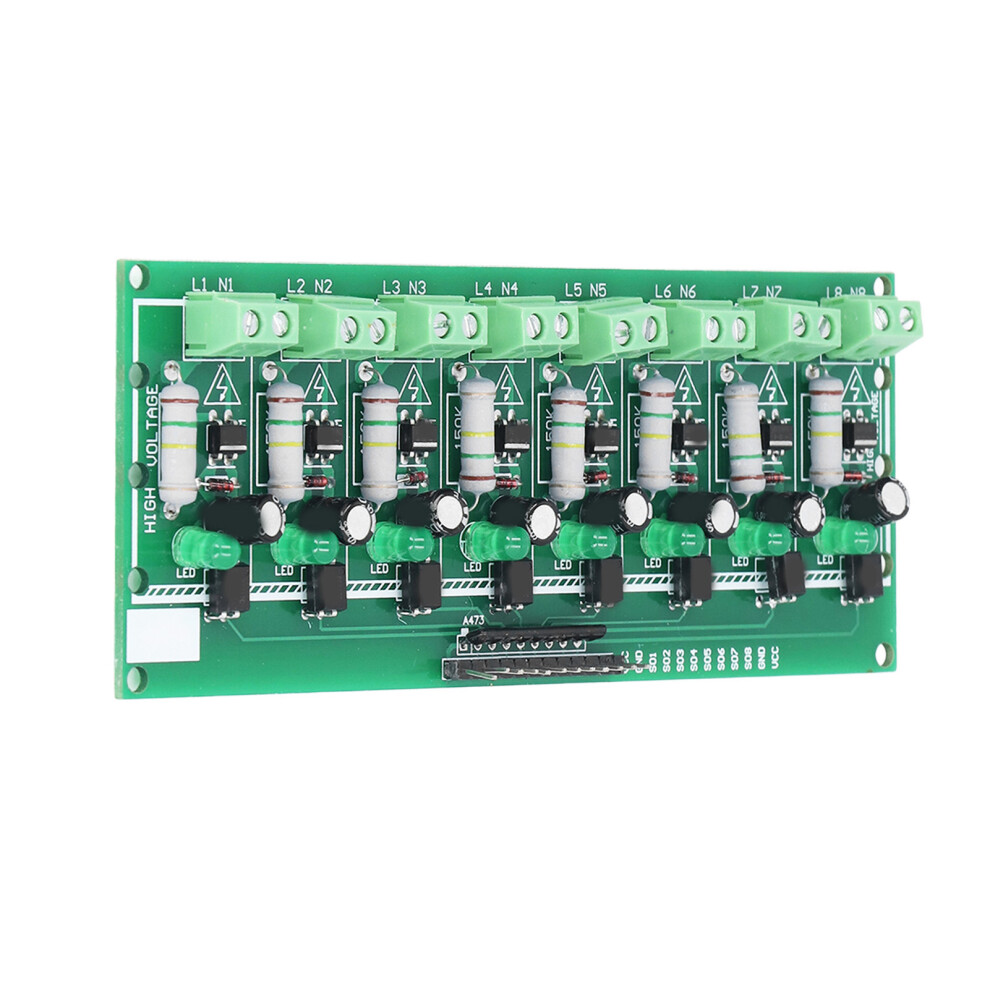

Optocoupler Isolation Board 8 Channel for 220V AC PLC DC Voltage Detection DIY
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£12.82
£21.02
39% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 25th - Tue 28th Jul
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Opto-Electronics
Description & Details
Summary
- PLC Connection: When connecting the PLC input, the COM terminal is connected to the 24V power supply, the input terminal is connected to the signal output S1‑S8 of the board, and the optocoupler GND is connected to the negative pole of the power supply.
- Volt Detection: Used to detect whether AC 220V exists, can also use MCU for testing, and the working voltage is 3‑5V.

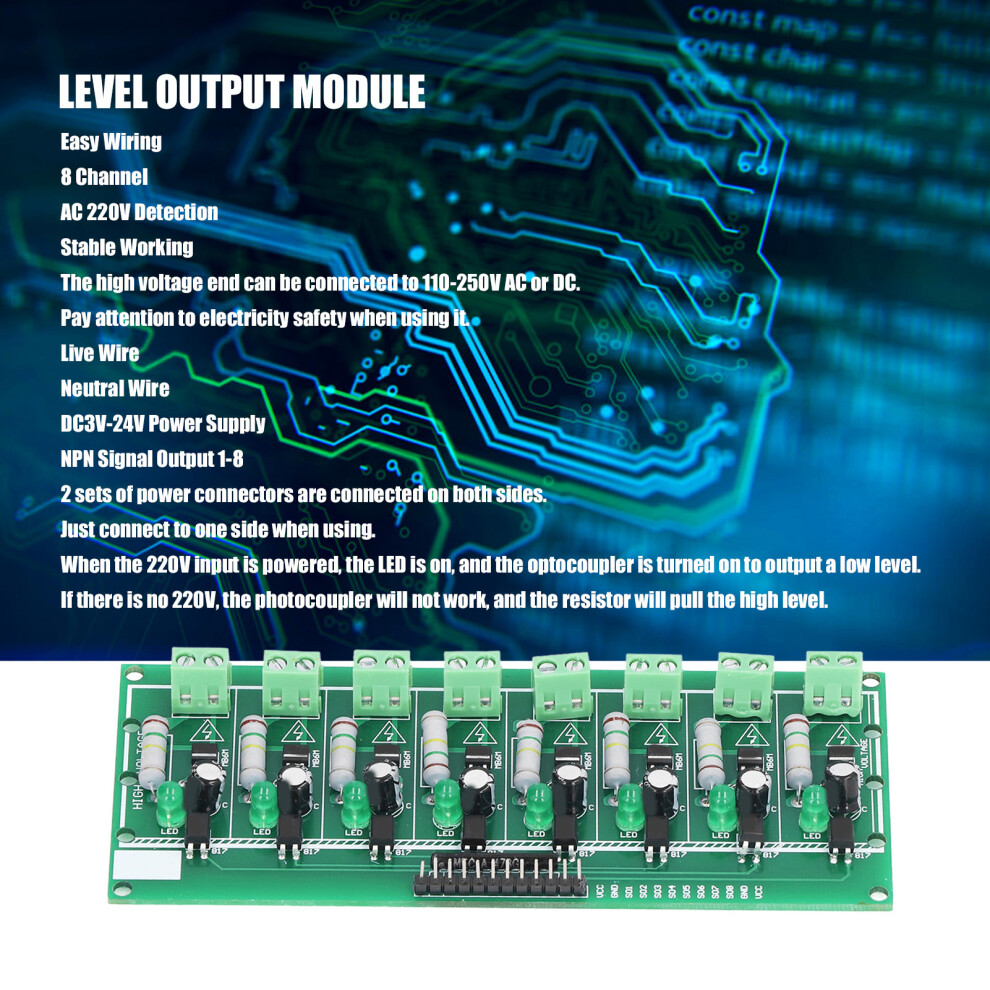

- Level Output: When the 220V voltage is normal, it outputs a low level. When the 220V is powered off, it outputs a high level.
- Working Tips: The blue 5.0 terminal is connected to the 220V voltage, and the yellow pin is the signal output.
- Good Material: Adopting high quality PCB material, not easy to malfunction, very durable for long term use.
Optocoupler Isolation Board 8 Channel for 220V AC PLC DC Voltage Detection DIY Description
Optocoupler Isolation Board 8 Channel PLC Voltage Detection Module 220V AC for DIY
Item Type: Optocoupler Isolation Board
Material: PCB
Function: Test whether AC 220V exists.
Output TTL Level: MCU can be used for testing, the voltage is 3-5V.
Connection: Output can be connected to PLC 24Vb.
Details
| OPC | PK5BYF2 |
|---|---|
| Codes | 3171344740673 (EAN) |
