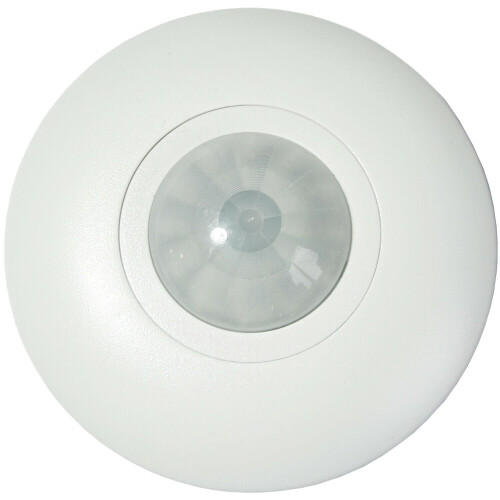

Outdoor / Bathroom PIR Occupancy Sensor IP44 Automatic Timer Reset Light Switch Description

600W Outdoor Rated AUTO Occupancy Motion Sensor Lighting Switch

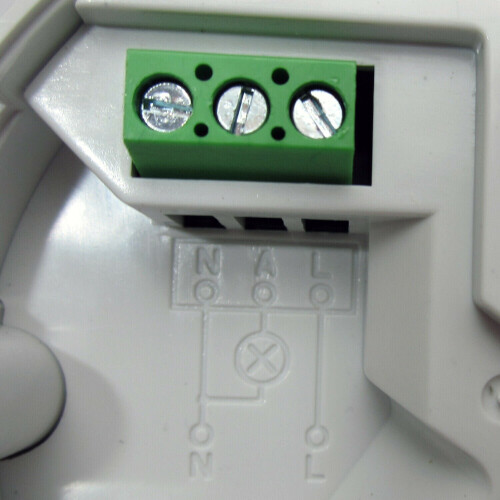

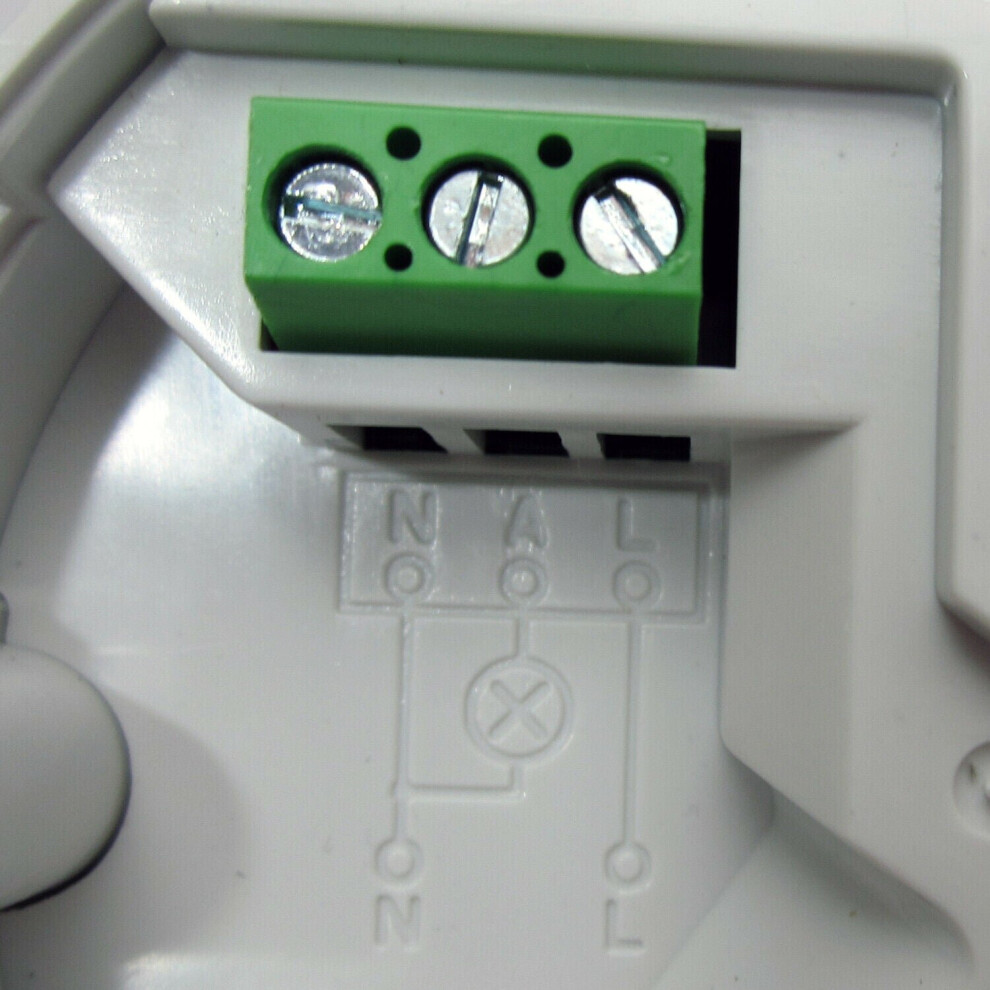

Please note â" 3 Terminals on back - Load in, Load out & Neutral (Neutral must always be connected).

Overview â" This occupancy switch is ideal for areas where lights and/or a fan are only required when the area is occupied. It works by detecting and monitoring body heat in an area, when the area becomes vacant, the switch will go off after a chosen & adjustable duration (10 seconds - 15 minutes). Perfect for use in toilets, warehouses and corridors to reduce the amount of electricity used and save money on energy bills. It is suitable for use with LED lights, fluorescent lights, incandescent lamps, energy saving lamps or fans.

This light switch can be used as a replacement or new switch with a 250V rated consumer unit (fuse box) as found in most UK houses. It can be mounted to a wall or ceiling via the supplied fixing screws and thanks to itâs IP44 Rating, it be install outdoors or in bathrooms.

If required, more than one of these PIR switches can be linked in parallel to make a circuit live, this could be useful at the top and bottom of a stair caseâ Or in a larger space when all lights in that space need to be turned on at the same time, no matter where motion is detected in that space.

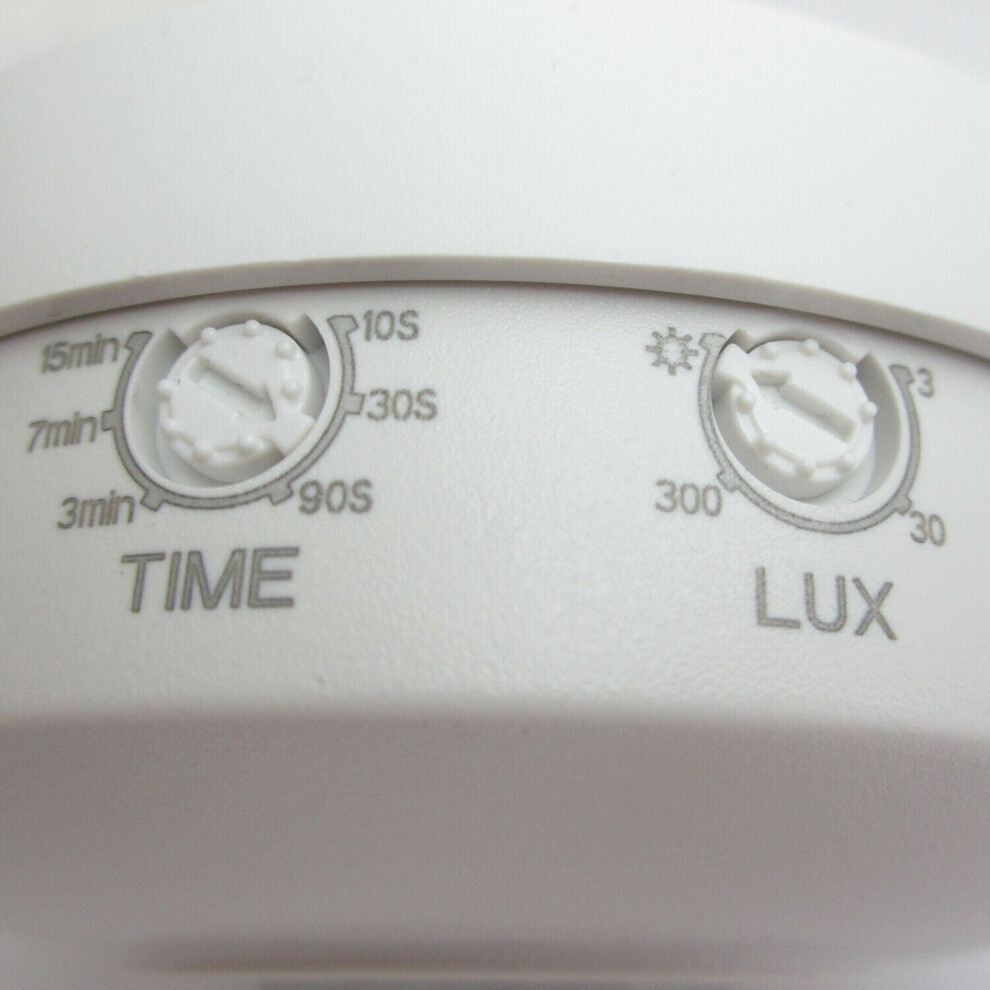

Thanks to the clever design of this unit, you can twist off the front cap and gain easy access to the lux and timer controls. A lot of occupancy sensors on the market would require you to un-install the unit completely, as access to these controls may be on the rear or inside the switch.

OCCPANCY â" With traditional PIRâs, once the timer has started, thatâs it, you would then have to wave your hand or move when the light goes off to reset the light which can be frustrating. Our occupancy sensors will constantly reset their timer providing someone is within the sensors range. This means that any connected lights will only turn off when the switch hasnât detected movement for your selected period of time.

Lux â" Our occupancy sensors have a lux setting which will only allow your lights to be turned on when a light level falls below are certain point & when motion is detected. For example, your garden lights wonât come on during the day when you walk past them if you set the correct lux level.

Timer â" When the switch is triggered, it will keep your lights on for a certain period of time. This switch has the following timer settings: 10 Seconds, 30 Seconds, 90 Seconds, 3 Minutes, 7 Minutes or 15 minutes. When motion is detected by the sensor, the timer will reset.

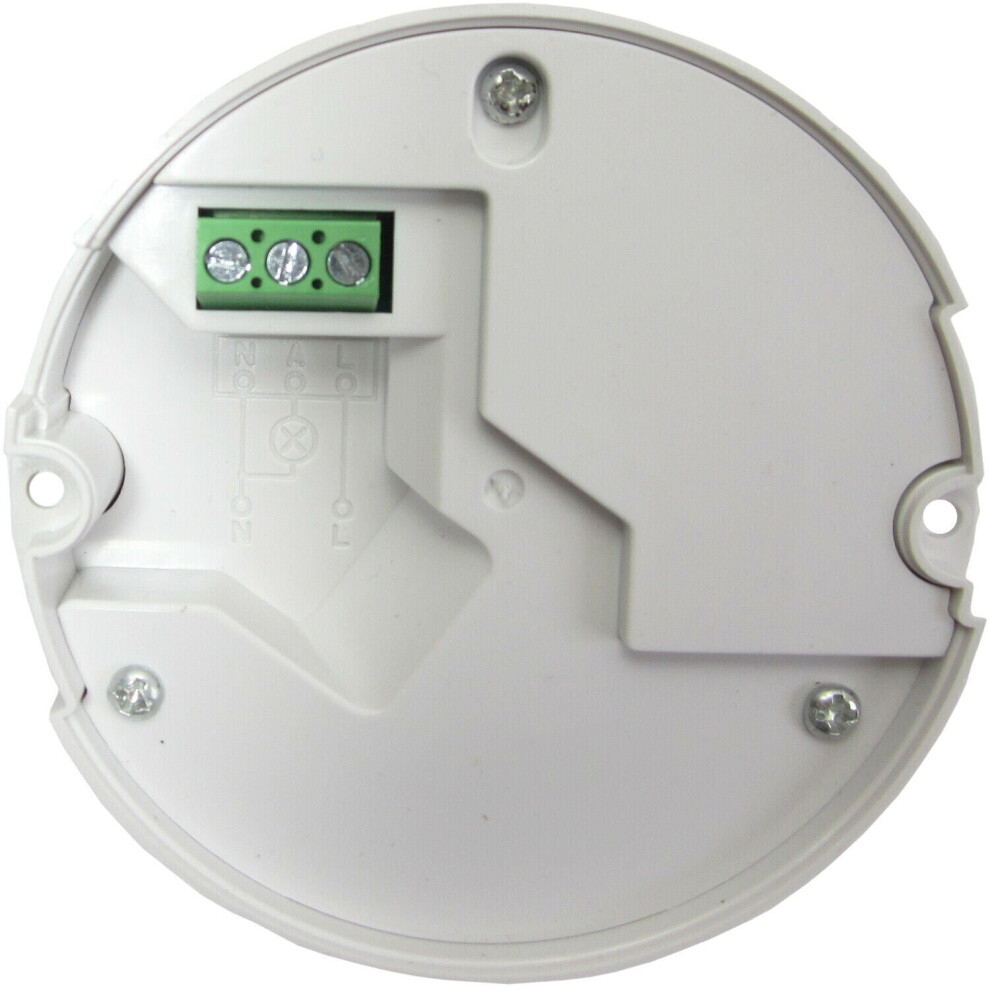

This kit is supplied with wall / ceiling mounting screws. There are 2 blowout holes with weatherproof glands on the back of the unit & easy access screw terminals make for quick & safe installation of power cables.

Specification:

Detection Radius â" 360 Degrees
Detection Range â" 6m Max (<24ÂC)
Installation Height â" 2.2m to 4m

Lux Settings â" 3 Lux to 2000 Lux
Timer Settings â" 10 Seconds, 30 Seconds, 90 Seconds, 3 Minutes, 7 Minutes or 15 minutes
Time Delays â" Minimum 10 seconds, maximum 15 Minutes
Maximum Load â" 600W LED
IP Rating â" IP44 â" Suitable protection against weather & water sprays from any direction
Power Source â" 110-240V AC
Power Frequency â" 50/60Hz
Guarantee â" 2 Years

Dimensions â" 90mm (Diameter) x 50mm (Height)

Standards â" ROHS
