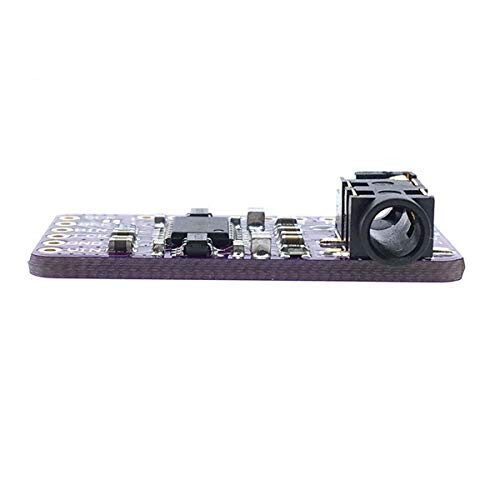

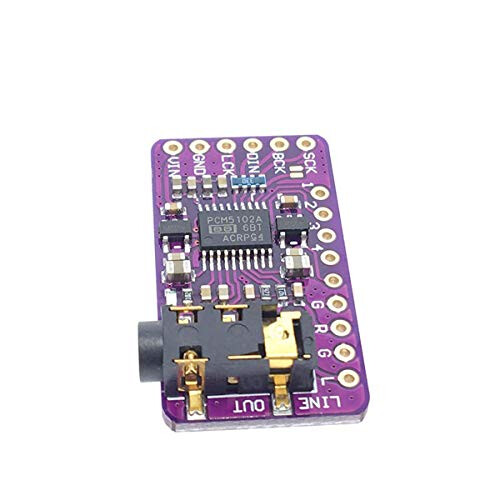

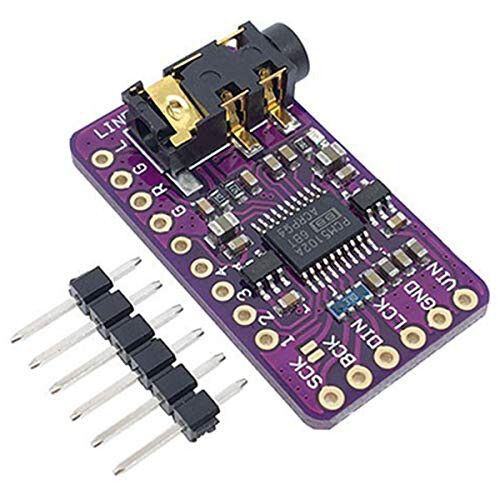

PCM5102 I2S DAC Module Fidelity Audio Decoder Board for Raspberry Pi and Arduino PlugandPlay Setup

PCM5102 I2S DAC Module Fidelity Audio Decoder Board for Raspberry Pi and Arduino PlugandPlay Setup Description

PCM5102 Stereo DAC Module pHAT for Raspberry Pi Overview A compact, affordable DAC module designed to upgrade the analog audio of Raspberry Pi projects. The module uses the PCM5102A DAC and connects via the I2S interface to deliver clearer, more accurate stereo output than onboard analog audio. Key benefits Noticeable sound quality improvement over onboard analog output by using a dedicated PCM5102A I2S DAC. Plug and play pHAT form factor fits small projects and HAT compatible setups. Stereo line out jack already soldered to the board for quick installation. Low power 5V operation and a simple 3PIN I2S interface make integration straightforward. Features performance PCM5102A DAC (model PCM5102) for digital to analog conversion. I2S digital audio interface for direct connection to Raspberry Pi audio stream. Line out stereo jack presoldered on the board for immediate use with amplifiers or powered speakers. pHAT format board for space efficient mounting on single board computer projects. Specifications Type: I2S DAC Decoder Model: PCM5102 Interface: 3PIN I2S Power supply: 5V Board size: 30 x 24 x 1.6 mm Weight: 25.00 g Included in package 1 pcs PCM5102 Module Stereo DAC DigitaltoAnalog Converter Typical applications Connect to an A V receiver to provide clean line level audio from a media player setup. Use in DVD or BD player style DIY media systems to deliver improved analog output to amplifiers. Integrate into HDTV receiver or set box projects that require about 2VRMS audio output. Why choose this module This DAC module converts digital I2S audio into a higher fidelity analog signal using the established PCM5102A chipset. Its small pHAT format, presoldered stereo jack, and 5V operation simplify hardware integration while providing a clear upgrade path for Raspberry Pi based audio and media projects.
