PIR Motion Sensor Detector 160 AC 85-265V 10mm

PIR Motion Sensor Detector 160 AC 85-265V 10mm Description

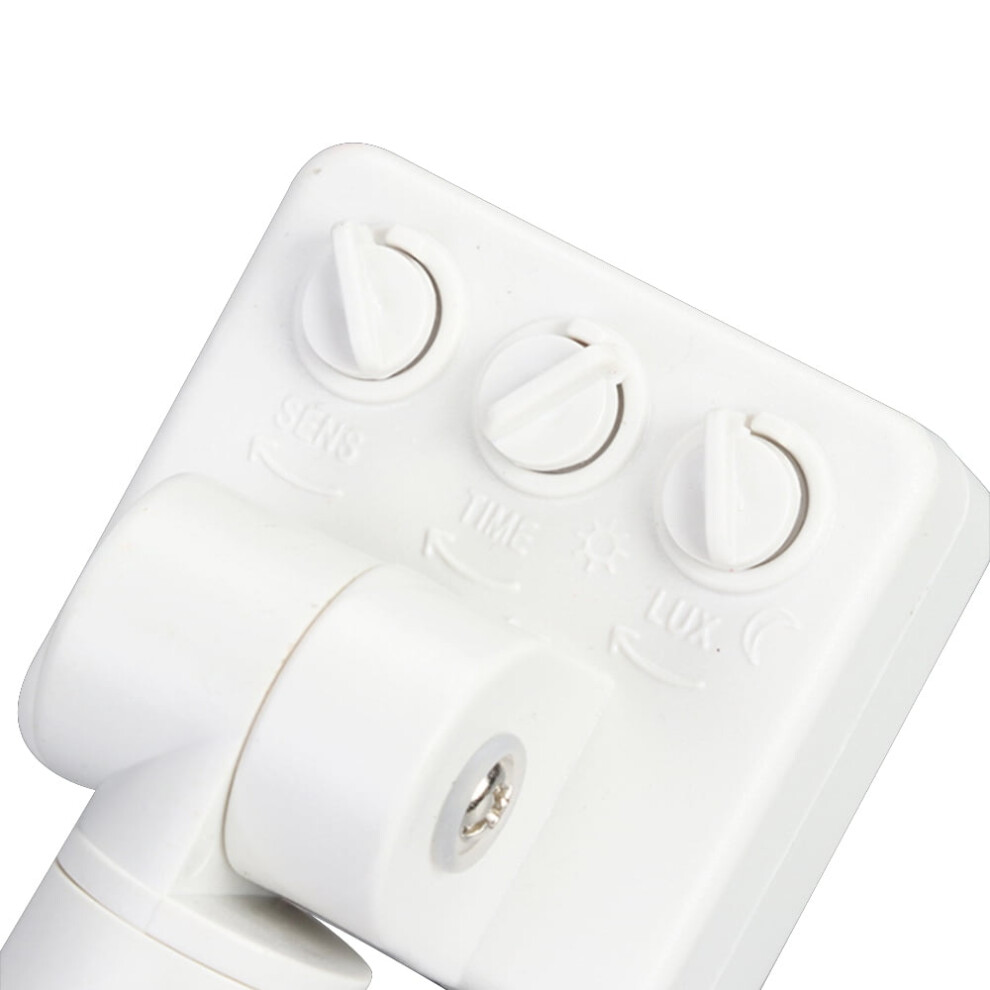

160 Degrees AC 85-265V10MM PIR Infrared Motion Sensor Detector Wall LED Light Outdoor Description: Human body infrared sensor Sensing distance / light intensity / power-on time adjustable Small size and high sensitivity. 160 degree monitoring range. 1) LUX switch is to adjust day or night work. A. When adjusted to the sun position, the sensor works all day; B. When it is transferred to the moon position, the sensor does not work during the day and automatically enters the working state at night. 2) TIME switch is to adjust the sensor delay time (2010sec~8+1min) The delay time refers to the time when the sensor leaves the sensing area after the sensor senses the person and the sensor delays the time. 3) The SENS switch is the sensitivity of the adjustment sensor. Generally no adjustment is needed. If the inductive induction is too strong and the light is always on, the sensitivity can be adjusted to the minimum position. Fresnel perspective, efficient refraction. Flame-retardant casing, impact resistant. Specification: Specifications: Detection range: 160 degrees Detection distance: 6-8M (25 degrees Celsius) Ambient lighting: 2-2000 LUX (adjustable) Working humidity: less than 93% RH Material: ABS Installation method: open type 10mm Working voltage: AC85-265V Delay time: 8 seconds - 6 minutes (adjustable) Working temperature: -10 degrees Celsius - 40 degrees Celsius Installation height: 1.8m-2.5m Dimensions: 42x0x53mm Package Included: 1PCS x Sensor switch 1PCS x instruction manual
