Power Dynamics 172.662 PDM-T804 Stage Mixer 8-Channel DSP/MP3

Power Dynamics 172.662 PDM-T804 Stage Mixer 8-Channel DSP/MP3 Description

Shop home

• Live Sound & PA
  • Amplifiers
    • DJ Amplifiers

Categories Power Dynamics 172.662 PDM-T804 Stage Mixer 8-Channel DSP/MP3 Product Code: SSF3845 Buy it now add to wishlist Description

The Power Dynamics PDM-T804 is a highly flexible 8-channel PA mixer, ideal for live performances and studio recording. With numerous impressive features, such as MP3 recording and playback, Bluetooth, and a DSP processor, this device is a great choice.

Featuring 8 microphone/line inputs with a combi XLR/Jack design, the music mixer offers multiple connectivity options and individual channel adjustments with high, mid, and low controls, as well as optional 48V phantom power, perfect for connecting condenser mics.

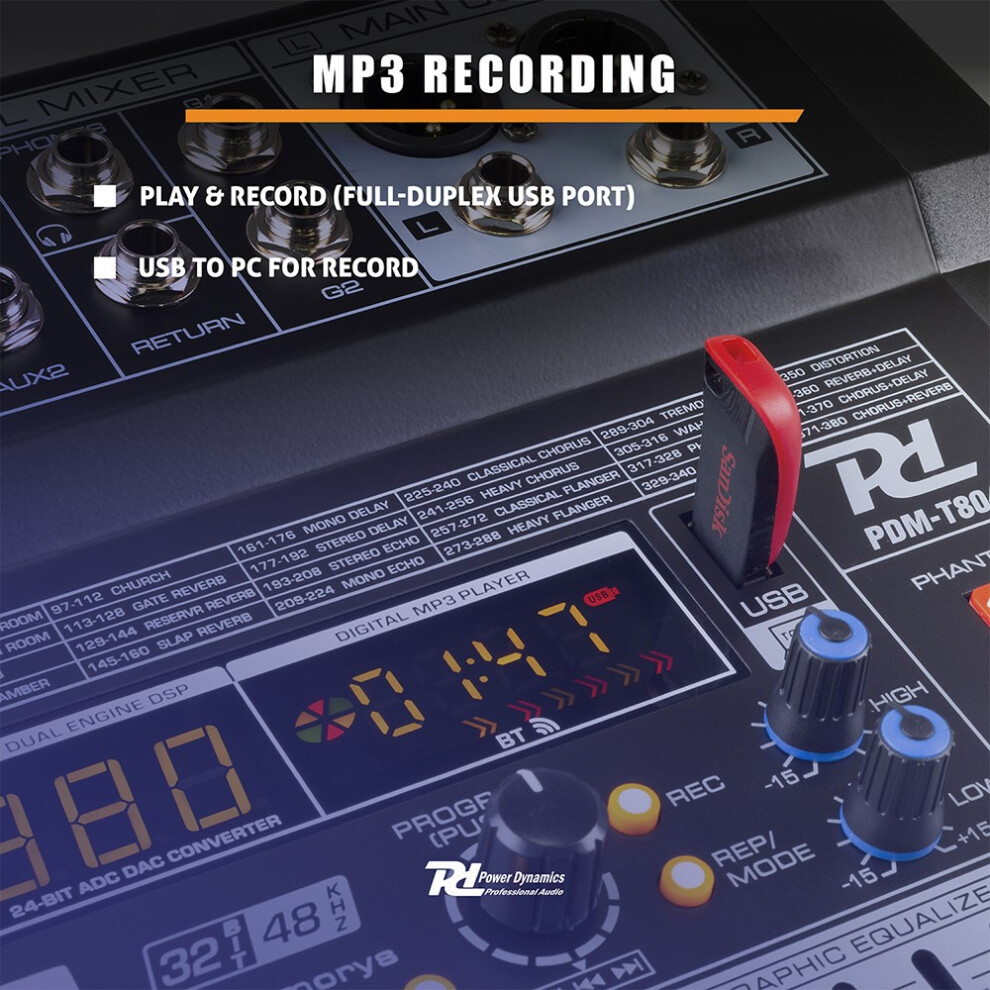

This PA mixer is equipped with a USB input/output, making it easy to record and play MP3 files, or connect to a computer It also has Bluetooth capabilities, allowing you to stream audio wirelessly from paired devices such as smartphones and tablets.

In addition, XLR and 6.3 outputs are provided to easily connect the PA mixing desk to your PA system. There is also a headphone output and an RCA input for connecting external audio sources. Plus, the built-in 32-bit DSP processor offers 380 multi-effects and 4 memory slots.

In conclusion, the Power Dynamics PDM-T804 8-Channel PA Mixer is a dependable and versatile mixing solution that delivers great sound quality. Whether you're seeking to improve your live performance or produce quality recordings, this mixer is the ideal choice.

Key Points

• Versatile PA mixer with 8-channels ideal for live music performances and recording purposes
• Features 8 mic/line inputs (XLR/jack) with individual high, mid and low controls and selectable 48V phantom power
• Built-in 32-bit DSP processor with 4 memories and 380 multi-effects
• Stereo 7-band equaliser to optimise sound
• Bluetooth enabled for wireless streaming, and USB input/output for playing MP3 files, recording, or connecting to a PC

Features

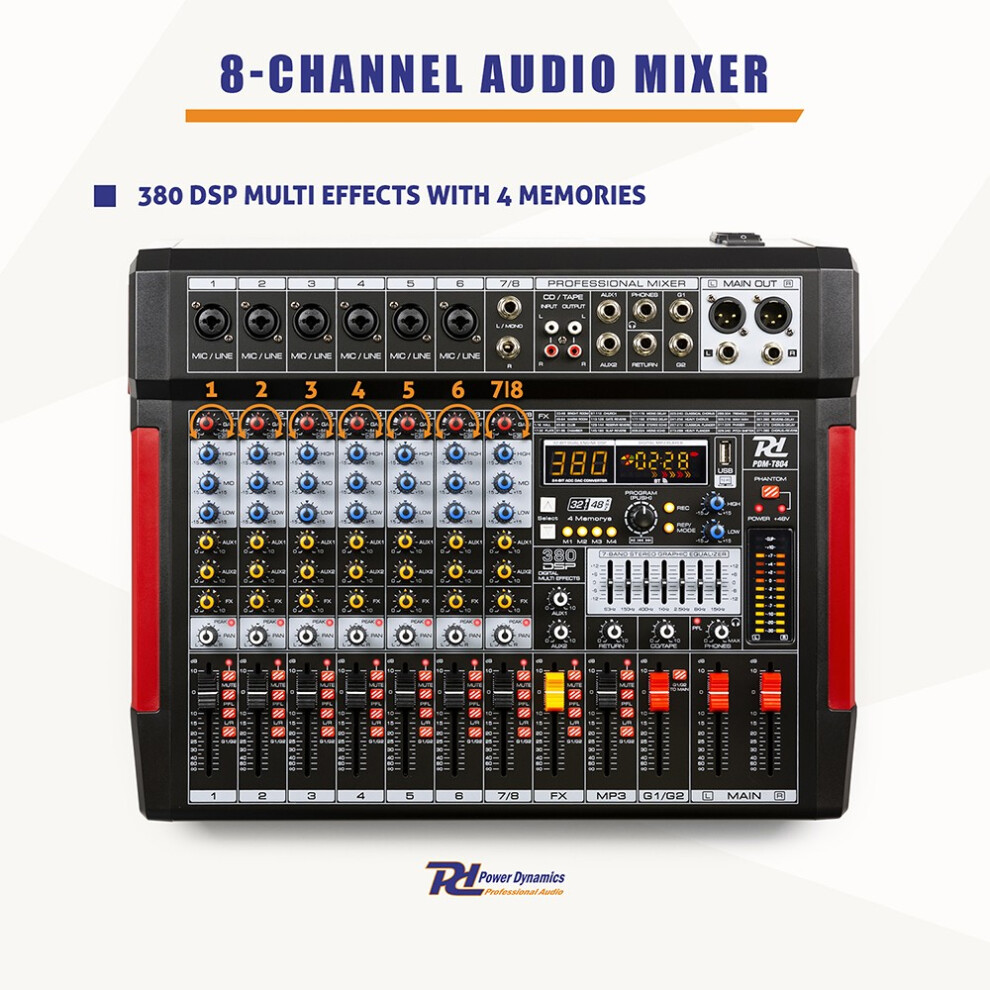

• 8-Channel multipurpose audio mixer
• MP3 recording/playing via full-duplex USB port (one click recording)

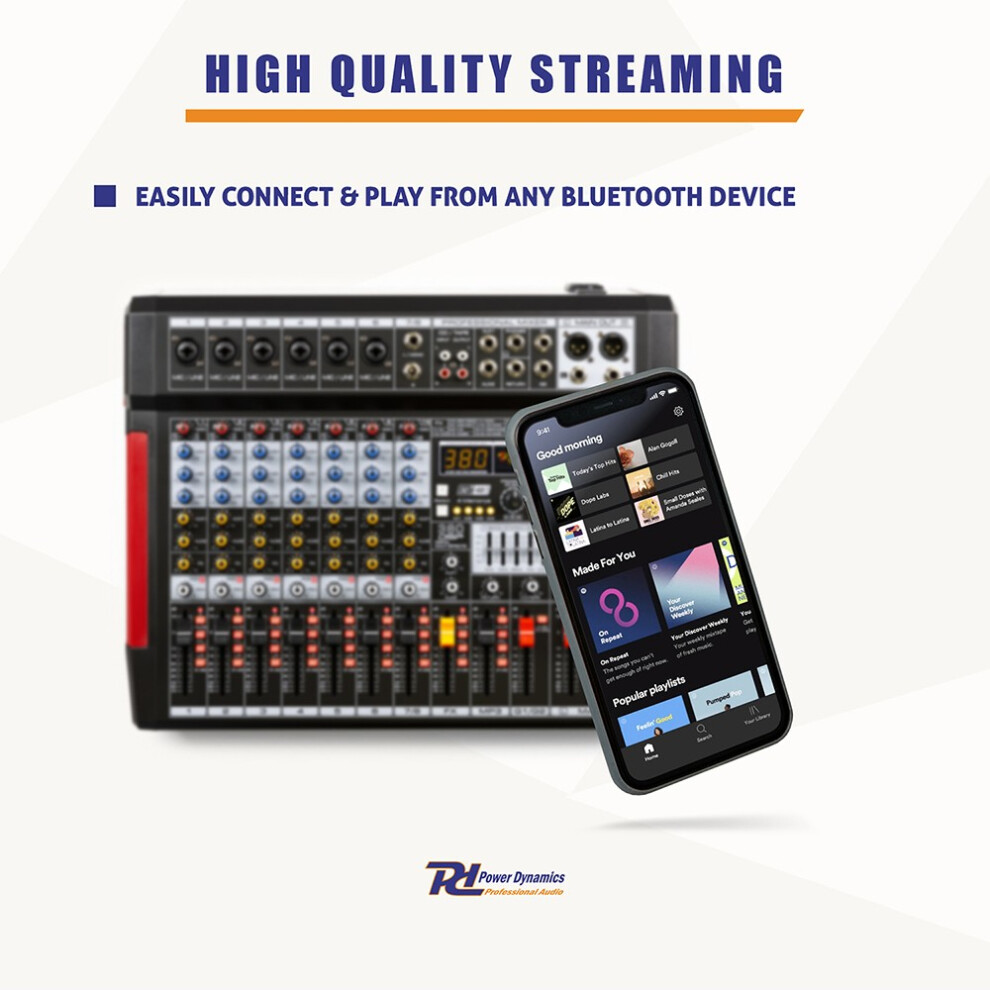

• BT receiver for audio streaming
• +48V phantom power
• Stereo 7-band graphic equalizer
• 380 DSP multi effects with 4 memories
• USB to PC for record and play music (USB interface)
• 8x Microphone-/line input (Combi XLR/Jack)
• High, Mid and Low control for each channel
• Adjustable headphone output

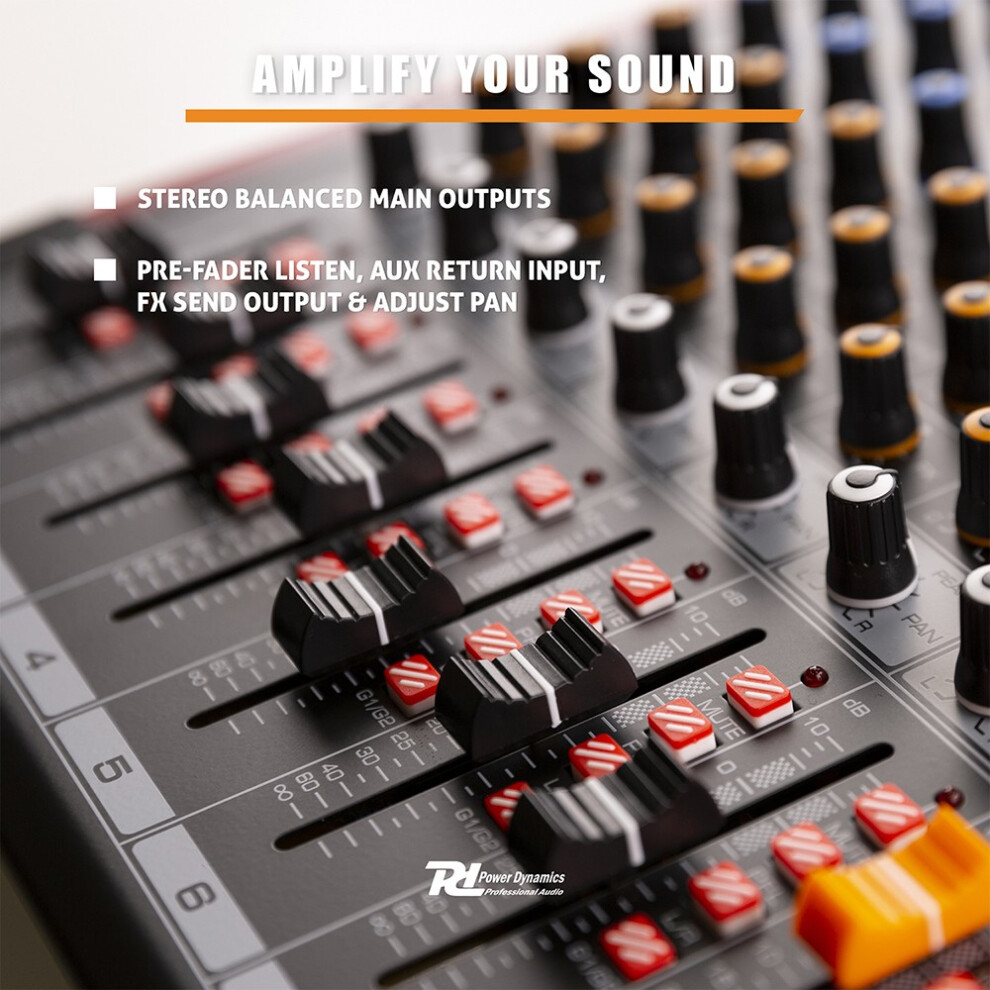

• Stereo balanced main outputs (XLR/6.3mm Jack)
• MUTE, PFL (Pre-fader listening), L/R, G1/G2 control on each channel
• LED VU meter and Peak LEDs

Specifications

• Playback options: BT streaming, USB
• Input connections: 6.3mm Jack, RCA, USB, XLR (3-pin)
• Output connections: 6.3mm Jack, RCA, USB, XLR (3-pin)
• Presets: 380
• DSP Resolution: 32-bit
• Frequency response: 20Hz - 20.000Hz
• THD: <0,5%
• Equalizer: 7-Bands
• Equalizer: Low: 80Hz +15dB
• Equalizer: High: 12KHz +15dB
• Power supply: 100-240VAC 50/60Hz

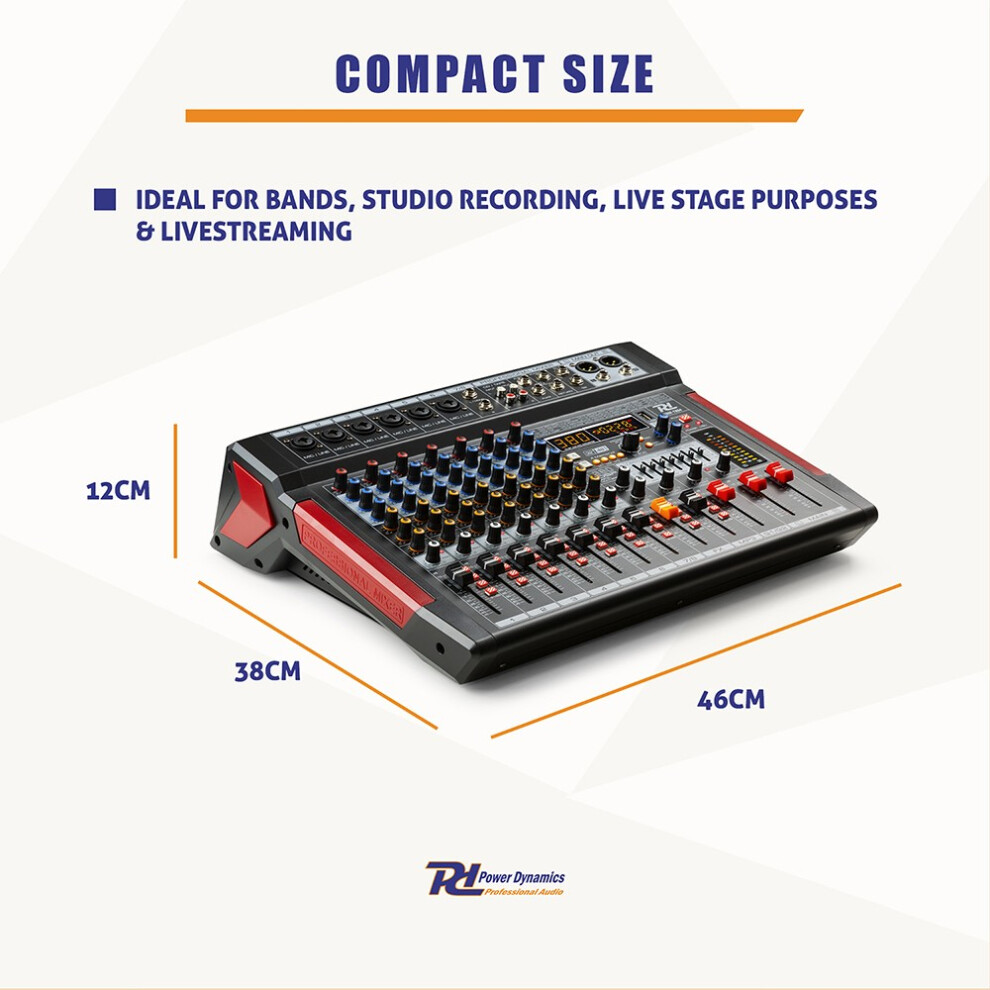

• Dimensions (L x W x H): 377 x 455 x 120mm
• Weight: 4.8500
