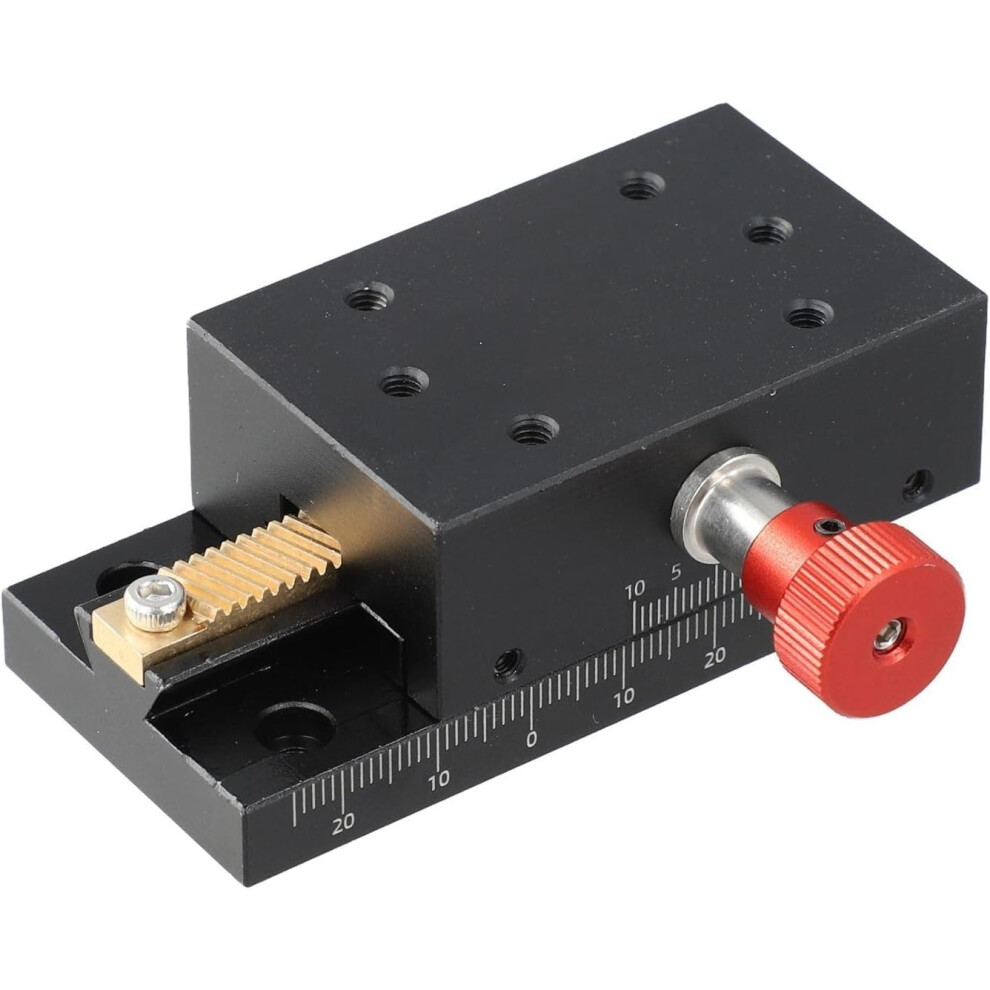

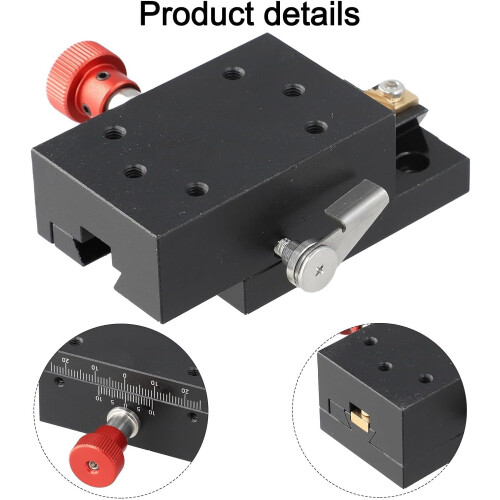

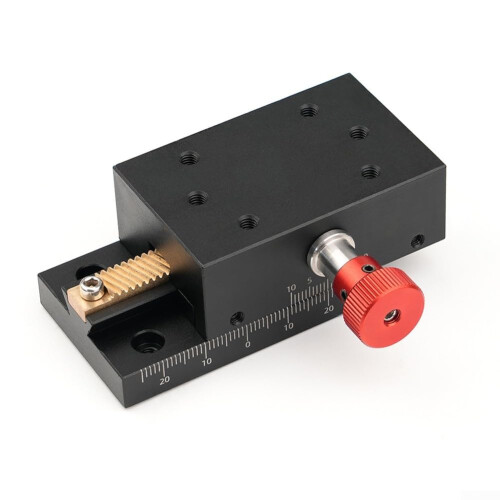

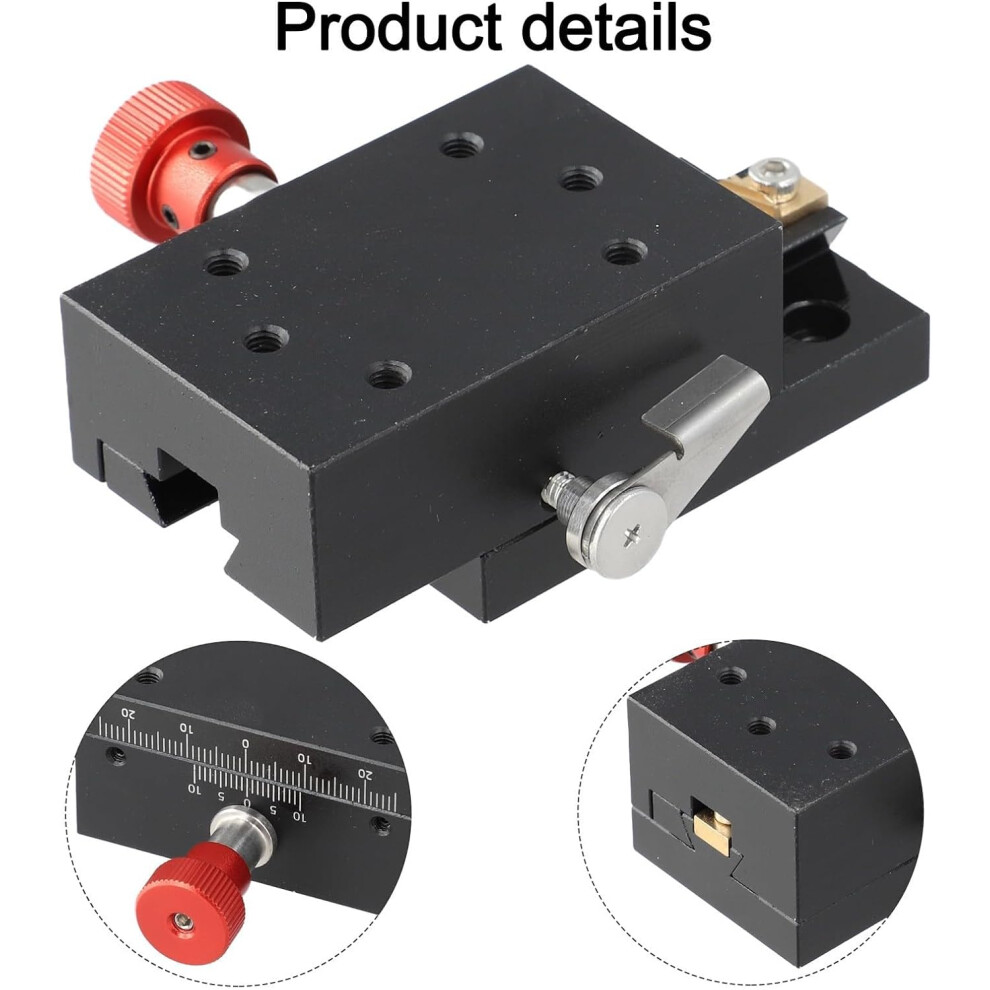

Precision Linear Stage X Axis 40mm Travel Fine 0.1mm Adjustment for Optical Fiber Alignment

Precision Linear Stage X Axis 40mm Travel Fine 0.1mm Adjustment for Optical Fiber Alignment Description

Xaxis dovetail groove slide - precision linear positioning for inspection, alignment, and fixture tasks Key benefits Precise positioning: 40 mm travel with a scale level of 01mm delivers repeatable, fine movement for alignment and inspection tasks. Lightweight strength: Constructed from aluminum alloy for a strengthtoweight ratio that reduces load on motion stages while maintaining rigidity. Smooth, controlled motion: Dovetail groove design minimizes play and maintains alignment under load, improving measurement and assembly consistency. Durable, lowmaintenance finish: Anodized black surface resists corrosion, wear, and contamination while maintaining a professional appearance. How this product solves problems Eliminates drift and imprecision: The dovetail guide keeps components aligned during adjustment, preventing lateral play common with cheaper slides. Reduces downtime during setup: Clear, repeatable displacement (40 mm) and scale level of 01mm let technicians make fast, measurable adjustments without trialanderror. Fits into tight assemblies: The lightweight aluminum construction and compact travel make it easy to add precise motion control to existing inspection rigs or fixtures without overloading drives or stages. Specifications and important attributes Type: Xaxis dovetail groove slide Material: Aluminum alloy Travel (displacement): 40 mm Scale level: 01mm Finish: Anodized black Compatibility and typical uses Designed for inspection devices, laboratory equipment, and industrial fixtures where precise linear adjustment is required. Compatible with small stages, optical mounts, sensor holders, and fixture plates that accept dovetail slide mounting. Practical use scenarios Optical fiber alignment: Use the slide for fine lateral adjustment of fiber connectors or collimators during splicing and testing to achieve signal coupling. Inline inspection setup: Integrate into an inspection station to precisely position cameras or sensors for repeatable measurement points on production parts. Equipment fixture and detection adjustment: Mount on a fixture plate to correct motion or align probes, gauges, and test heads in R&D and QC environments. Why choose this slide Provides repeatable, measurable movement for precision tasks. Combines durable materials and a protective finish for long service life. Compact and lightweight design simplifies integration into existing systems. What to check before Confirm mounting hole pattern and dimensions match your fixture or stage. Verify 40 mm travel and scale level of 01mm meet your required resolution and range. this Xaxis dovetail groove slide when you need compact, durable, and precise linear adjustment for laboratory, industrial, or optical alignment applications.
