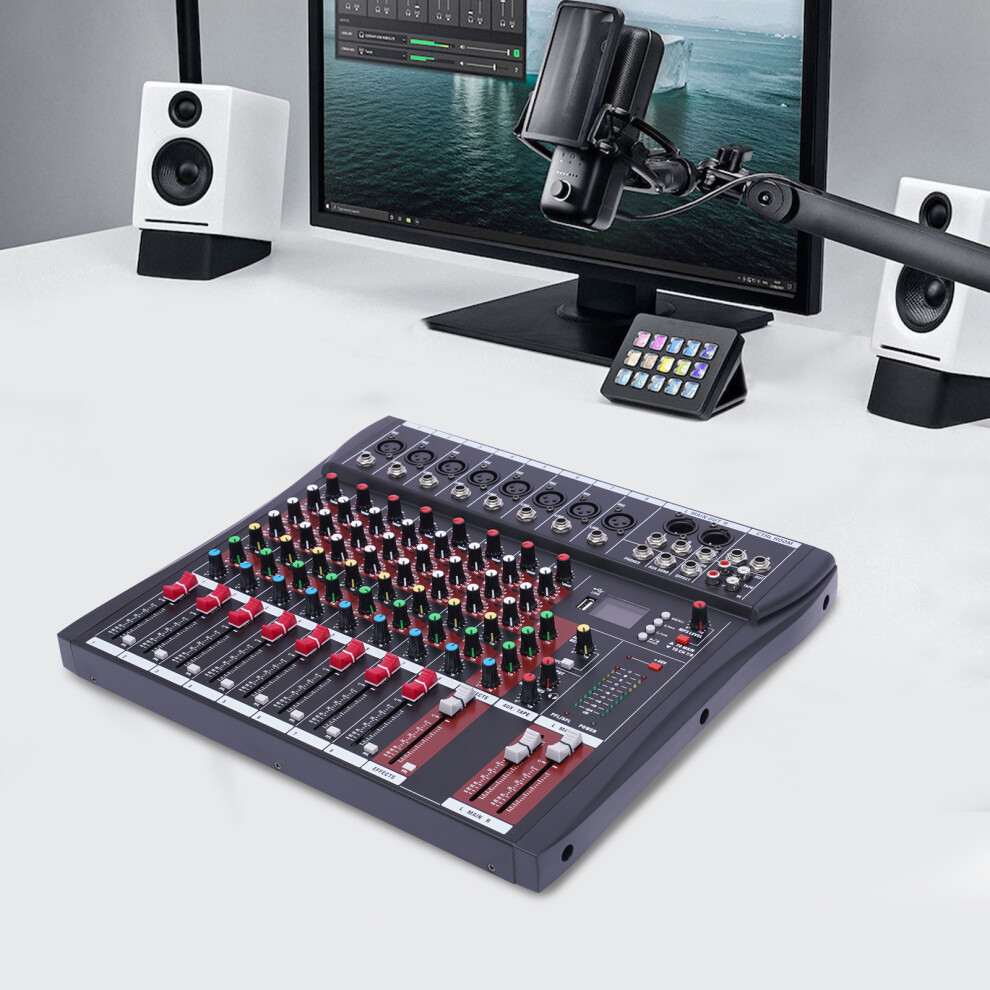

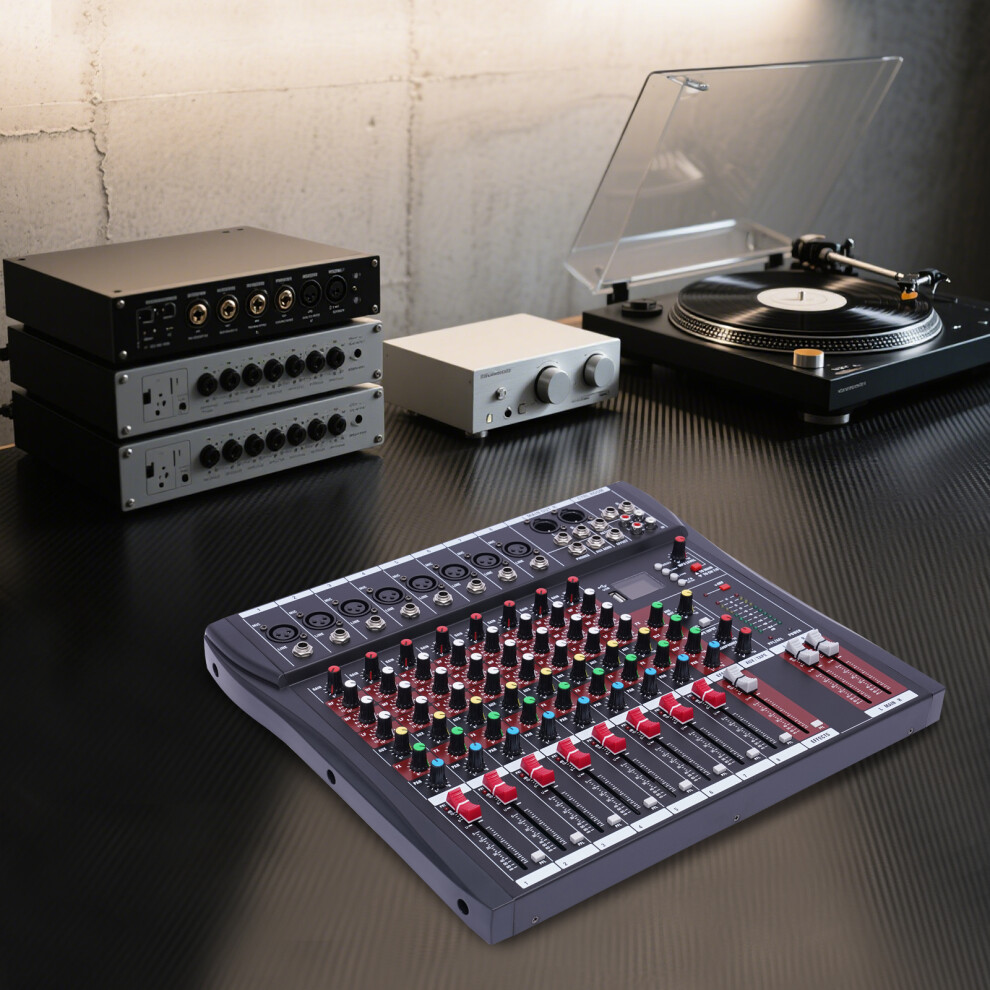

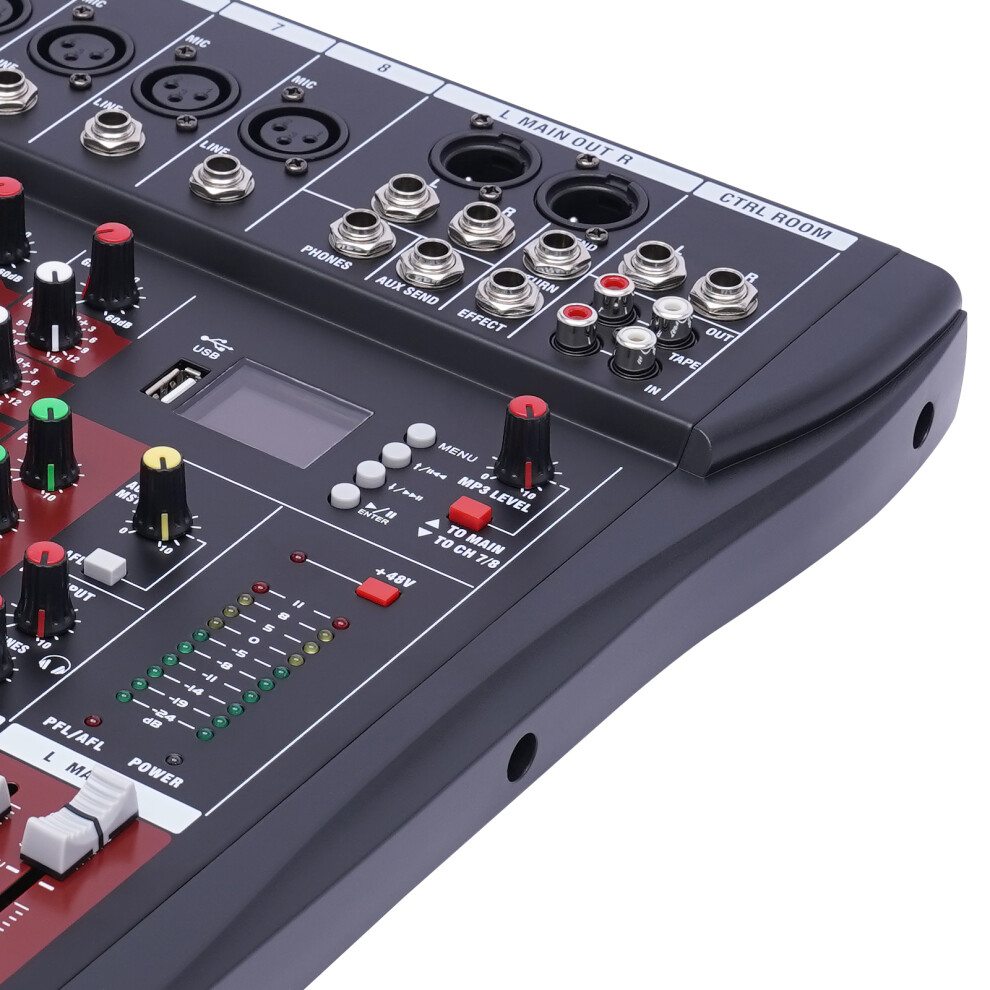

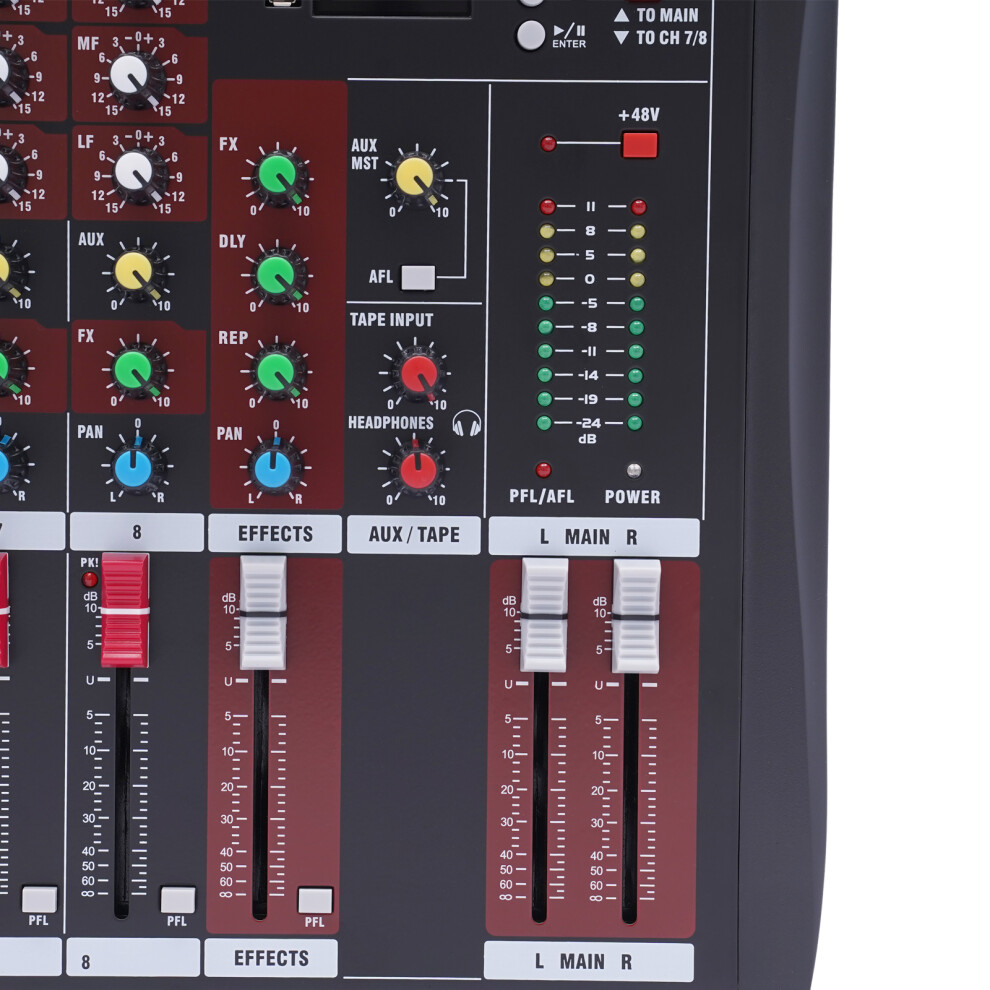

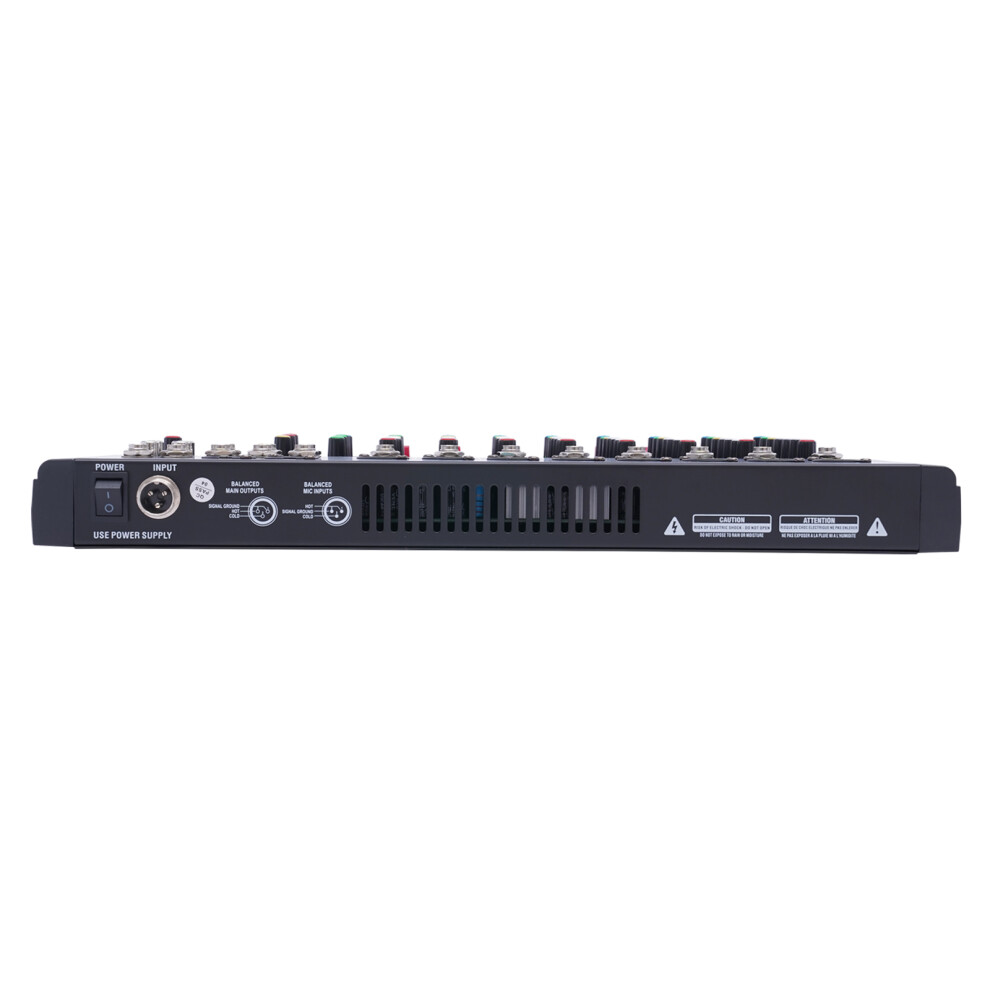

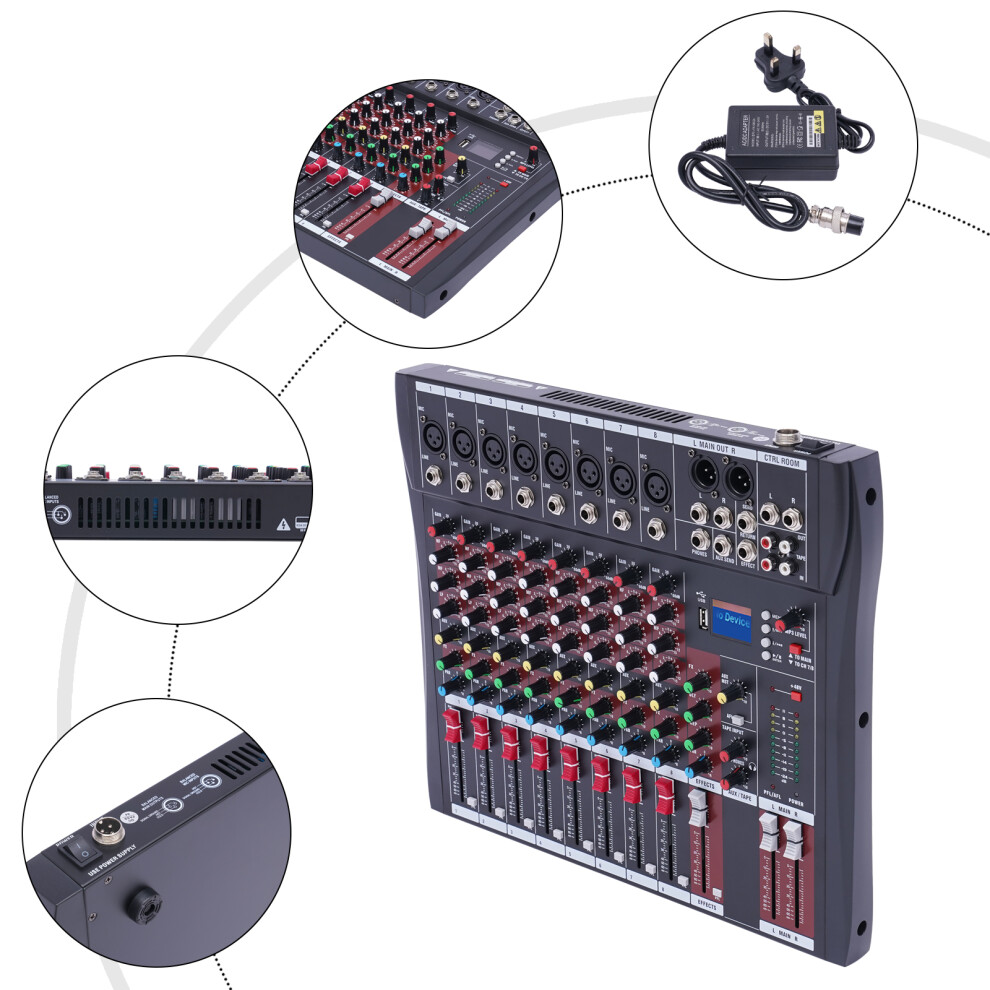

Professional Mixer Sound Board Console 8 Channel

Professional Mixer Sound Board Console 8 Channel Description

Application

It is suitable for home KTV, campus language, conferences, bars, stage performances, music dining bars, recording studios, etc.

Specification

Material: ABS

Color: Black

Number of Channels: 8

Plug: UK Standard

Power Source: Corded Electric

Connection Technology: USB, Bluetooth

Input: AC 230V 50HZ 18W

Output: AC18V*2 350mA

Maximum Input Level of the Microphone: + 24dBu

Maximum Input Level of the Line: + 24dBu

Maximum Output Level: XLR Card + 26dBu

Main Level Meter: 10-segment LED, -24 dB to CLIP

Frequency Response: 20Hz-30Khz 0.5dB

Maximum Input Power: 18W

Total Chopping Distortion (RHD + N): <0.01%.

Crosstalk (1 kHz): Fader off> 85 dB Channel> 82 dB

Noise (22Hz-22KHz): Equivalent Input Noise -122dBu Remaining Output Noise <-90dBu

Mono / Stereo Channel EQ: High Frequency +/- 15 dB, 12 kHz Low Frequency +/- 15 dB, 80 kHz High IF +/- 15 dB, 2.5 kHz

Mono: XLR Balanced, 2-pin Hot End, 2Kohm, Sensitivity -60-14dbu TRS Balanced, Tip Hot End, 10Kohm, Sensitivity -40+14dbu XLR Fantasy Power +48V

2-track Return: RCA-seat, Unbalanced, 4K ohms, -2dBu

2-track Gear: RCA-seat, Unbalanced, <75 Ohm, -2dBu

L / R Output: XLR, Balanced, Hot End of the Tip, <75 ohms, + 4 dBu, Max + 22 dBu

FX / AUX Output: TRS, Unbalanced, Hot End of Tip, <75 ohms, -2dBu, max + 18dBu

Headphone: TRS, Tip L, Ring R, Recommended Headphones with 30 to 600 ohms

Bluetooth Wireless Control Range: Max 4.6m/15ft

Package Size: 41*35*5cm/16*13.4*2in

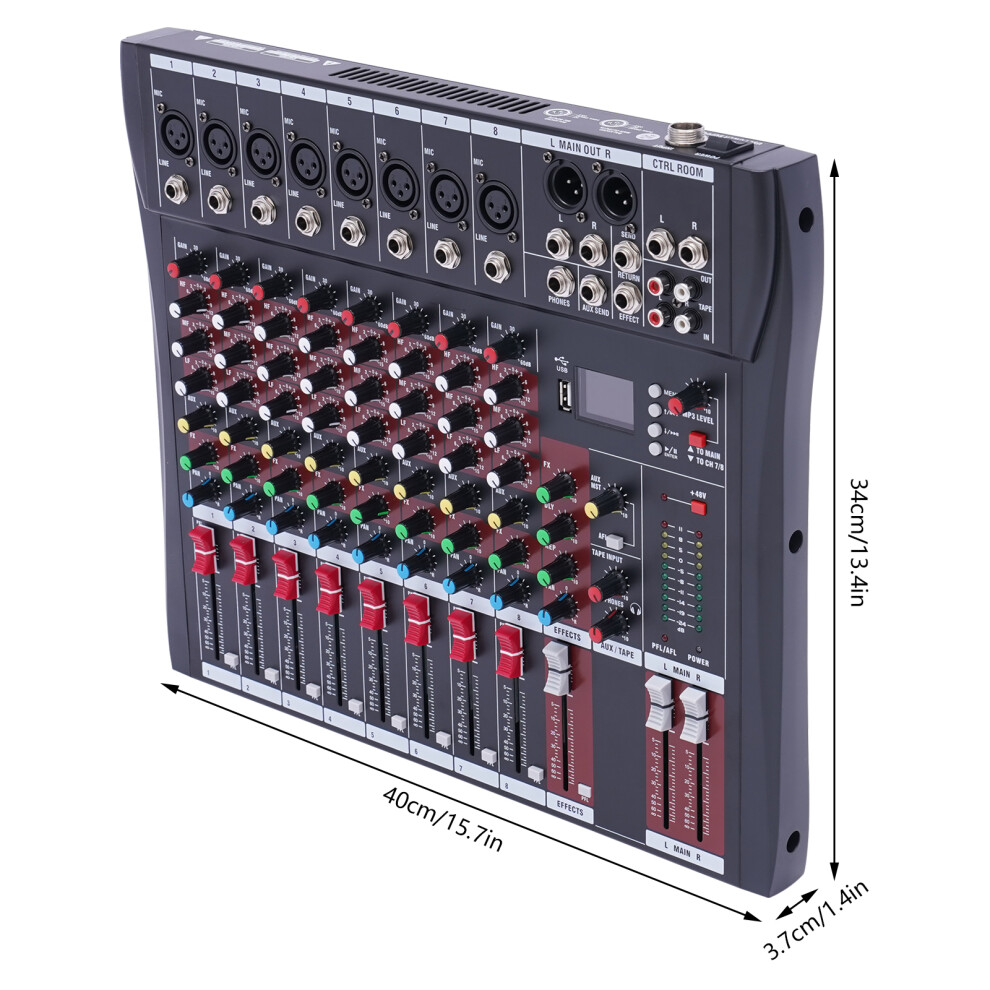

Product Size: 40*3.7*34cm/15.7*1.4*13.4in

Gross Weight: 4.6kg/10lbs

Net Weight: 4.4kg/9.7lbs

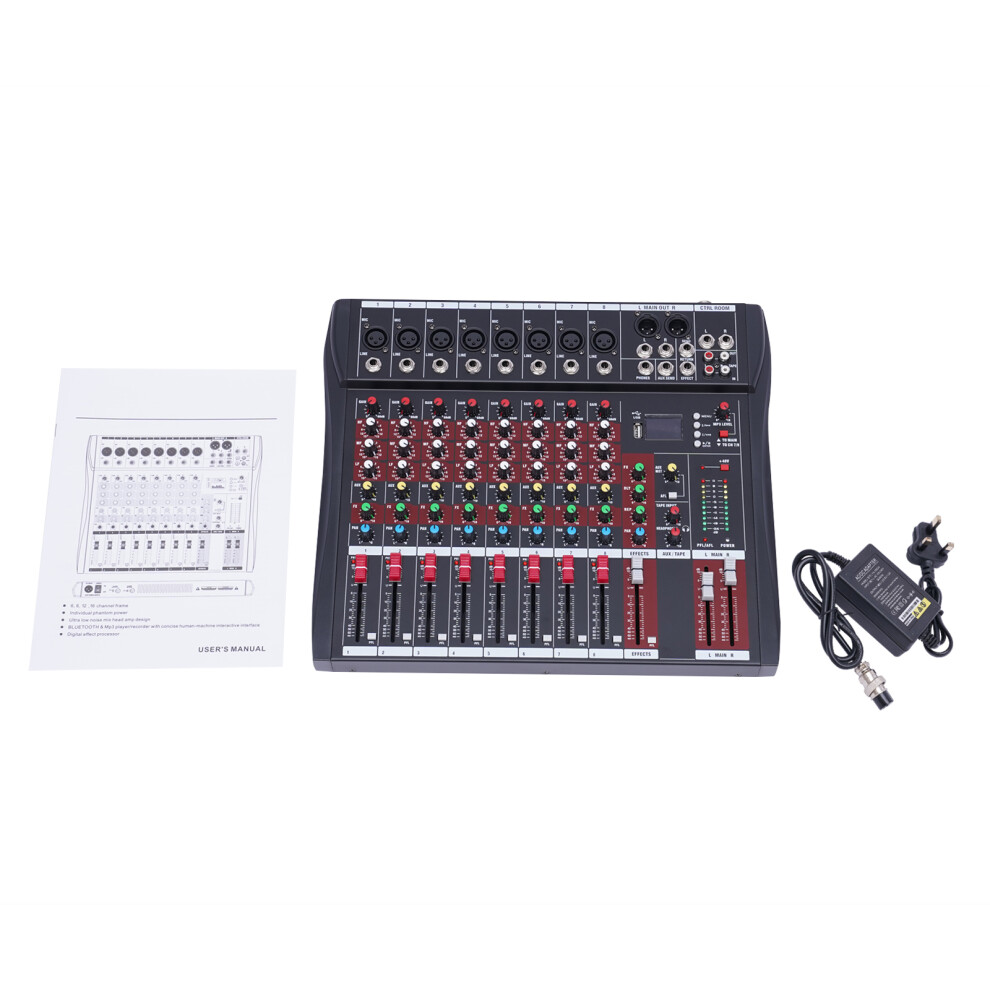

Package Included

1*Audio Mixer

1*Power Adapter

1*English Manual

Notes

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.
