QC3.0/2.0/MTK/FCP/IWATT/PD Test Board/Tempter/Fast Charge Protocol PD Controller USB Tester

QC3.0/2.0/MTK/FCP/IWATT/PD Test Board/Tempter/Fast Charge Protocol PD Controller USB Tester Description

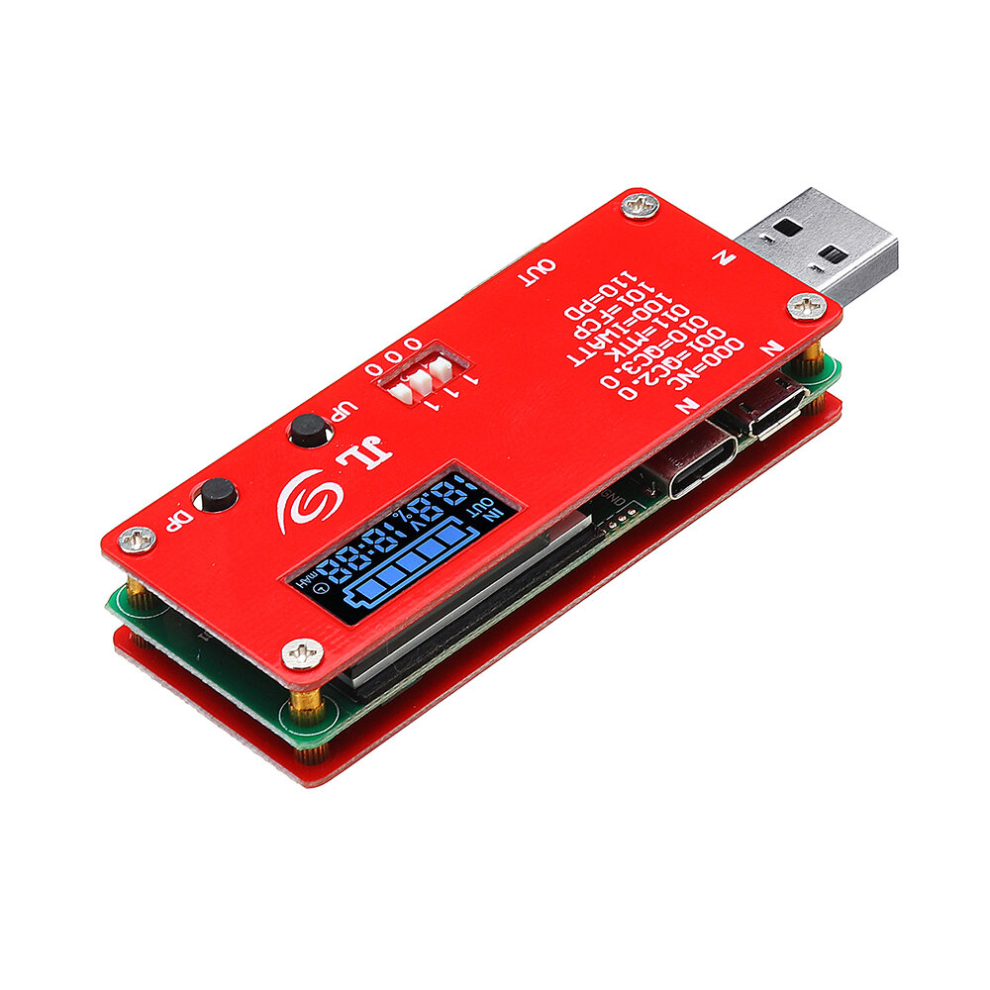

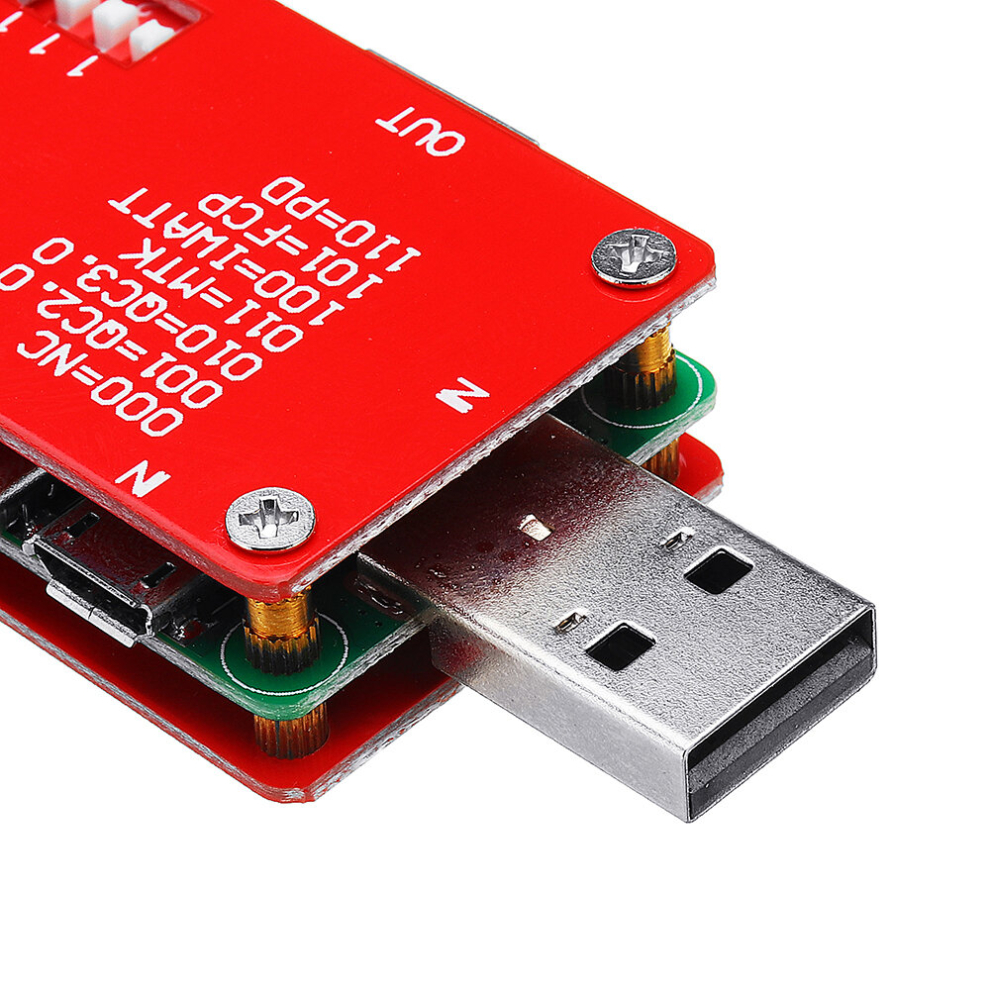

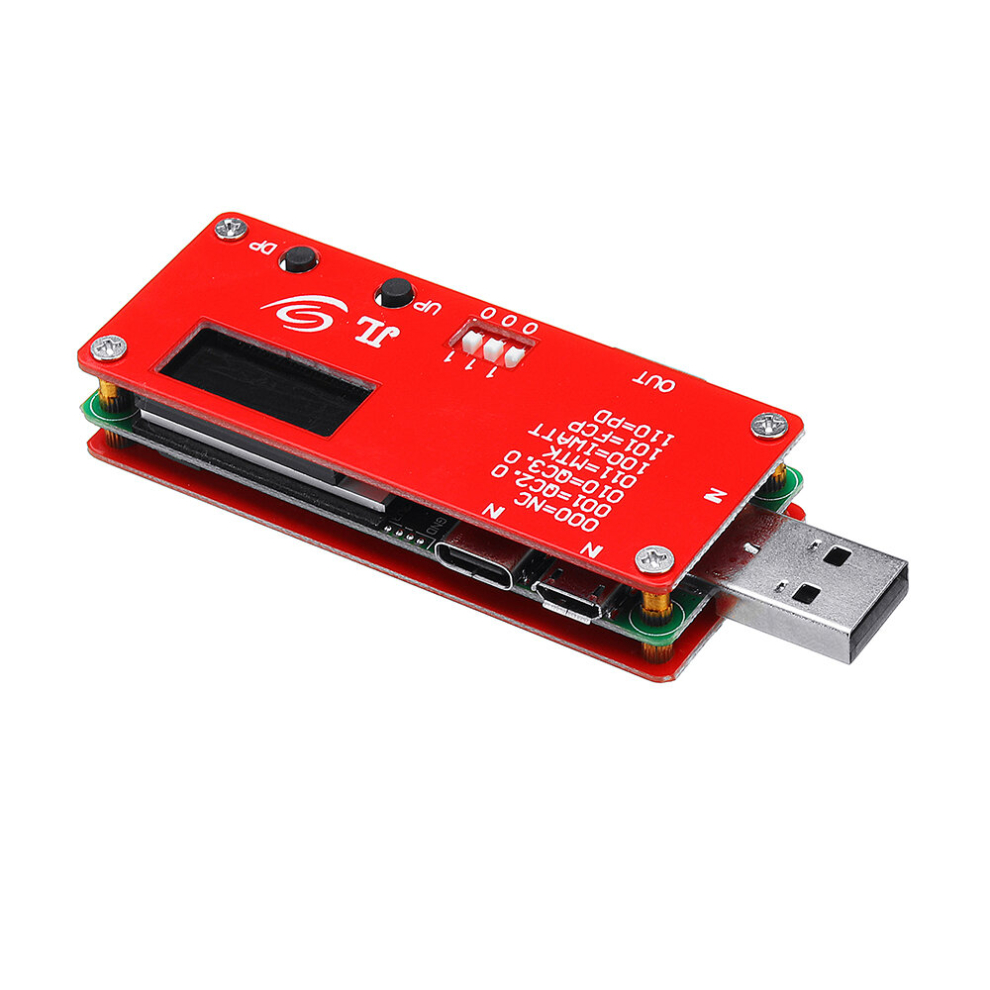

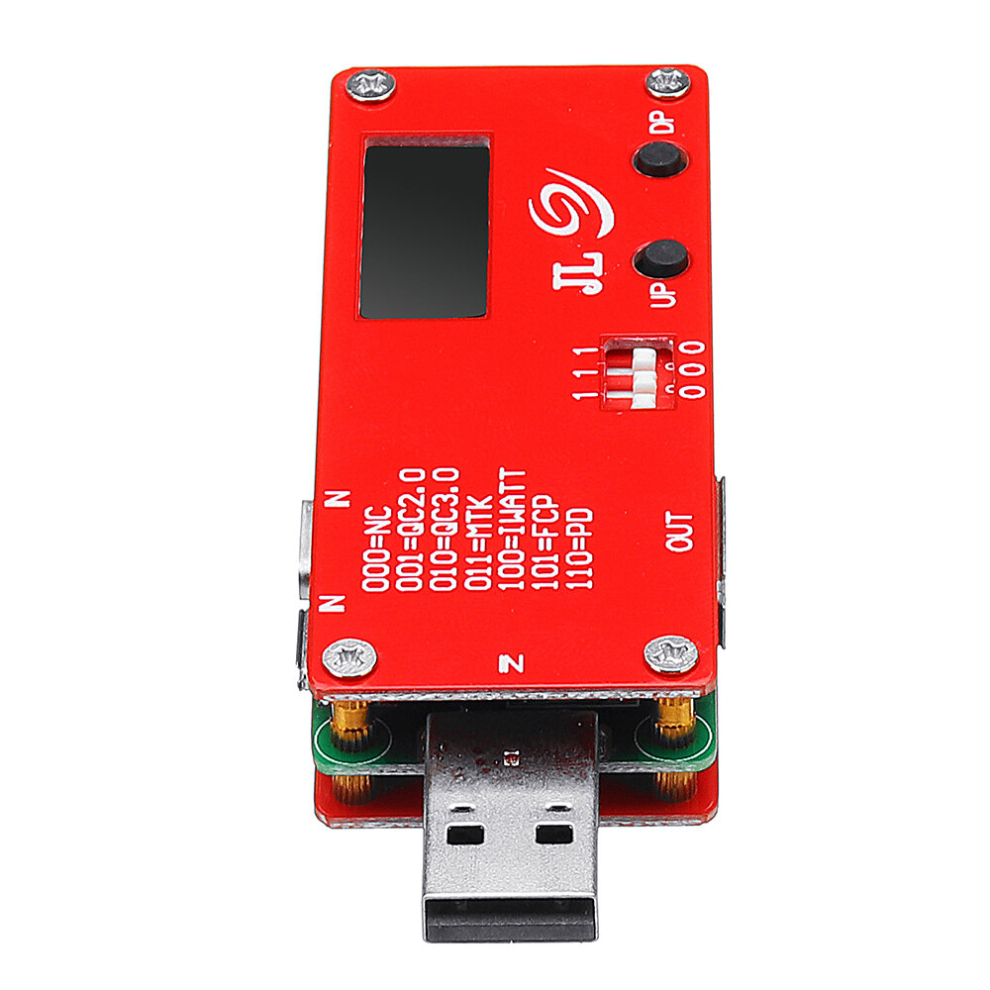

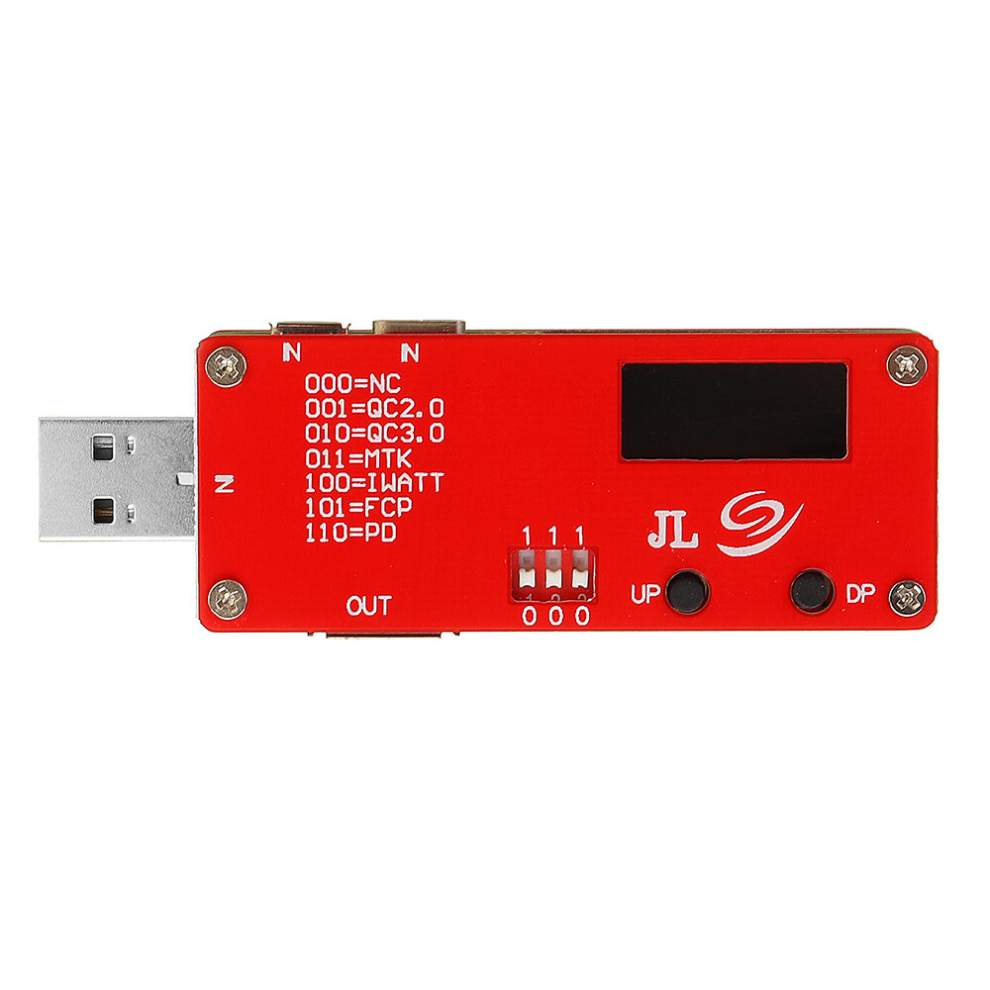

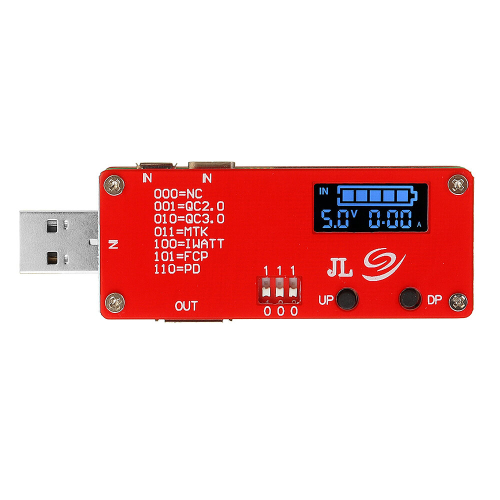

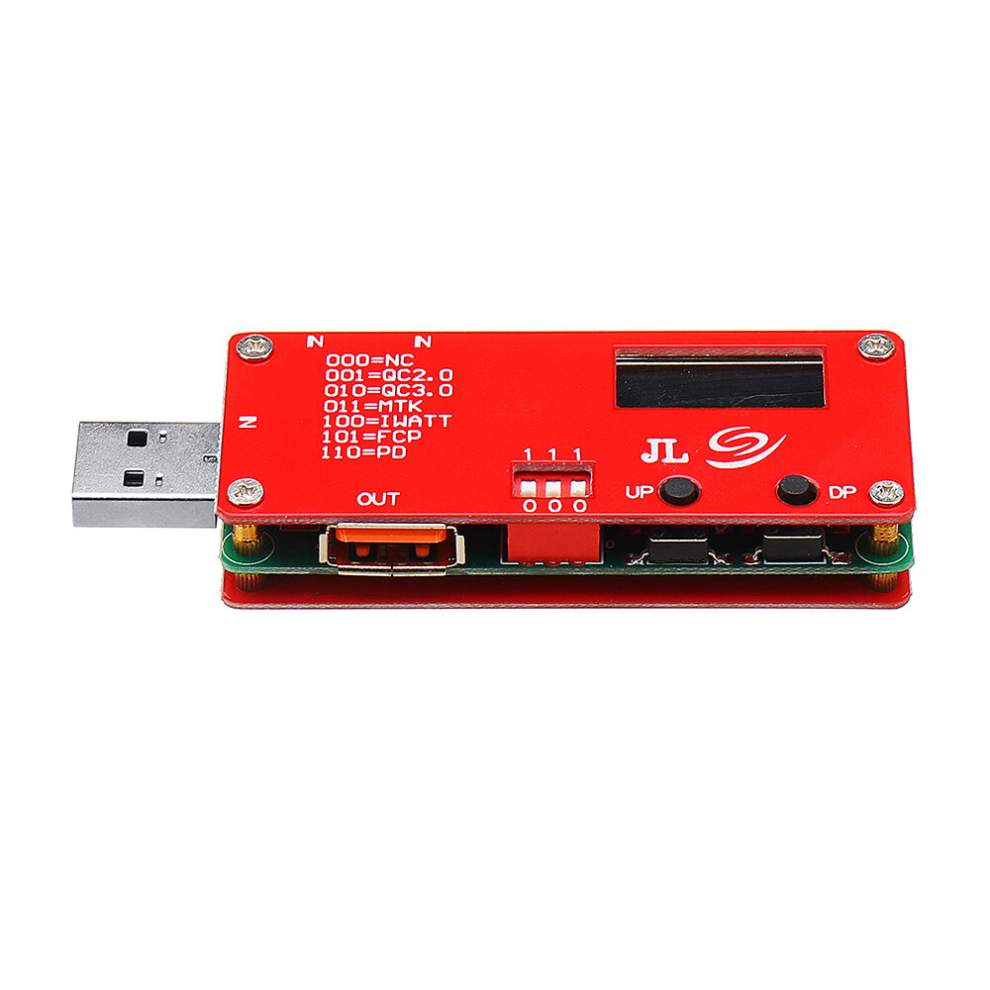

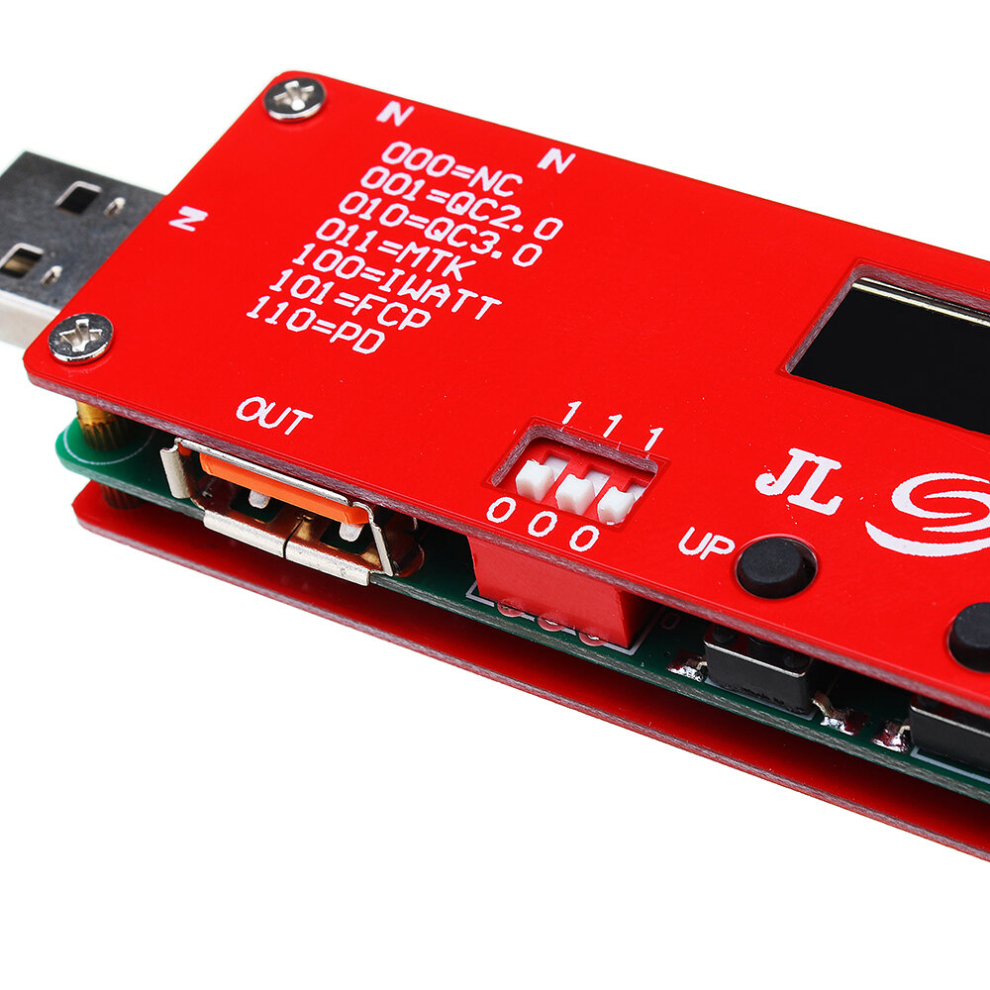

Description: 1. The code switch guides the type of power-on protocol 2. Power-on automatic cycle test. 3. Press the button to exit the automatic cycle test 4. Press the up button, the voltage rises, press the down button voltage drops 5. In the PD state, the up/down keys are all up cycle test functions. 6. The test current has nothing to do with the test board, it is related to the adapter. 7. Large USB male, MICRO, TYPE-C, D+/D- at the three inputs are all connected, can test QC3.0/QC2.0/MTK/FCP/IWATT 8. Output USB socket directly connected to the load / resistor 9. The code switch is in the 000 state, only the voltage and current are tested, and D+/D- is not added. 10. There is no load current, the battery grid does not run, when there is load current, the the battery grid is running. 11.PD test type: 1. 3A-cy2211: 5V 9V 12V 15V 18V 20V 2. 5A-cy2211: 5V 9V 12V 15V 16V 18V 3. ASUS: 5V 9V 12V 15V 20V 4. Apple 29W: 5V 14.8V 5. Imitation apple 29W: 5V 9V 12V 15V 6. Apple 87W: 5V 9V 20V 7. Imitation apple 87W: 5V 9V 20V 8. UGREEN : 5V 9V 15V 20V 9. Le Derui: 5V 9V 14.8V 10. Cypress 2134: 5V 9V 12V 15V 20V 11. IP6518: 5V 9V 12V IP6518: 5V 9V 12V 15V 20V 12.IP2712: 5V 9V 12V 15V 20V 13.CSS34P16: 5V 9V 12V 15V 20V 14.FL5002: 5V 12V 15V 20V 15.SW6106: 5V 9V 12V 16.LT2201P: 5V 9V 12V 17.IP5328PD 5V 9V 12V (with current test below 300MA) 18.IP6510 5V 9V 12V 19. Lenovo 65W 5V 9V 15V 20V Fast charge test operation method: 1 Input port: USB male, connect charger or mobile power output port, MICRO can also be used as input port (when connecting data cable, you must use fast charge data line). 2 Output port, orange large USB socket, load can be connected with high power resistor (100W/5 ohm--100W--50 ohm), can also be connected to the load meter to adjust the load size, the output current is determined by the load size The JL-001 test board supports 5A current test, please feel free to use it. 3 JL-001 supports five fast charging protocols: 001=QC2.0, 010=QC3.0, 011=MTK, 100=IWATT, 101=FCP. First, according to the fast charging protocol of your own products, through the different settings of the white dial switch, it is guaranteed to be consistent with the fast charging protocol of its own products. 4 When the fast charge protocol of the white dial switch is set to match the product agreement, the test can be started. The USB male plug is inserted into the output of the product, the black film is lit, and the JL-001 black switch is adjusted. ). The display voltage changes, indicating that the protocol handshake is successful, and the display current is determined by the load adjustment size. 5 QC3.0 test: white dial switch setting 010=QC3.0, USB male plug in QC3.0 charger screen lights up 5.2V, after 2 seconds, the voltage starts to rise automatically to 12, automatically drops to 3.6V, when pressing the UP or DP button, the voltage will be fixed at the current voltage value, no longer jump, and then press the button, the voltage will jump according to the change of 0.2V, then the QC3.0 test is completed. 6 Note that when testing three fast charging protocols, QC3.0, MTK, and IWATT, the load must have a current of 500MA, otherwise the test will be interrupted. Package Includes: 1 x USB Tester Details Pictures:
