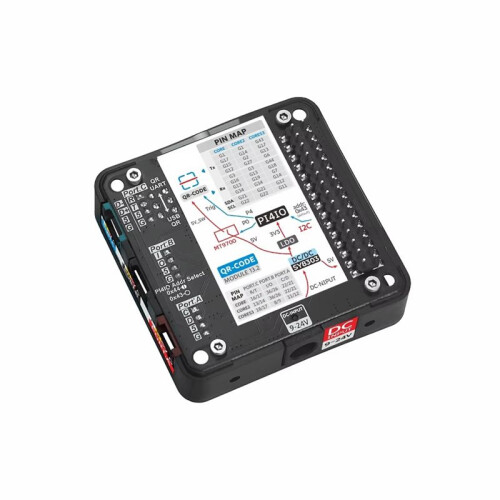

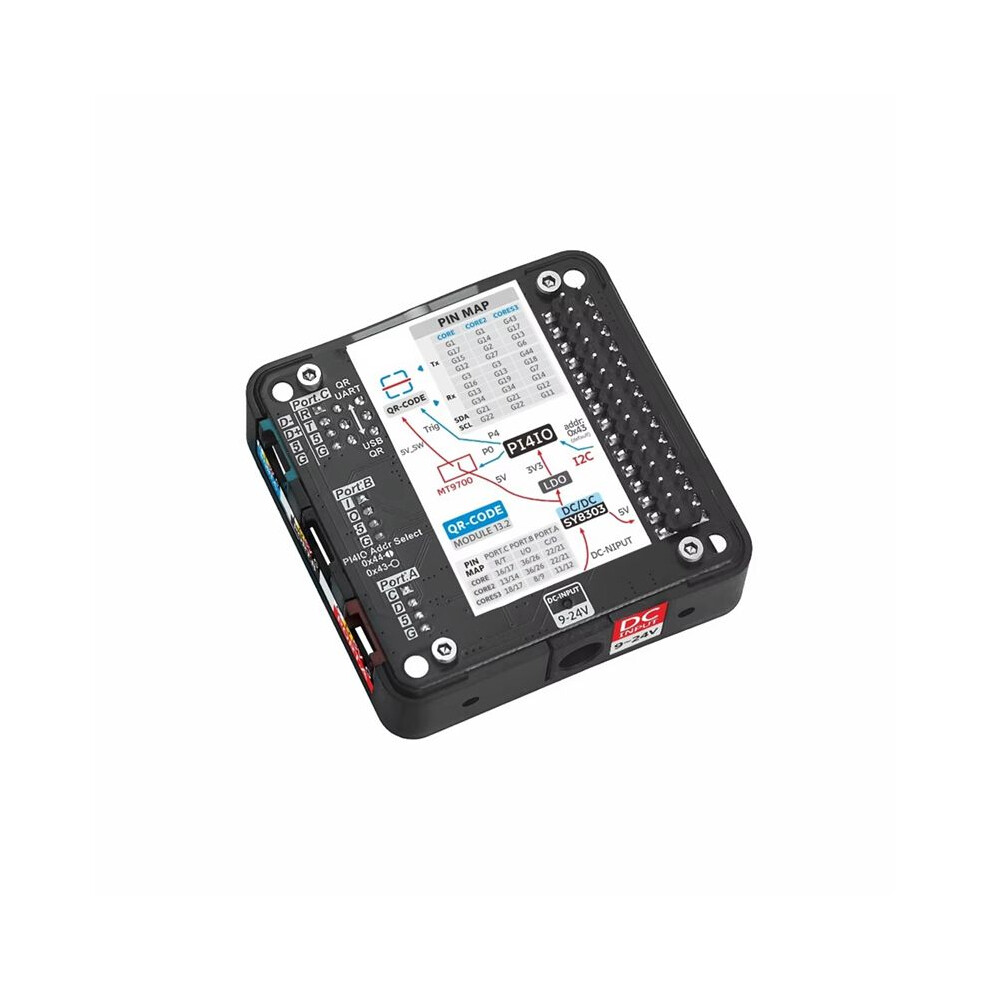

QR-Code Scanner Module 13.2 Barcode QR Code Scanning Module 640x480 CMOS USB or UART Interface
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Tue 14th - Sat 18th Jul
Sold by: CNNOTEPAD
Returns: 30 days
180-day payment protection
Most Popular in Document Scanners
Summary
- Barcode/QR Code Scanning Module:Supports 3 types of QR codes and 14 types of 1D codes, UART/USB interface, plug-and-play operation
- 640x480 CMOS scanning engine
- USB/UART dual-mode switching
- Multiple trigger modes + LED illumination
- Barcode Scanning Module
QR-Code Scanner Module 13.2 Barcode QR Code Scanning Module 640x480 CMOS USB or UART Interface Description
Barcode/QR Code Scanning Module:Supports 3 types of QR codes and 14 types of 1D codes, UART/USB interface, plug-and- operation
640x480 CMOS scanning engine
USB/UART dual-mode switching
Multiple trigger modes + LED illumination
IO expansion chip: PI4I0E5V640812C 0x43 (default)/0x44
Sensor: 640x480 CMOS
Illumination: White LED
Focus: Red LED
QR Code Reading Types: PDF417, QR Code, Data Matrix
1D Code Reading Types: Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSl, GSl Databar
Reading Depth of Field: 50-160 mm
Reading Accuracy: 5 mil
Print Contrast: 20%
Scanning Angle: Pitch 55, Tilt 55
Communication Interface: USB or UART communication. The USB interface can be connected to a computer via the Grove to USB-C accessory.
Expansion Interface: Three Grove : PORT.A, PORT.B, and PORT.C
Power Input: Input Voltage: DC9-24V, Dimensions: 5.5 x 2.1mm, Polarity: Positive inside, negative outside
Operating Current (with Core2 Host):
DC5V Module: 5.04V 74.42mA (Off), 5.09V 255.84mA ()
DC9V Module: 9.09V 98.93mA (Off), 9.10V 153.44mA ()
DC12V Module: 10.49V 79.96mA (Off), 10.38V 124.54mA ()
Color: Black
Material: plastic
Package Contents:
1 x QR Code Scanner Module
Details
| OPC | PVNZRBD |
|---|---|
| Brand | Tlily |
| Codes | 4711521331493 (EAN) |
Product Data
| Height | 2.5cm |
|---|---|
| Width | 10cm |
| Length | 14cm |
| Weight | 0.04kg |
| Colour | Black |
| Material | Plastic |
