Description & Details
Summary
- HIGH PERFORMANCE SOC: The development board is equipped with for Allwinner H616 processor, which is a high performance SOC that supports 4K at 60fps decoding, suitable for OTT and Internet Protocol Television (IPTV) markets.
- QUAD CORE 64 BIT CPU: The H616 integrates 4 core 64 bit for Cortex A53 processor, built in NEON acceleration engine and features powerful CPU processing power, meeting various differentiated business needs. Maintain the best user experience in terms of stream compatibility, smoothly online video playback, image quality, and overall performance.
- MULTI FEATURES: H616 supports video decoders in various formats such as H.265, H.264, VP9, AVS2, AVS, AVS+, MPEG 1, MPEG 2, MPEG 4, VC1, VP8, as well as high performance H.264 video encoders.

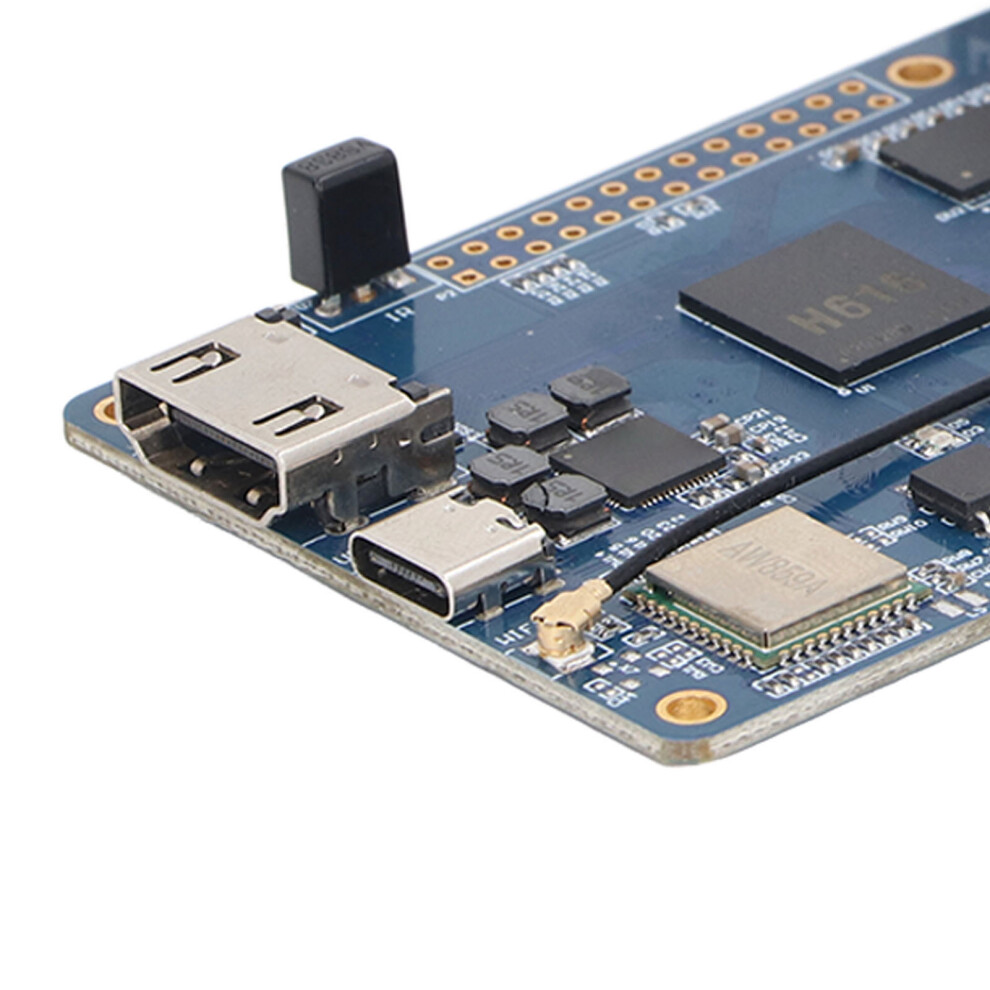

- RICH INTERFACES: The development board integrates a variety of peripherals such as HD multimedia interface, Ethernet, BT 5.0, WiFi, 4xUSB Host, CVBS interfaces, as well as 2 x 13Pin GPIO ports. It is not only a microcomputer capable of implementing audio and video entertainment, but also suitable for Linux, for Android programming learning and project development. It supports operating systems s
- WIDELY USED: This single board computer can be used in computers, TV boxes, game consoles, robots, facial recognition systems, wireless network players, and so on.
Quad Core 64Bit Microcomputer Board 1.5GHz WiFi BT 5.0 Description

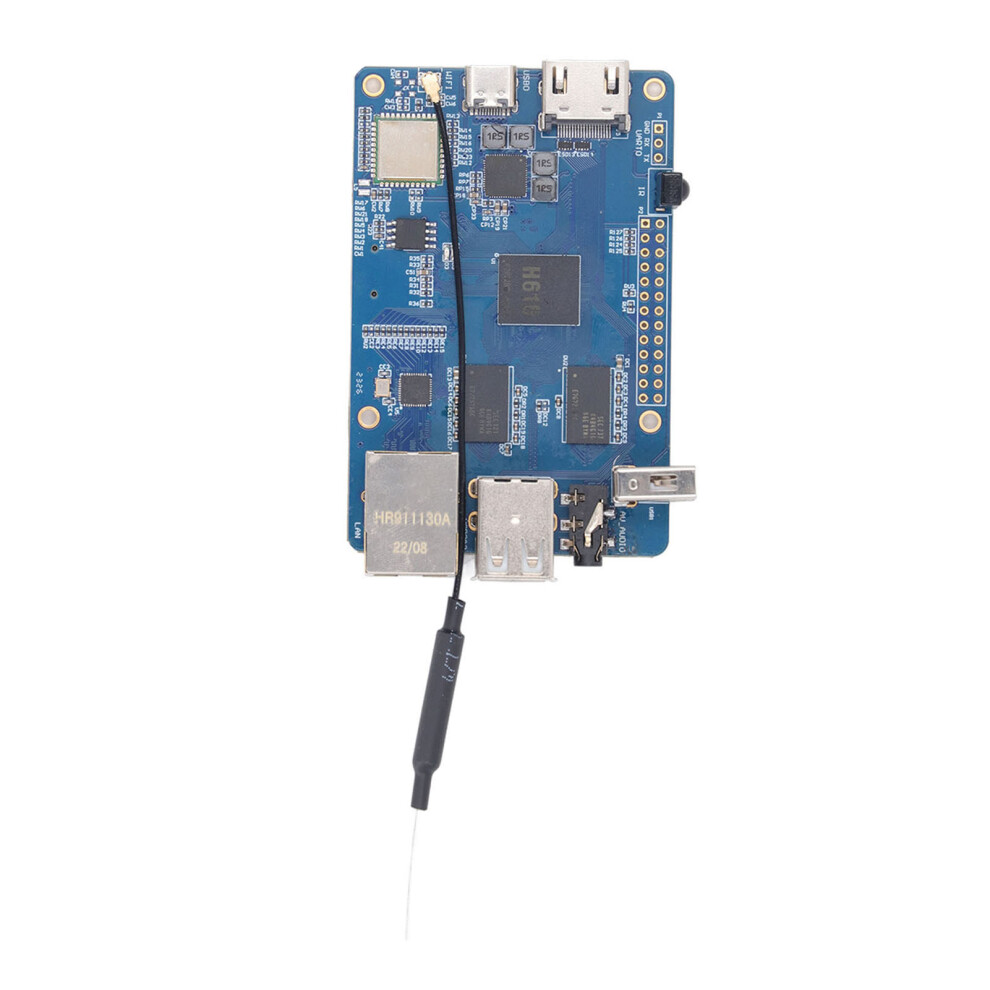

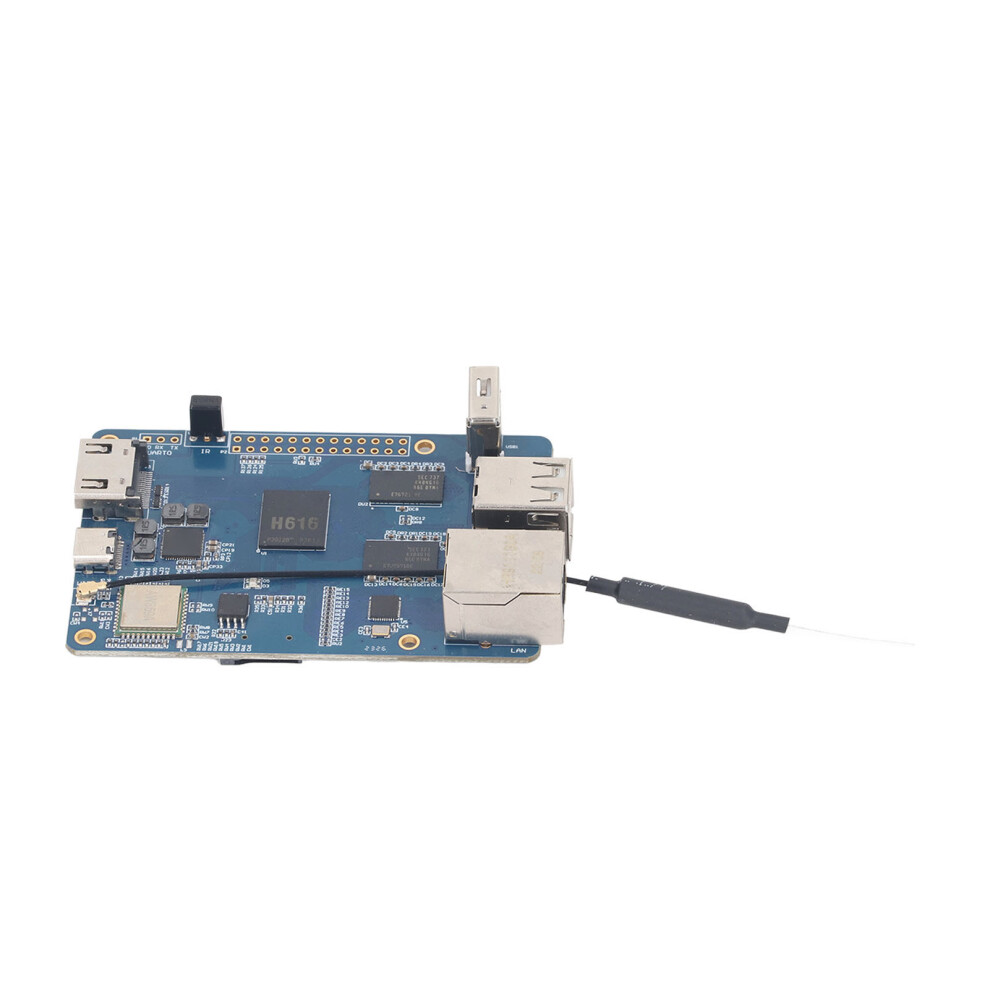

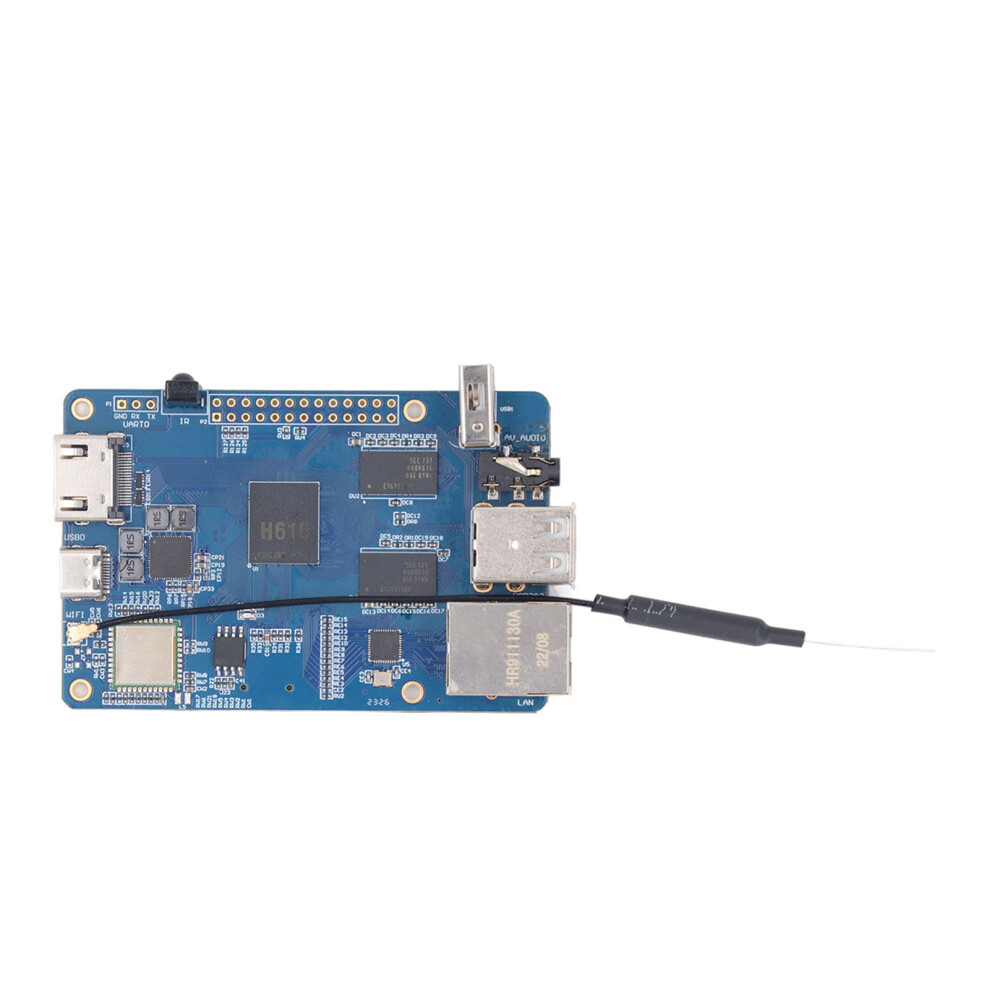

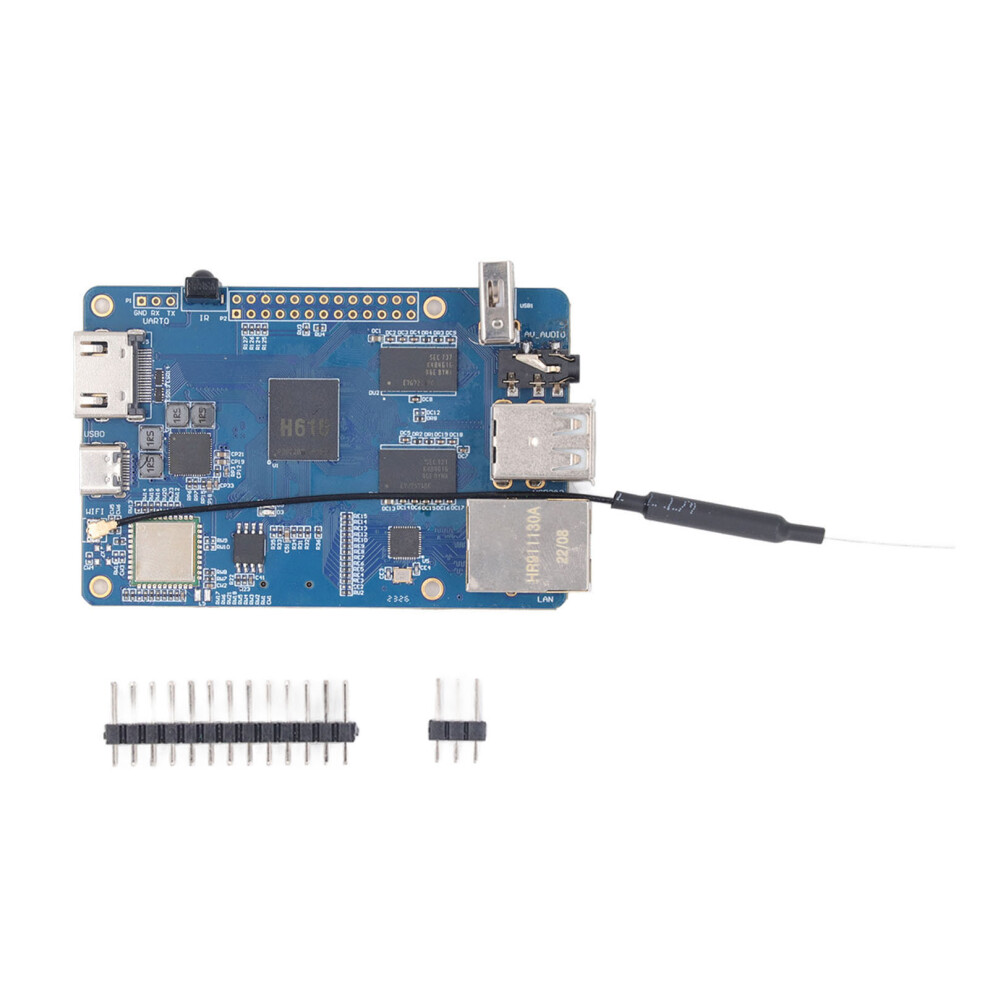

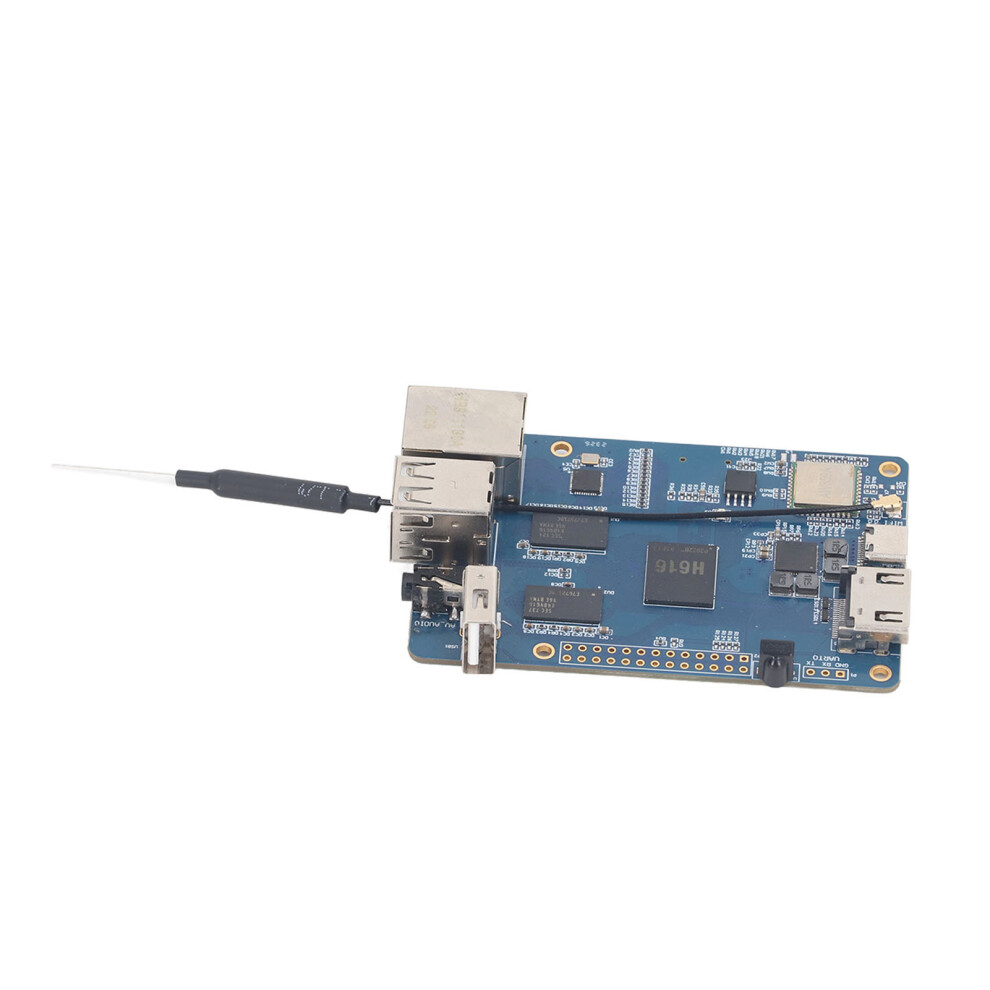

Microcomputer Development Board Quad Core 64 Bit 1.5GHz for Cortex A53 CPU WIFI BT 5.0 WiFi Single Board Computer
Item Type: Microcomputer Development Board
Material: PCB

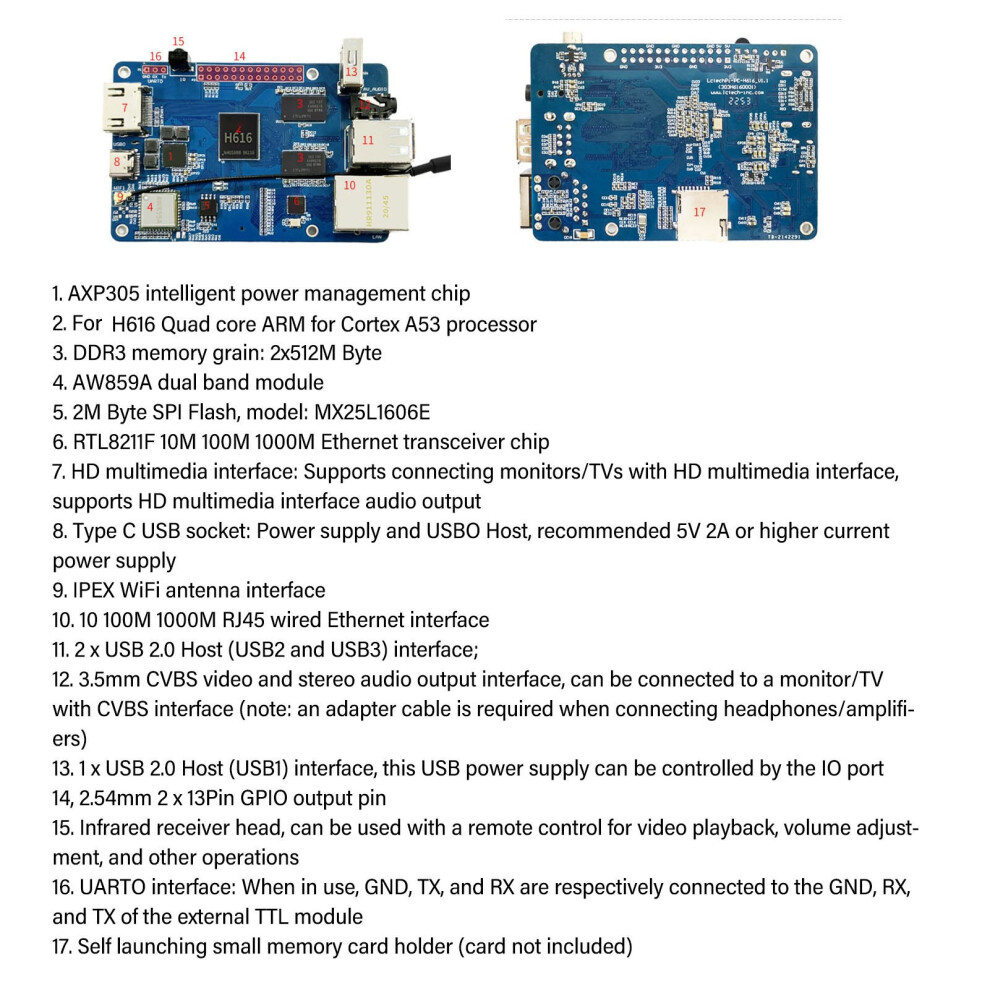

Features:

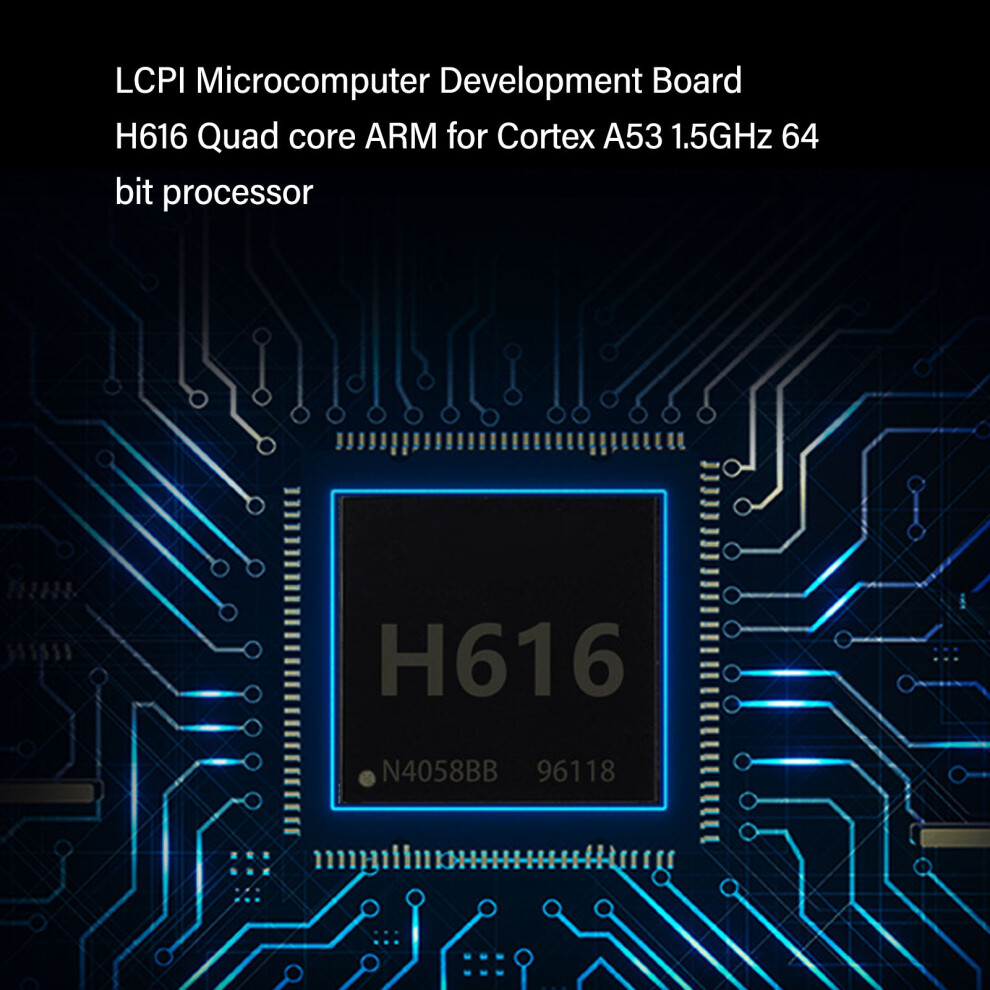

1. CPU: H616 Quad core ARM for Cortex A53 1.5GHz 64 bit processor
2. GPU: For Mali G31 MP2, supports for OpenGL ES 1.0 2.0 3.2, for Vulkan 1.1, for OpenCL 2.0
3. Video Decoding:
H.265 Main10 at L5.1 decoder up to 4K at 60fps or 6K at 30fps
VP9 Profile 2 decoder up to 4K at 60fps
AVS2 JiZhun 10bit decoder up to 4K at 60fps
Multi format 1080р at 60fps video playback formats, including H.264 BP MP НP, H.263 BP, VP8, MPEG 1 MP HL, MPEG 2 MP HL, MPEG 4 SP ASP at L5, AVS+ AVS JiZhun, WMV9 VC1, etc.
H.264 BP MP HP at L4.2 decoder up to 4K at 30fps
4. Video Encoding:
H.264 BP MP HP encoder up to 4K at 25fps or 1080р at 60fps
JPEG snapshot performance of 1080р at 60fps
5. Memory: 2 x 512MB DDR3 (shared with GPU)
6. On Board Storage:
Self popping small memory card holder (shipped without small memory card)
On board 2MB SPI FlashH chip
7. Wired Network: 10 100M 1000M RJ45 Ethernet Interface
8. Wireless Network:
AW859A dual band WIFI+BT module
Supports IEEE 802.11a b g n ac
Supports BT5.0

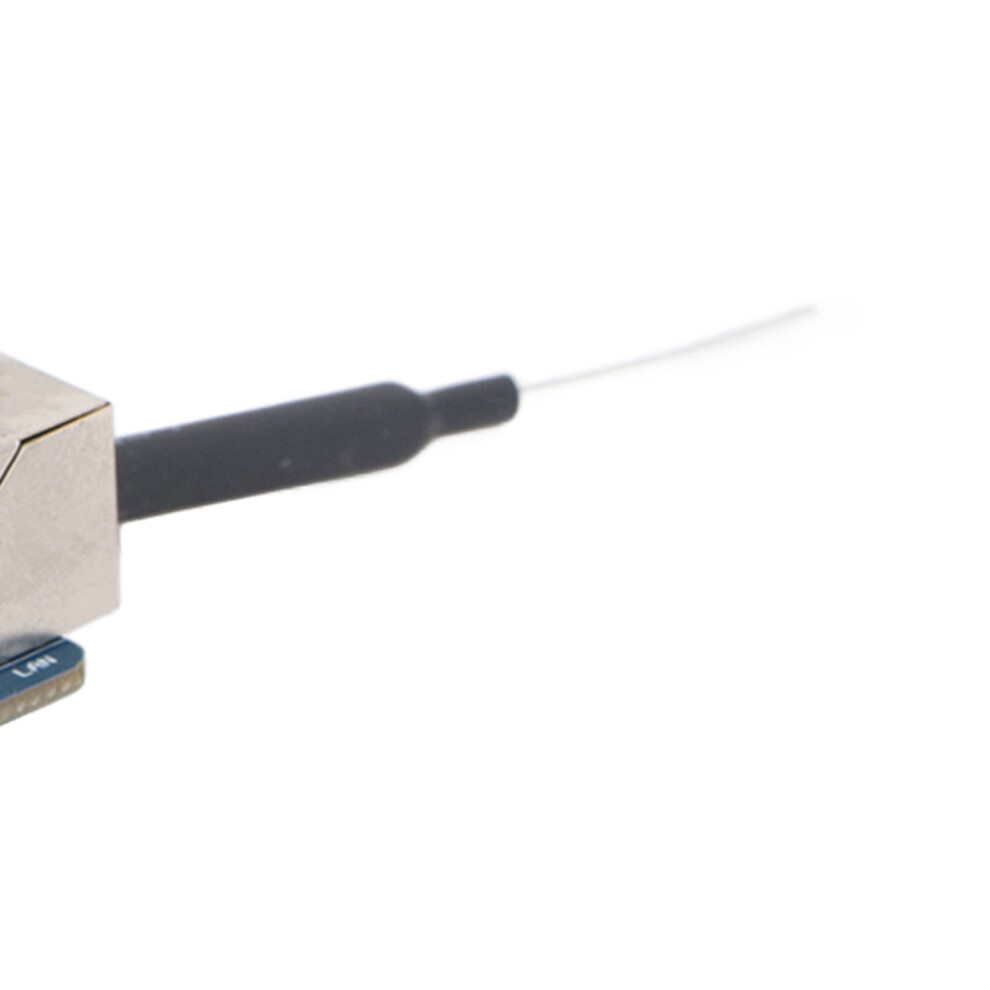

IPEX antenna interface
9. Video Output:
HD multimedia interface 2.0a up to 4K at 60fps
TV CVBS output, support PAL NTSC
10. Audio Output:
HD multimedia interface
3.5mm CVBS interface (adapter required for headphone or amplifier)
11. USB Interface:
1 x Type C USB 2.0 Host
1 x Type A USB 2.0 Host (power output can be controlled through I0 port)
2 x Type A USB 2.0 Host
12. Infrared: Onboard infrared receiver, compatible with remote control

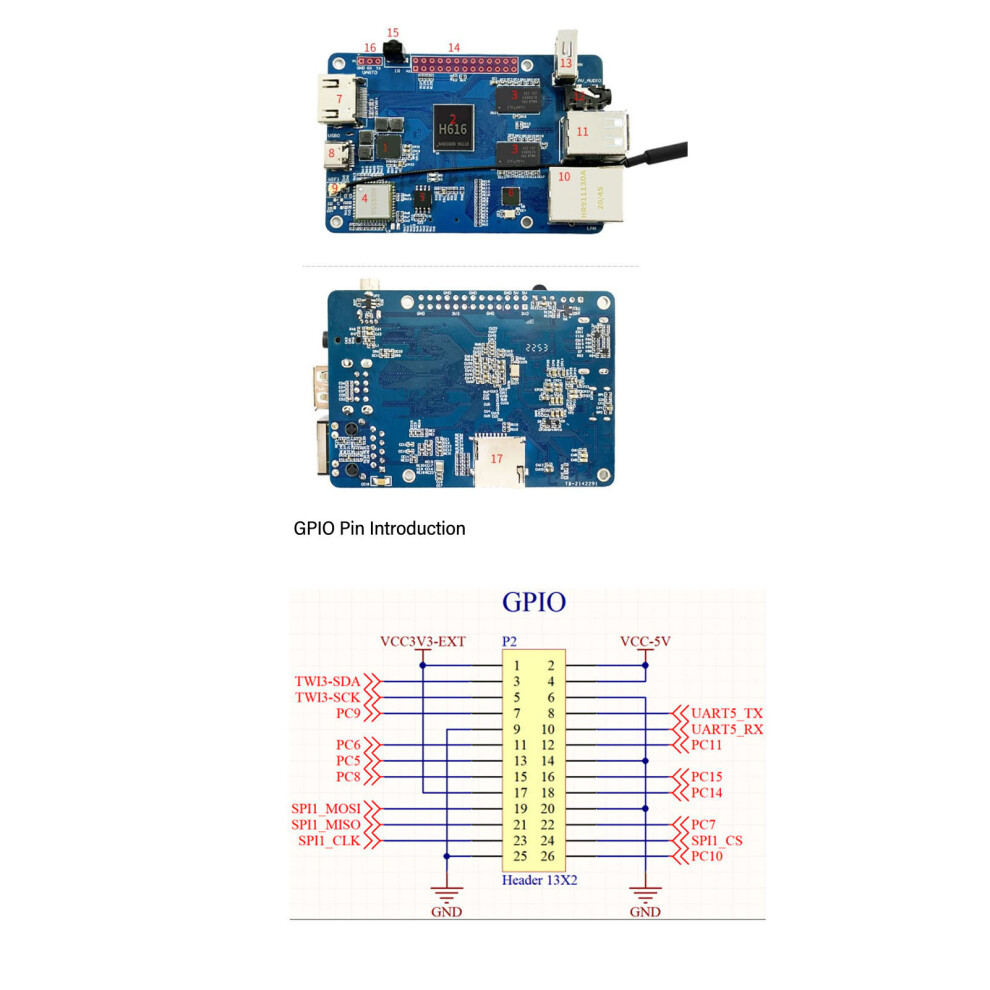

13. GPIO: Onboard 2.54mm 2 x 13Pin GPIO output pin header
14. UART: Onboard 2.54mm 1 x 3Pin UART output pin header
15. Power Supply: Type C USB 5V 2A and above current power input
16. LED Lights: Power indicator (red), status indicator (green)

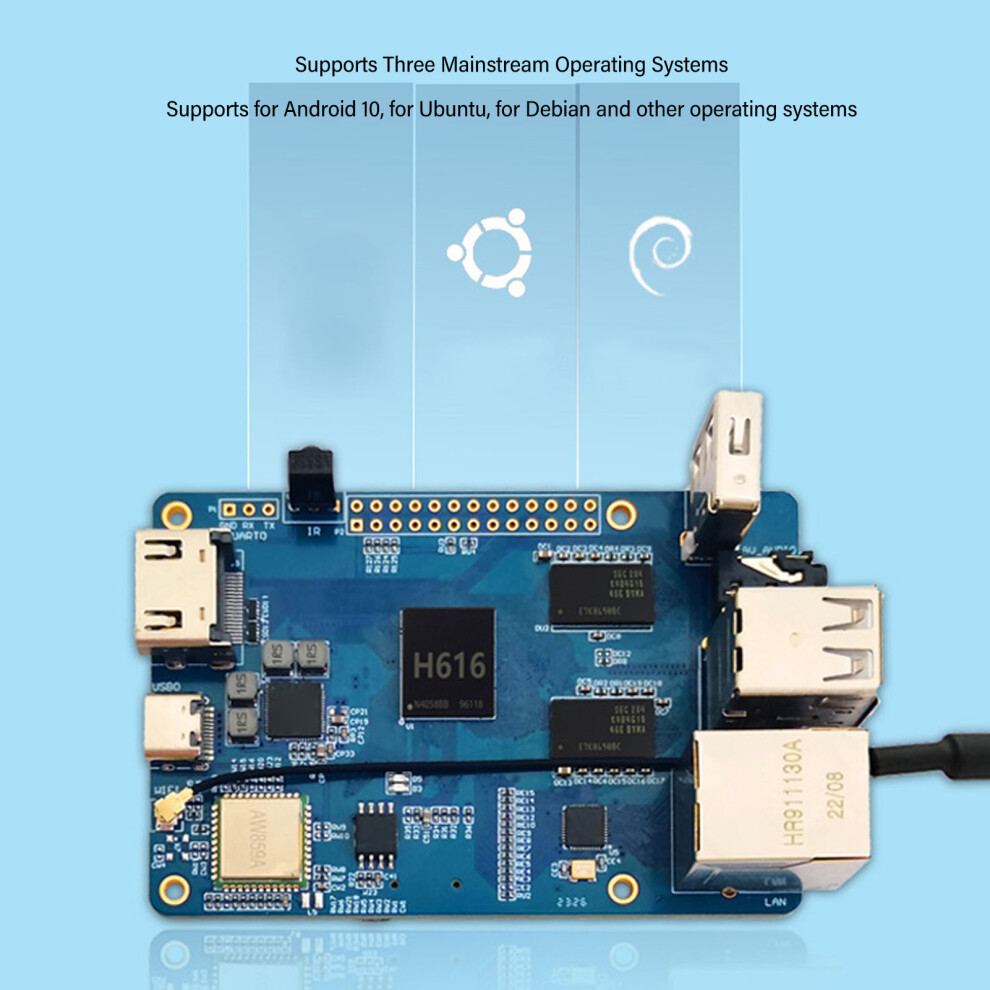

17. System: Supports for Android 10, for Ubuntu, for Debian and more
Details
| OPC | PSGK28K |
|---|---|
| Codes | 8401388575135 (EAN) |
