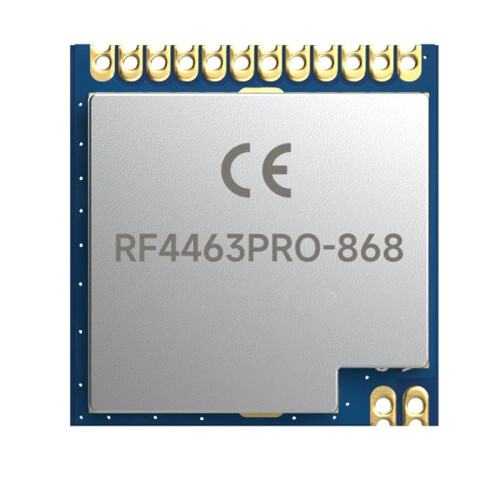

RF4463 PRO Wireless RF Module SI4463 Communication Module for Homes/Remote Controls/Toy Controls 868Mhz

RF4463 PRO Wireless RF Module SI4463 Communication Module for Homes/Remote Controls/Toy Controls 868Mhz Description

The RF4463PRO module uses the Silicon Labs Si4463 device, a highly integrated wireless ISM band transceiver chip. Its extremely low receive sensitivity (-126dBm), coupled with industry-leading +20dBm output power, ensures extended range and improved link performance. Meanwhile, built-in antenna versatility and frequency hopping support can be used to further extend range and improve performance.
Sensitivity to -126dBm
Maximum output power: 20dBm
10mA@receive status
Data transmission rate: 0.1-1000kbps

(G)FSK, 4(G)FSK, (G)MSK, OOK and ASK1 modulation modes
Ultra-low power-off mode
Digital Received Signal Strength Indicator (RSSI)
Timed wake- function
Automatic antenna matching and bidirectional control
Configurable packet structure
Preamble detection
64/128-byte transmit/receive data register (FIFO)
Low power detection
Temperature sensor and 8-bit analog-to-digital converter
Integrated voltage regulator
Frequency hopping function
Power- reset function
Built-in crystal adjustment function
1.8-3.6 V power supply
Operating temperature range: -40-+85
Applications:
Remote control
Remote meter reading
Industrial control
Home automation telemetry
Toy control
Wireless PC peripherals
Tag reader/writer.
Specification:868Mhz
Color:As Shown
Material:PCB

Package Contents:
1 * Wireless RF Module
