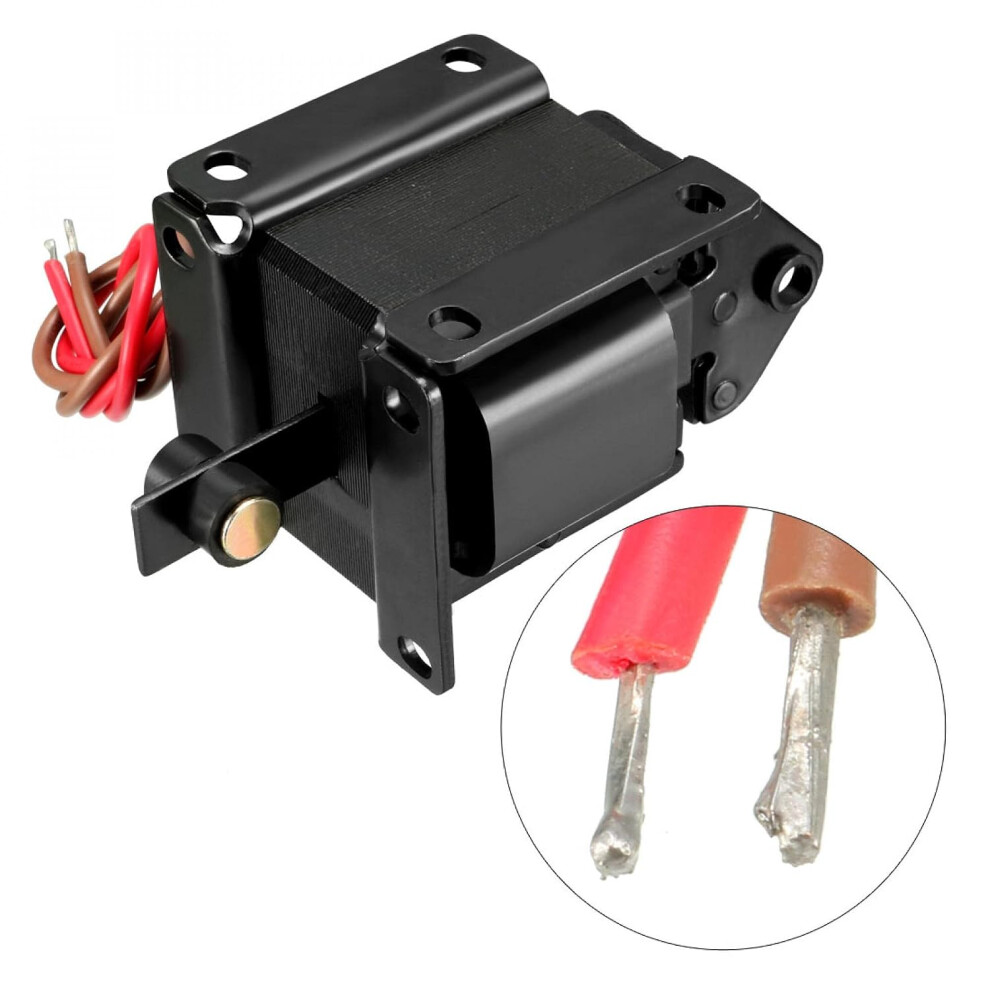

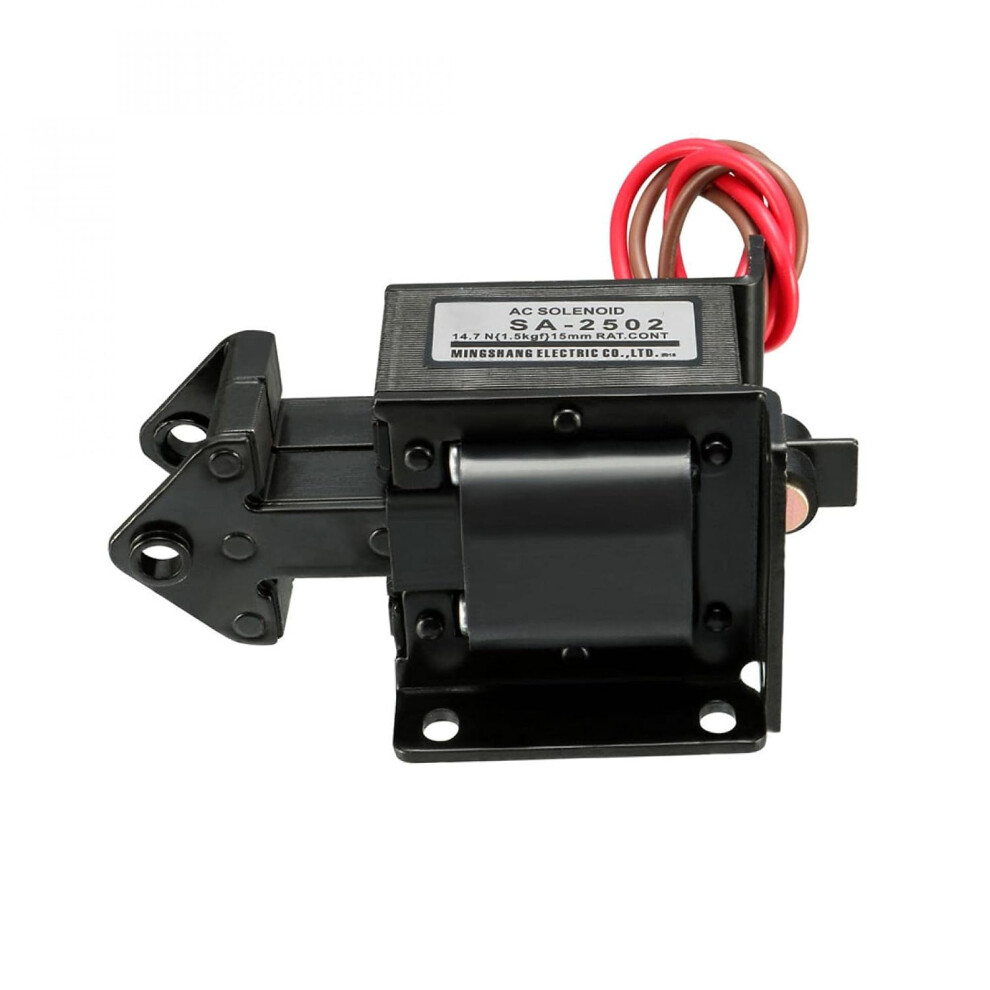

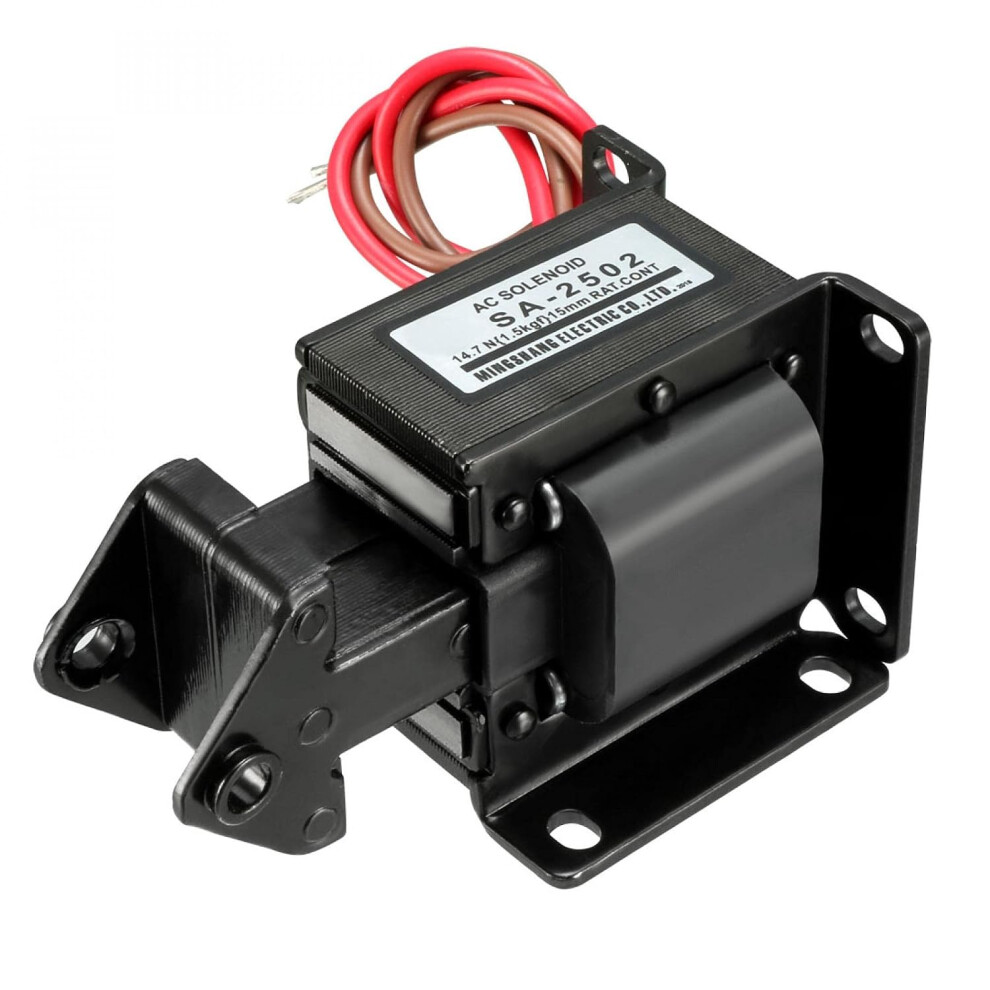

SA-2502 AC220V 14.7N 15mm Pull Push Type Open Frame Linear Motion Solenoid Electromagnet

SA-2502 AC220V 14.7N 15mm Pull Push Type Open Frame Linear Motion Solenoid Electromagnet Description

Key Features

• Force 14.7N; Travel 15mm
• Cable Length 210mm / 8.27"; Rated Voltage AC 220V

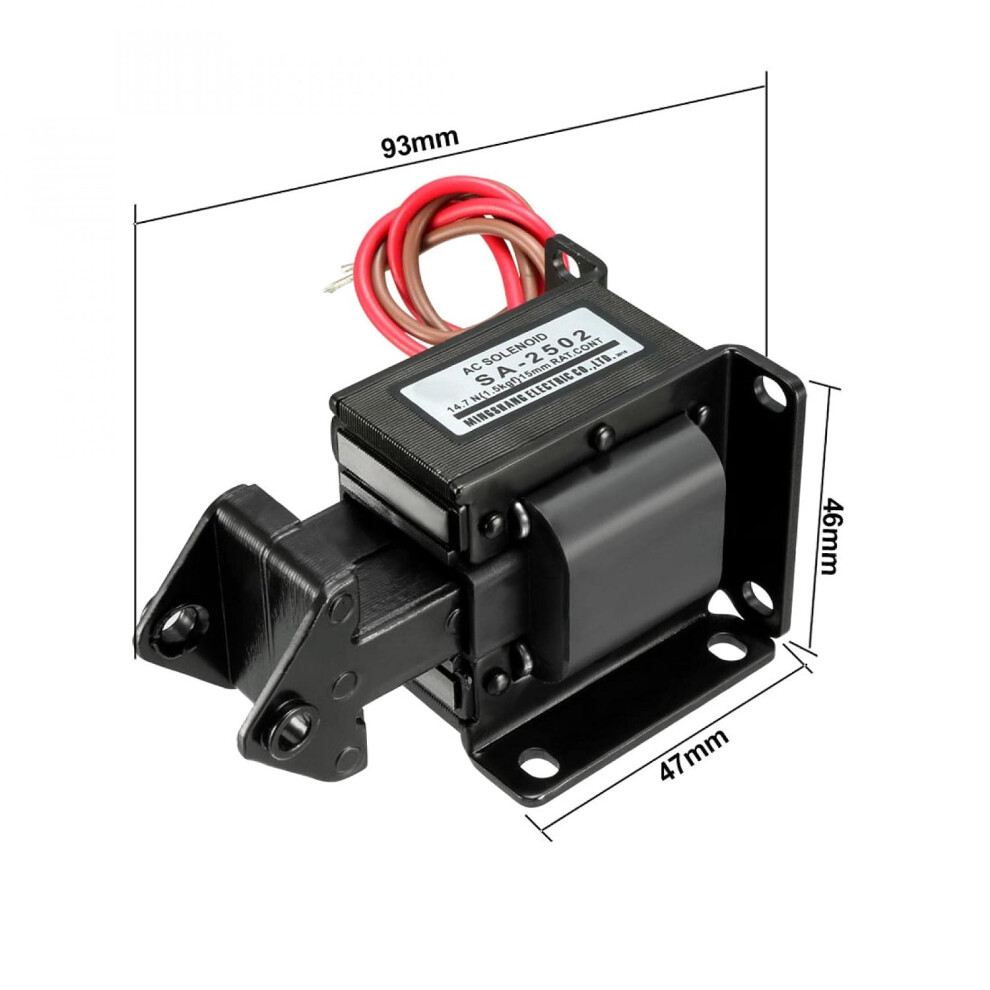

• Size 93 x 47 x 46mm / 3.66" x 1.85" x 1.81" (L*W*H)
• Push Bar Dia 12 x 20mm / 0.47'' x 0.79"; Total Length 93mm / 3.66"; Mounting Hole Dia. 5.8 x 4.2mm / 0.23'' x 0.17"
• Package Content 1 x DC Solenoid Electromagnet

Product Description Description

Push pull Type, linear motion, plunger spring return, DC solenoid electromagnet.Support AC 220V voltage, high power, pull push type, linear motion, is easy to install.DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.

Note

Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using electricity, so as not to damage the electromagnet.

Specifications Item Weight1.01 pounds Product Dimensions6.02 x 4.33 x 2.91 inches
