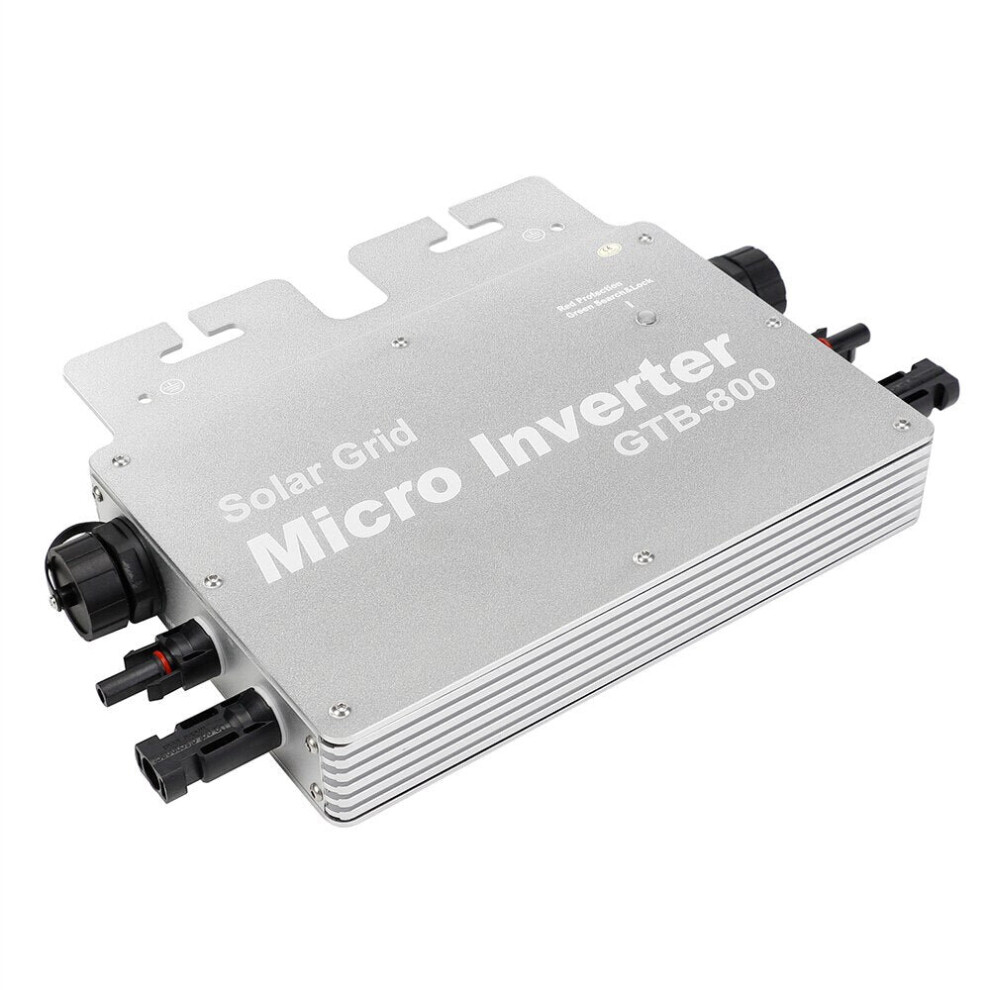

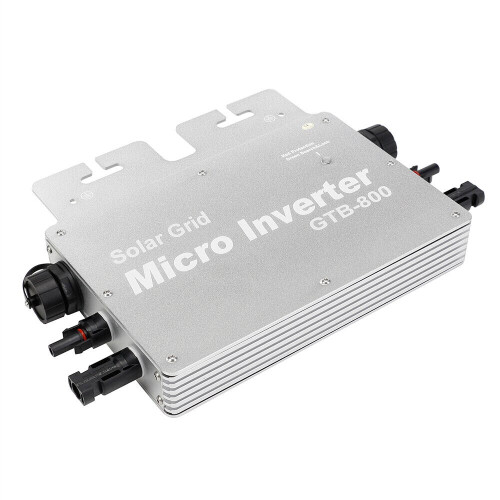

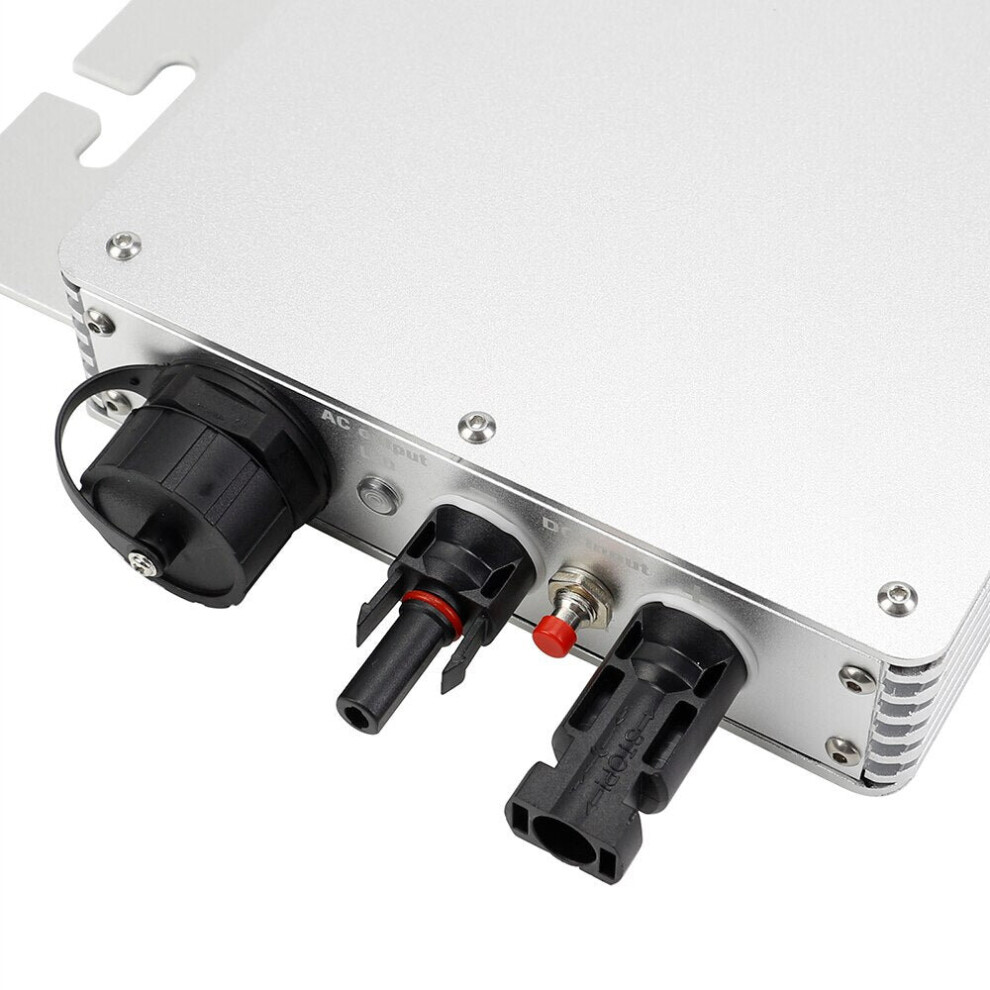

(Silver, 230V) 700W Grid Tie Micro Solar Inverter With Wifi Function Network Connection IP65 Waterproof 110V 230V Silver

(Silver, 230V) 700W Grid Tie Micro Solar Inverter With Wifi Function Network Connection IP65 Waterproof 110V 230V Silver Description

Feartures:
1)Wireless communication 433/462MHz
2)6-grade power search
3)Wide voltage input(22-50VDC)
* DC voltage input:22~50VDC
* Second level power variable voltage conversion.
4)High-frequency two-way and one-way grid function
* High frequency direct modulation, AC half wave synthesis;
5)Kinds of frequency output function
* It can apply to 50Hz and 60Hz frequency of AC
* Frequency range: 45Hz ~ 64Hz;
6)Directly connected to the solar panels(do not need to connect the battery)
7)AC 0 angle with high precision auto-detection---AC switching: 50Hz / 60Hz.
8)Synchronous High-frequency Modulation
Synthetic way: MOSFET full-bridge; 3. High frequency: 50KHz.
9)Pure Sine Wave Output---Use SPWM directly to make pure sine wave output.
10)Power Automatically Locked (APL)
* Automatically powers locked in maximum power point, made output more stable.
11)Constant Current, Constant Power
* Constant current and output power, without any overload, over-current phenomenon.
12)Exactly and timely automatic Island Effect Protection
13)High-Frequency High Conversion Rate---Adapt high frequency converter, the output more efficient.
14)Maximum Power Point Tracking (MPPT)---high-precision (MPPT) operation power.
15)Stack using---Such as: 4 micro inverter of 260W stacking can achieve 1040W. the number of the stacking is unlimited.
16)DC input---Input voltage range: 22V to 50V,PV Panel:
17)AC output---220VAC: 180V - 262V, 50HZ; 110V AC: 80V - 160V, 60HZ.
Maximum Current : 10.5A
Type : On grid solar inverter
