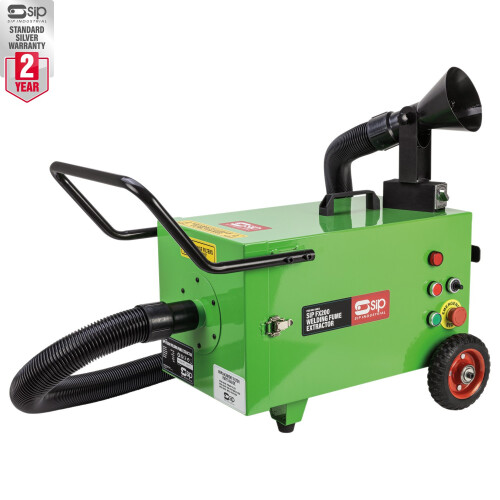

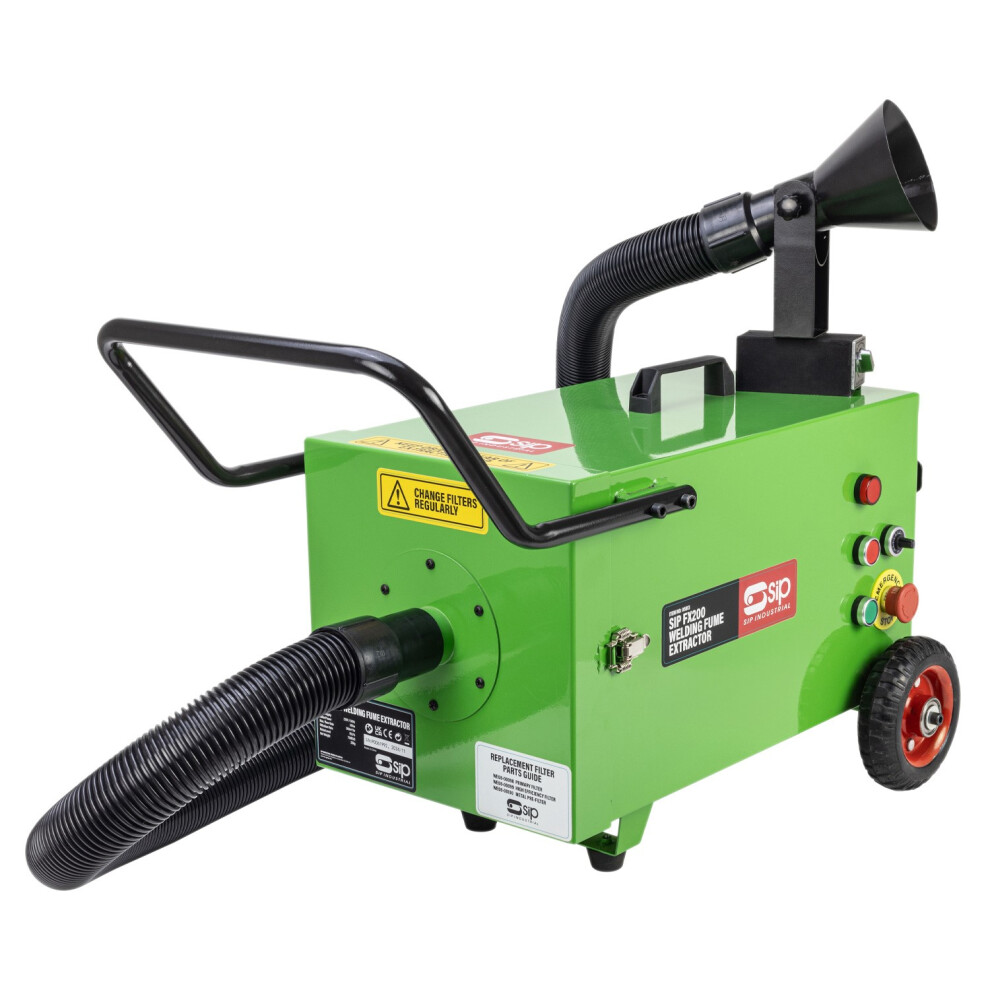

SIP FX200 Welding Fume Extractor 05813

SIP FX200 Welding Fume Extractor 05813 Description

Introducing the SIP FX200 Welding Fume Extractor, a high-performance, variable-speed fume extraction system specifically engineered to capture and filter mid-level concentrations of welding fumes. Ideal for small fabrication workshops, welding stations, and automotive environments, this extractor ensures a cleaner, safer workspace by effectively reducing exposure to harmful pollutants.

Equipped with a powerful 3-stage H13 filtration system, the SIP FX200 achieves an impressive 99.97% filtration efficiency, capturing particles as small as 0.3 microns, including sparks, spatter, dust, and hazardous fumes. The filtration process begins with a multi-layer spark arrestor, followed by a primary filter, and concludes with a high-efficiency particulate air (H13) filter, ensuring maximum air quality and compliance with HSE regulations.

The SIP FX200 is designed for ease of use and versatility. The 200W digital motor delivers a high flow rate of 300m³/hr while maintaining low power consumption. A variable speed adjuster allows for precise control, making it ideal for delicate welding tasks such as TIG welding. The extractor is also fitted with a durable 2mtr heavy-duty suction hose and a large, switchable magnetic suction hood that can be tilted for optimal fume capture.

Mobility and convenience are key features of this extractor. Its robust, wheel-mounted design and pull handle enable easy transport around various workspaces, ensuring that clean air is always within reach. The FX200 also includes a 2.5mtr mains cable for extended reach and operates from a standard 13A supply.

Key Features:

• Advanced 3-Stage Filtration System: Filters 99.97% of harmful welding fumes and particles down to 0.3 microns, ensuring a cleaner, safer work environment.
• Variable Speed 200W Motor: Provides a high flow rate of 300m³/hr with low power consumption, perfect for various welding applications.
• Heavy-Duty Suction Hose and Hood: 2mtr hose with a large, adjustable magnetic hood for efficient fume capture and easy positioning.
• Easy Mobility: Wheel-mounted design with a pull handle for effortless movement across different workspaces.
• Compliance with HSE Standards: Supports Health and Safety Executive (HSE) requirements for welding fume extraction, promoting workplace safety.
• Choose the SIP FX200 Welding Fume Extractor for a reliable and efficient solution to maintaining air quality in your welding environment, backed by the SIP 2-Year Standard Silver Warranty.

99.97% FILTRATION OF HAZARDOUS POLLUTANTS USING A 3-STAGE INTERNAL FILTRATION SYSTEM, INCLUDING HIGH EFFICIENCY PARTICULATE AIR (H13) FILTER WHICH CAPTURES PARTICLES DOWN TO 0.3 MICRONS

• STAGE 1: MULTI-LAYER SPARK ARRESTOR: Captures larger particles including sparks and spatter, preventing them from reaching and damaging next-stage filters.
• STAGE 2: PRIMARY FILTER: Filters dust and fumes generated during the welding process to improve work area air quality.
• STAGE 3: HIGH EFFICIENCY PARTICULATE AIR (H13) FILTER: This final stage process filters finer airborne particles down to 0.3 microns, maximising the effectiveness of the filtration process.

HIGH MAX. FLOW RATE OF 300MTR³/HR USING LOWER POWER CONSUMPTION VARIABLE SPEED 200W DIGITAL MOTOR FOR RELIABLE & CONSISTENT PERFORMANCE

• Designed to capture mid-level concentrates of welding fume pollutants. Intelligent digital motor delivers low power consumption with high power output.
• Includes variable speed suction adjuster for greater application versatility. Ideal for TIG welding and other delicate welding tasks.
• Fitted with long 2.5mtr mains cable for added flexibility. Operates from a 13A supply for ease-of-use.

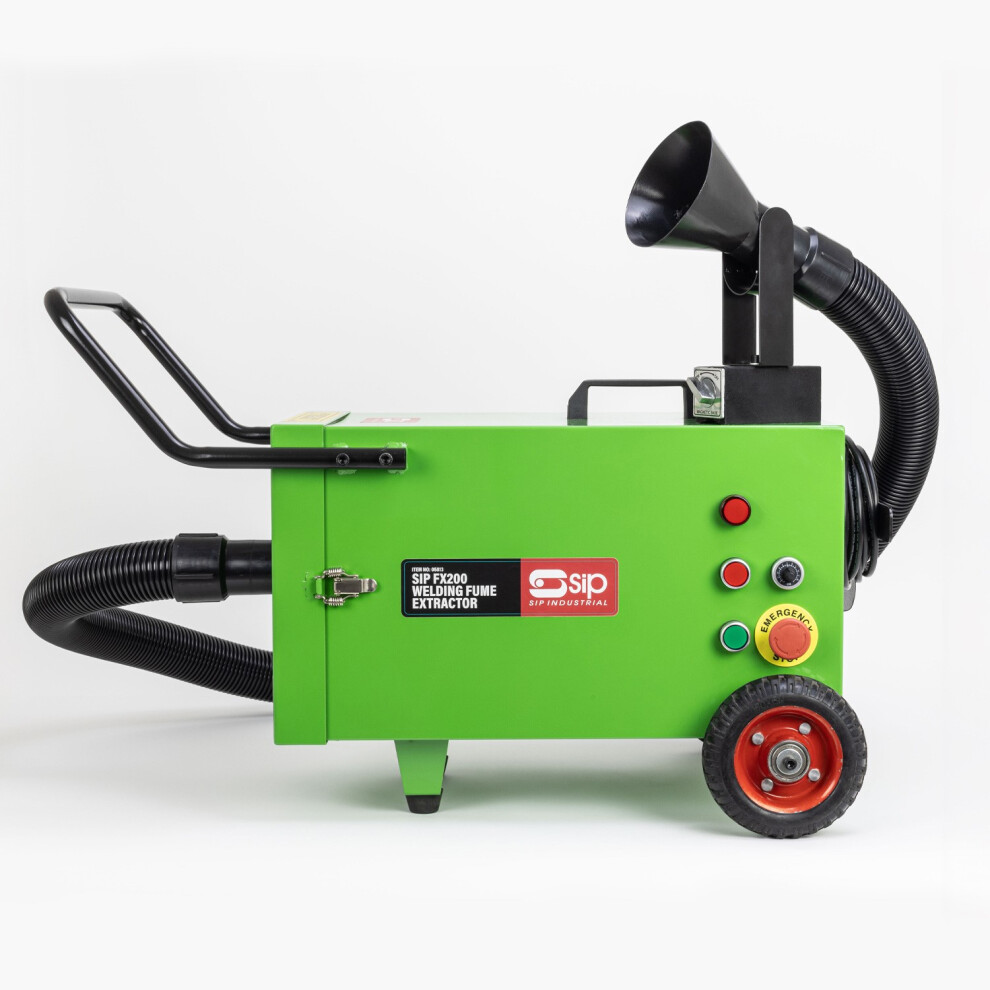

• Easy-to-use illuminated controls with emergency stop button.

2MTR HEAVY-DUTY HOSE WITH LARGE SWITCHABLE MAGNETIC & TILT-ADJUST SUCTION HOODS HELPS TO CHANNEL & CAPTURE HARMFUL FUMES AWAY FROM THE WORK AREA

• Heavy-duty polyurethane hose for greater strength under suction.

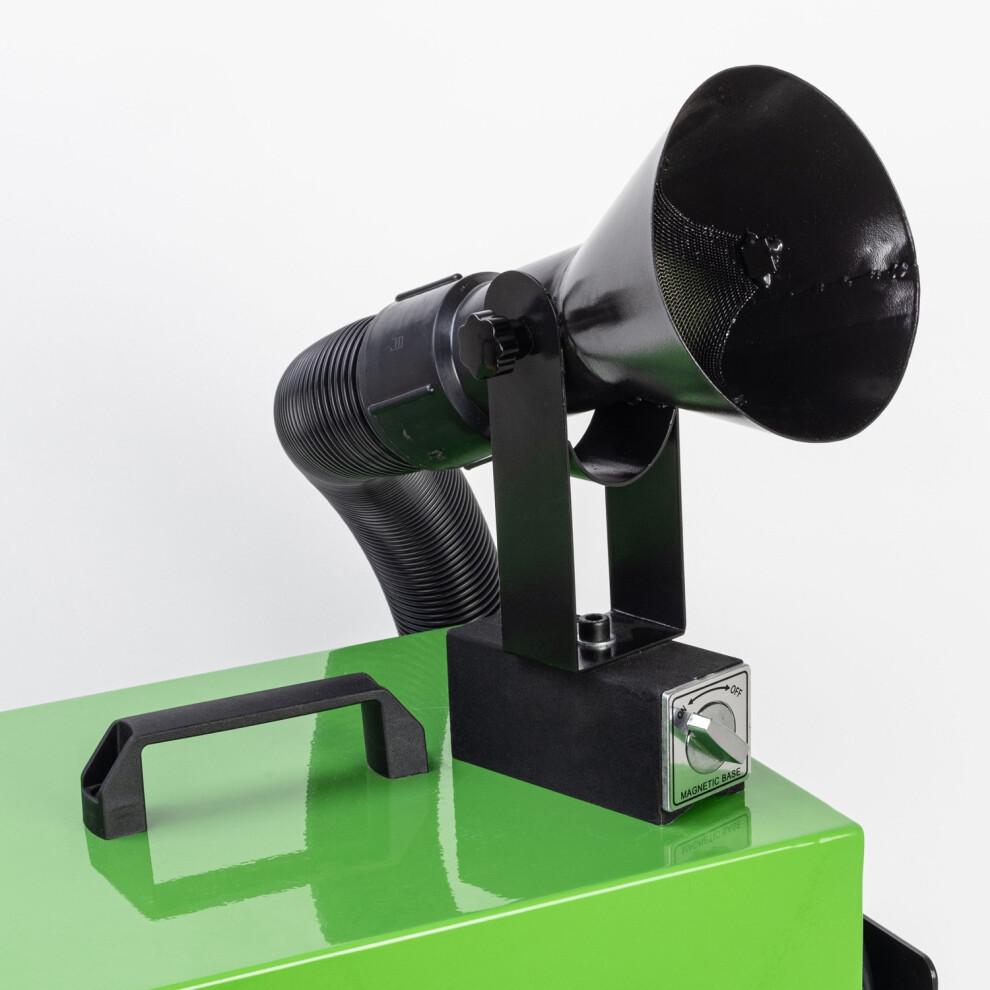

• Large switchable magnetic and tilt-adjust suction hood for easy channelling of fumes.

WHEEL-MOUNTED DESIGN WITH PULL HANDLE FOR EASY MOBILITY AROUND THE WORK AREA

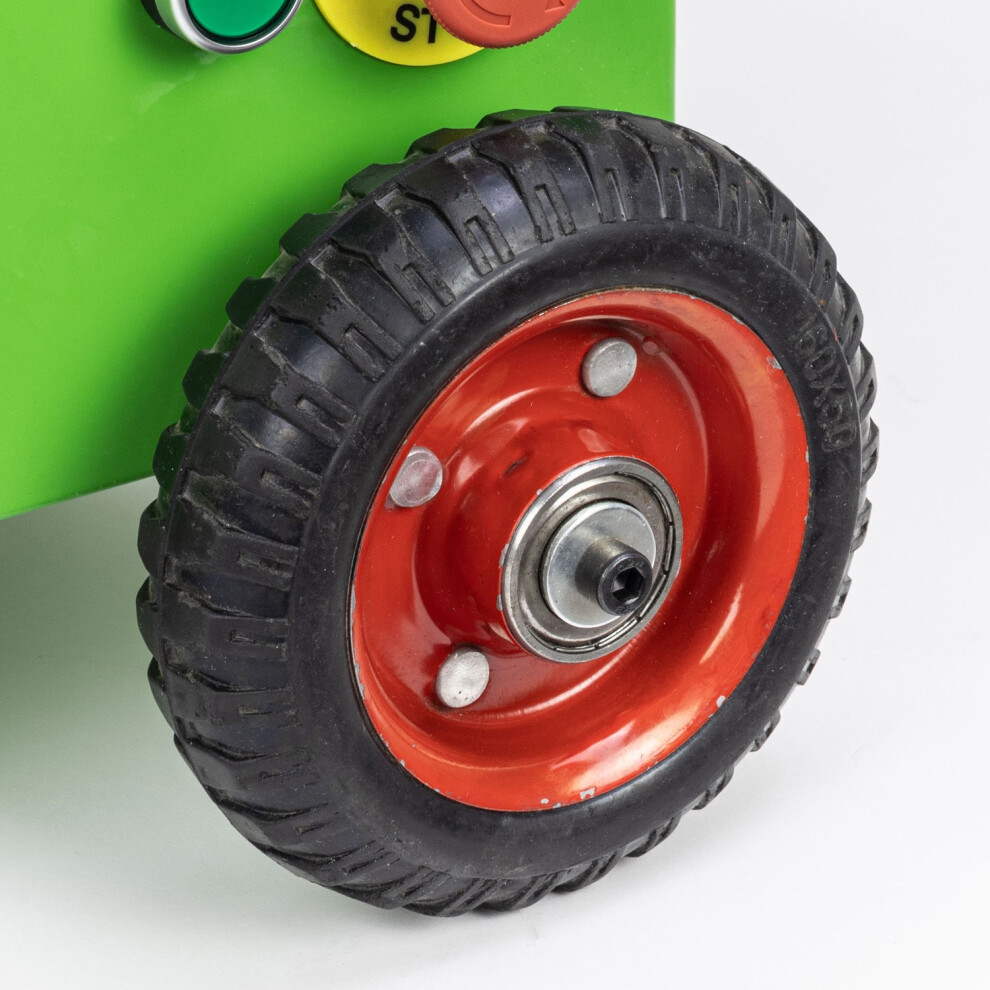

• Solid wheels with pull handle for full movement in a variety of work area settings. High-quality finish is resistant to work area damage.

SPECIFICATIONS:

• ITEM NO. 05813
• Input Supply: 230v (13A)
• Motor Power: 200w (0.27hp)
• Max. Flow Rate: 300mtr³/hr
• Filtration Level: 99.97%
• Hose Length: 2mtr
• Noise Level: 75dB(A)
• Net Weight: 25kg
• Gross Weight: 25.5kg
• Product Dimensions: 700(H) x 850(W) x 420mm(D)
• Packaged Dimensions: 450(H) x 650(W) x 710mm(D)
