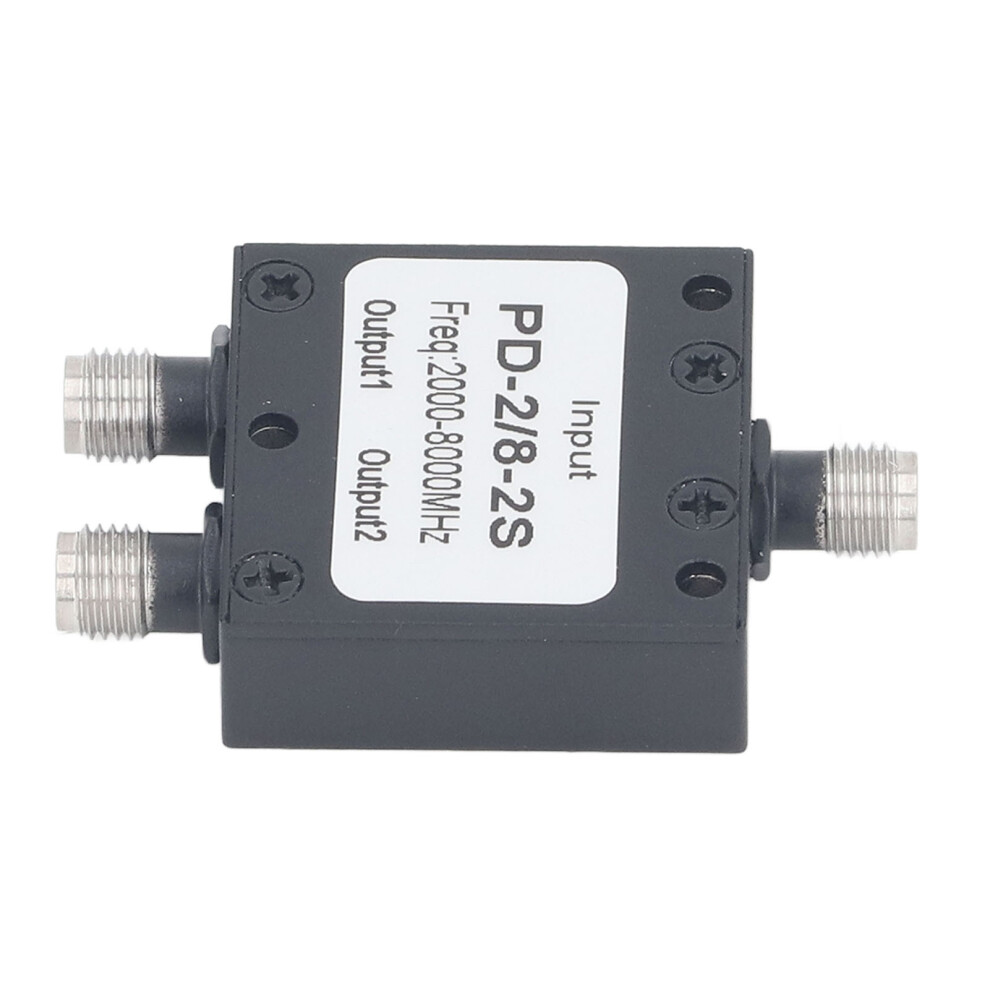

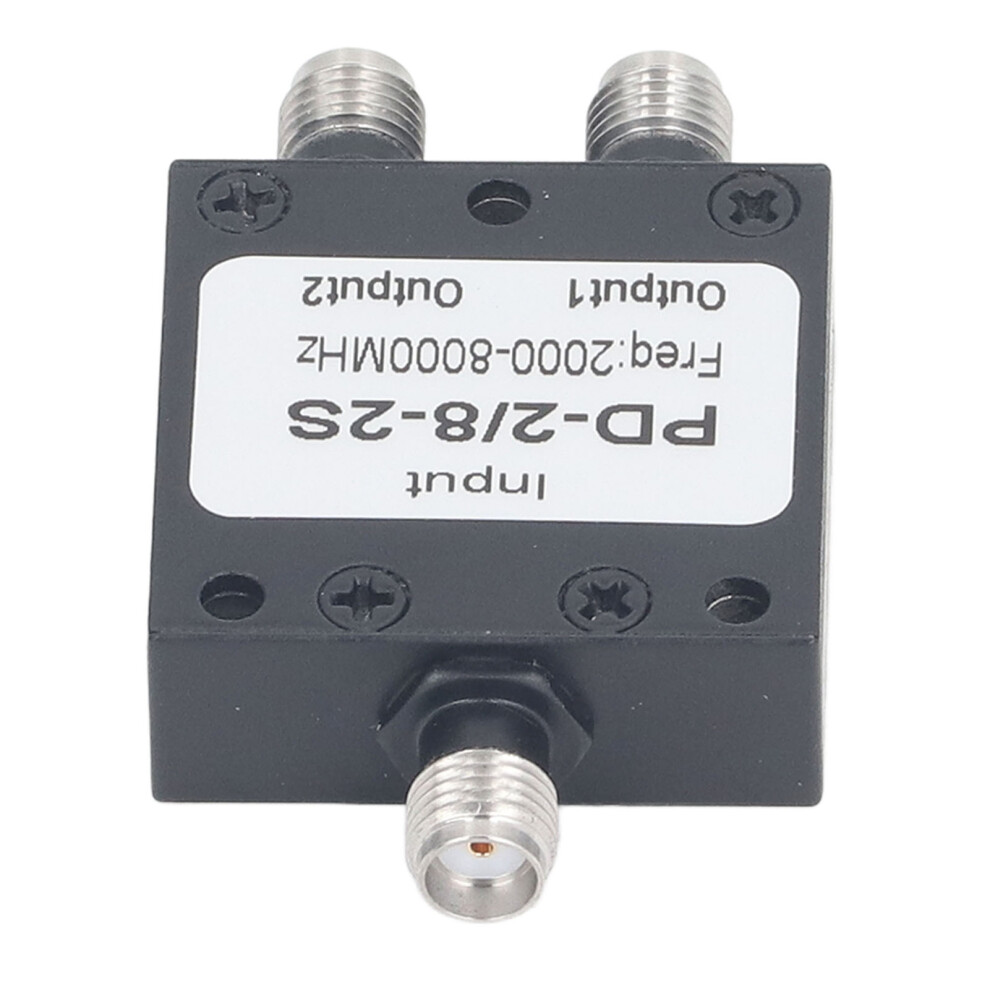

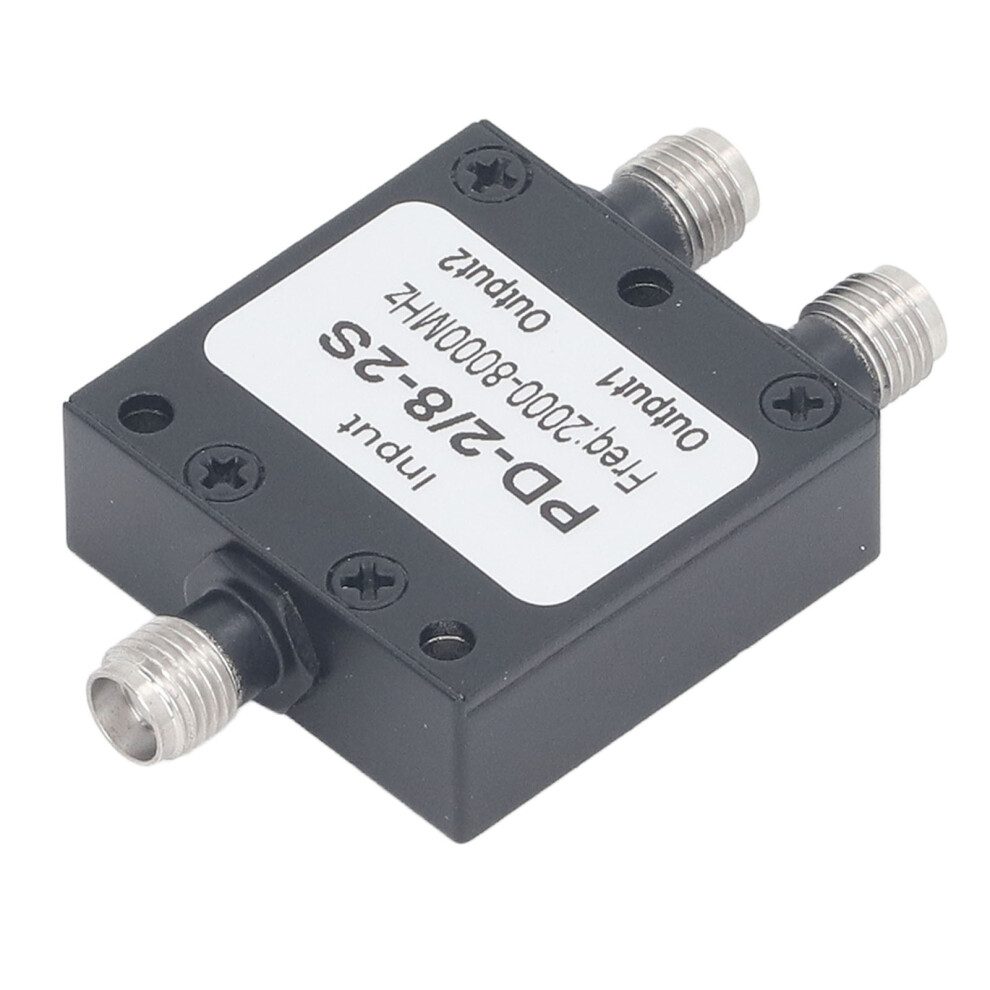

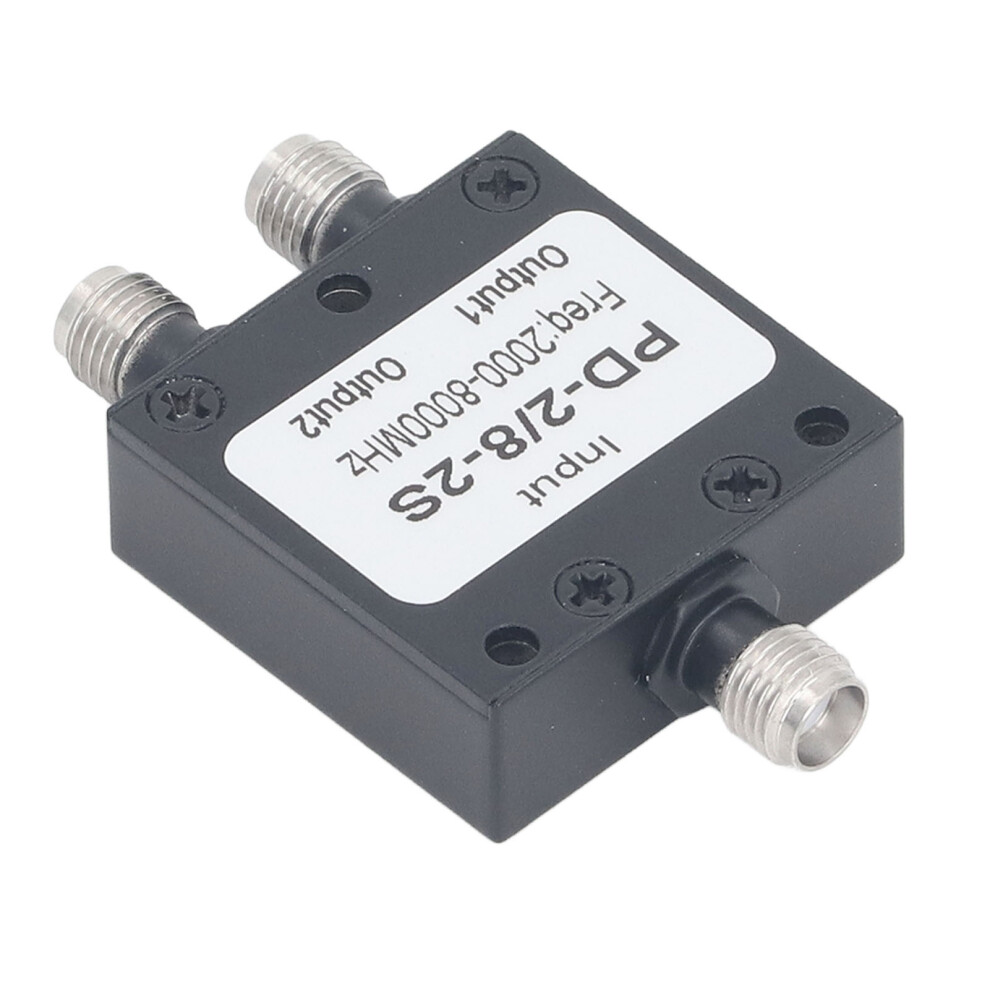

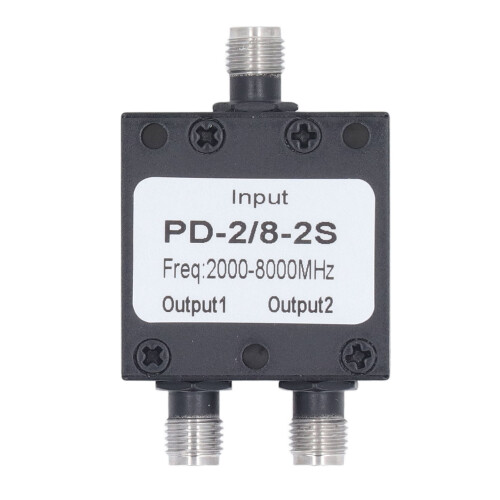

SMA 2-Way 2-8GHz Low Loss RF Power Divider for Antenna

SMA 2-Way 2-8GHz Low Loss RF Power Divider for Antenna Description

1、[2 Way Signal Distribution] The SMA power divider is designed to split amplified signals towards two antennas, suitable for use in 2 to 8GHZ RF microwave measurement components. 2、[Low Insertion Loss] With a typical insertion loss of 0.6dB and a maximum of just 3.0dB, this 2 way power divider can achieve efficient power distribution. 3、[High Performance] With high gain and isolation index, the microstrip power divider offers stable and consistent performance during signal transmission. 4、[Easy Connection] The SMA female connector ensures smoothly transmission and excellent performance, easy to install, enhances user convenience. 5、[Reliable Construction] Made from stainless steel with a painted surface, this RF power splitter is sturdy and resistant to corrosion, ensuring durability.
Item Type: SMA Power Divider
Material: Stainless Steel
Model: PD 2/8 2S
Frequency Range: 2-8GHz
Insertion Loss: 0.6dB (excluding theoretical loss of 3.0dB)
Input VSWR: Typical 1.16 Maximum 1.25
Output VSWR: Typical 1.14 Maximum 1.20
Isolation: Typical 28dB Minimum 20dB
Amplitude Balance: 0.2dB
Phase Balance: 3
Impedance: 50Ω
Port Connector (Input Output): SMA Female Connector
Power Withstand: 30W for Splitter; 2W for Combiner
Operating Temperature: -45 to +85
Surface Treatment: Black Paint
1 x SMA Power Divider
