Description & Details
Summary
- Smart Overload Safety: Our voltage tester is equipped with intelligent anti burn technology and DC overload safety, ensuring safety while handling high voltage and preventing potential damage.

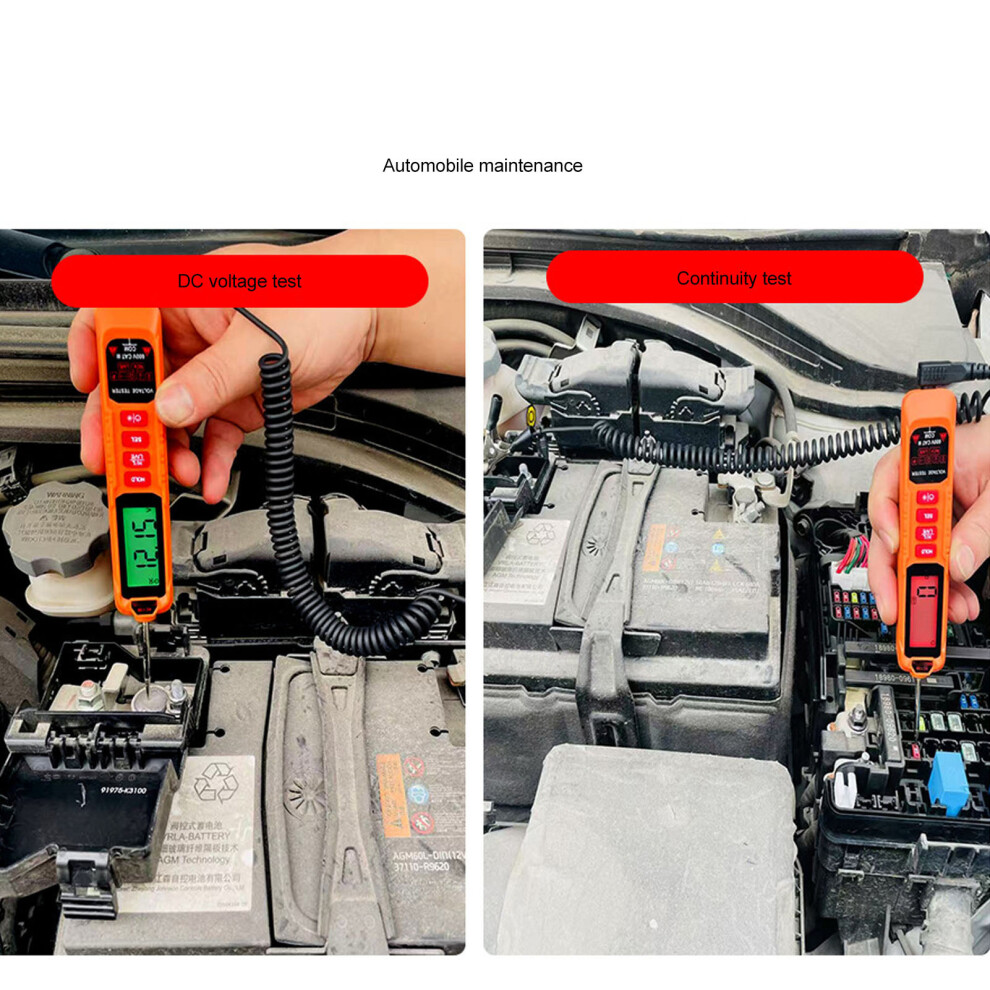

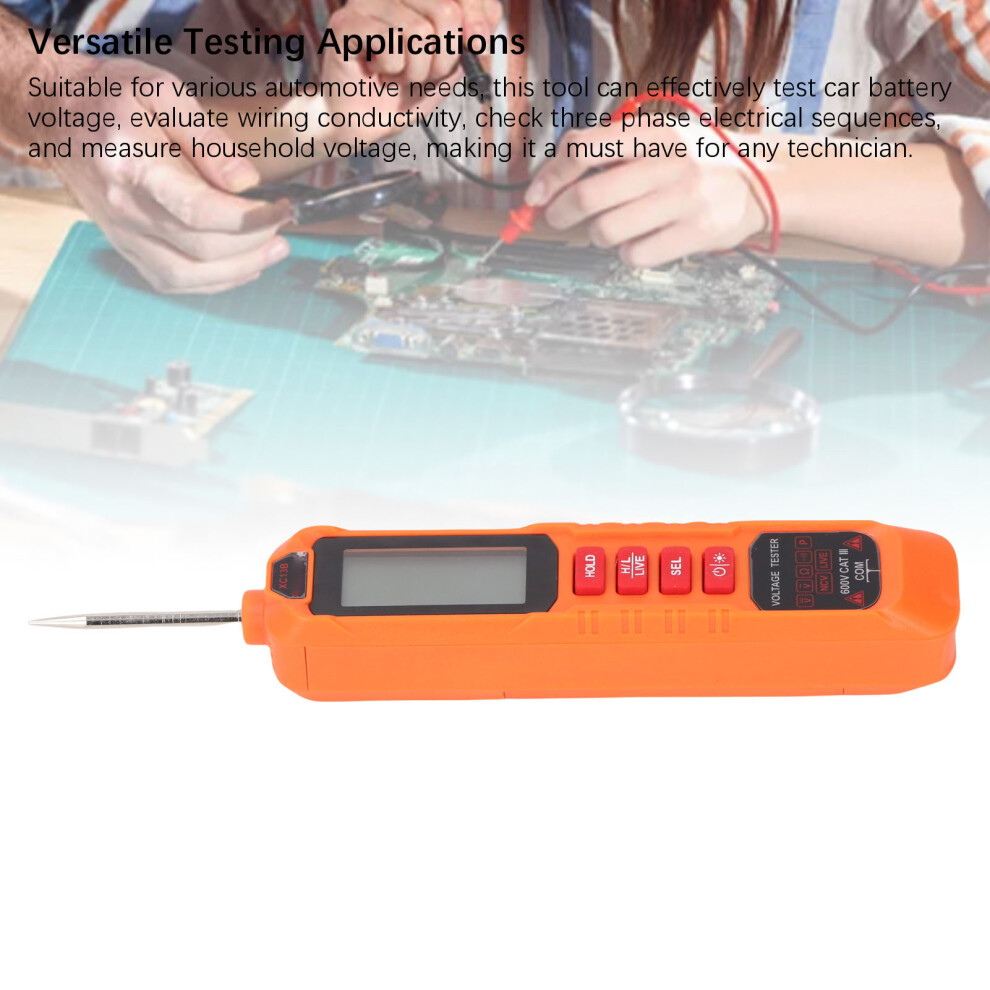

- Versatile Testing Applications: Suitable for various automotive needs, this tool can effectively test car battery voltage, evaluate wiring conductivity, check three phase electrical sequences, and measure household voltage, making it a must have for any technician.
- Non Contacting Voltage Detection (NCV): With NCV sensing capabilities, you can detect live wires without direct contacting. Simply bring the tester close to the circuit to locate voltage presence, enhancing safety and efficiency during diagnostics.
- LIVE Wire Identification: Equipped with a unique LIVE touch detection feature, the tester reminds you with sound and light when touching a live wire while remaining silent when in contacting with the neutral line, ensuring user safety.
- DC Voltage and Resist Measurement: This device accurately measures and displays DC voltage and resist, with a maximum voltage limit of 600V DC. It provides a visual reminder (red light) for voltages exceeding 30V, and sound for resist below 50Ω.
Smart Car Voltage Test Pen 600V Backlit LCD Auto Power OBD2 Tester Description
Smart Car Voltage Test Pen Backlit Display DC AC 0V-600V Automatic 2 Way Voltage Tester
Item Type: Smart Car Voltage Test Pen
Material: ABS
Power Supply: Built in 1 lithium ion battery 500mAh (built in)
Charging Method: TYPE C Interface DC5V
Automatic range multimeter full scale is 3999 counts.

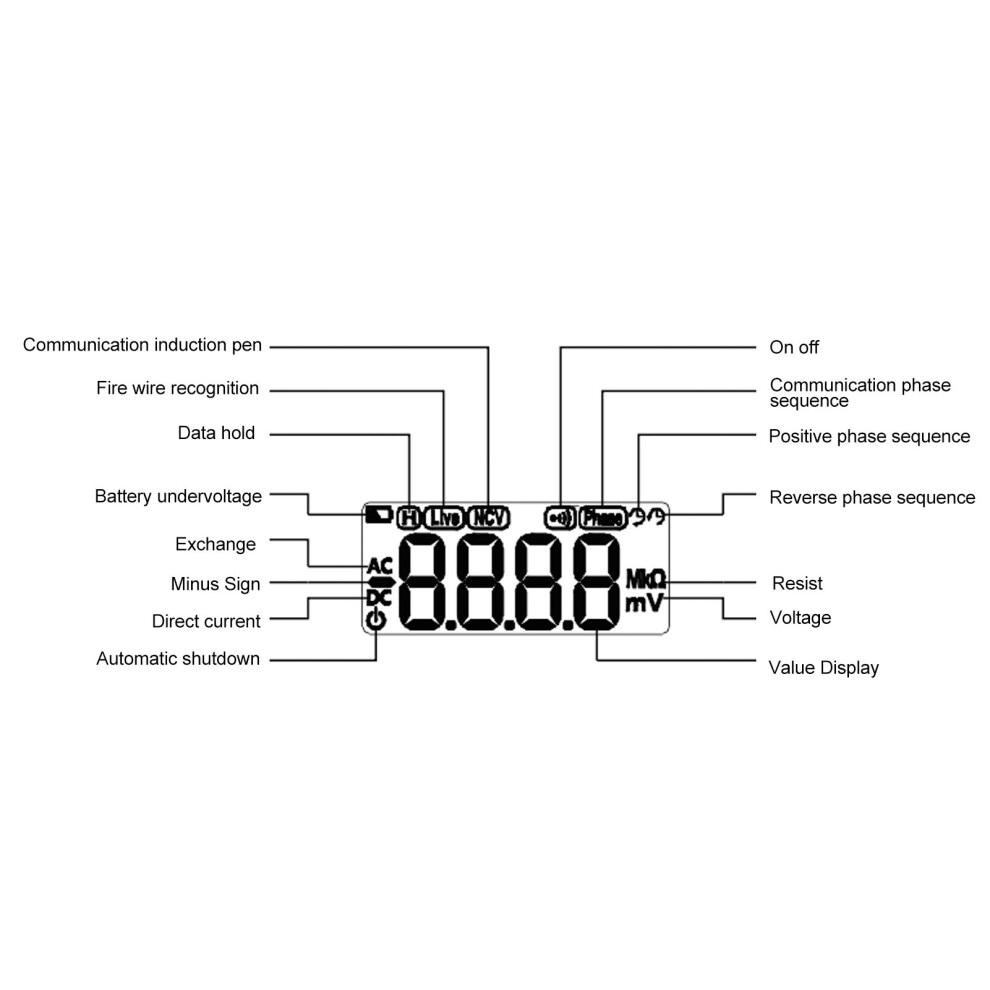

Display: 3999 LCD display
HOLD: Data hold function
Battery low voltage display
Automatic shutdown
DC Voltage:
Range: 4V
Resolution: 0.001V
Accuracy: (0.8% reading+2 words)
Range: 40V
Resolution: 0.01V
Accuracy: (0.8% reading+2 words)
Range: 400V
Resolution: 0.1V
Accuracy: (0.8% reading+2 words)
Range: 600V
Resolution: 1V
Accuracy: (1.0% reading+2 words)
Input Impedance: 10M Ω
Maximum Input Voltage: 600V DC (effective value)
AC Voltage(40Hz to 1KHz):
Range: 4V
Resolution: 0.001V
Accuracy: (1.0% reading+3 words)
Range: 40V
Resolution: 0.01V
Accuracy: (1.0% reading+3 words)
Range: 400V
Resolution: 0.1V
Accuracy: (1.0% reading+3 words)
Range: 600V
Resolution: 1V
Accuracy: (1.2% reading+3 words)
Input Impedance: 10M Ω
Response: True Significant Value
Maximum Input Voltage: 600V DC (effective value)
Resistor:
Range: 4kΩ
Resolution: 0.001kΩ
Accuracy: (1.2% reading+3 words)
Range: 40 KΩ
Resolution: 0.01kΩ
Accuracy: (1.2% reading+3 words)
Range: 400KΩ
Resolution: 0.01kΩ
Accuracy: (1.2% reading+3 words)
Range: 4MΩ
Resolution: 0.001MΩ
Accuracy: (1.2% reading+5 words)
Range: 40MΩ
Resolution: 0.01MΩ
Accuracy: (1.2% reading+5 words)
On Off Test: If the resist of the tested circuit is less than 500, the buzzer attached to the instrument will sound. The backlit lights up red when conducting
