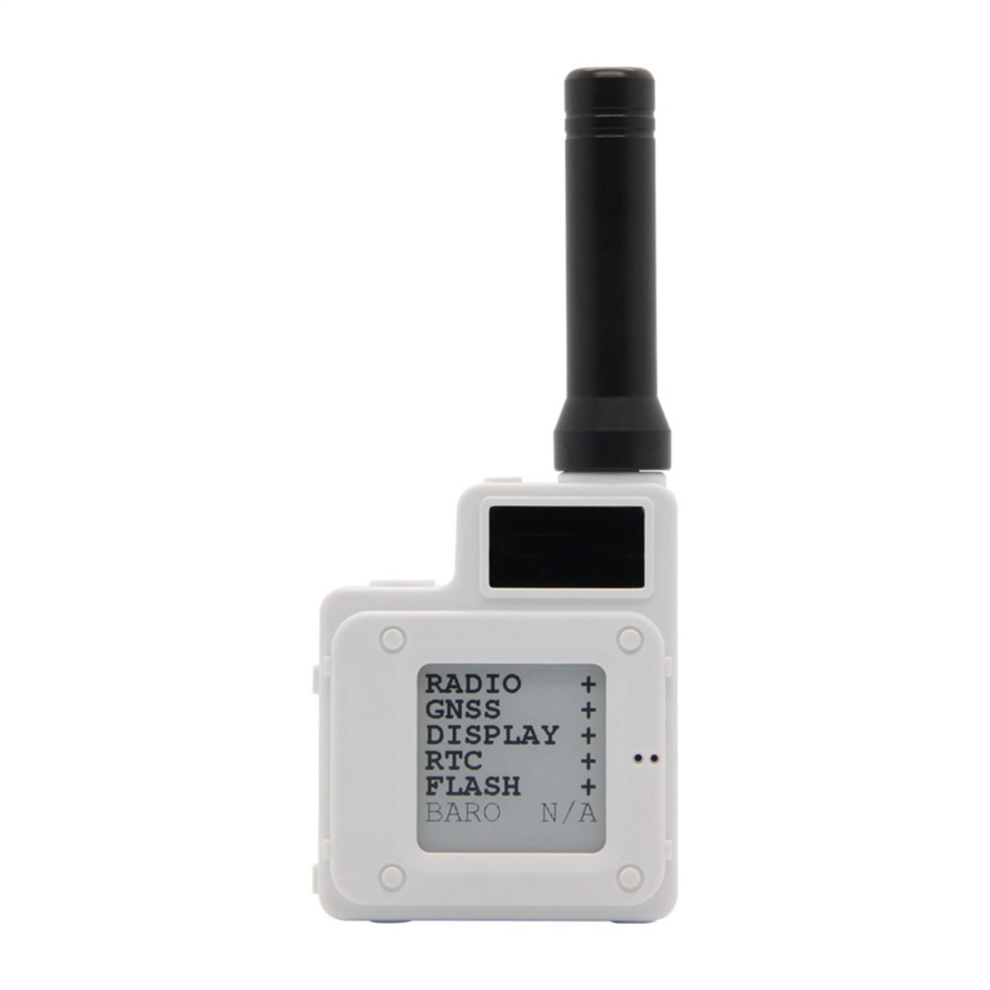

SoftRF T- NRF52840 LoRa SX1262 Wireless Module L76K GPS 1.54 E-Paper B

SoftRF T- NRF52840 LoRa SX1262 Wireless Module L76K GPS 1.54 E-Paper B Description

A evolved version of T-BEAM, T- is designed with a focus on for Meshtastic compatibility, featuring Bluetooth and low power consumption.
It utilizes the NRF52840 SoC, supporting Bluetooth 5 / Threads / Zigbee multi-protocol.
T-SX1262 wireless transceiver module, using SX1262 LORA transceiver chip design, working in the 433MHz ISM frequenc band, integrated high stability TCXO 32MHz crystal oscillator, half-duplex transceiver module, power up to +22dBm, receiving sensitivity -139dBm.
The module enables automatic transceiver switching, internal transmission and reception channel isolation, and employs advanced LORA spread spectrum communication technology for robust anti-interference and privacy. This facilitates long-distance wireless data transmission and reception.

Colour:White
Material:ABS

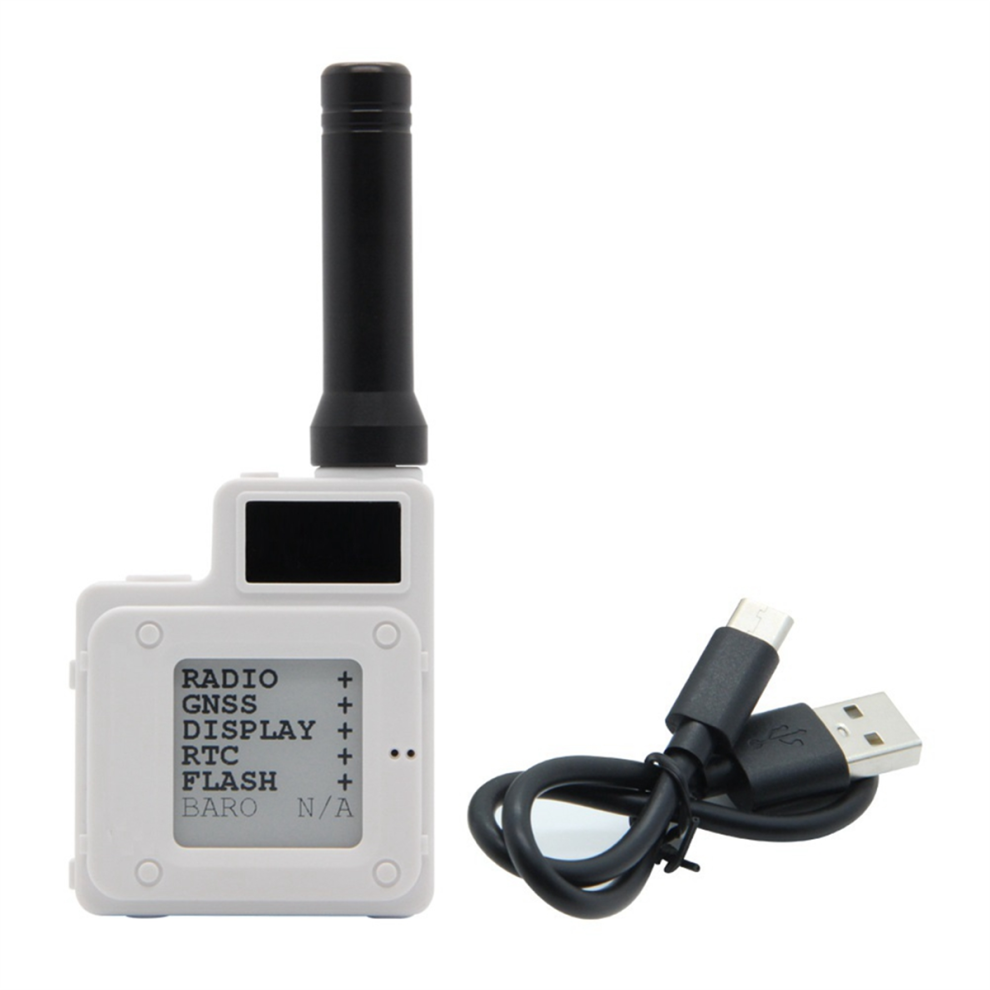

Package Contents:
1 x T- host
1 x TYPE-C USB Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
