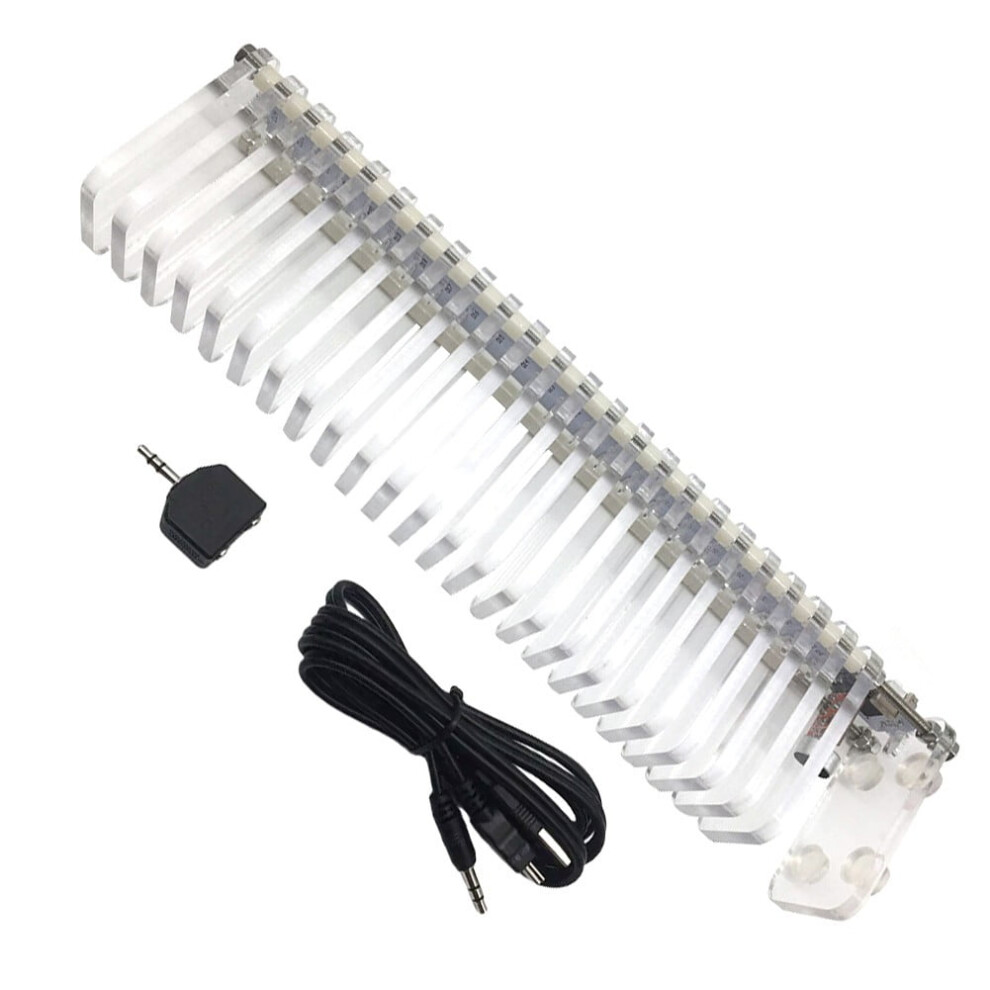

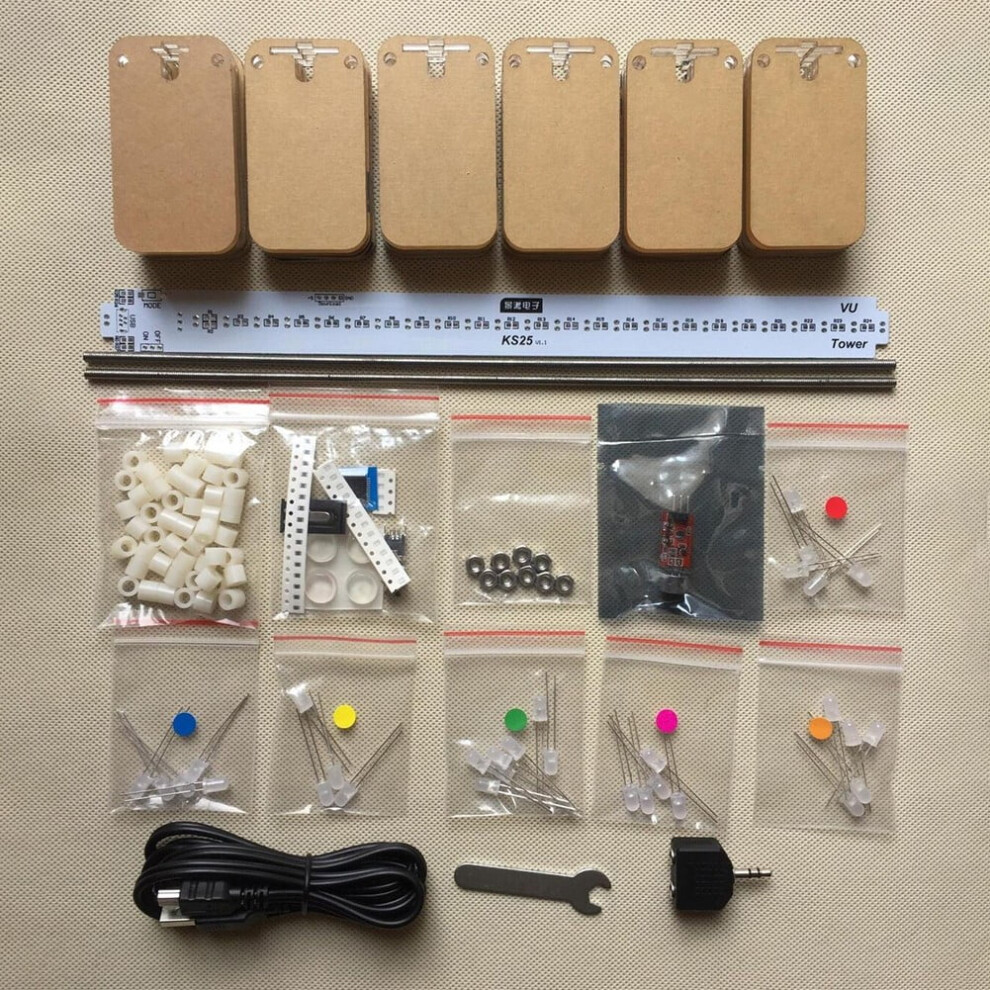

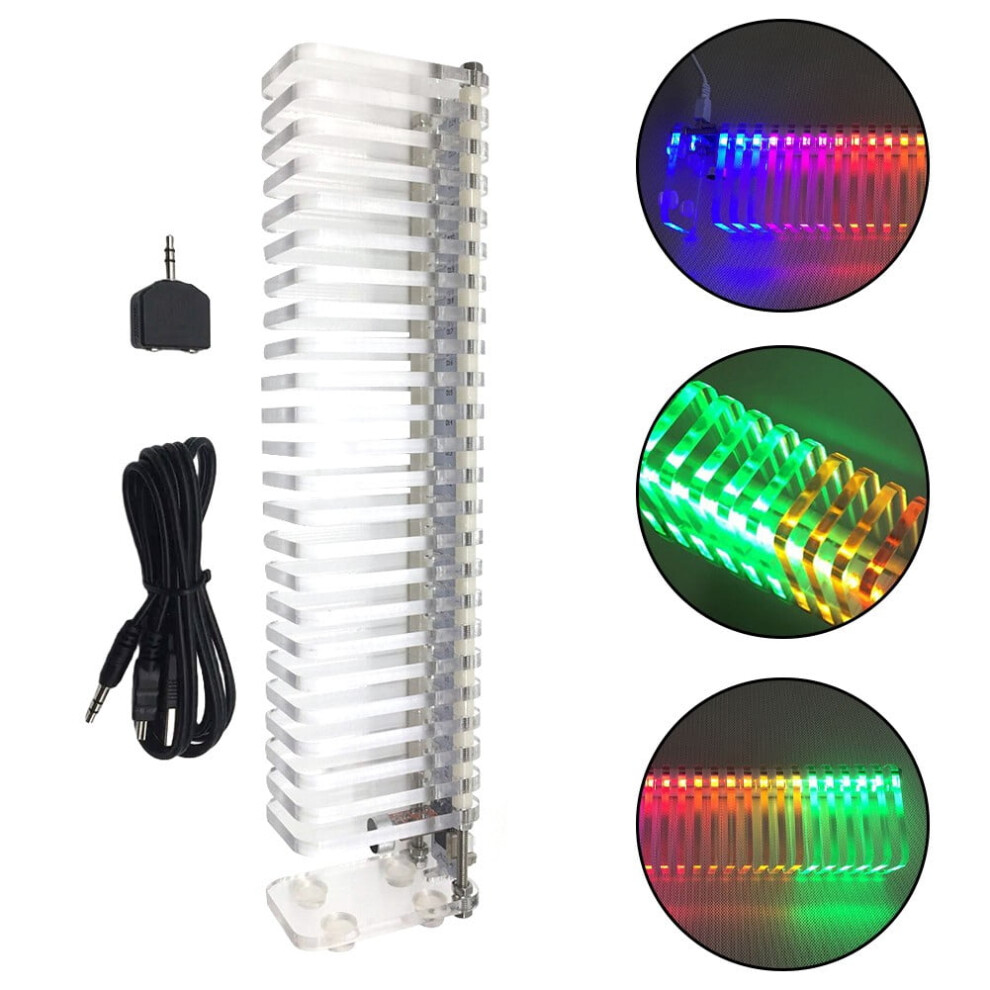

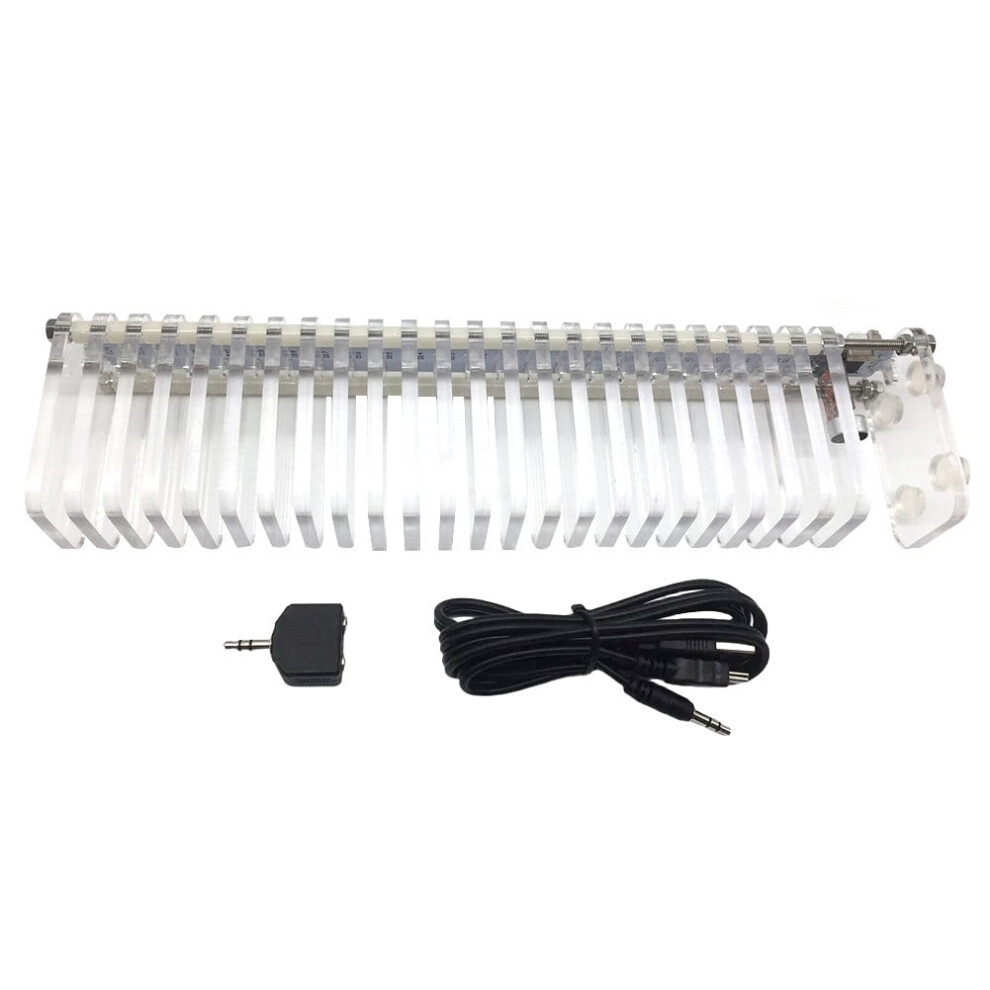

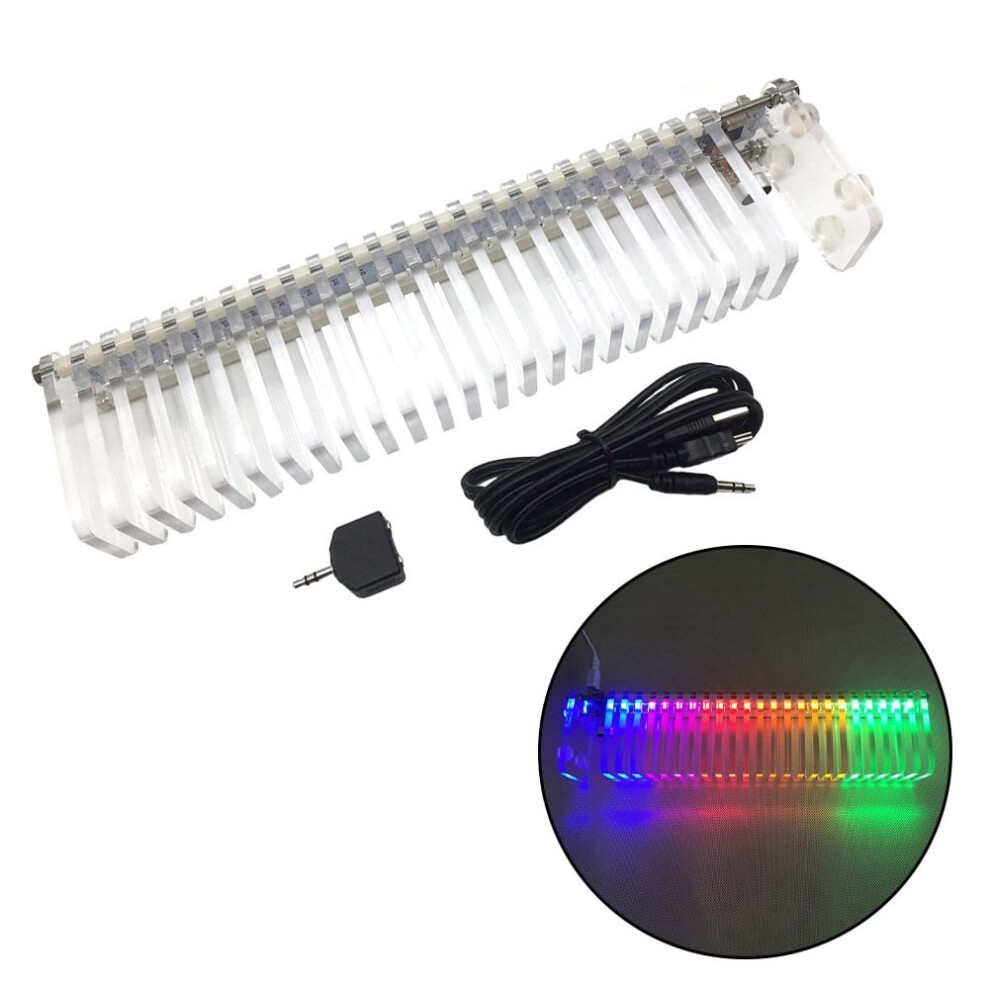

Sound Level Analyzer USB Audio Visualizer LED VU Meter Kit

Sound Level Analyzer USB Audio Visualizer LED VU Meter Kit Description

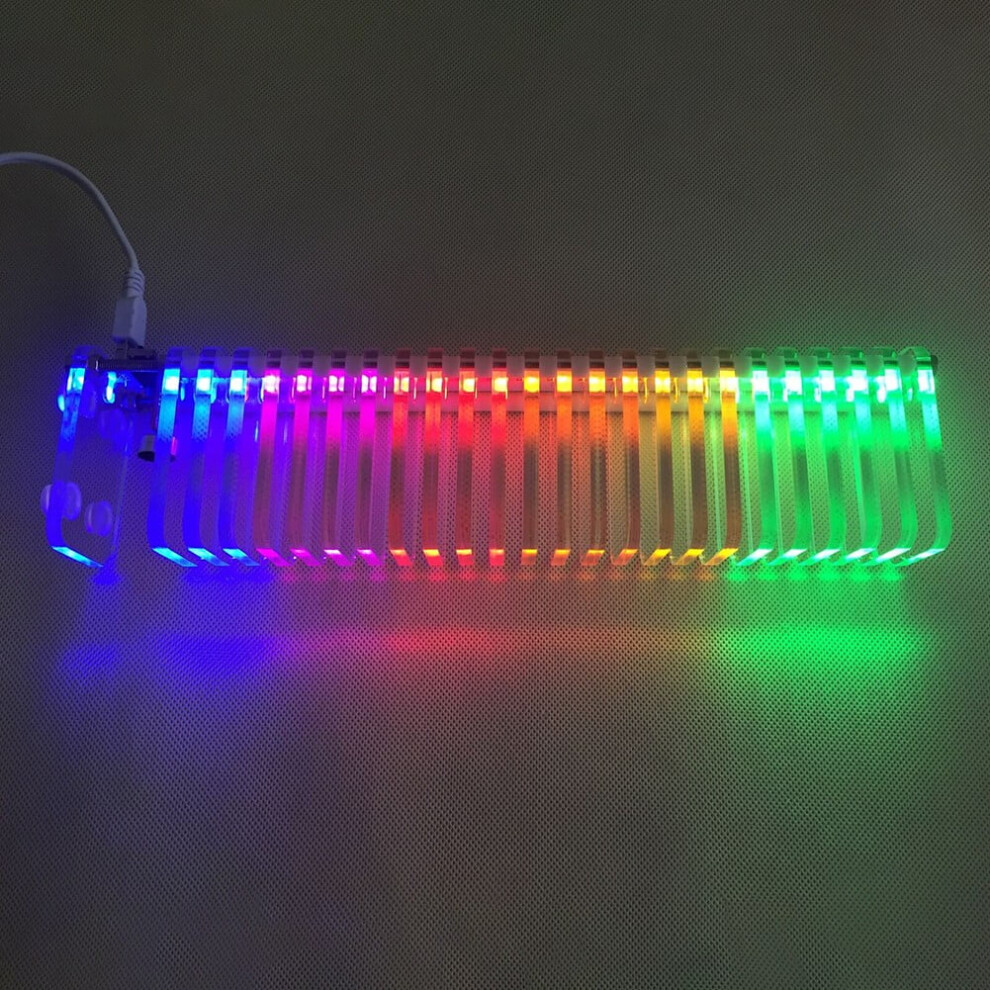

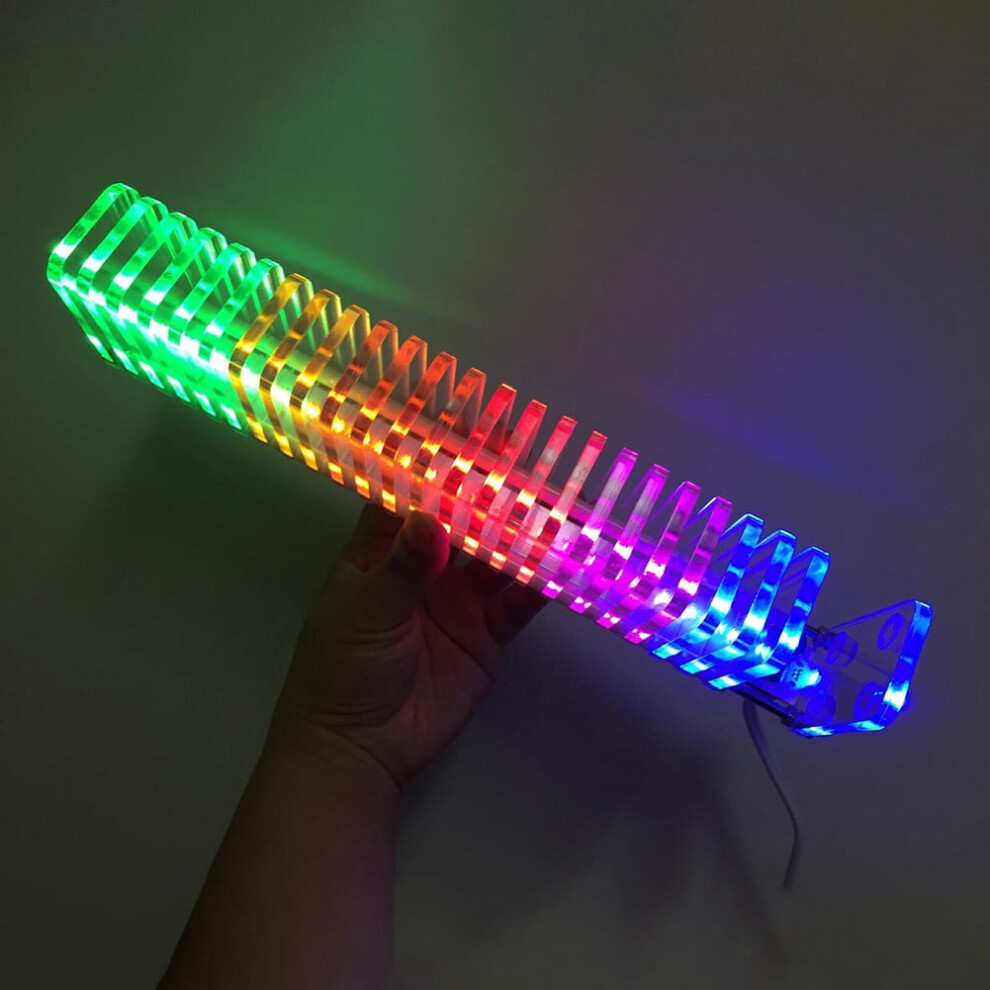

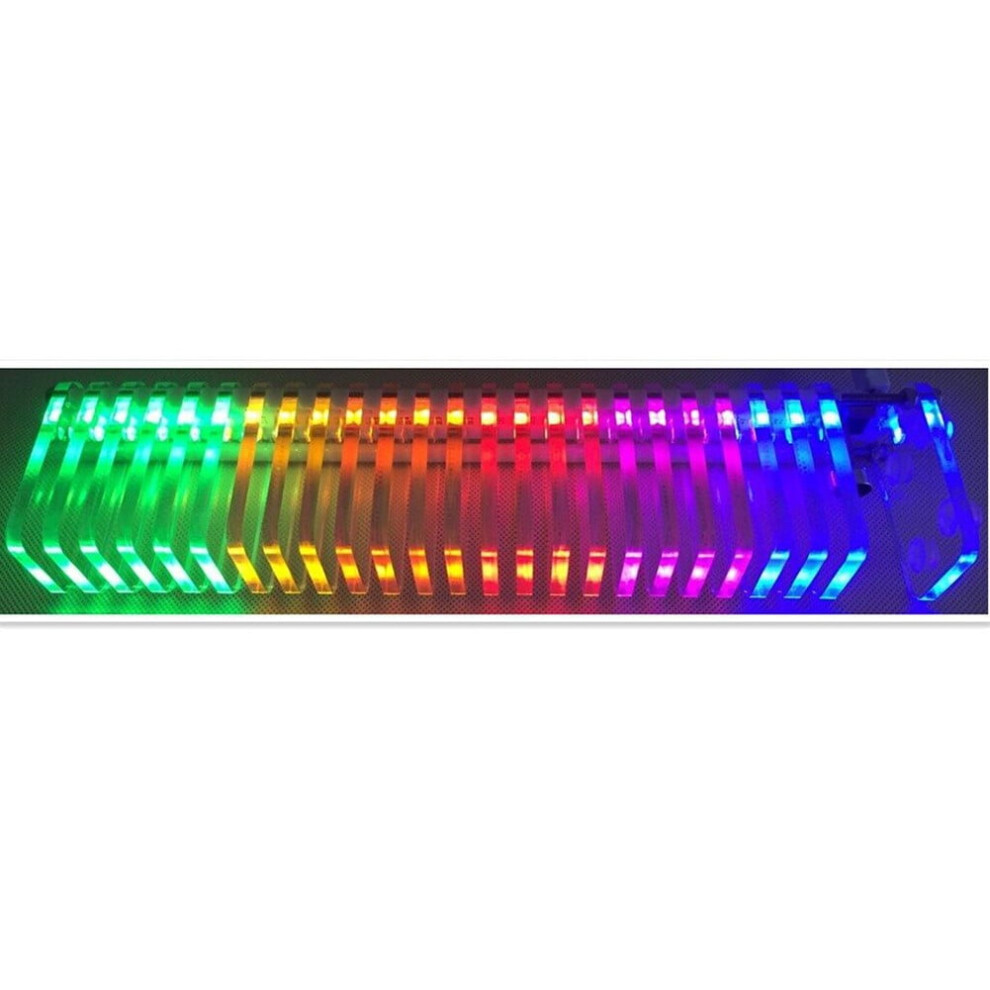

Features: * The KS25 spectrum analyzer is a music visualizer with a novel design, which perfectly combines music and art. It is suitable for music and electronics enthusiasts and is also a pleasing art decoration. Please make sure that the audio signal input voltage is within 5V, otherwise the sound spectrum will be damaged. * The 16-segment golden ratio design and the 6-color LEDs of red, yellow, green, blue, orange and pink have excellent visual effects; using 32M for crystal oscillator and 1T single-chip microcomputer, the spectrum analyzer has fast signal acquisition speed and accurate response. * The spectrum analyzer has 8 classic display modes and 6-level gain settings, which can be set by buttons, and the left and right channels can also be set by buttons. The settings have a power-off memory function; please adjust the input volume and gain so that the display amplitude is within the appropriate range (the default value is 3). * 8 Classic display modes: 1. Columnar mode; 2. Columnar with peak hold mode; 3. Columnar with peak, peak up mode; 4. Mirror mode, from the center to both sides; 5. Single point mode; 6. Peak up mode; 7. Single peak mode; 8. Silent full light mode (can be used to test LEDs). * Button operation: Short press to switch 8 classic display modes; Long press for 1 second to adjust 6 levels of gain; Long press for 3 seconds to switch left and right channels. Specifications: Part name: KS25 Music Spectrum VU Tower (Kit) Material: Organic glass Color: As shown in the picture Size: 29*4*7.5Cm 8 classic display modes: (as shown below) Mode 1: Columnar mode Mode 2: Columnar with peak hold mode Mode 3: Columnar with peak, peak upward shift mode Mode 4: Mirror mode, from the middle to both sides Mode 5: Single point mode Mode 6: Peak upward shift mode Mode 7: Single peak mode Mode 8: Mute full light mode (can be used to test LED) Instructions for use: (as shown below) 1. Please insert the USB end of the included connector into the USB port of the computer, insert the 3.5Mm headphone into the headphone output jack of the computer or other device through the audio branch, and connect the other end of the branch to the audio device; 2. Gain description: Levels 1-3 are gain attenuation, level 4 is 0 gain, and levels 5-6 are gain amplification. Please adjust the input volume and gain to make the display amplitude within the appropriate range (default value 3); 3. If the full screen display appears, please reduce the gain or input volume; if there is no audio input and the screen is still jumping, please replace the power supply test or use the computer USB terminal for power supply; 4. If the audio input terminal needs to be connected to the output or speaker, please use capacitors and potentiometers to attenuate the signal, and pay attention to the audio signal input voltage within 5V, otherwise it will damage the audio spectrum analyzer. Note: Do not use counterfeit mobile phone chargers, unstable power supplies or other power supplies with large ripples, otherwise it will cause background noise or damage the audio analyzer. Key operation and instructions Package Contents: 1 KS25 Music Spectrum VU Tower (This is a kit, you will receive a pack of components, which need to be soldered before use) 1 USB cable 1 3.5Mm male to 2*female Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
