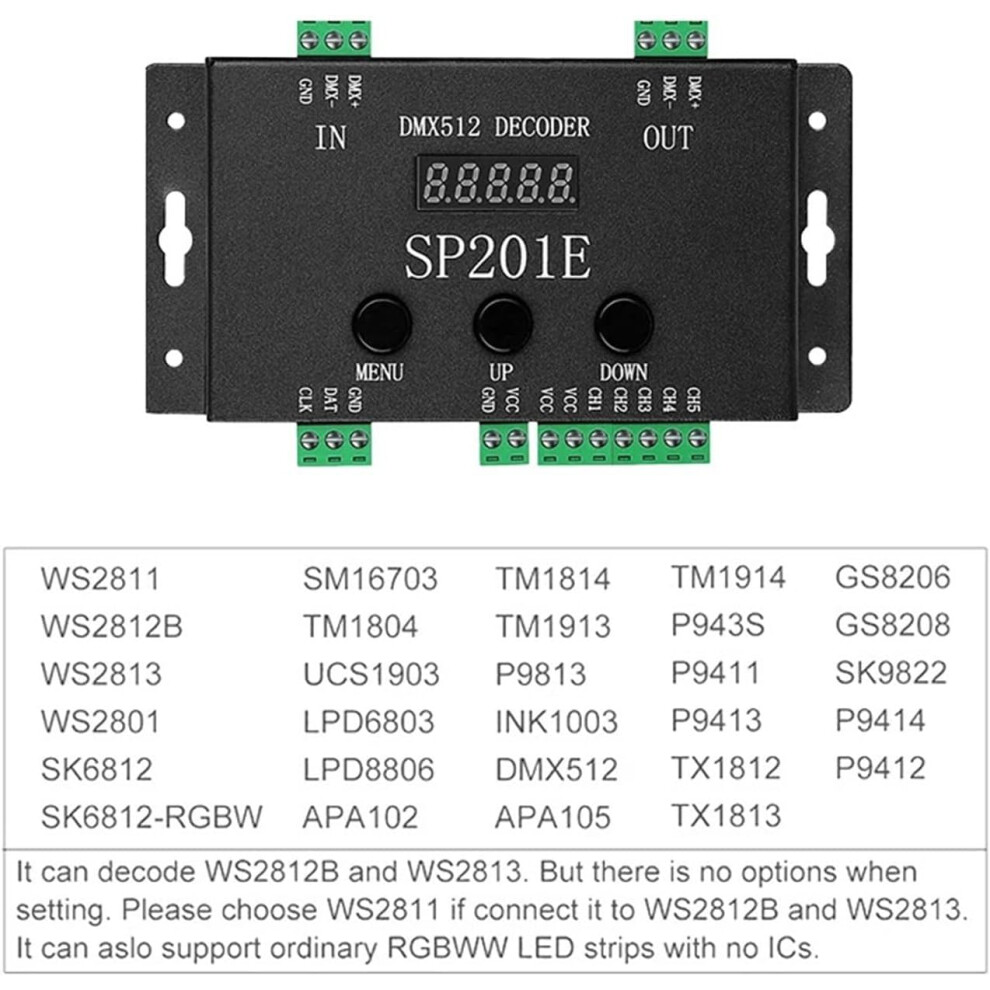

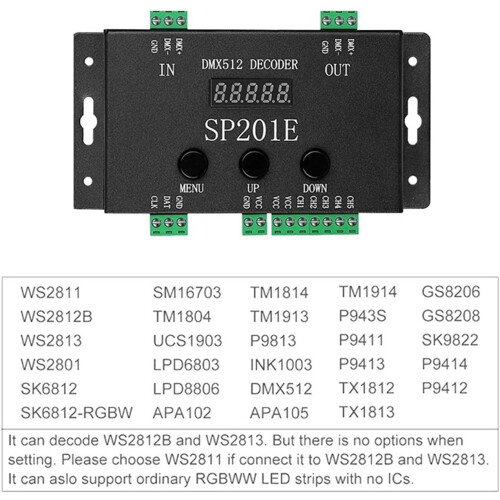

SP201E DMX512 LED Decoder 524V DC to SPI Pixel Controller 1024 Pixels 5Channel PWM Dimmer

SP201E DMX512 LED Decoder 524V DC to SPI Pixel Controller 1024 Pixels 5Channel PWM Dimmer Description

SP201E DMX512 Decoder - DC 5-24V DMX Converter Controller The SP201E is a DMX512 decoder and converter controller designed to translate standard DMX512/1990 control signals into SPI addressable LED data or PWM dimming signals. It provides a direct bridge between DMX consoles and addressable LED installations or fixtures, allowing you to control complex pixel displays or conventional dimming channels from one DMX universe. Key benefits Protocol conversion: Converts DMX512/1990 signals to SPI addressable LED output or PWM dimming, letting you control modern pixel LEDs from standard DMX controllers. Wide input voltage: Operates from DC 5-24V for flexible power options across different installations. pixel capacity: Supports SPI addressable LED output for up to 1024 pixels, suitable for medium to large pixel arrays. Multichannel dimming: Provides PWM 5CH dimming signal output when PWM control is required for nonaddressable fixtures or channels. Simplifies integration: Eliminates the need for separate pixel controllers when integrating addressable LEDs into DMXbased lighting systems. Key attributes Model: SP201E Functionality: DMX512 decoder and converter controller (DMX512/1990 to SPI or PWM) Compatibility: Compliant with DMX512/1990 standard; outputs to SPI addressable LEDs (up to 1024 pixels) or PWM 5channel dimming signals Power input: DC 5-24V Outputs: SPI addressable LED data for up to 1024 pixels OR PWM 5CH dimming signal How it solves common problems Connects different ecosystems: Use the SP201E to control addressable LED strips, panels, or fixtures from legacy DMX desks without redesigning control architecture. Reduces hardware count: One SP201E can multiple singlepurpose converters by offering both SPI and PWM outputs in a single unit. Enables consistent control: Keep DMX as your primary control source while delivering precise pixellevel or multichannel PWM control at the fixture. Typical applications Stage and theatrical lighting: Drive arrays of addressable LED pixels from a DMX console to create complex moving patterns and color effects. Architectural and facade lighting: Convert DMX scenes into pixelcontrolled displays across building exteriors or signage, supporting up to 1024 pixels. Signage and custom fixtures: Use the PWM 5CH dimming output to control multichannel LED fixtures or to combine pixeldriven effects with conventional dimming. Operation notes The SP201E accepts a DMX512/1990 input and outputs either SPI addressable LED data (up to 1024 pixels) or PWM 5channel dimming signals depending on configuration. Power the unit with a DC supply between 5V and 24V as required by your LED load and installation. The SP201E provides a straightforward, protocolcompatible solution for integrating DMX control with SPI addressable LEDs or PWM dimming channels, preserving DMX workflows while enabling pixellevel and multichannel lighting effects.
