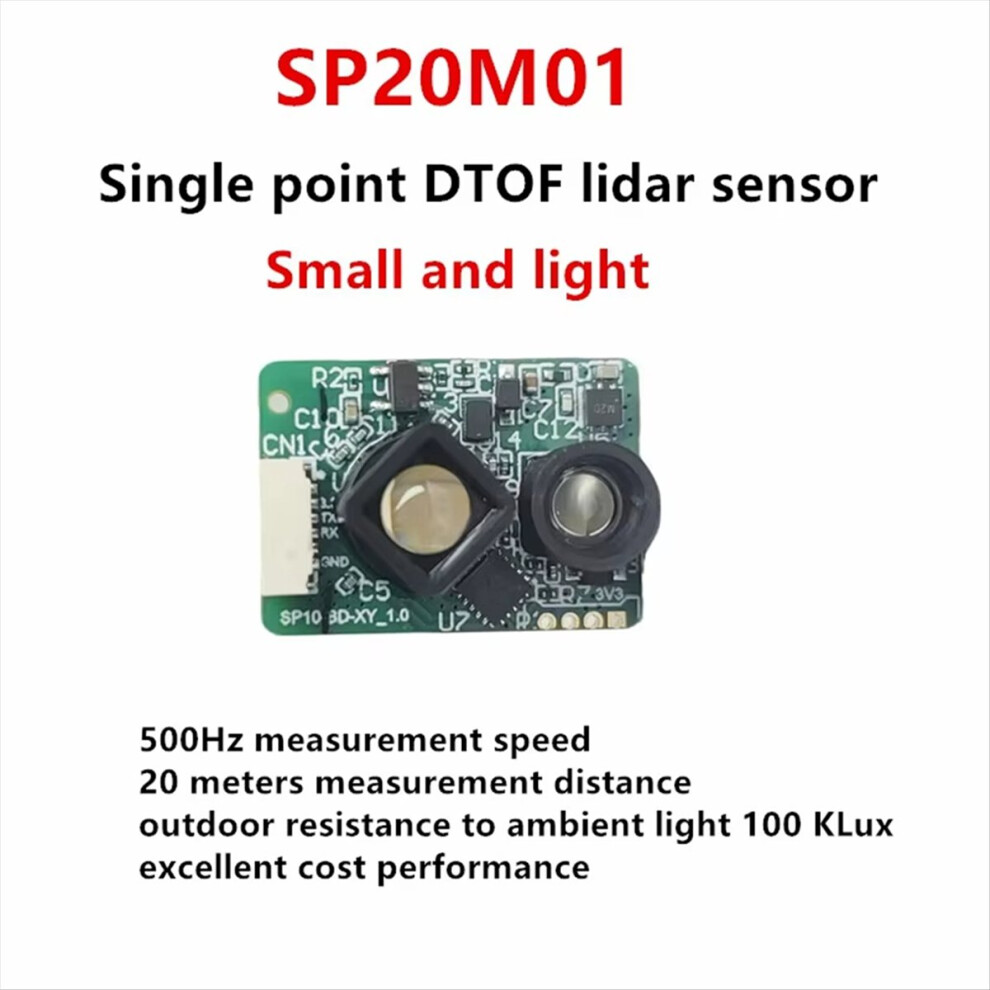

SP20M01 20M 500Hz DTOF Lidar Module

SP20M01 20M 500Hz DTOF Lidar Module Description

The SP20M01 LiDAR is our company's new laser ranging product launched for drones, robotic vacuum cleaners,industrial robots, and other fields. Based on the DTOF ranging principle, it features a small size, low cost, excellent performance, and strong resistance to environmental light interference. The product is easy to use, flexible to install, and convenient to expand, making it highly cost-effective.
Based on DTOF principle (Direct Time of Flight)
Maximum Measuring Range: 20m
Measuring Blind Zone: 5cm
Measuring Frequency:200Hz

Accuracy:5cm(Less than 5m), 1%(25m)
Resolution: 1mm
Operating Temperature:-20~+60
Supply Voltage: 3~3.6VDC
Compact Size: 21x15x 7.43 mm
Weight: 1.5g
Anti-ambient light: 8m@ 60KLux
Drone Altitude Holding and Obstadle Avoidance
Robots Obstacle Avoidance
Industrial Grade Light Curtain
Obstade Avoidance
Camera Focusing
Color: As Shown
Material: PC

Package Contents:
1 * module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
