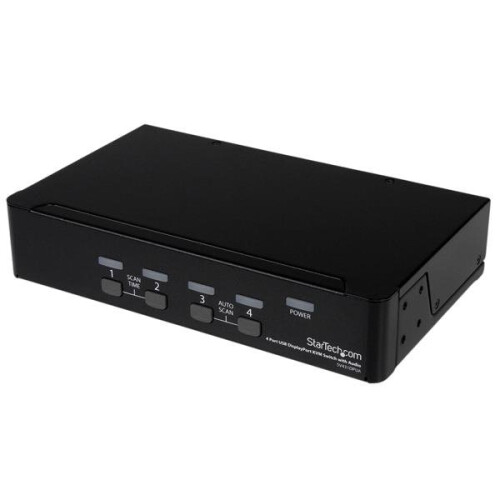

StarTech.com 4 Port USB DisplayPort KVM Switch with Audio KVM switch

StarTech.com 4 Port USB DisplayPort KVM Switch with Audio KVM switch Description

Share keyboard, mouse, and DisplayPort display between two HD multimedia systems

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.

Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.

Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility

Ports & interfacesConsole USB ports quantity4Console portsDisplayPort, 3.5mm headphone, 3.5mm mic, USB ANumber of microphone inputs4Number of computers controlled4Keyboard port typeUSBMouse port typeUSBVideo port typeDisplayPortAudio connectionsYesUSB 2.0 ports quantity4Headphone outputs4Technical detailsColour of productBlackHot-Plug supportYesPlug and PlayYesNumber of users1 user(s)MaterialSteelLED indicatorsYesIP controlNoAudio supportYesVideoMaximum resolution3840 x 2400 pixelsMaximum digital resolution2560 x 1600 pixelsDesignColour of productBlackMaterialSteelLED indicatorsYesDisplayBuilt-in displayNoPerformanceDDC2B supportYesDaisy chainNoHot-Plug supportYesPlug and PlayYesNumber of users1 user(s)Audio channels7.1PowerInput current0.8Output current1.5 APlug typeType MCompatible power plug typesAU,EU,UK,USOutput voltage12 VAC input voltage110-240 VExternal power adapterYesPackaging dataPackage width88 mmPackage depth400 mmPackage height206 mmPackage weight1.7 kgOperational conditionsOperating temperature (T-T)0 - 40 °CStorage temperature (T-T)-20 - 60 °COperating relative humidity (H-H)0 - 80%CertificatesRoHS complianceYesCertificationCE, FCC, UL, VESA, CEAWeight & dimensionsWidth220.7 mmDepth130.6 mmHeight44 mmPackage width88 mmPackage depth400 mmPackage height206 mmPackage weight1.7 kgWeight1.1 kgPackaging contentRubber feetYesManualYesAC adapter includedYesOther featuresMaterialSteelIP controlNoAudio supportYes
