StarTech.com USB to RS232 DB9/DB25 Serial Adapter Cable - M/M Description

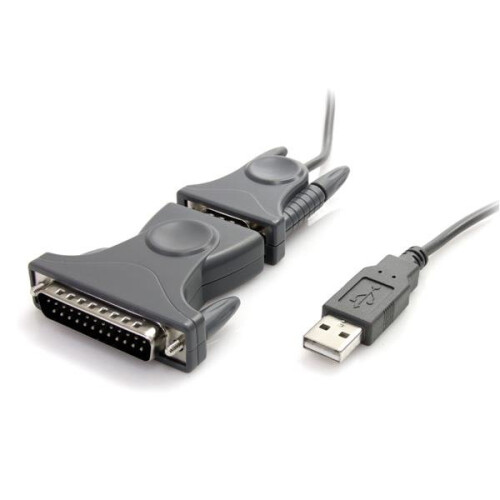

The ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable
(M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial
devices to your laptop or desktop computer through a USB port, as
though the computer offered an onboard serial port. The integrated
3-foot (0.9 meter) cable allows it to be connected directly from
the serial device to the computer without requiring additional
cables.
A cost-effective solution that bridges the compatibility gap
between modern computers and legacy serial peripherals, this high

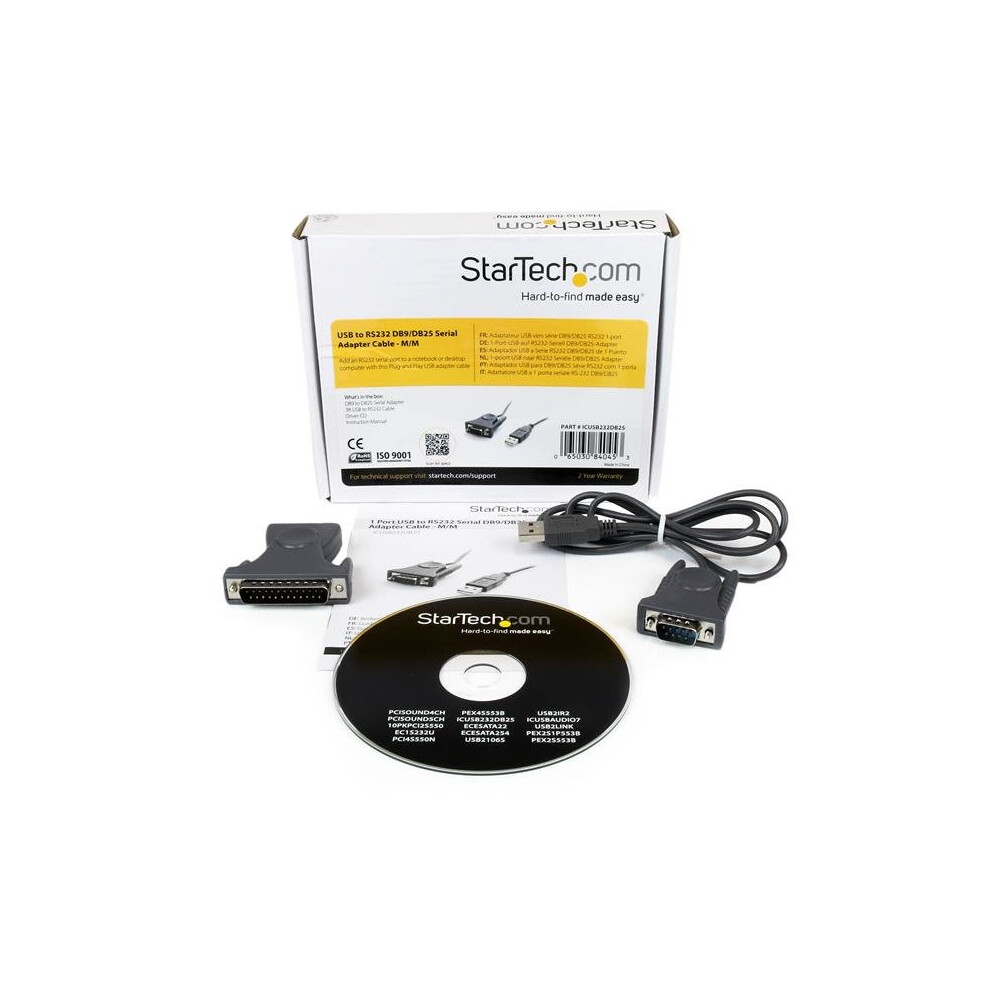

quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25
adapter for connection to varied serial equipment.
Backed by a StarTech.com 2-year warranty and free lifetime
technical support.
The StarTech.com Advantage
- This versatile device ships with a 9-pin connector, and a 25-pin
RS232 adapter for a variety of connection options
- Integrated 3ft cable allows you to connect directly to your
serial devices
- Plug-and-Play/Hot-swap support enables you to add and remove this
adapter without having to reboot the computer
Ports & interfaces
Gender
Male/Male
Connector 2
DB-25 + DB-9
Connector 1
USB 2.0
Technical details
Material
Plastic
Colour of product
Grey
Cable length
0.9 m
Design
Material
Plastic
Colour of product
Grey
Cable length
0.9 m
Performance
Chipset
Prolific - PL-2303
Stop bits
1, 1.5, 2
Flow Control type
N, XON/XOFF
Data bits
4, 5, 6, 7, 8
Baud rate
230.4 Kbit/s
FIFO (First In, First Out)
512 B
Compatible operating systems
- Windows PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2,
Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME,
XP, Vista, 7, 8, 8.1, 10
- Windows Server 2003, 2008 R2, 2012, 2016
- Mac OS X 10.6 to 10.12
- Linux 2.4.x to 4.4.x LTS Versions only
Parity bit
Even, Mark, N, Odd, Space
System requirements
Compatible operating systems
- Windows PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2,
Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME,
XP, Vista, 7, 8, 8.1, 10
- Windows Server 2003, 2008 R2, 2012, 2016
- Mac OS X 10.6 to 10.12
- Linux 2.4.x to 4.4.x LTS Versions only
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Relative humidity
5 - 85%
Operating temperature (T-T)
0 - 70 °C
Weight & dimensions
Weight
70 g
Packaging data
Package width
37.5 mm
Package height
137.5 mm
Package depth
175 mm
Package weight
90 g
Packaging content
Manual
Yes
Drivers included
Yes
Details
| OPC | P86ZYT |
|---|---|
| Brand | |
| Codes | 0065030840453 (EAN) |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Logistics data
| Master (outer) case height | 314 mm |
|---|---|
| Master (outer) case width | 484 mm |
| Master (outer) case length | 275 mm |
| Products per master (outer) case | 50 pc(s) |
| Harmonized System (HS) code | 84733080 |
Features
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
Sustainability
| Sustainability compliance | Yes |
|---|
Certificates
| Compliance certificates | CE, RoHS |
|---|
