Studiomaster Digilive 16 Digital Mixing Console with 16 Channels

Studiomaster Digilive 16 Digital Mixing Console with 16 Channels Description

Shop home

• Live Sound & PA
  • Amplifiers
    • DJ Amplifiers

Categories Studiomaster Digilive 16 Digital Mixing Console with 16 Channels Product Code: SSD6378 Buy it now add to wishlist Description Introducing the Studiomaster digiLivE16 mixer - 16 inputs, motorised faders, large touch screen, USB ports - everything you need for perfect live mixing. Digilive is the result of many years of R&D combining Studiomaster's experience in signal processing with the latest technologies to give you total control over your sound.
All settings can be recalled including, most importantly, the faders - unique in this class of mixer. Full control is also available remotely via Wi-Fi so you are free to mix anywhere in the venue.
Digital Mixing Made Easy
There are 12 mic/line inputs, 2 stereo inputs all routable via 16 busses to 8 balanced outputs. Joining them is a host of professional digital interfaces - AES/EBU, SPDiF and two USB. The 1024x600 touch screen makes navigation simple and intuitive, in fact digiLIVE can be used straight out of the box without the need to read a 100 page manual!
Studio quality sound, multi-effects engines and full dynamics processing make digiLivE the easy way to mix your sound.
Main Features
16 Input w/ 16 Internal Busses 12 Pro Mic Input Ch
8 Motorized 100mm Faders 8 Internal Effects Busses
7 Inch HD Touch Screen or Tablet Operation
Built-in Record, iPad Control, WIFI module
DIGILIVE 16 intelligent user interface
simple to use 1024x600 7 inch touchsceen with clear and informative graphics
clear visual representation of all channel and mixer settings
use either touchscreen or encoder to adjust any setting
100mm motorized faders, with one touch layer selection
solo, mute and channel select buttons for each channel
DIGILIVE 16 advanced algorithms
4 band fully parametric EQ
each band adjustable between 20Hz and 20kHz
variable gain and Q, and ability to save EQ library presets
DIGILIVE 16 dynamics and effects on every channel
fully adjustable gate and compression
4 stereo effects available with reverb, delay, modulation and 15 band graphic EQ
simple to use and informative visual representation of effect or dynamic
depth and gain reduction metering for accurate adjustment
DIGILIVE 16 smart outputs
16 internal busses with 8 balanced XLR outputs
comprehensive routing facilities to maximise mixer flexibility
simple and clear selection and routing
the ultimate hybrid console Features Studiomaster Digilive 16 Digital Mixing Console with Effects

• 16 Input with 16 Internal Busses
• 12 Professional Mic Input Channels
• 8 Motorized 100mm Faders
• Up to 8 Internal Effects Busses
• 8 Configurable Smart Outputs
• 7 Inch High Resolution Touch Screen or Full Tablet Operation
• S/pdif in/out and AES-EBU Output
• Clear Input and Output Channel Metering with the High Definition Screen
• Pre and Post Fader Metering
• Built-In Media Player and Recorder, or use Android App
• Playback from USB or Internal Source

Specifications Studiomaster Digilive 16 Digital Mixing Console with Effects

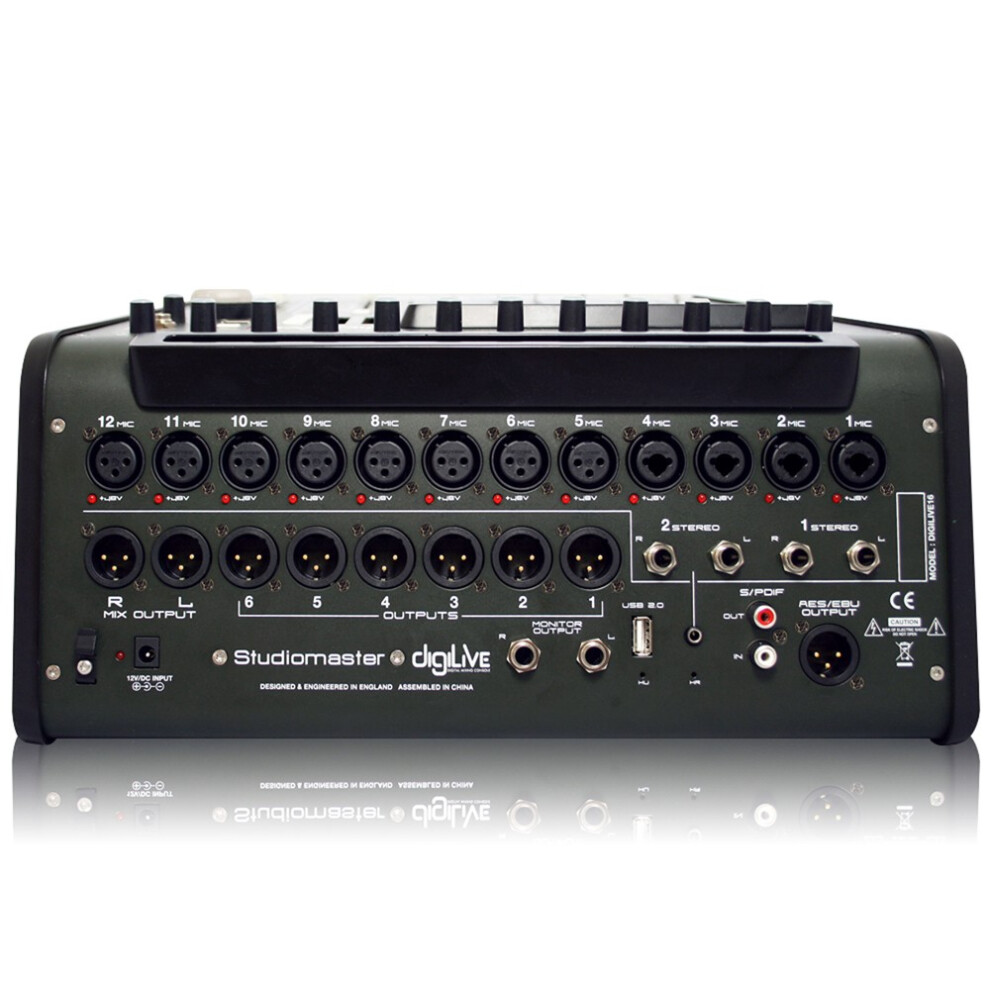

• Mic Input: 12 Channels - 8x XLR/4x COMBO XLR/Jack
• Line Input: 2 (Stereo) - 2 x 6.5 Stereo Jacks, 1x 3.5 Stereo Jack in Parallel with one Stereo Channel
• Master Output: 2 Left/Right Balanced XLR
• Smart Output: 6 Assignable Balanced XLR
• Internal Busses: 16
• Stereo Monitor: 1 TRS Jack Output
• Headphone: 1 TRS Jack Output
• Screen: 7 Inch HD Touch Screen
• Faders: 8x Motorized 100mm Faders + 1x Motorized 100mm Fader for L/R Mix
• USB Interface: 2 for Playback/Recording, Scene Storage and System Updates
• Network: Yes via WIFI external Module
• Power: 90-240V - 50/60Hz Power Supply 12VDC Output
• Dimension (WxHxD): 350x380x150mm
• MPN: DIGILIVE16
