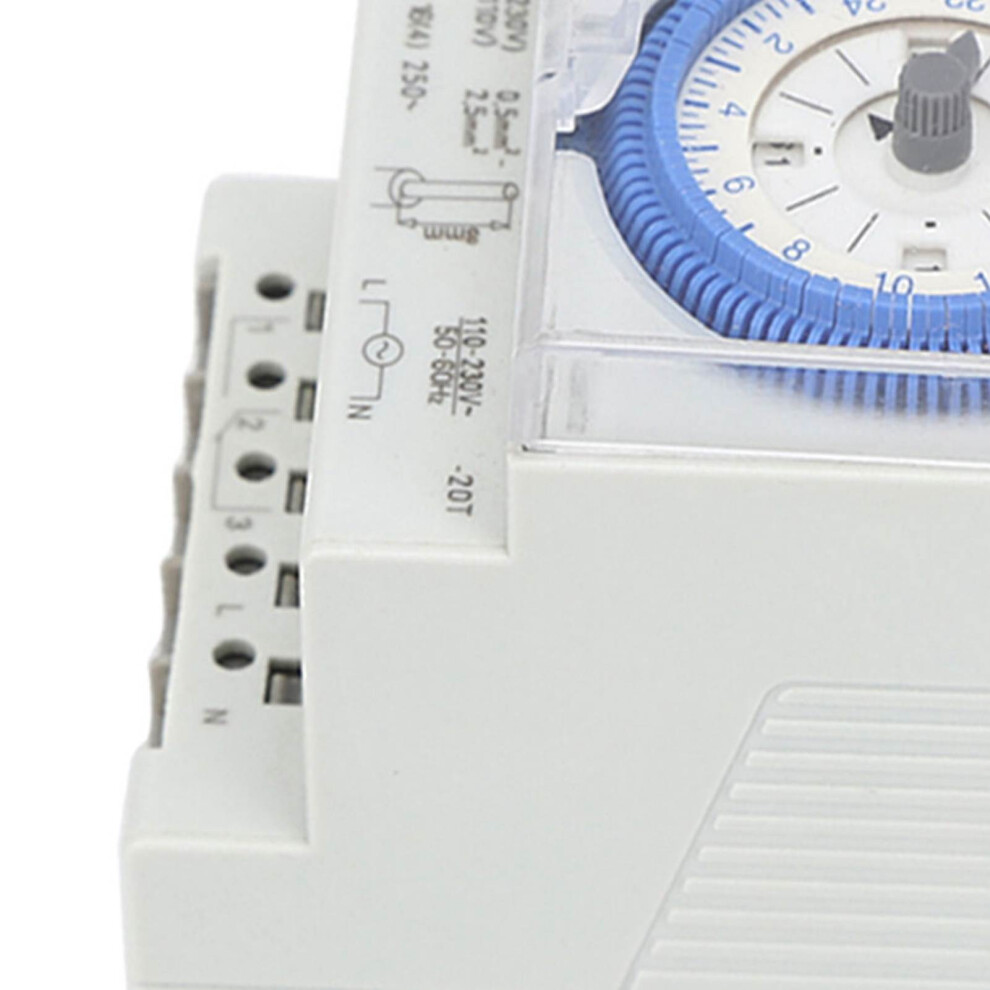

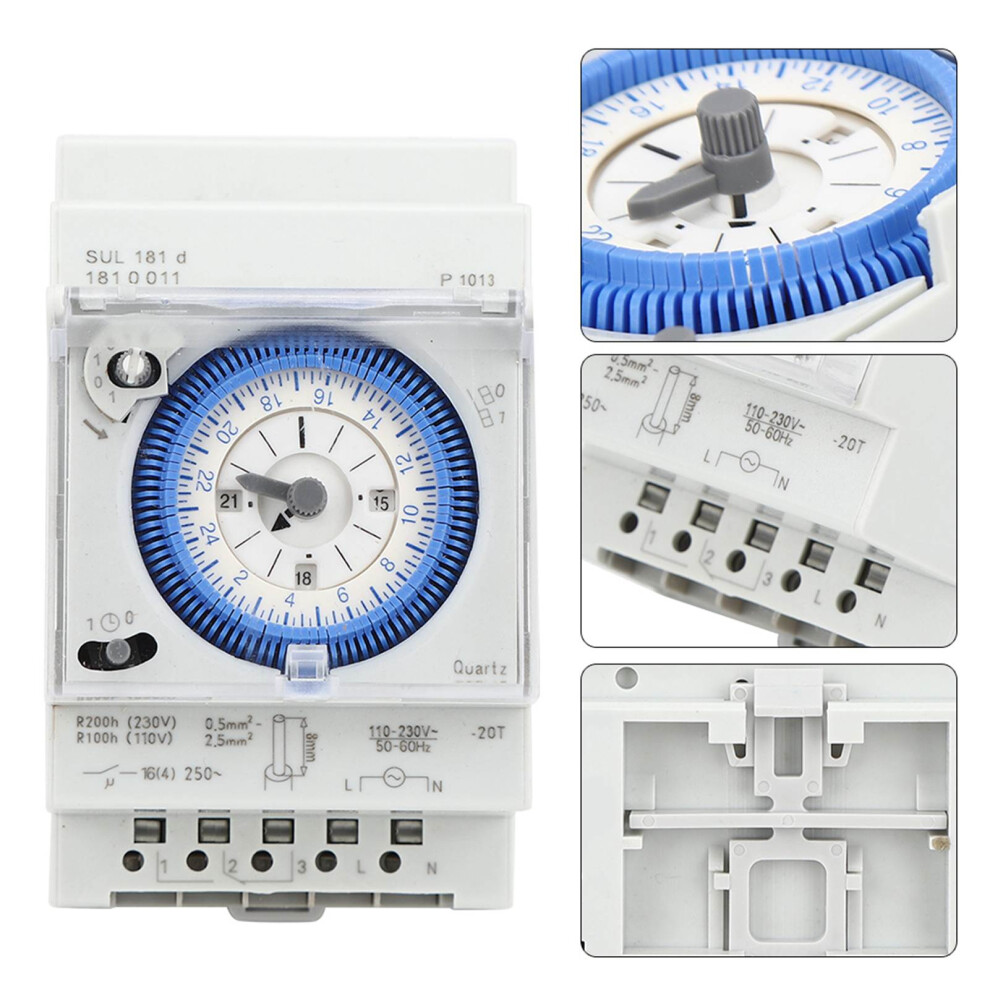

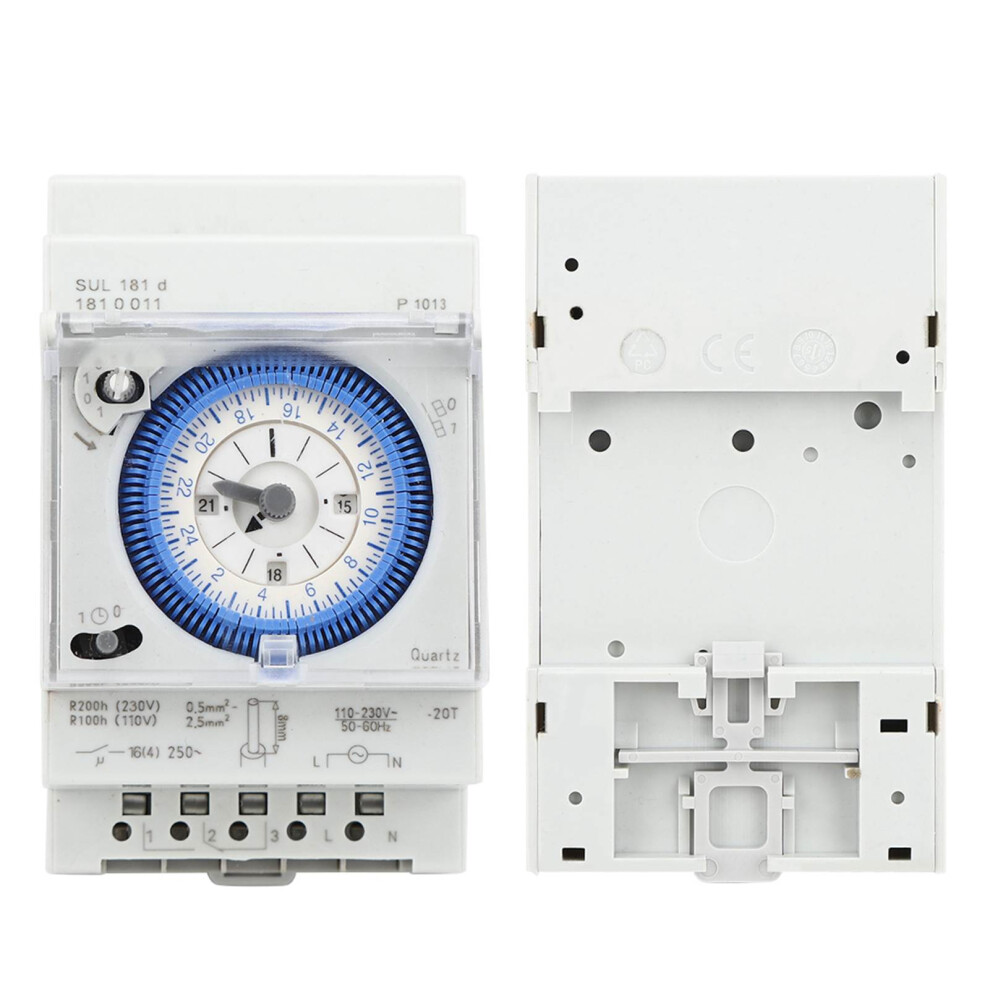

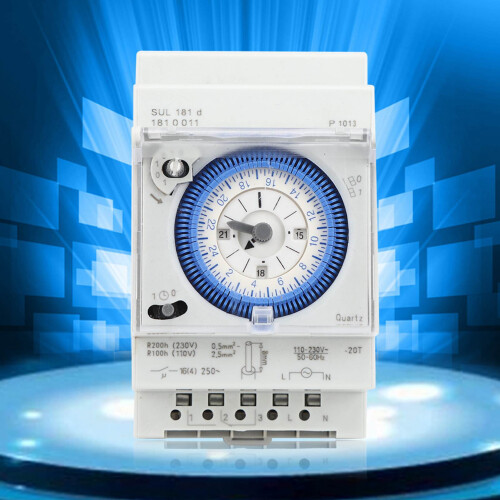

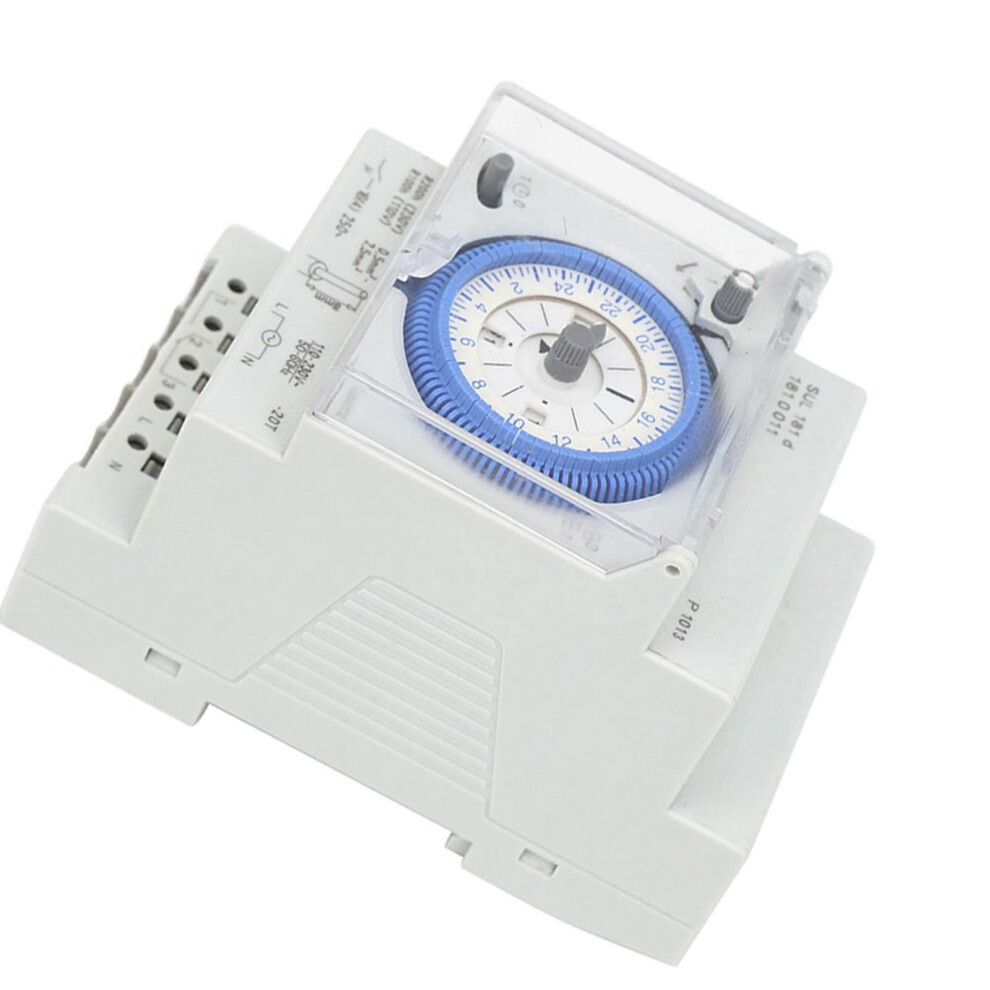

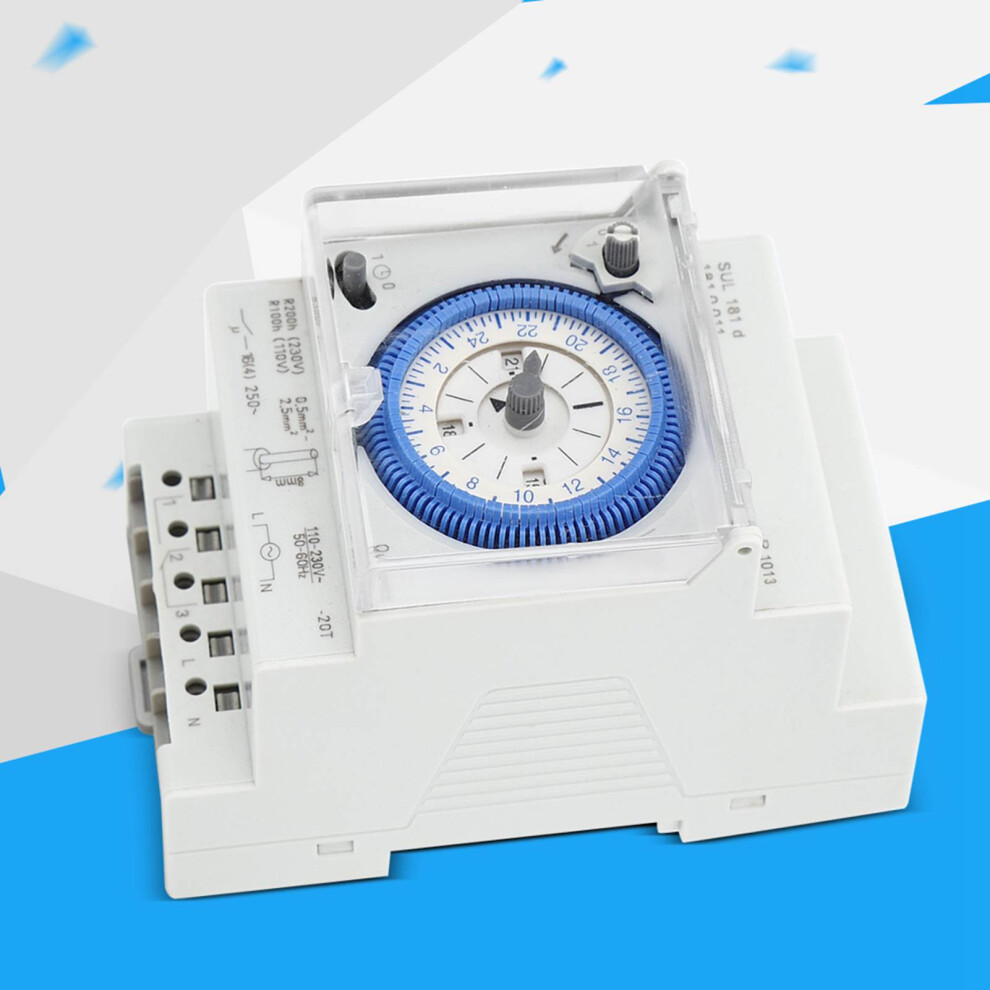

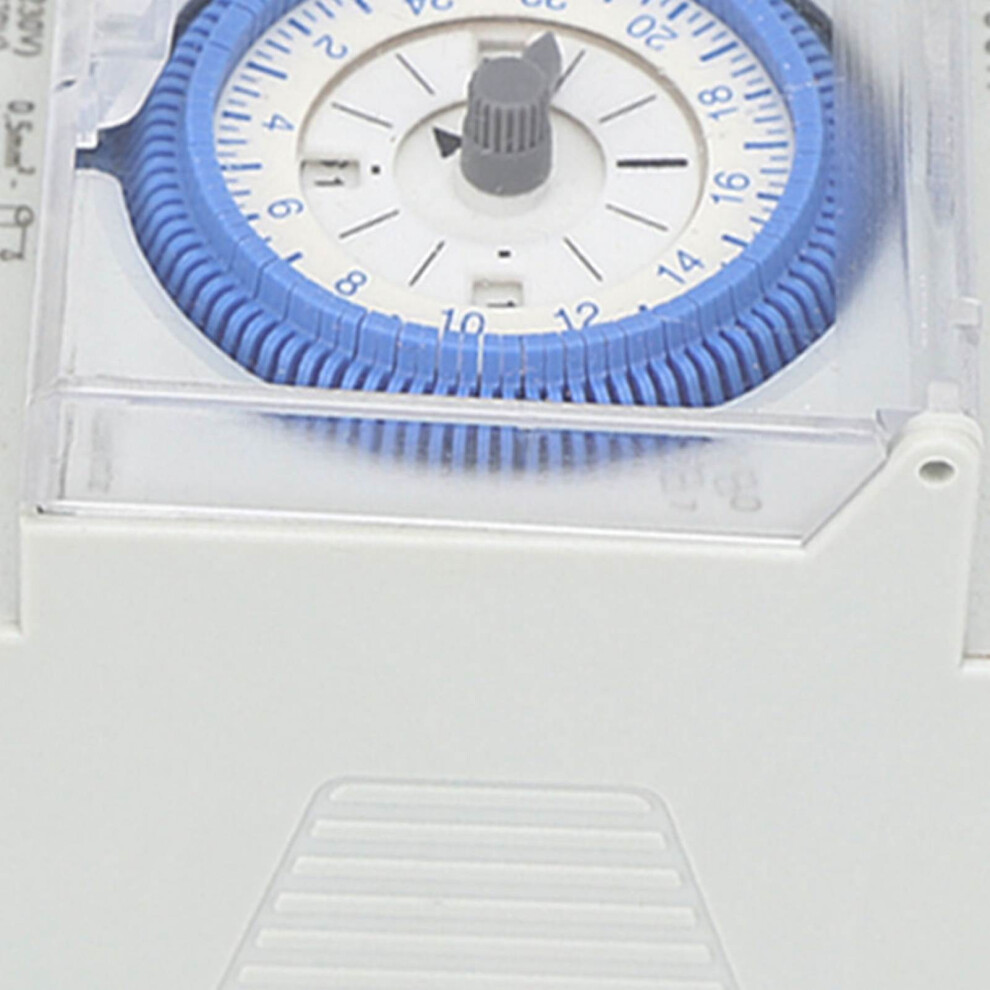

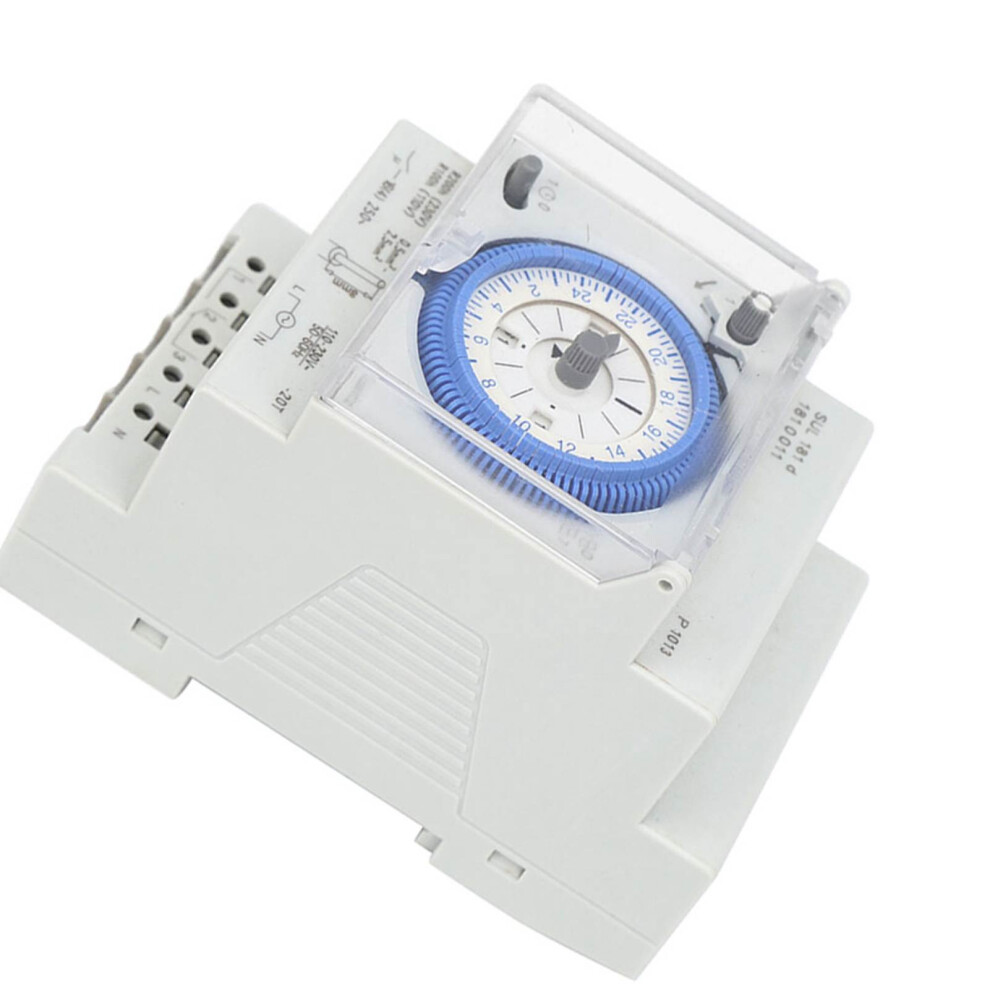

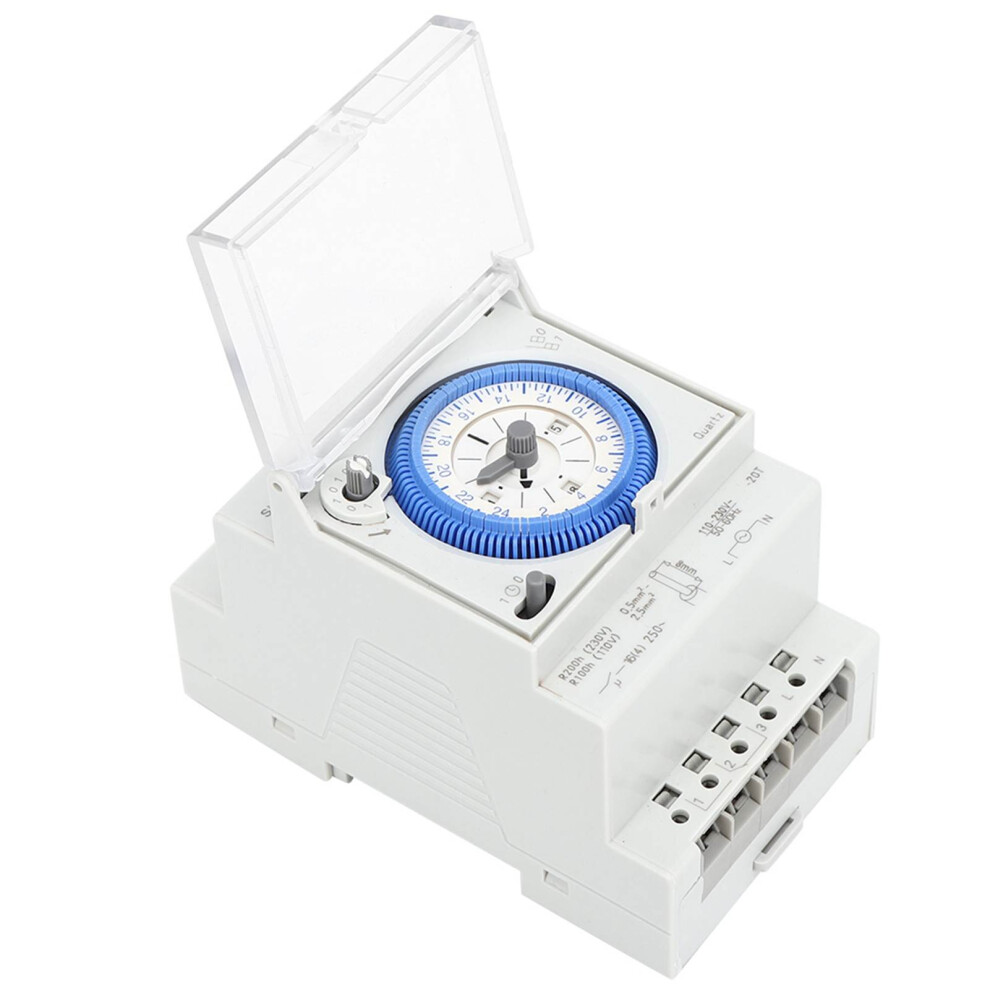

SUL181D Mechanical Timer 24H, 15 Min Setting, 16A 250VAC

SUL181D Mechanical Timer 24H, 15 Min Setting, 16A 250VAC Description

SUL181D Mechanical Timer 15 Minutes 24 Hours Timer Time Switch Relay 250VAC 16A
Item Type: Mechanical Timer

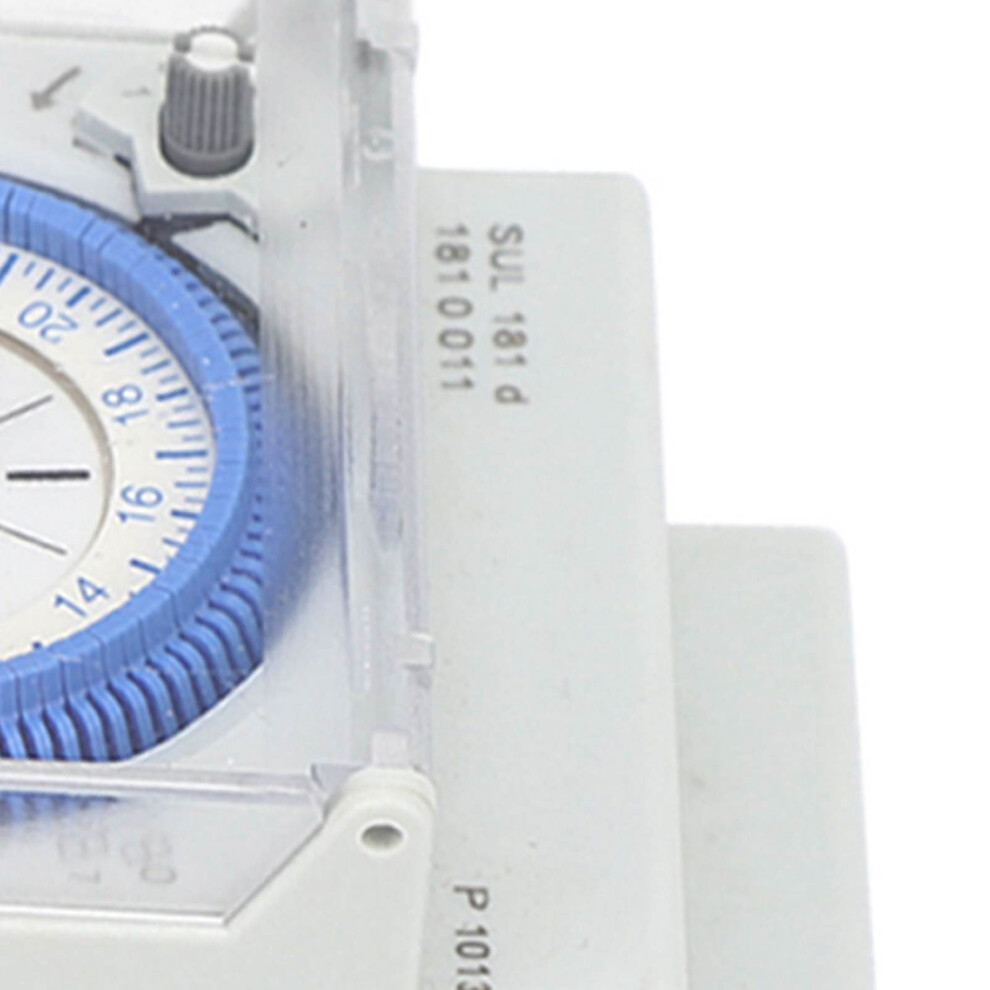

Model: SUL181D
Rated Voltage: 250VAC
Coil Power: 230VAC
Rated Current: 16A
Coil Power: 0.2W
Contact Switching Current: 16A
Contact Switching Voltage: 250VAC
Protection Features: Plastic
Contact Load: 16A
Contact Form: 1H
Electrical Life: (under power load) more than 100,000 times
Mechanical Life: (DC) = 10 million times or more
Mechanical Life: (AC) = 10 million times or more
Insulation Voltage: (between coil and contact) 1000VAC
Insulation Voltage: (between contacts and contacts) 1000VAC
Contact Resistance 50Ω Ambient Temperature: -20 ~ + 55
Time Range: 24h / 24 hours, power storage time 150, minimum setting unit 15 minutes / times, total 96
Frequency: 50 ~ 60 Hz
Number Of Contacts: 1
Cycle: 24 hours

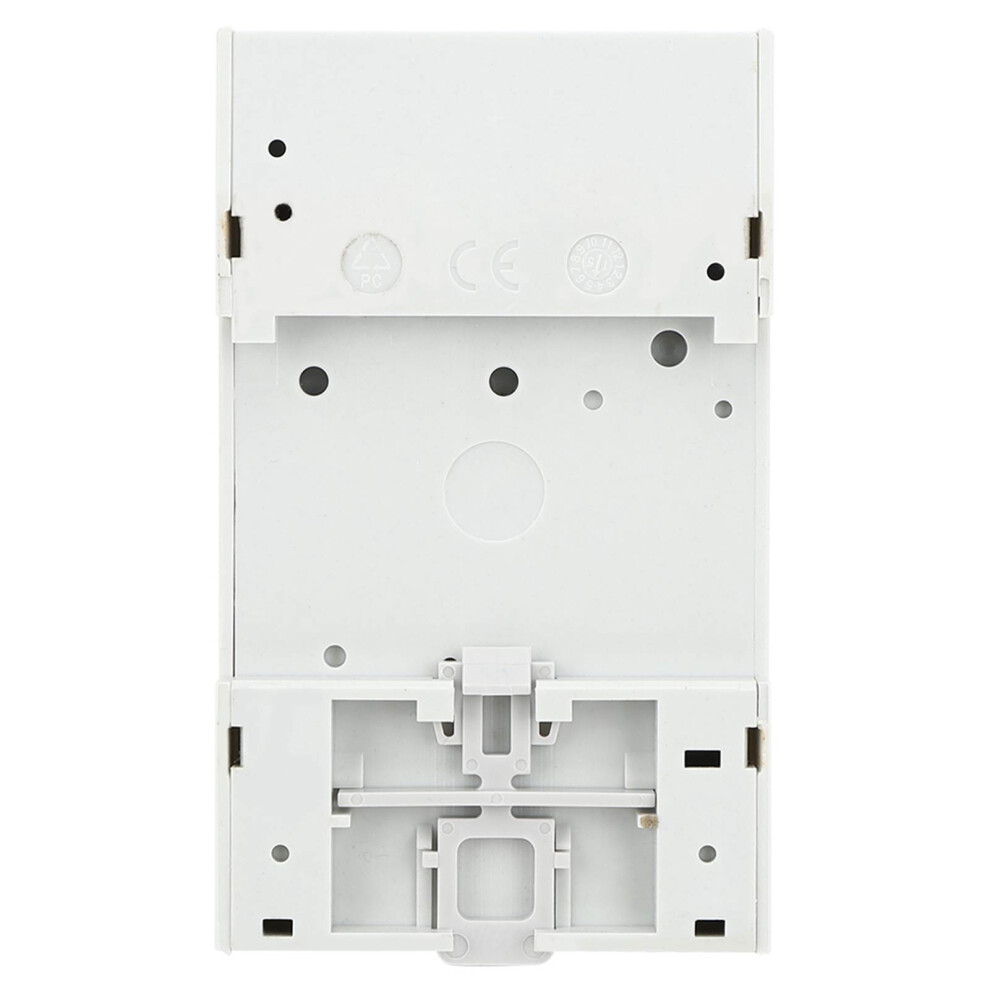

Installation Form: DIN rail
Terminal Block Form: Plug-in terminal
Cycle: 4 hours
Retention Hours After Power Failure: Approx. 100 hours at 110 V
Contact Capacity At 250 V AC, Cosφ = 1: 16 A
Contact Capacity At 250 V AC, Cosφ = 0.6: 4 A
Minimum Switching Time: 15 minutes
Minimum Setting Interval: 15 min
Time Accuracy: 1 s / day (quartz)
Switching Output: Potential-free and phase-independent
Number Of Switching Sections: 96
Standby Consumption: 0,5 W
Test Recognition Light: For VDE
Housing And Insulation Material: High temperature resistance, high temperature resistance, fireproof thermoplastic material
Protection Class: IP 20
Safety Class: II as per EN 60 730-1
Applicable Ambient Temperature: -20 ~ + 55
Battery Information: Coin Cell Battery 100mAh
