SUPER WiFi OBD2 ELM327 V1.5 Car Scanner Android iOS IPhone

SUPER WiFi OBD2 ELM327 V1.5 Car Scanner Android iOS IPhone Description

WIFI ELM327 Scan Tool Wireless OBD2 Auto Scanner Adapter for Smartphone

Description

WIFI 327 can be used on iphone, iPad and so on ...

Wifi OBD VGATE Technical Specifications

Ssid: CLKDevices

Ip: 192.168.0.10

Subnet: 255.255.255.0

Port: 35000

Range: 50 feet (line of sight)

Antenna: internal

Power consumption: 0.75 watts (with switch)

Wi-Fi standard: 802.11a / b / g

Operating temperature: -15 to 100 degrees Celsius

Plastic: Automotive Grade

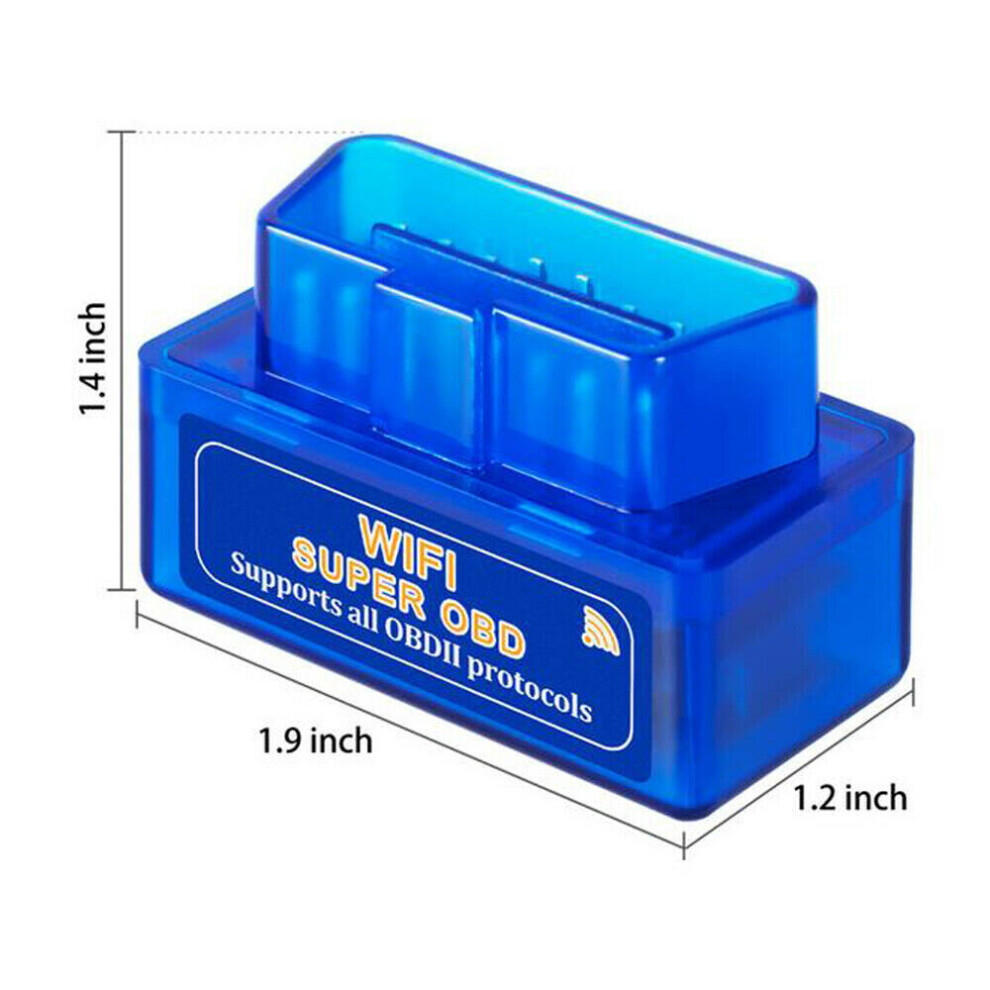

Physical Dimensions: 2.75x1.25x1.2 inches

Characteristics:

CLK is able to communicate with vehicles that adopt the following protocols:

ISO 9141

ISO 11898 (aka Can)

ISO 14230 (aka KWP2000)

ISO 15765 (aka Can)

SAE J1939

WI-FI OBD INSPECTOR AUTO is able to detect and interpret these protocols automatically. It also provides support for high-speed communications and a power sleep mode. AT commands are used to communicate with a host device (PC, laptop, iPhone, iPod Touch, iPad, and so on). There are tons of software packages available, which are fully compatible with WI-FI OBD AUTO INSPECTOR. Some of them have quite useful features, Monitoring of engine running parameters, Reading and clearing of DTCs, MPG meter, etc. You can even write your own software on a specified hardware platform if you want, because the commands they are fully documented and very well explained.

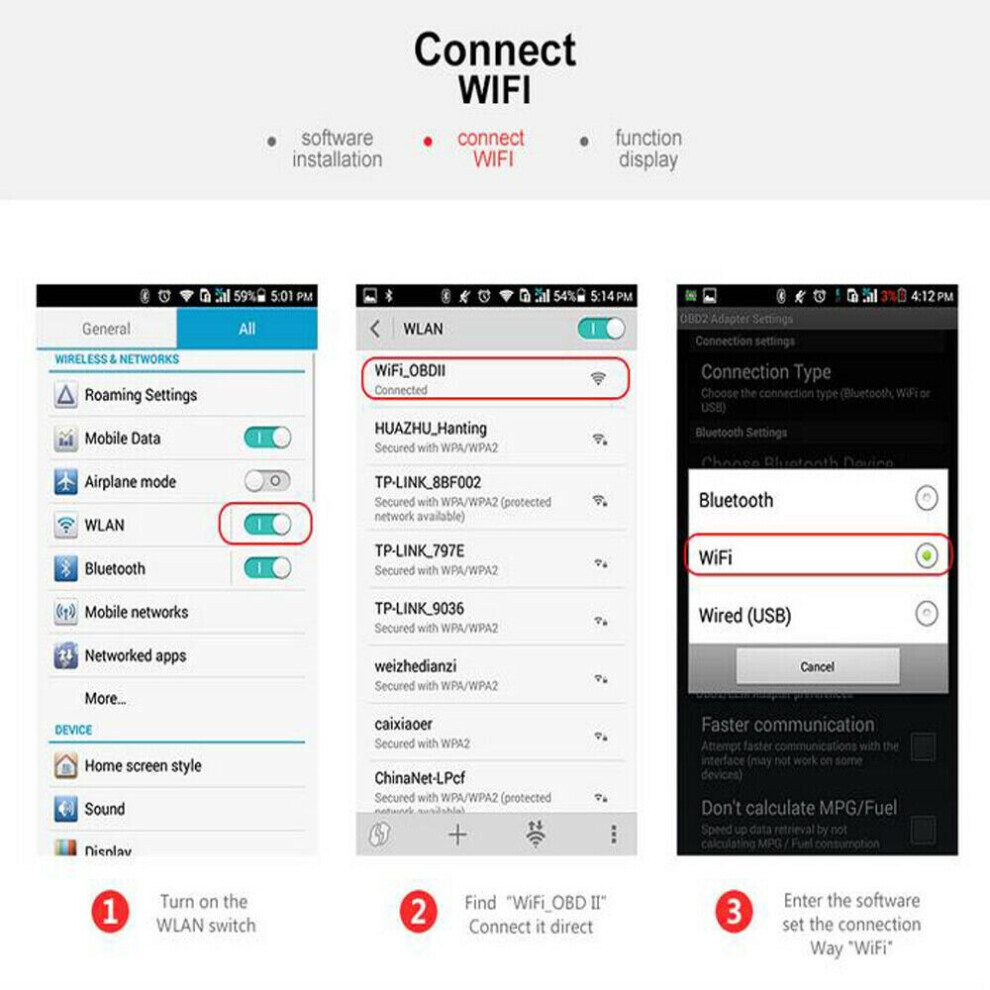

WI-FI OBD INSPECTOR AUTO is only measuring 2.7x1.25x0.9 inches. It comes bundled with a built-in power switch to avoid the need to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles. Connection with iPhone / iPod Touch / iPad is made by WIFI connection in AD hoc mode.

OBD Compliant Vehicles Elder has a label indicating that the vehicle is OBD compliant. 1996 model year and newer vehicles are supported by default, and will not have this label.

The following are some of the parameters that can be read from the vehicle:

Vehicle speed

RPM

Fuel consumption *

Engine coolant temperature

Fuel pressure

Calculated motor load

Throttle position

Product manifold pressure

Air inlet temperature

Timing advance

Mass air flow

Fuel level

Barometric pressure

EVAP system vapor pressure

Fuel trim

Package:

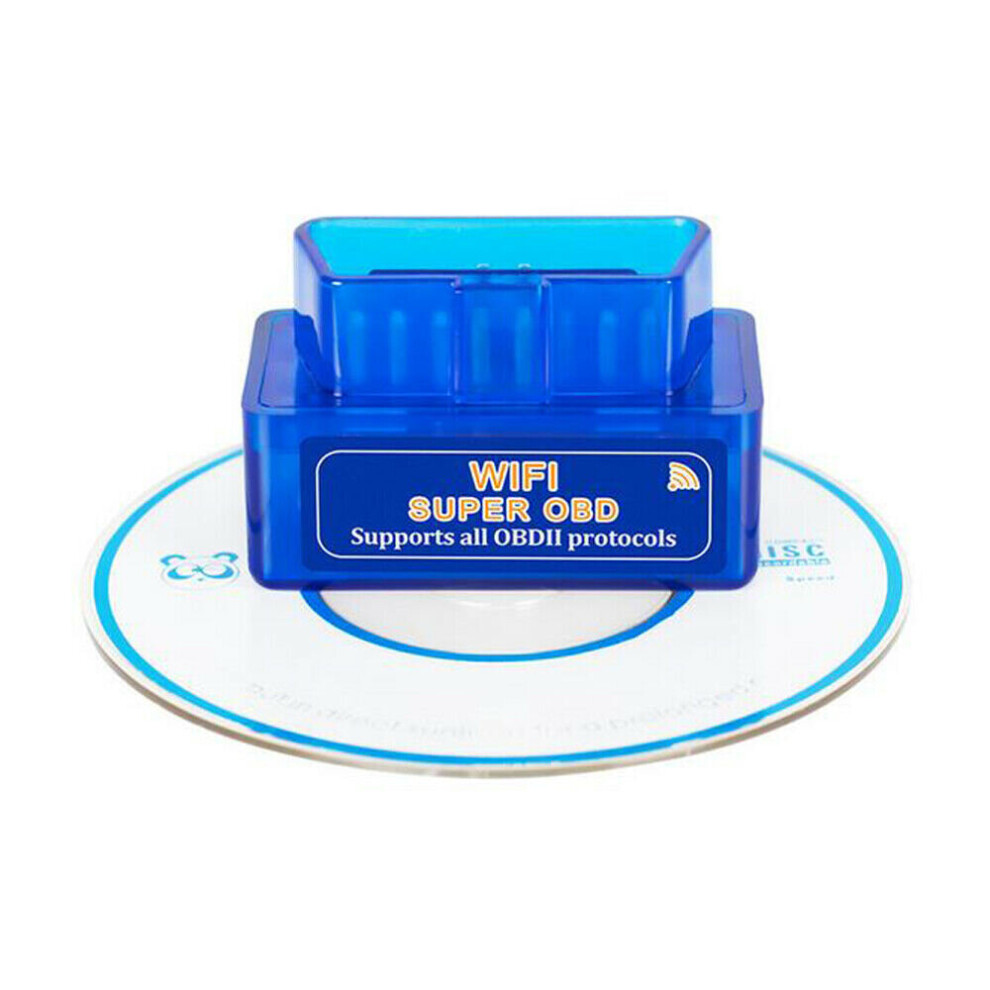

1 x ELM327 WIFI OBD2 interface

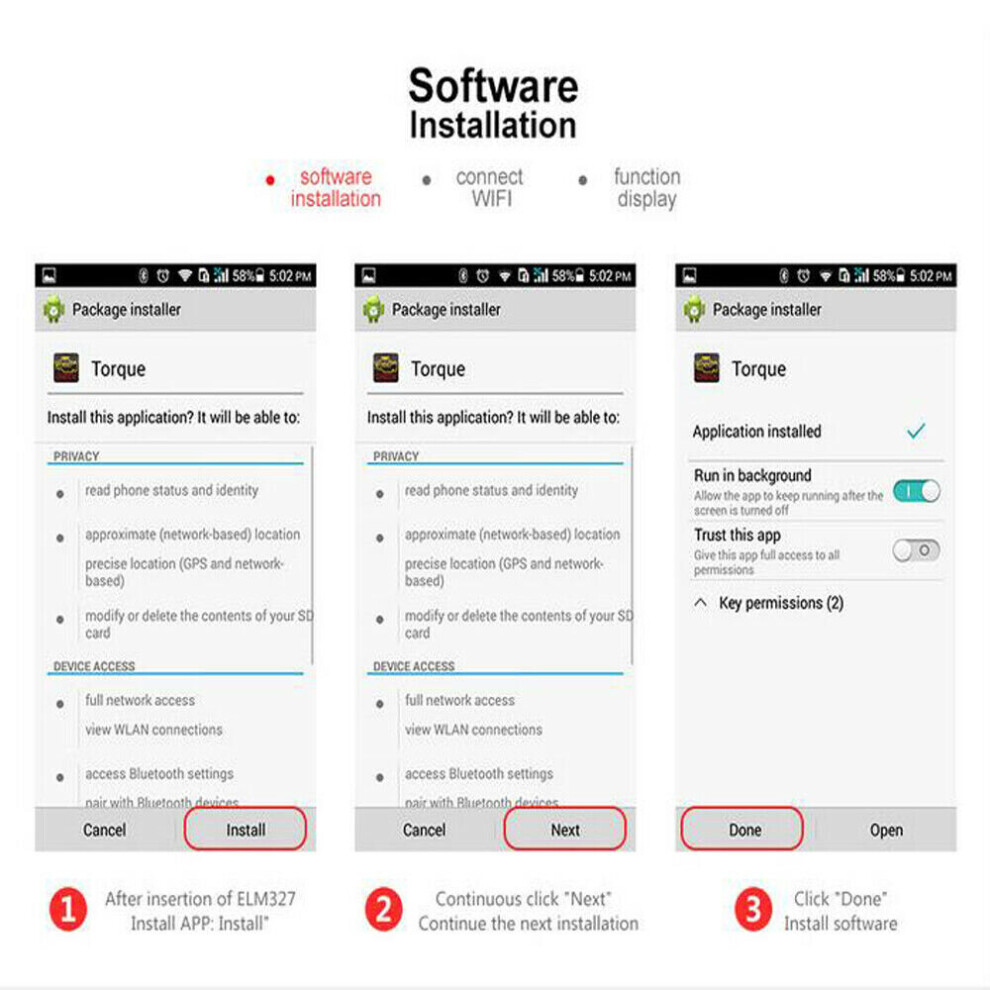

1 x Software CD
