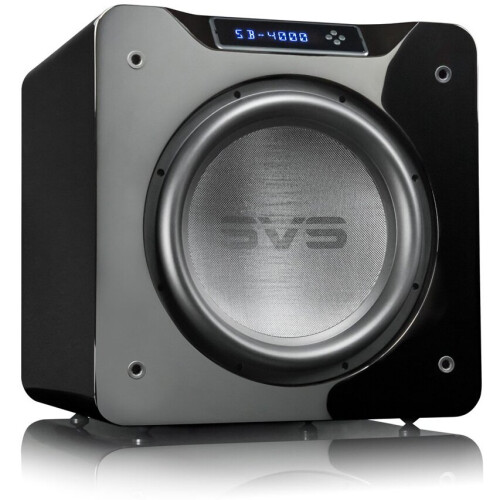

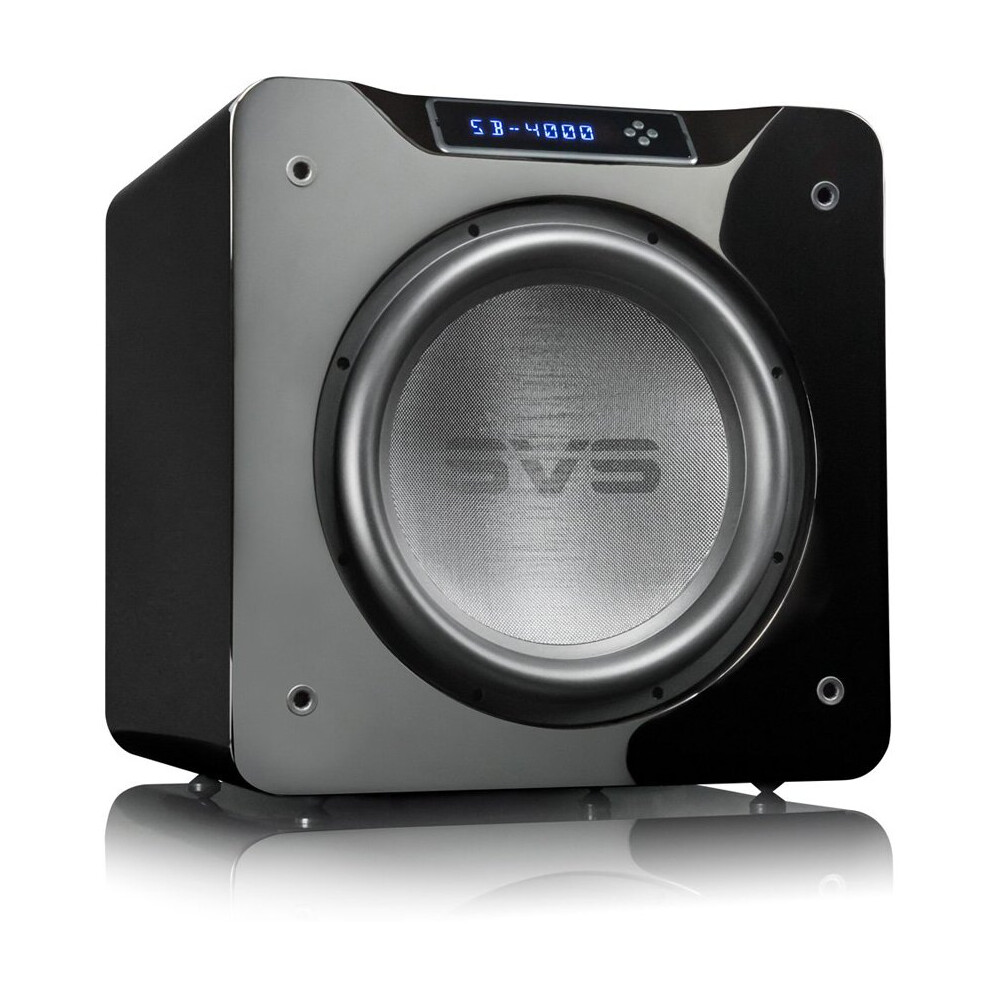

SVS SB4000 Subwoofer Gloss Black

SVS SB4000 Subwoofer Gloss Black Description

The new SVS SB4000 Subwoofer will take any preconceptions of subwoofer performance to entirely new levels, taking command of any room in which it is place thanks to the trickle-down technology that has been integrated throughout the 16-Ultra Series in order to maintain a consistent performance across the entire range. This subwoofer will far surpass any expectations, filling the room with deep and effortless bass, and adding an unprecedented visceral energy to whatever you are listening to, no matter whether that be a film soundtrack or your favourite album.

High Excursion SVS Subwoofer Driver

The SVS SB4000's subwoofer driver will utilise the full potential of the Sledge STA-1200D amplifier, offering immense power and precision with enough control to produce SPL and achieve low frequency extension precisely over all drive levels. The dual ferrite magnet motor assembly within this subwoofer weighs a mere 40lbs and generates an immense magnetic force, and the excursion of the 13.5” will allow the SB4000 to produce a mammoth low frequency output – so low that it is below the limits of human hearing. An edge wound voice coil with eight-layer aluminium flat wire works to minimise distortion and compression, all the while ensuring excellent heat dissipation and linearity to achieve precise control through the subwoofer. Within this subwoofer, a lightweight and rigid composite cone can be found. This cone uses a premium glass fibre dust cap in order to generate a massive output with pinpoint accuracy throughout the frequency response.

Sledge Amplifier and Fully Discrete MOSFETs

The SVS SB4000 incorporates the Sledge STA-1200D amplifier, a Class-D amplifier that has been rated at 1200 watts RMS with 4000+ watts peak power. Combined with the fully discrete MOSFET output and a sophisticated Analog Devices DSP engine, this amplifier will produce effortless power and advanced processing at an unprecedented level that is not available from any other powered subwoofer currently on the market. The efficiency of a Class-D amplifier with the ability to move large quantities of current through the discrete MOSFETs will allow an extremely large output and enable precise control for this subwoofer no matter what drive level it is operating at.

Variable Port Tuning Modes

Foam port plugs allow for variable tuning, with each response curve over the three port tuning modes (standard, extended, sealed) fully configured to each mode respectively in order to achieve balanced and accurate low frequency response over all tuning preferences.

Active Power Factor Correction and Ground Loop Isolation

The SVS SB4000 Subwoofer features active power factor correction to deal with wide fluctuations in voltage, serving as a line conditioner, surge suppressor and voltage regulator. This PFC will make sure that the subwoofer itself is operating perfectly on any household circuit regardless of how unstable an incoming current is. The isolated circuit will create a low noise floor through elimination of potential ground loop hums emitted from outside components, thus resulting in sonic transparency that is as best as it could possibly be.

Acoustically Inert Sealed Box Cabinet Design

When it comes to its design, the SVS SB4000 Subwoofer features an inlaid front panel display, rounded edges, and a curved metal grille on the cabinet. These design characteristics will ensure it remains elegant in its aesthetics, allowing it to fit seamlessly within any existing home hi-fi / home cinema system setup.

A double thick, two inch MDF cabinet walls and rigid internal bracing support the drive unit and ensure an acoustically inert environment. The sealed cabinet design, highly reinforced internal components, and acoustic insulation then works to eliminate any and all colouration or resonance from the cabinet; even when the deepest of low frequencies are played at reference volume. To top it off, a protective, non-resonant steel-mesh grille and custom elastomer feet are included to reduce noise artefacts within a room, whilst a 2-way feedback will display updates in real time on both the app and the subwoofer's own interface.

SVS SB4000 Control App

This convenient little app will make control and management of the SVS SB4000 Subwoofer that much easier, with connection achievable via Bluetooth technology, this app will allow you to control the subwoofer even when the unit is out of sight. This app features 3-band parametric control capabilities, allowing you to make precise and accurate adjustments to frequency slope and Q factor, all the way down to the single Hz level, with four different slopes. This means that users are able to improve the SB4000's performance through the elimination of peaks, nulls and other room issues.

The control app allows you to store 3 different presets for movies, music and more. And 2-way feedback shows updates in real time on the app and the subwoofer's interface. The App can be found and downloaded for free via the Apple iOS AppStore for iPhones and iPod devices, and via Google Play Store for Android devices.

• Active Power Factor Correction and Ground Loop Isolation
• Sledge Amplifier and Fully Discrete MOSFETs
• Acoustically Inert Ported Box Cabinet Design
• High Excursion SVS Subwoofer Driver
• Variable Port Tuning Modes
• SVS SB4000 Control App
