SW900 Electric Bike LCD Display Meter Bike Screen Control Panel

SW900 Electric Bike LCD Display Meter Bike Screen Control Panel Description

【MULTIFUNCTIONAL】: The SW900 ebike screen is the ultimate dashboard for your electric bike. It supports input voltages of 24V, 36V, 48V, making it compatible with a variety of electric bike voltage configurations for user convenience. Suitable for handlebars with a diameter of 22.2mm / 0.9 inches, it is an ideal accessory for electric bikes, pedal bikes, and more. With a wide range of customizable settings, it optimizes your electric bike riding experience.

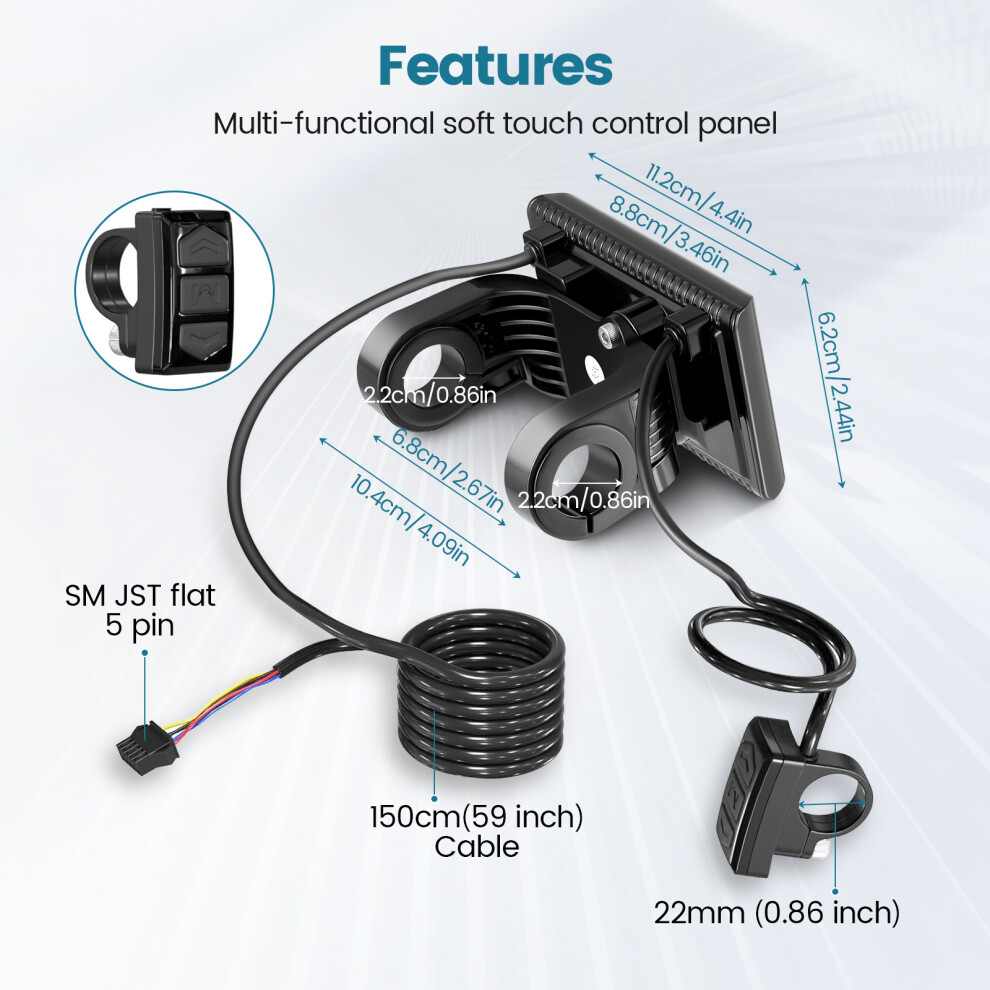

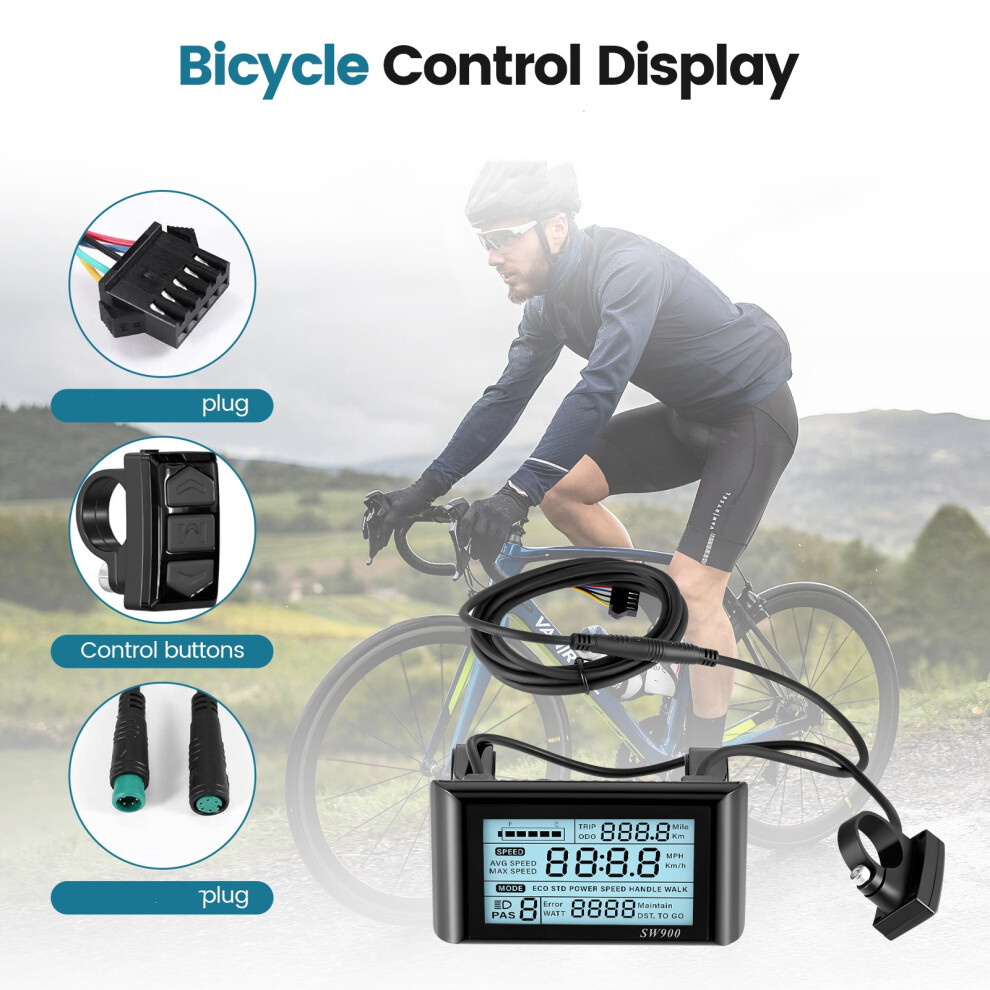

【COMPATIBLE COMMUNICATION PROTOCOLS】: Our SW900 display screen is compatible with various common electric bike controller communication protocols. Users can select different protocols through settings. Compatible communication protocols include 2#, 5S, KDS, Sine wave, DC MOTO, OMD and YF. Not compatible with KT or Sabvoton protocols. It features a flat 5-pin male connector for connecting to the controller, with an inline circular green 5-pin waterproof Juliet connector for added stability. Note: The controller and e-bike panel may have different interfaces and protocols. This product fits 5-pin interfaces. Confirm compatibility before buying.

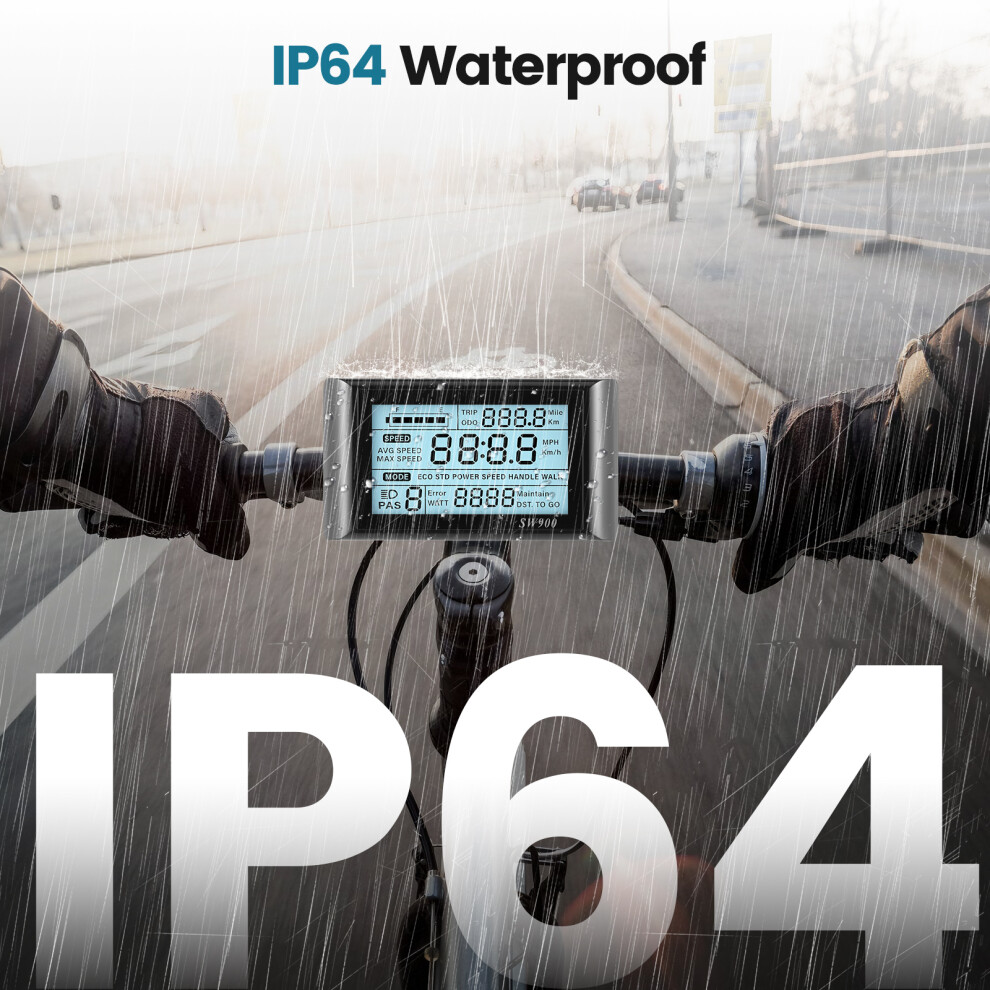

【DURABLE MATERIAL】: This LCD meter monitor is made from high-quality ABS material, with an IP64 waterproof rating. You can ride in the rain with confidence, as it is lightweight, waterproof, and durable, able to work stably in different outdoor environments for extended periods, prolonging its lifespan. The backlight function and 3 screen brightness adjustments provide good visibility for day and night riding.

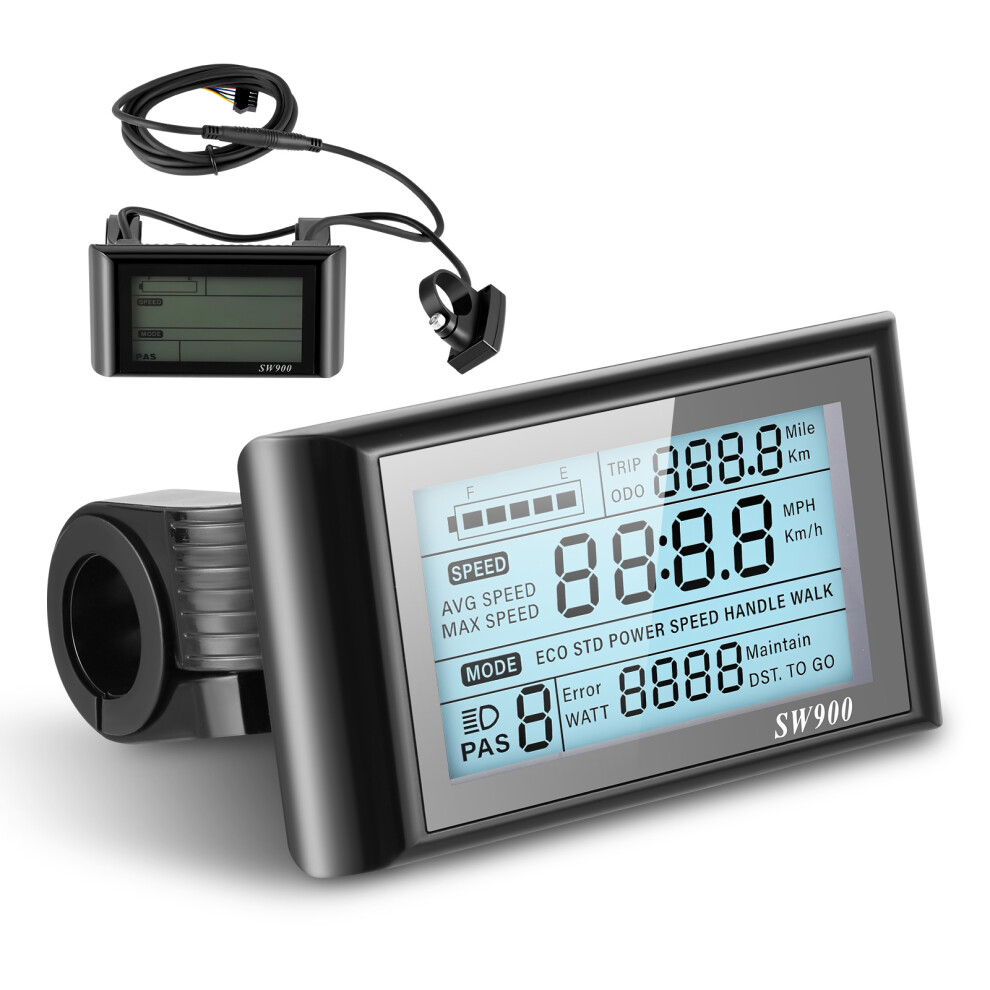

【CUSTOMIZABLE SETTINGS】: The SW900 electric bike display screen has a large 3.4*2.4 in panel, offers 19 customizable settings, such as speed, mileage, wheel diameter, speed limit, speedometer magnet number, battery level, mode, and more. This allows you to optimize your bike's performance based on riding style and terrain. Long-press the M key to enter the settings homepage, short-press to enter the next setting, and use the up and down keys to adjust parameter values.

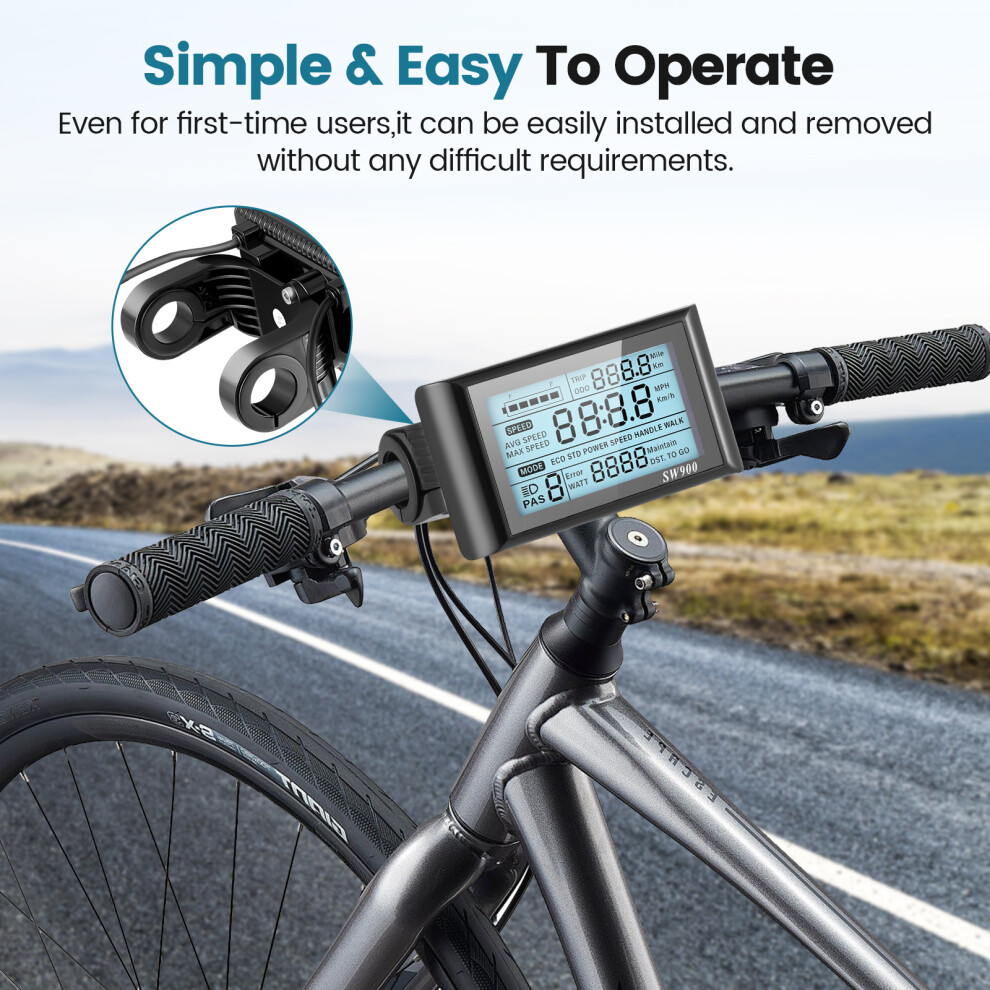

【USER-FRIENDLY OPERATION】: The SW900 comes with a complete user manual to help you understand the new display screen and make settings. With a 150cm cable length, it is suitable for various installations. You can fine-tune the SW900 electric bike display screen to enhance your riding experience and ensure optimal bike performance. Simply follow the instructions to connect the display screen to the controller and make your settings choices to start using it.

Note: The product supports input voltages of 24V, 36V, and 48V. Match this setting to your battery voltage. If you have a 52V or 60V battery, use the 48V setting. The product's default factory voltage is set at 36V. Please manually adjust the parameters according to the actual voltage during use to ensure they match. Failure to do so may trigger voltage protection and result in error messages.
