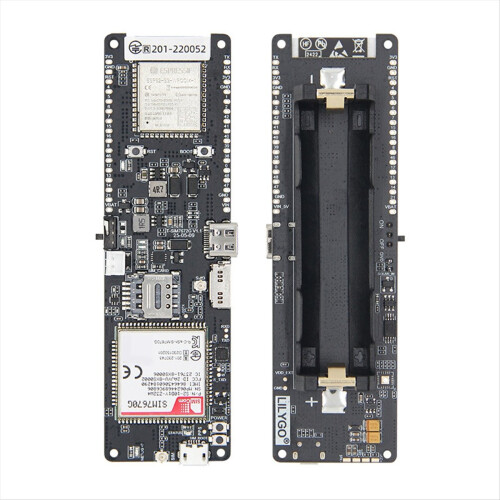

T-SIM7670G-S3 LTE 4G ESP32-S3 Development Board Cellular Module IOT Devices Long-Range Communication with GPS

T-SIM7670G-S3 LTE 4G ESP32-S3 Development Board Cellular Module IOT Devices Long-Range Communication with GPS Description

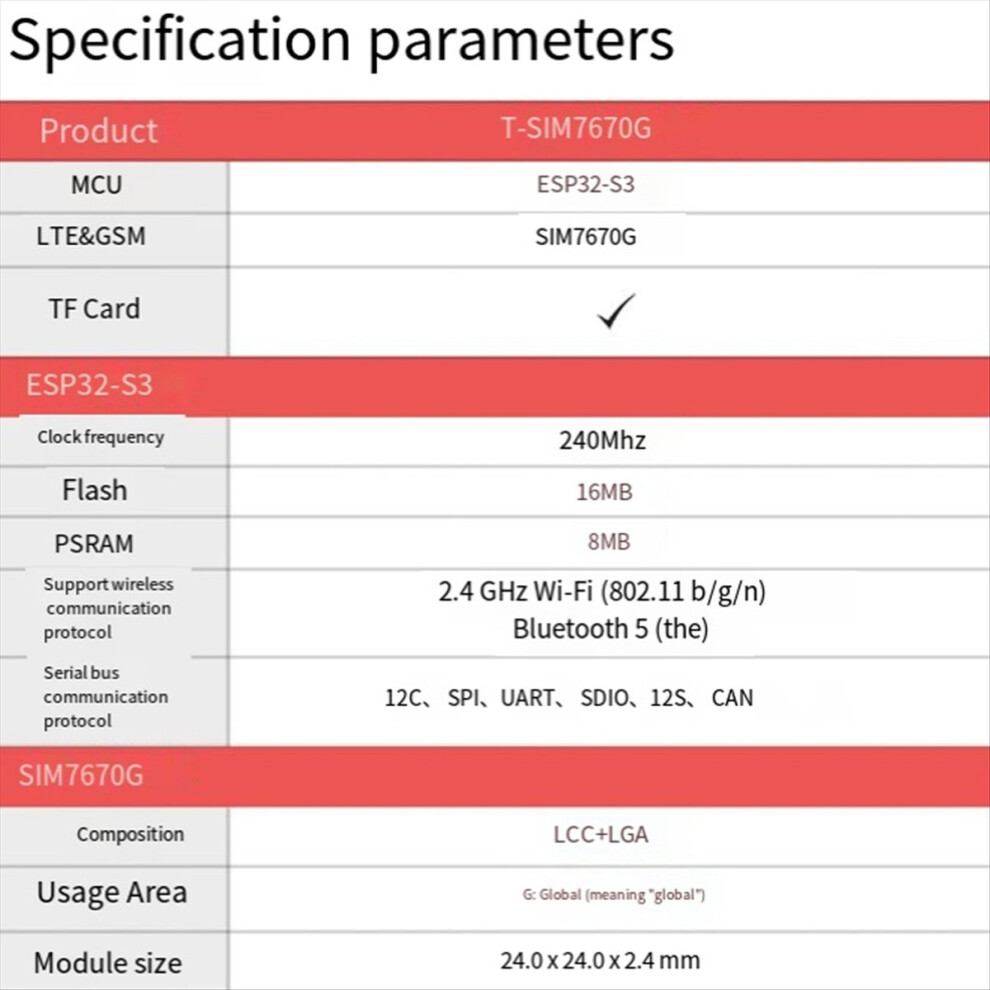

T-SIM7670G Parameters:
MCU: ESP32-53
LTE&GSM: SIM7670G
TF Card slot
SIM7670G Composition: LCC+LGA

SIM7670G Use area: Global
ESP32-S3 Parameters:
Clock frequency: 240Mhz
Flash: 16MB
PSRAM: 8MB
Supported wireless communication protocols: 2.4 GHz Wi-Fi (802.11 b/g), Bluetooth 5 (LE)
Serial bus communication protocols: , SPI, UART, SDIO, I2S, CAN
SIM7670G Parameters:
Frequency: LTE-FDD: B1/B2/B3/B4/B5/B7/B8//B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41
Data transmission: Download speed: 10Mbps, Upload speed: 5Mbps
GNSS: NA
Supported protocols: IP/IPV4/IPV6/Multi-PDP/
FTPS/HTTP/HTTPS/DNS/
Android RlL: Android 5.0/6.0/7.0/8.0/9.0
USB driver: 7/8/10, Linux, Android
Supported voltage: 3.4~4.2V
Card: 1.8V/3.0V
(The product printed words depending on the batch, but this does not affect use)
Color: As Shown
Material: PCB+Electronic Components

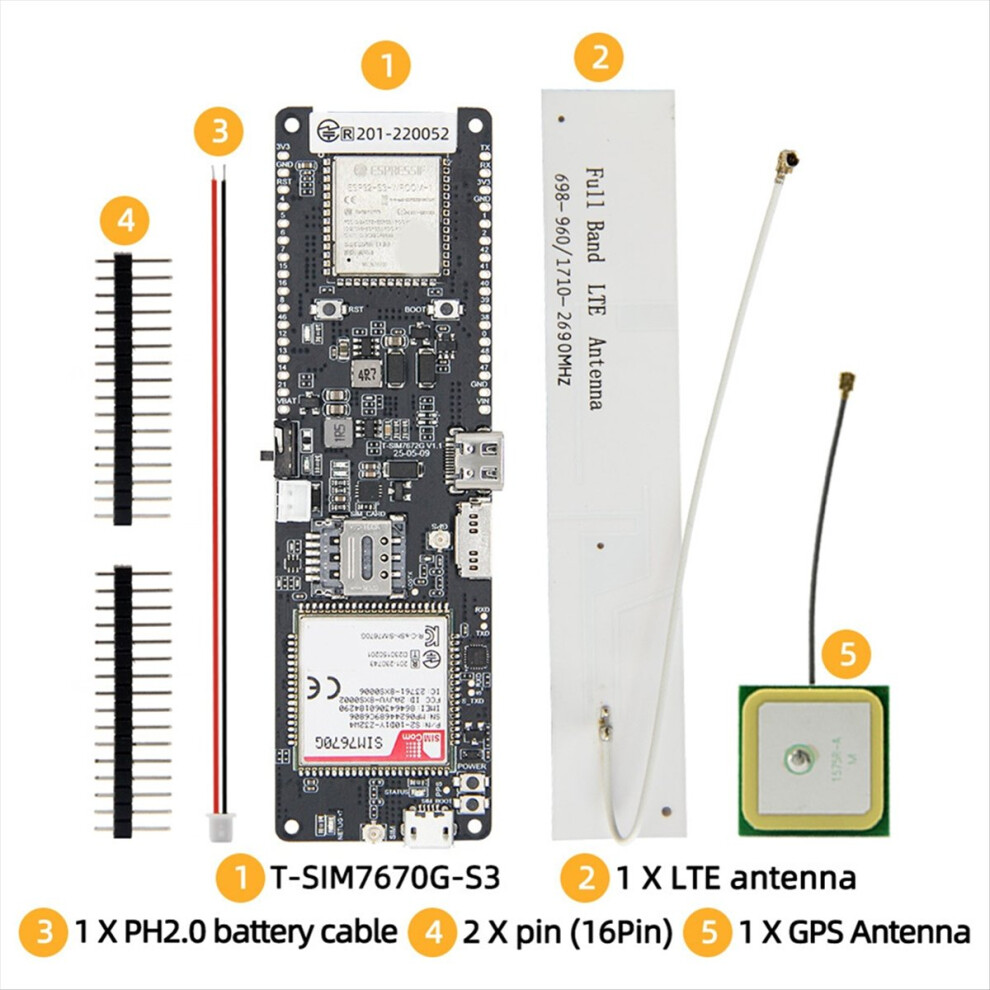

Package Contents:
1 * development board With accessories

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
