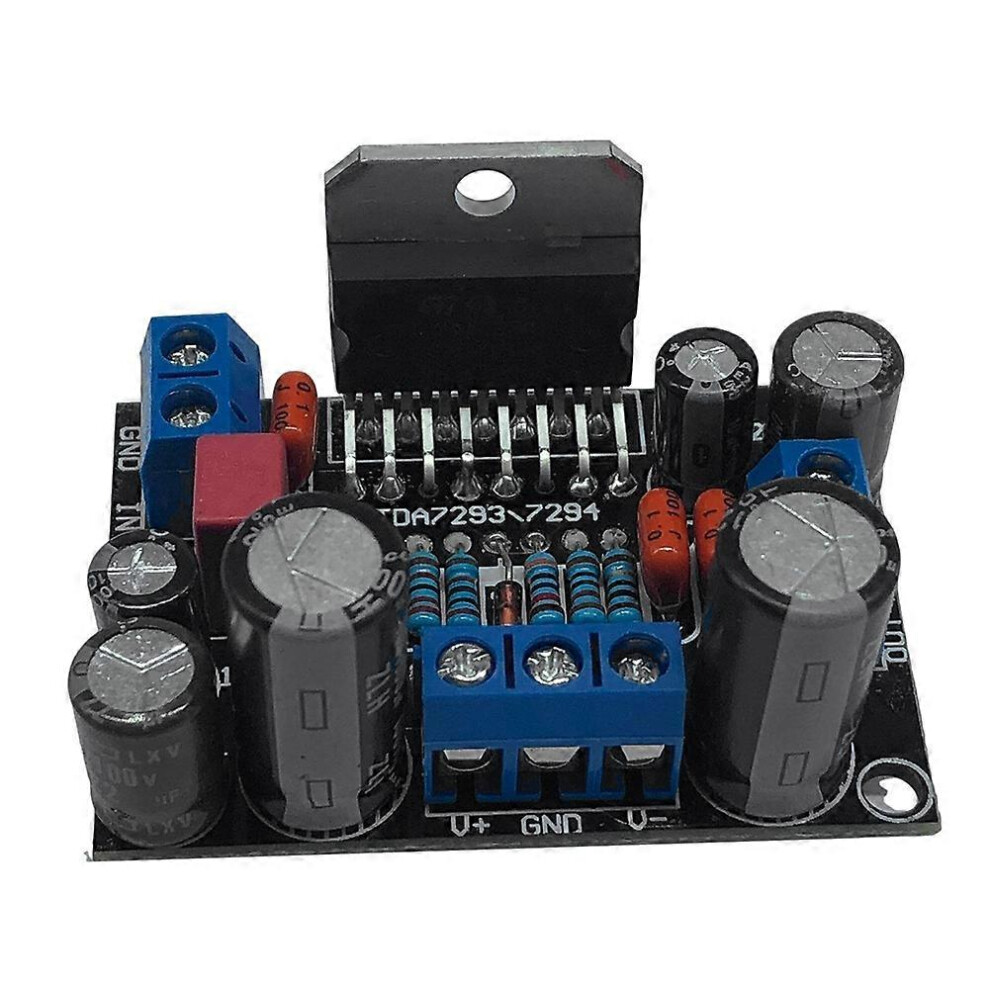

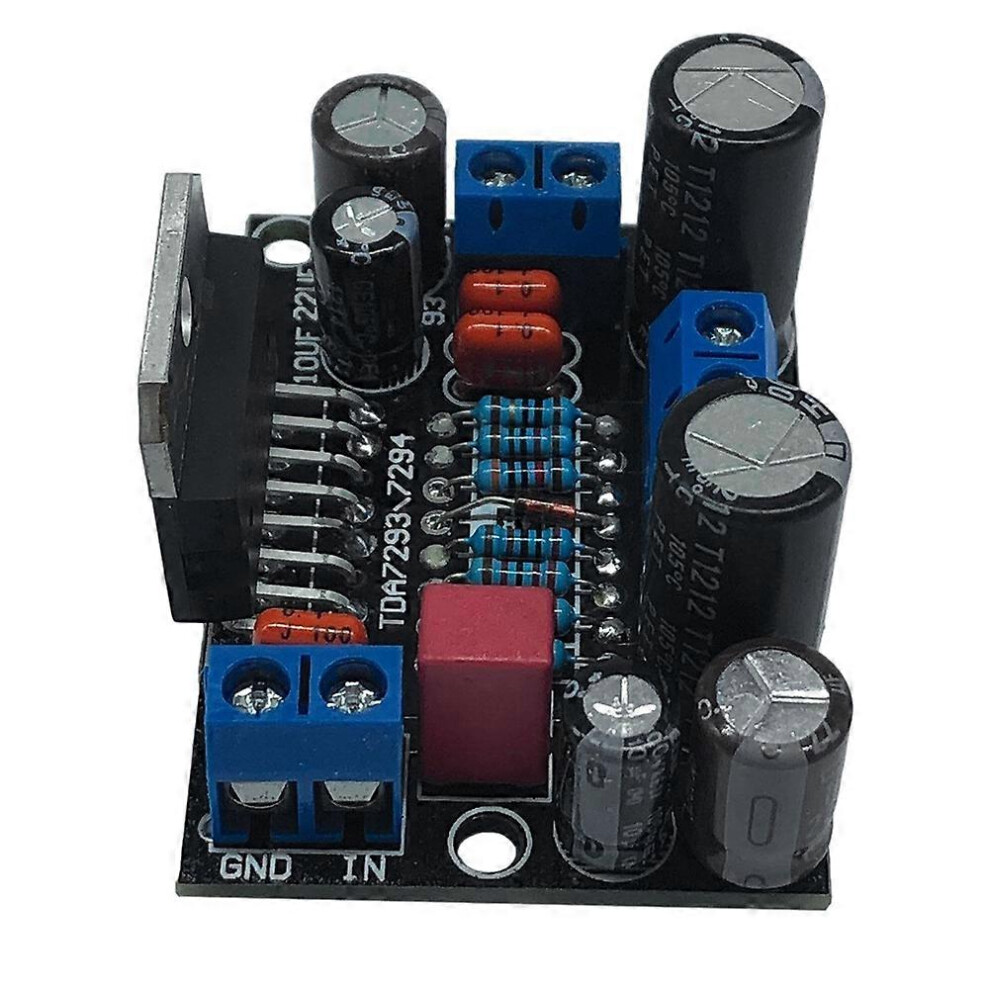

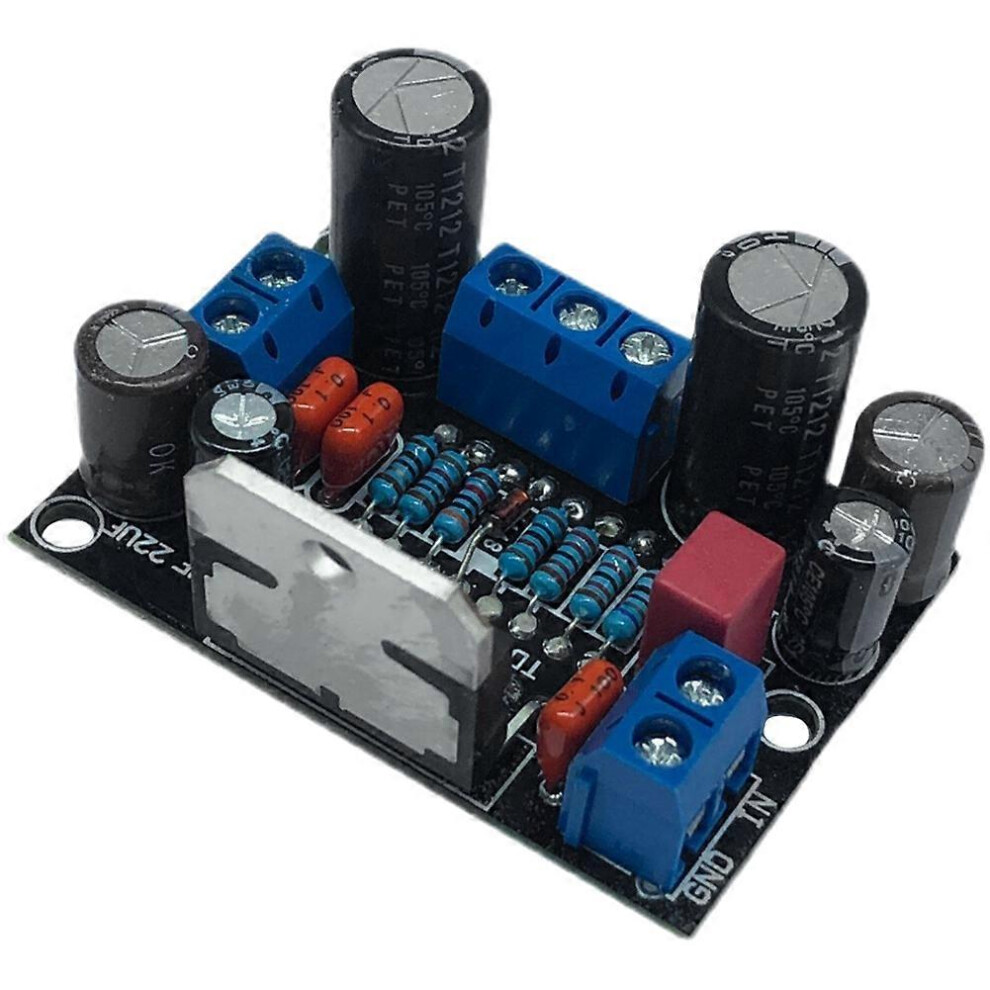

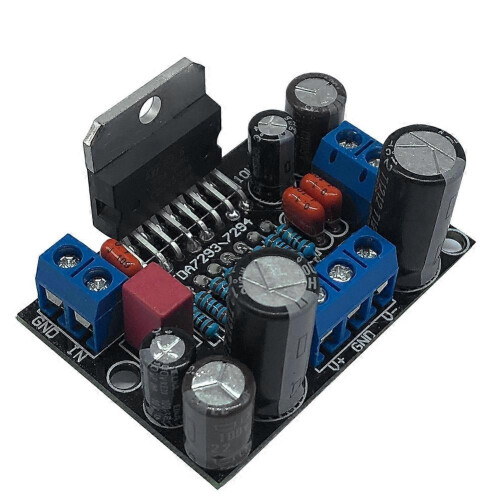

TDA7294 Mono 100W Power Amplifier Board Finished Board

TDA7294 Mono 100W Power Amplifier Board Finished Board Description

1. The noise of the switch is small and will not have too much impact on the speaker. It is recommended to add a horn protection circuit. The horn protection circuit can not only eliminate the impact noise of the power amplifier switch machine, but also avoid the output DC burning the horn when the power amplifier is .

2. The bottom noise is small. Zero floating small, do not need to do any debugging after installation, the output zero drift voltage will generally not exceed 50mv, and is relatively stable.

3. Free debugging. As long as the connection is correct, no one is wrong, basically it is a success, no need to do any debugging, beginners also have a very high success rate.

Note:

1.2SC5200 + ZSA1943 are disassemble parts,but in good condition.

2.The PCB board has change to black, but the function is same.

Operating voltage: Dual DC 10 - 45V recommended Dual DC 35V

Rated output power: 100W(4 Ohm 35V)

Maximum output power: 150W (4 Ohm 45V) enormous heat, is not recommended

PCB size: 30 x 50 x 35mm

Pitch: 5.08mm

Hole distance between two power tube: 47mm

color:As shown

Material:PCB

Package Contents:

1 x Amplifier board

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
