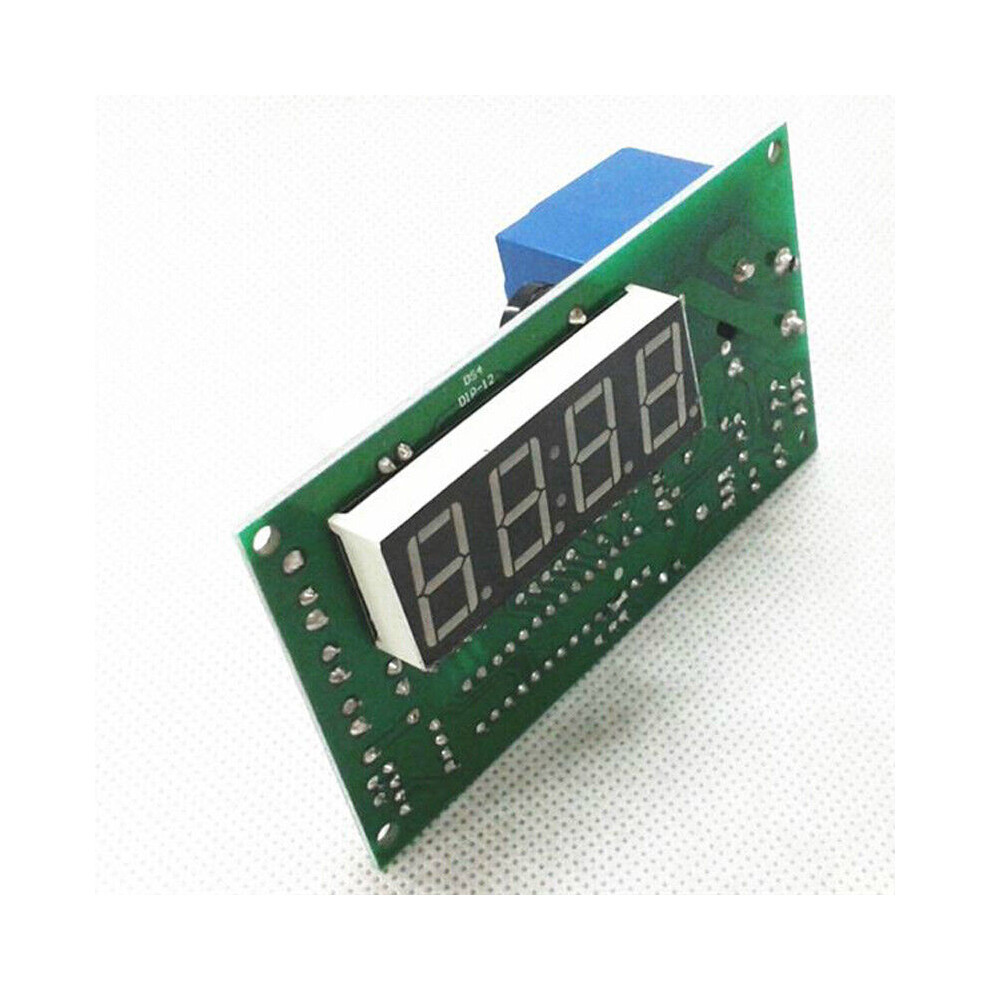

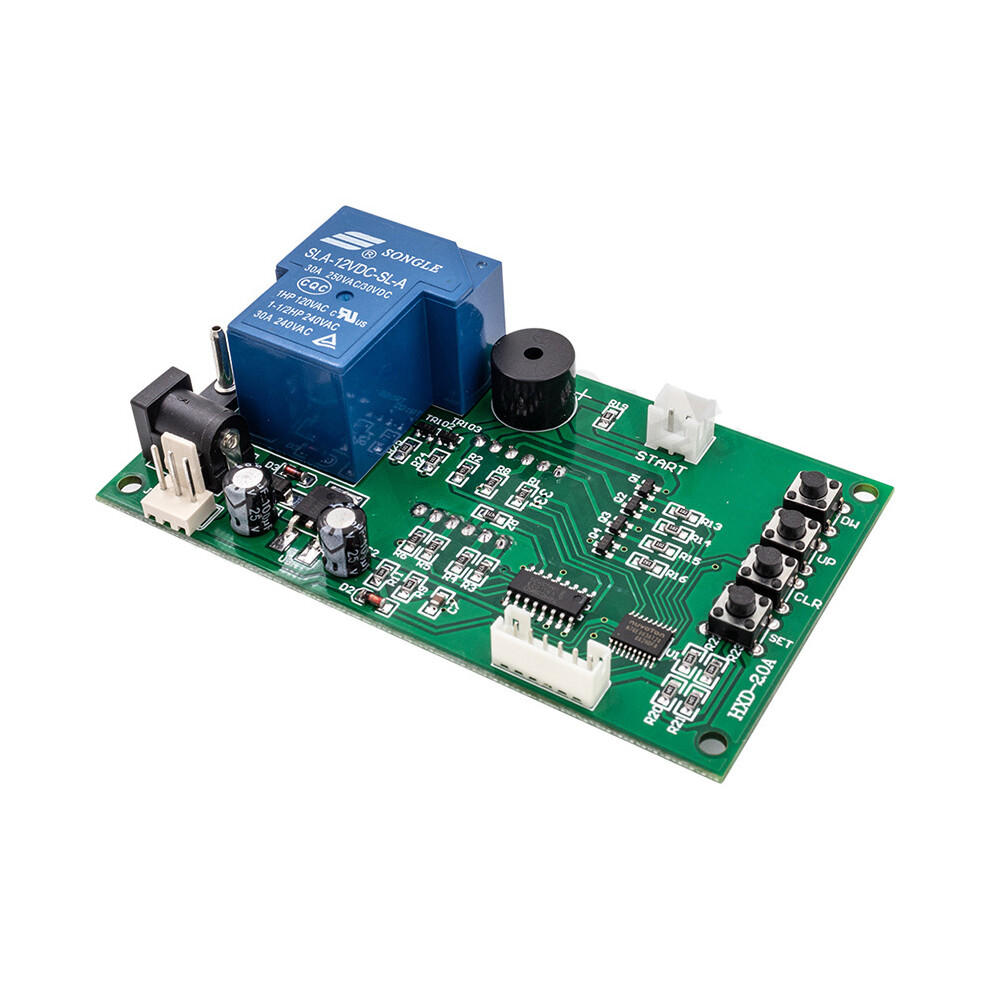

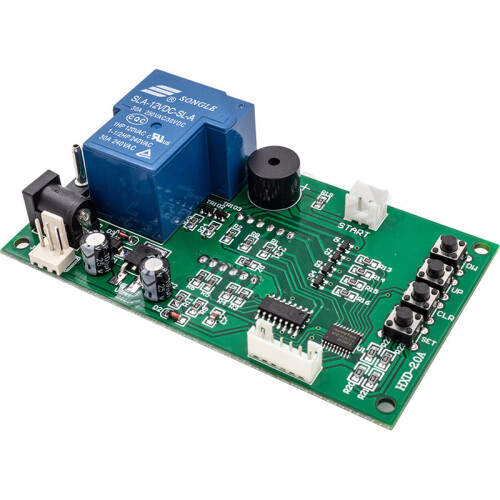

Time Relay & Timer Control Board Power Supply for Arcade & Vending Machines

Time Relay & Timer Control Board Power Supply for Arcade & Vending Machines Description

Features:
(1)Controls electrical devices ( TV, Massage chair..) power.
(2)Suitable for public place location and most of electric device control, for example:PCs,washing machines,dryers,massage chairs,chargers,etc.
(3)AC 1250W/DC 500W electrical relay capacity.
(4)Digital timer: rate adjustable by owner through three simple push button switch.
(5)The time can be set by seconds or by minutes.
maximum time : there are 2 version of software?99:00 (minutes:seconds) or ?99:00 (hours:minutes)
(6)Control time by seconds-minutes or minutes-hours.
(7)Accumulate time when signal inputs.
(8)Timer control board with coin acceptor operates with 12V DC power.and has the LED to show the Time left.

Specifications:
The timer control board for any electrical load does not exceed the following:
?DC 30V,AC 250V,Current 7A
?DC 28V,AC 250V,Current 5A
?Size:91.0mm X 54.30mm
?Unit Ship Weight:0.25kg

Notes:

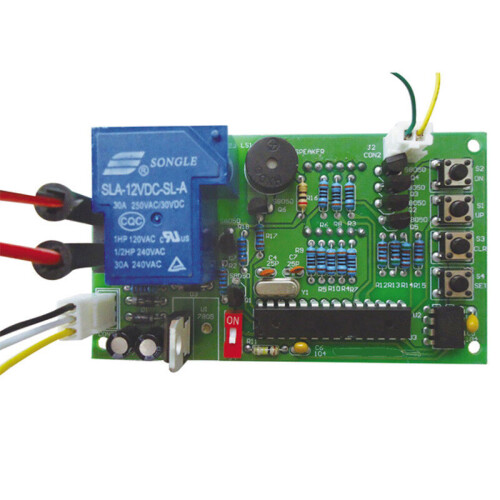

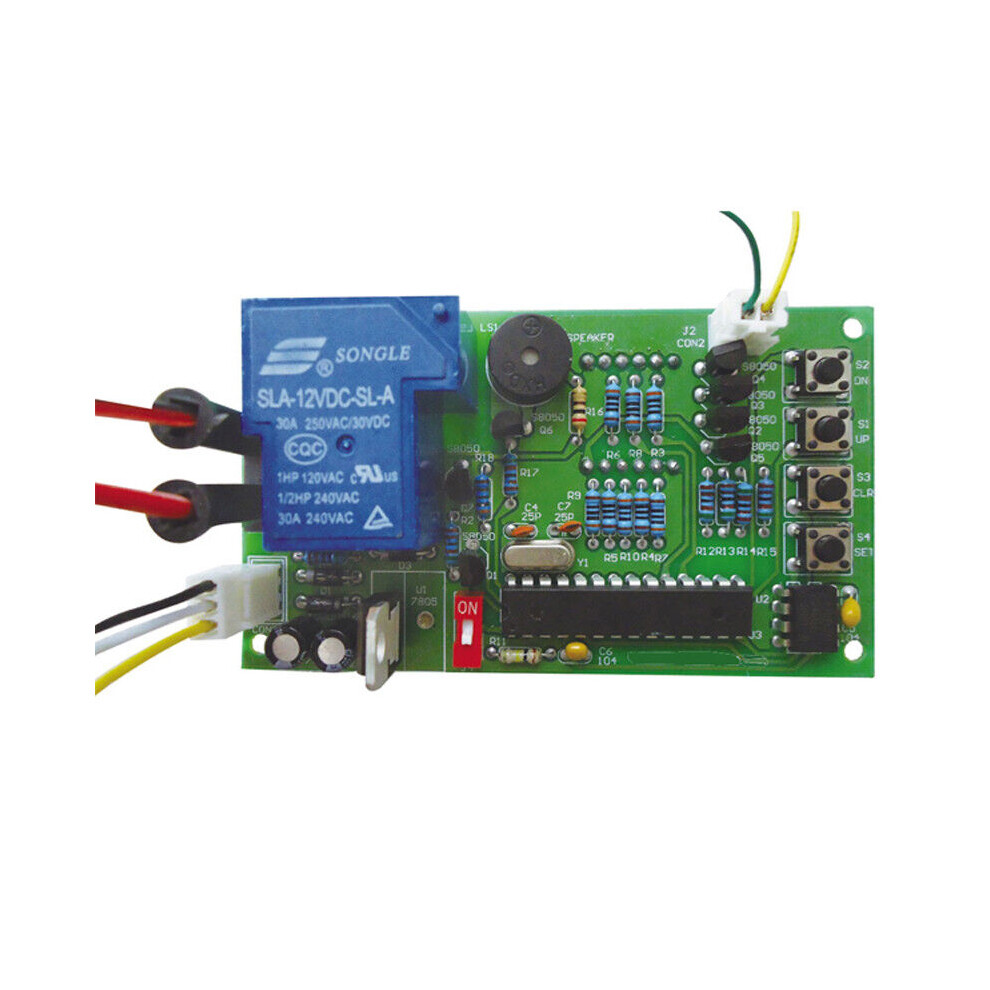

The white plug position in the picture is required for the factory adjustment program, the actual product does not contain this plug, thank you!
