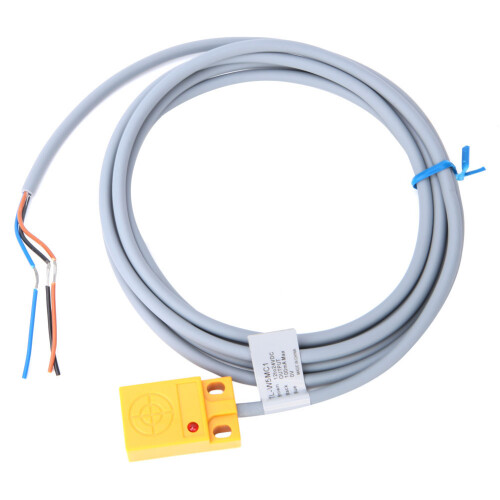

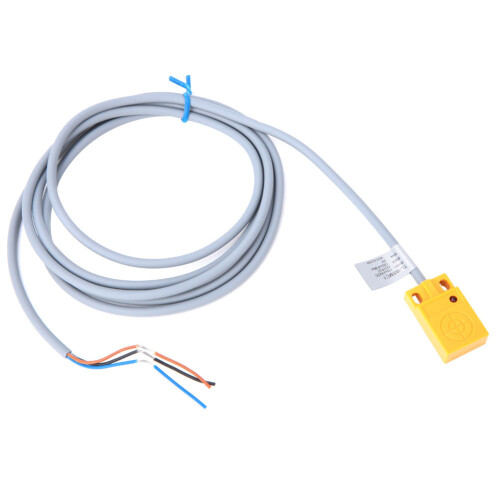

TL-W5MC1 5mm Proximity Sensor 3-Wire NPN NO 100mA

TL-W5MC1 5mm Proximity Sensor 3-Wire NPN NO 100mA Description

TL-W5MC1 NPN NO 5mm Inductive Proximity Sensor Detection Switch 3-Wire DC 12-24V

Features:



This is an inductive proximity switch sensor with 5mm detection distance.


When the object approaches the sensing area of the switch, the switch can quickly emit electrical commands without contact or pressure required, accurately reflecting the position of the moving object.


The switch stays open, and closes when it detects object in detection distance.


Quick response, high reliability, strong anti-interference capability.

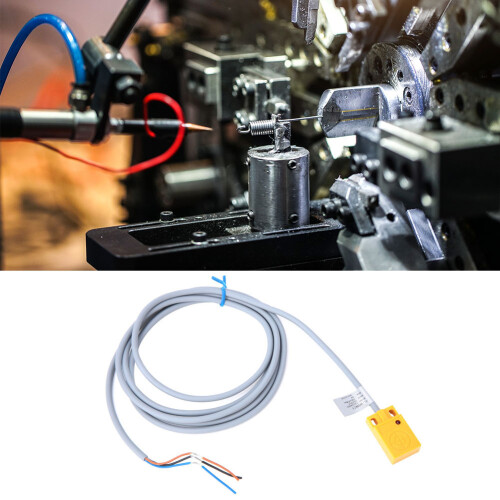

Widely used in automatic control system for detecting, positioning control, counting, automatic protection and more.




















Specification:


Model: TL-W5MC1


Detection Distance: 5mm 10%


Detection Object: Iron/Magnetic Metal (Detection distance of non-magnetic metal will reduce)



Output Mode: NPN 3-wire normally open (NPN NO)


Output Current: Max 100mA


Cable Length: 1.75m


Temperature Range: -25~60C


Insulation Resistance: >50MΩ


Shell Material: ABS





Package List:


1 x Inductive Proximity Switch
