TLV493D Triple-Axis Magnetometer Module Compatible with STEMMA QT Qwiic

TLV493D Triple-Axis Magnetometer Module Compatible with STEMMA QT Qwiic Description

The TLV493D 3-axis magnetometer is a great little sensor for detecting magnets in 3D. In fact, the manufacturer Infineon suggests it could be used to make a joystick! You could also use it for other cool things like detecting objects with magnets them, like the lid of a box, or a statue that unlocks your secret lair when placed the mantle?
The TLD493D excels at measuring nearby magnetic fields in three dimensions. It won't make a good compass, it's not sensitive enough to pick the Earth's magnetic field, but you can use it to track the movement of nearby magnets in three dimensions.

Here are some specs:

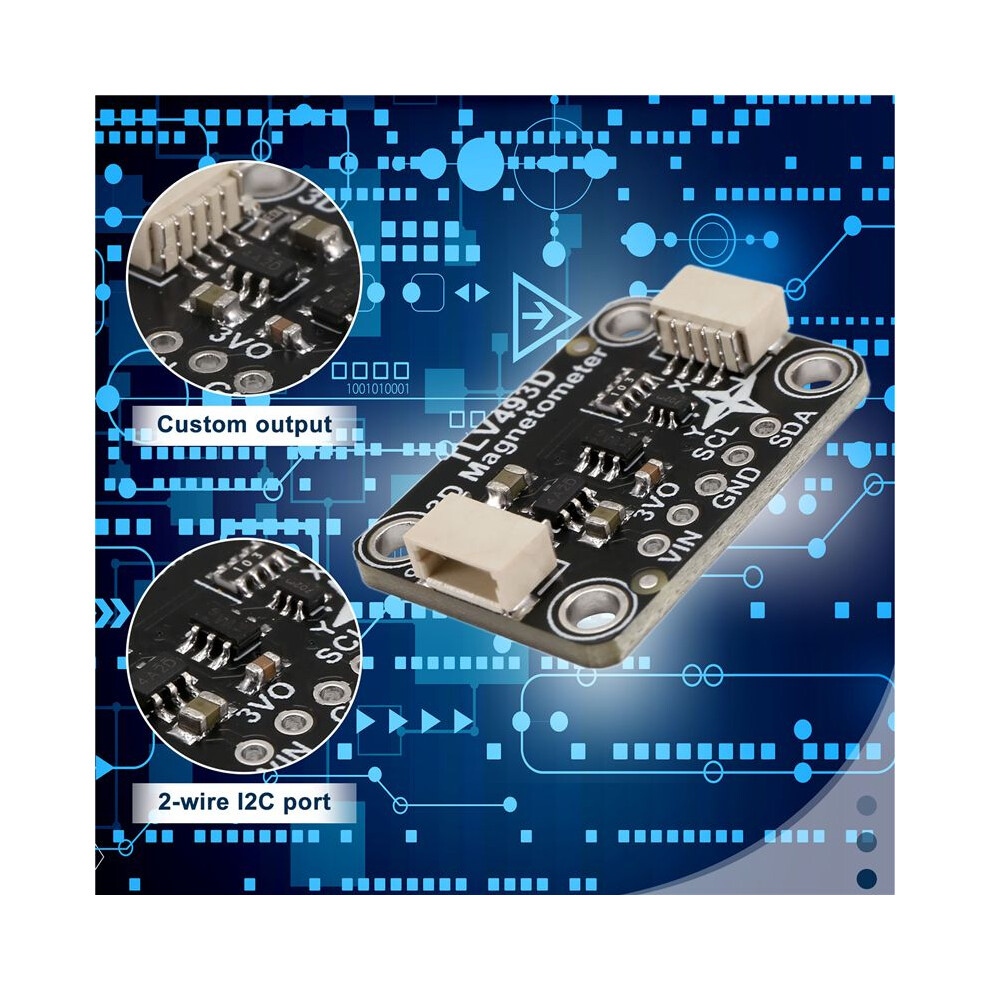

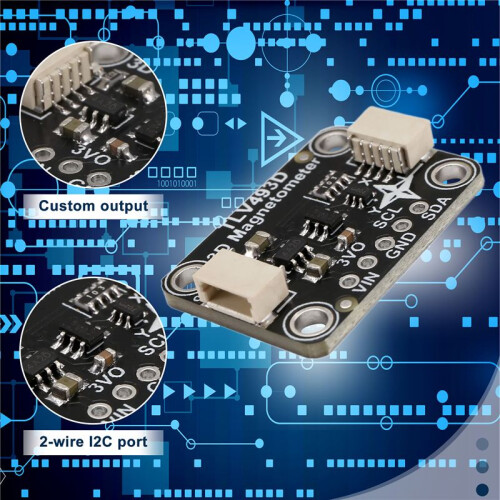

Digital output via a standard 2-wire based I2C interface at to 1 MBit/sec
12-bit data resolution for each measured direction

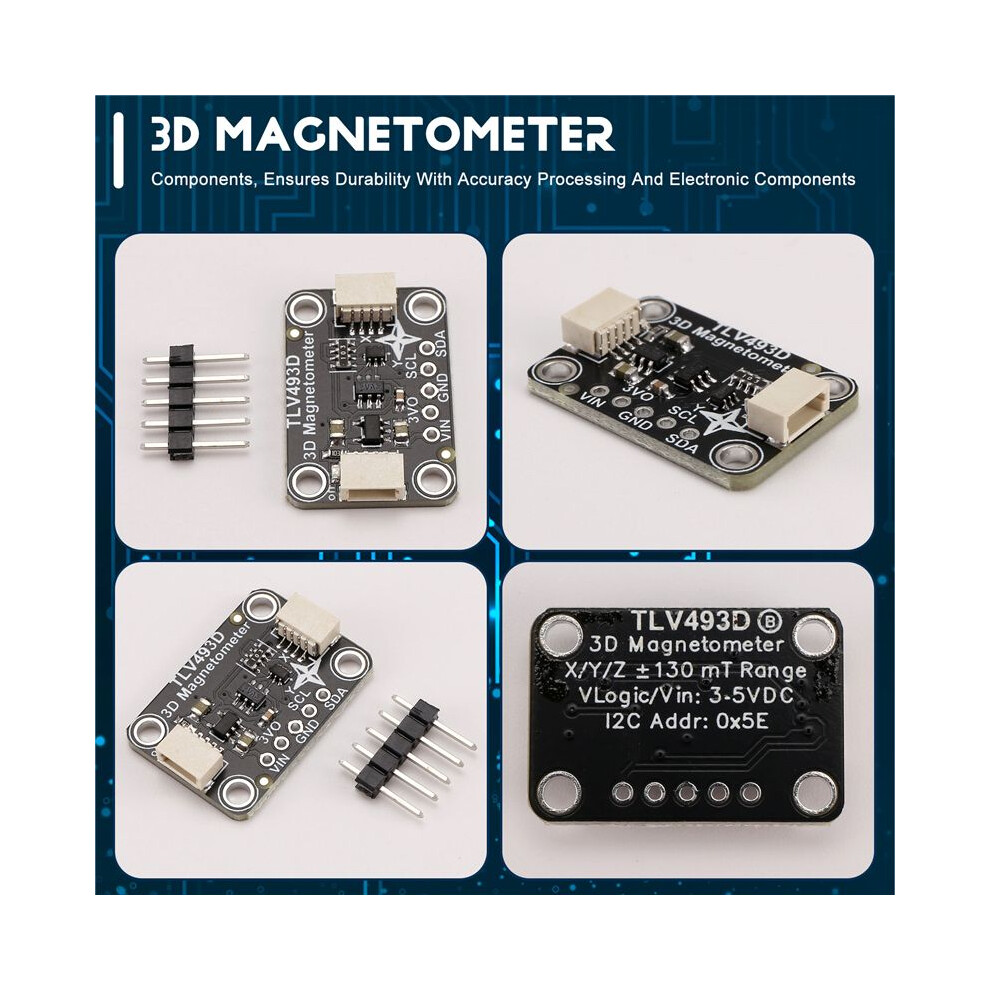

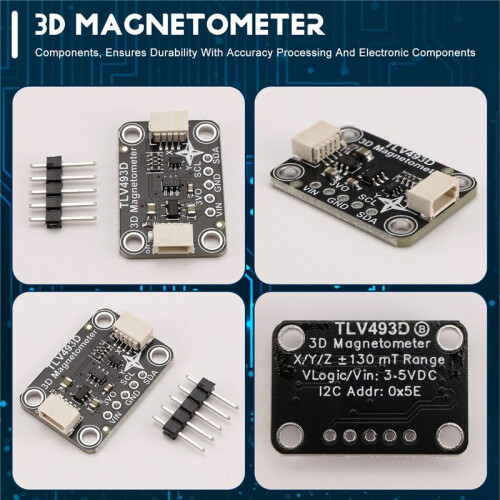

Linear field measurements to +130 mT for Bx, By, and Bz
Excellent matching of X/Y measurements for accurate angle sensing

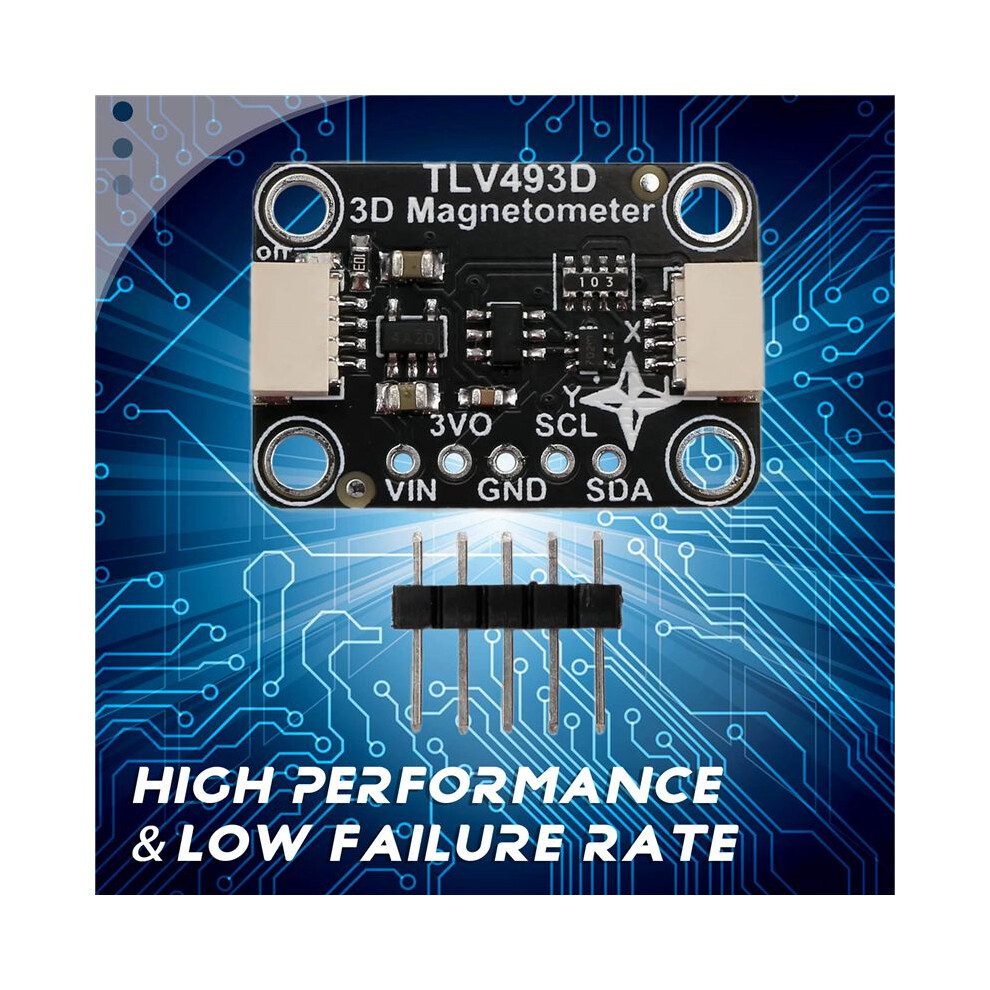

As we are wont to do, we placed the TLV a breakout PCB along with the circuitry that supports it, making the TLV easy to use. The combination of a voltage regulator and logic level translation allows it to be used with a range of microcontrollers with 3.3V or 5V logic levels. We even provide a pin for you to use excess 3.3V power that the TLV493D does not require.
Colour:Black
Material:ABS

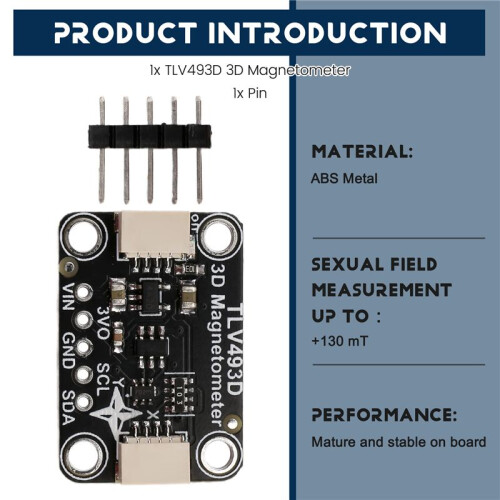

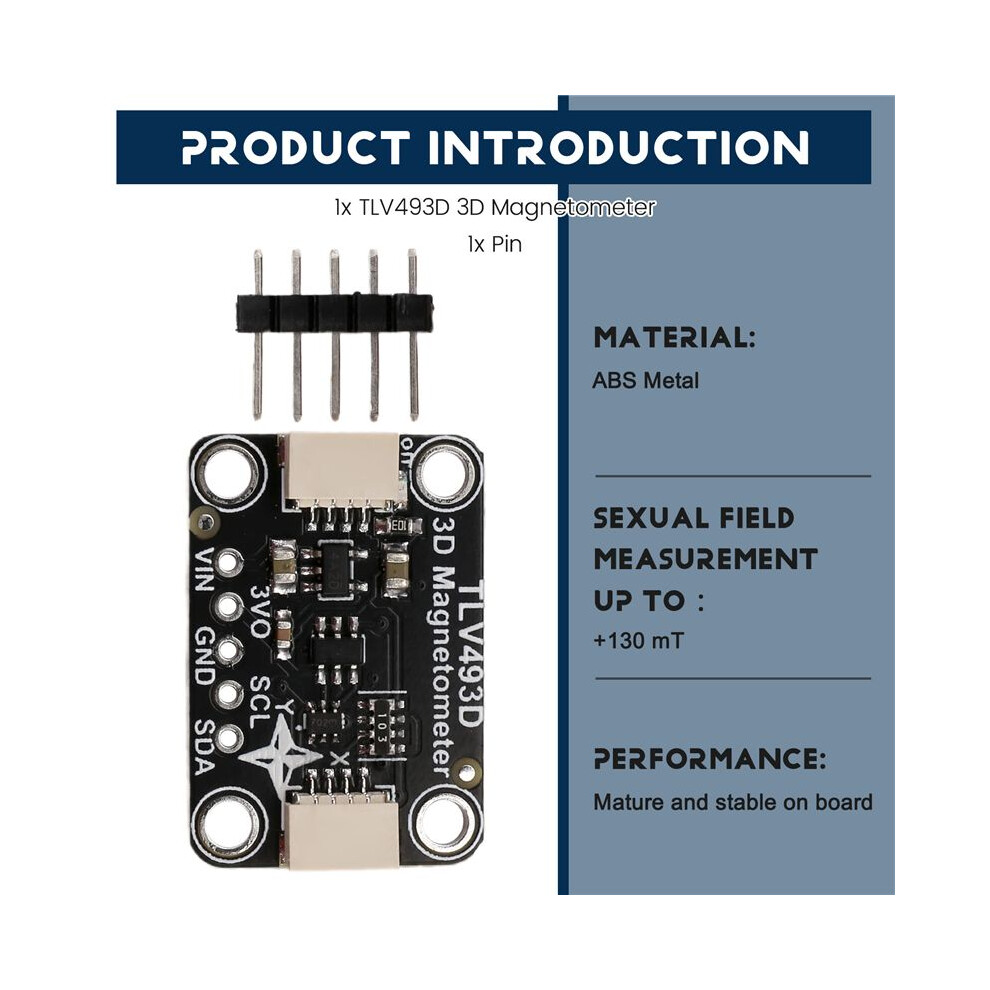

Package Contents:
1x TLV493D 3D Magnetometer
1x Pin
