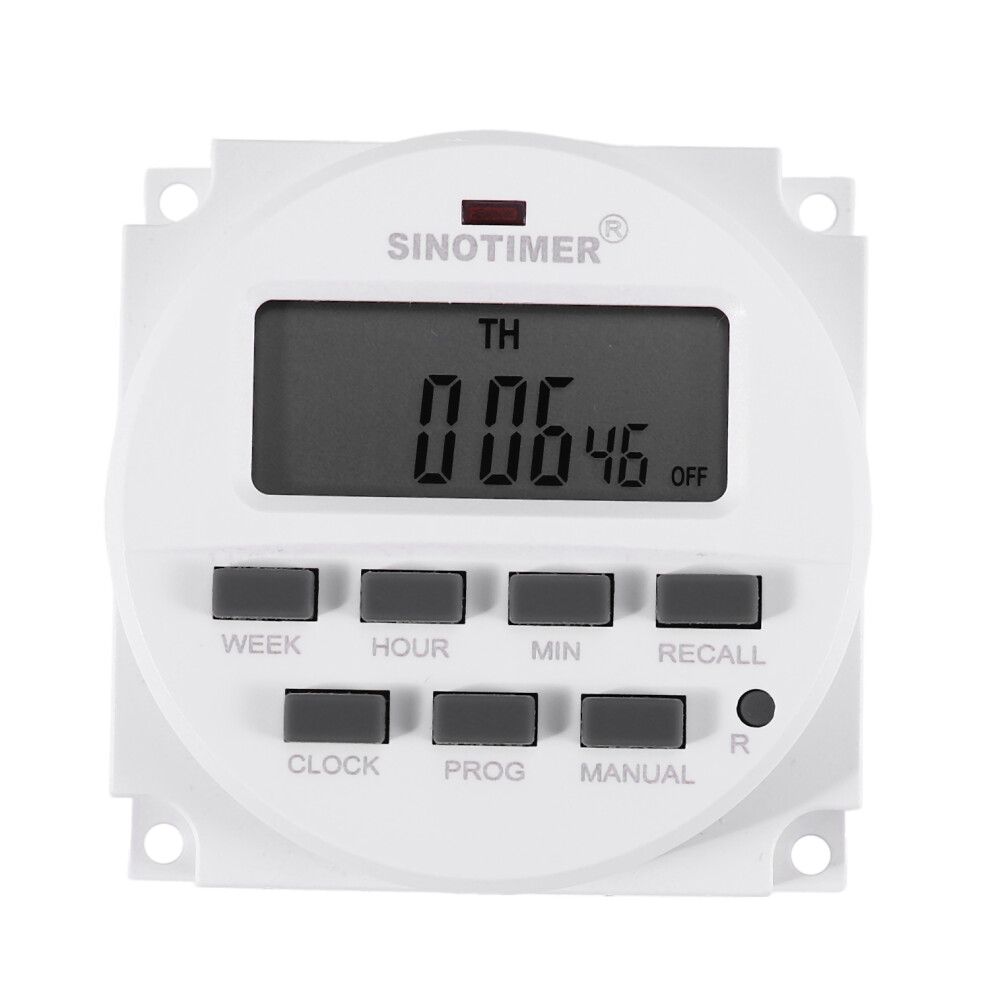

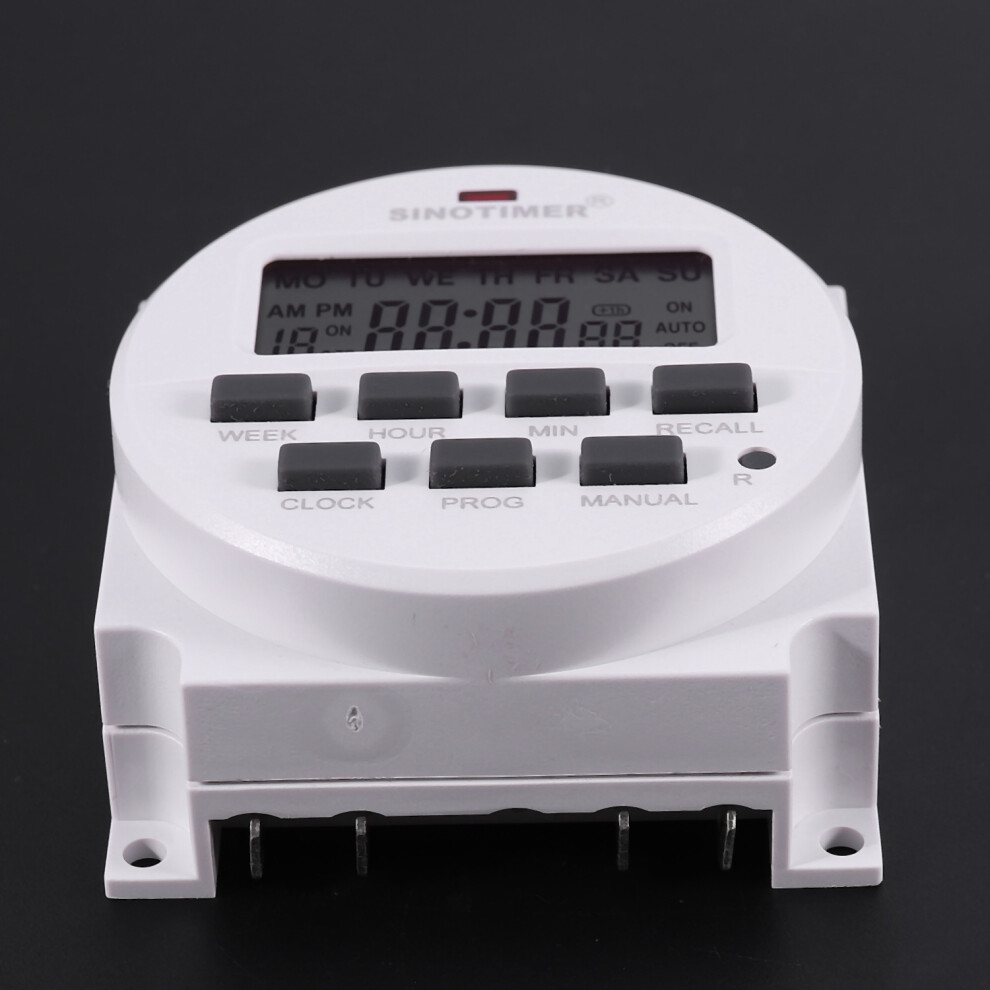

Tm618H-2 220V Ac Digital Time Switch Output Voltage 7 Day Weekly Programmable Timer For Lights Application

Tm618H-2 220V Ac Digital Time Switch Output Voltage 7 Day Weekly Programmable Timer For Lights Application Description

Usage:The TM618 timer MODULE can open or close kinds of electrical apparatus and power automatically, according to the preset time, the items can be streetlight, neon light (sign), , electrical appliances, broadcast equipments etc., the digital timer switch is within rechargeable battery, in 1.2V/40Ma, high-accuracy CMOS chip, strongly anti-jamming, easy to use.
LCD display,easy to read.
Excellent load capacity, voltage output. 220VAC INPUT, AND 220V OUTPUT.
Easy program, everyone can program it after he reads the manual JUST one time.
Stable performance because of professional manufacturing in power saver since 2002.
Name:
Type:Mini
:Electronic
Model Number:TM618H-2
Max. Current of Output Load:16A
Mini interval:1 minute
Max interval:
Countdown OFF time range:1 min ~ 24 hours
CLOCK DISPLAY
TIMER (12/24hr FORMAT)
AUTO TIME DEFLECTION CORRECTION, WEEKLY
SLEEP MODE
You can use the timer to SWITCH ON/OFF any electrical equipments at a preset timer
16 ON/OFF programs per day, 15 combinations to a week.
24 hours / a week programmable.
Built-in battery for backup the memory (save the programs you set)when power failure
Auto time error correction +/- 30 sec, weekly
Repeat programs with 16 on/off settings, and setting on/off manually,
Easy to read LCD display, LED indicators
Temp.range: -20C+50C
Power Supply:220V AC
Power consumption 4.5 VA (MAX)
Display: LCD
Switching contact: 1 changeover switch
Hysteresis 2 sec/day (25C)
Capacity: 16(8)A 250V AC
Black-out: 60 days
Timer range: 1min~168hr
Average error: 1s/24h, 25C
Weight: 0.08kg
colour:white
Material:ABS
size:6*3*3cm
Package Contents:
1 * timing switch

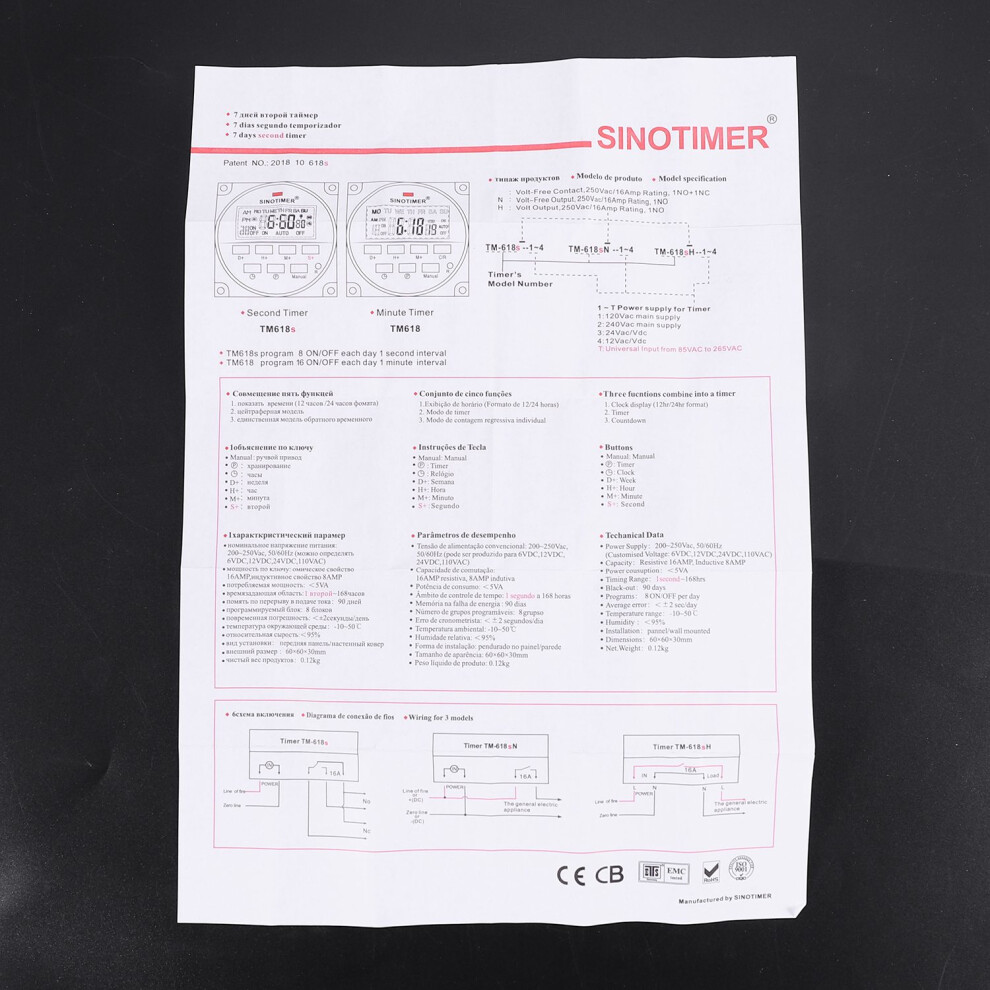

1 * manual
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
