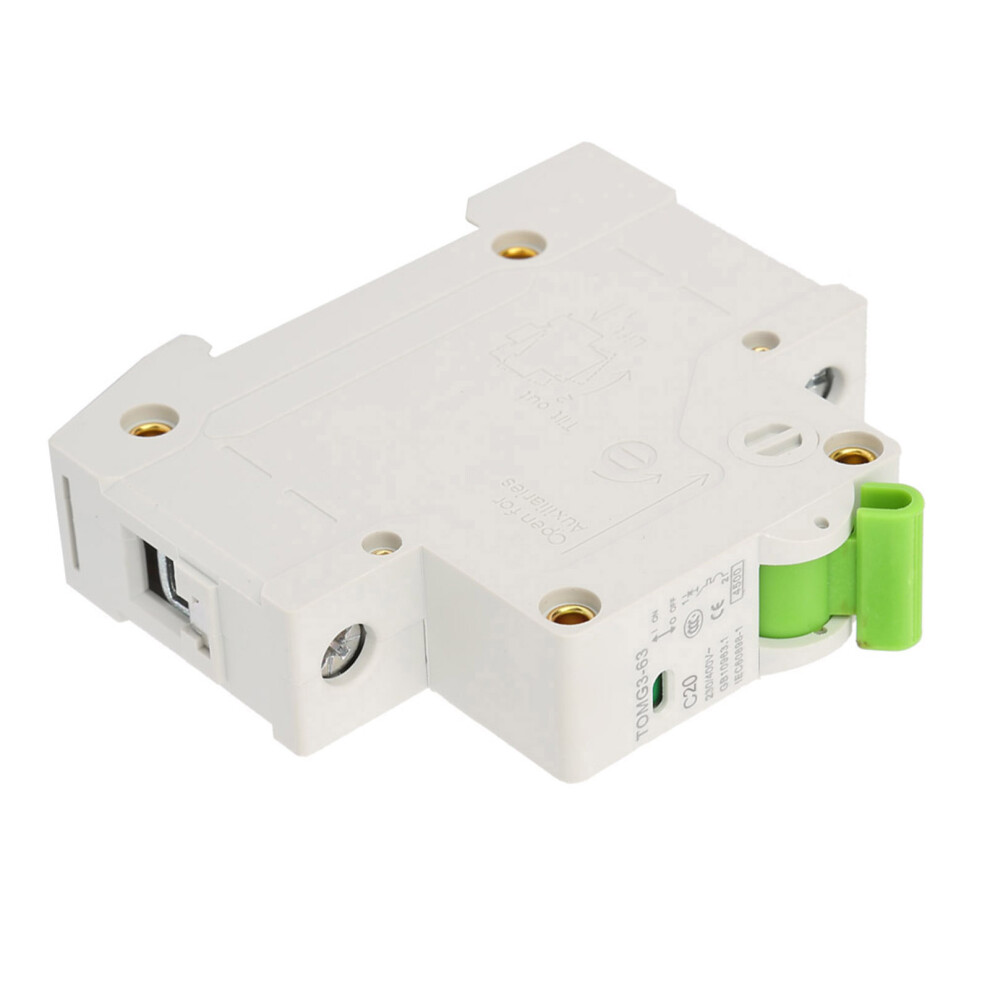

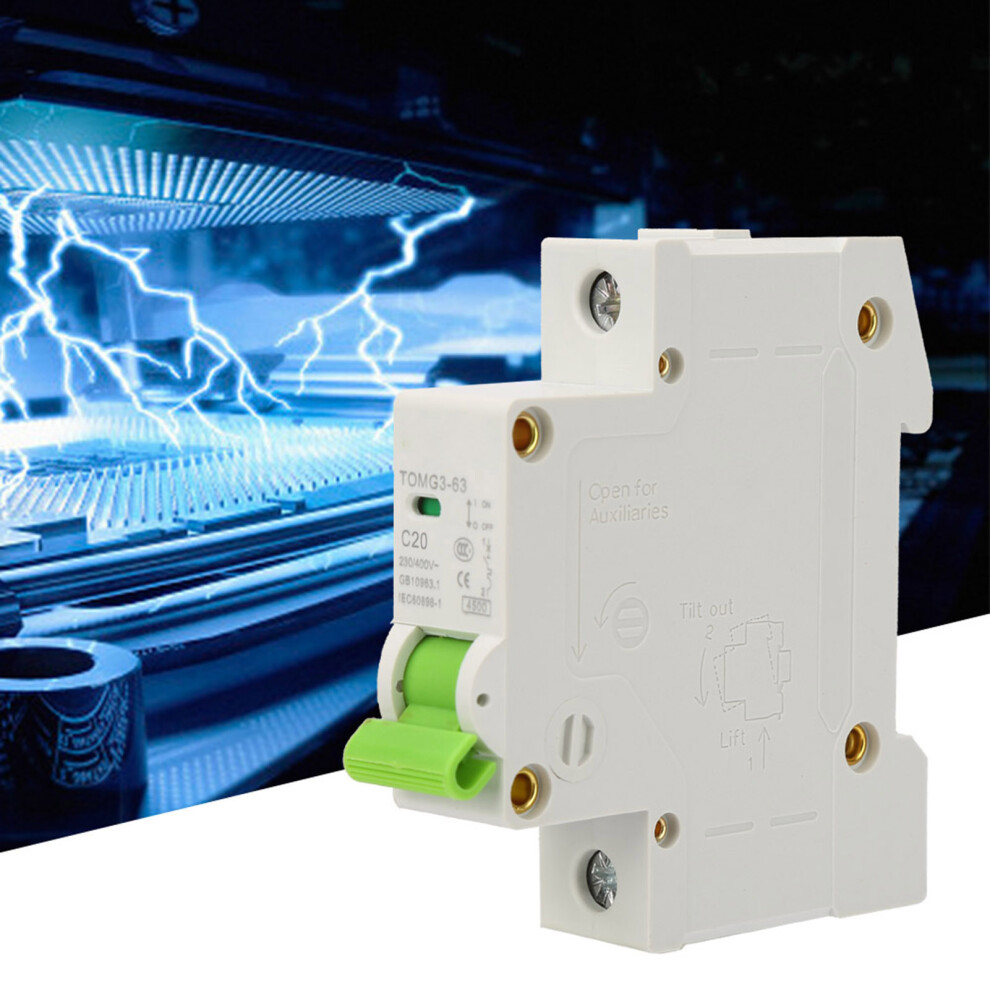

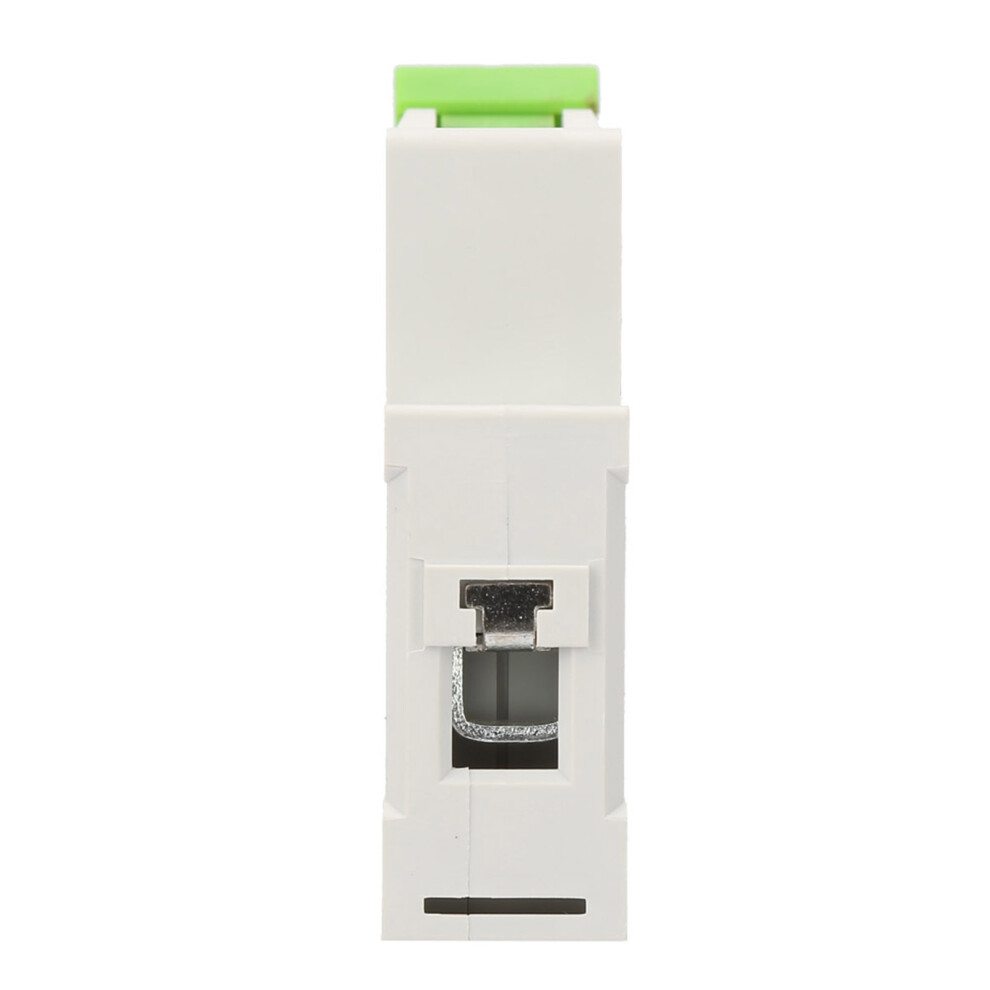

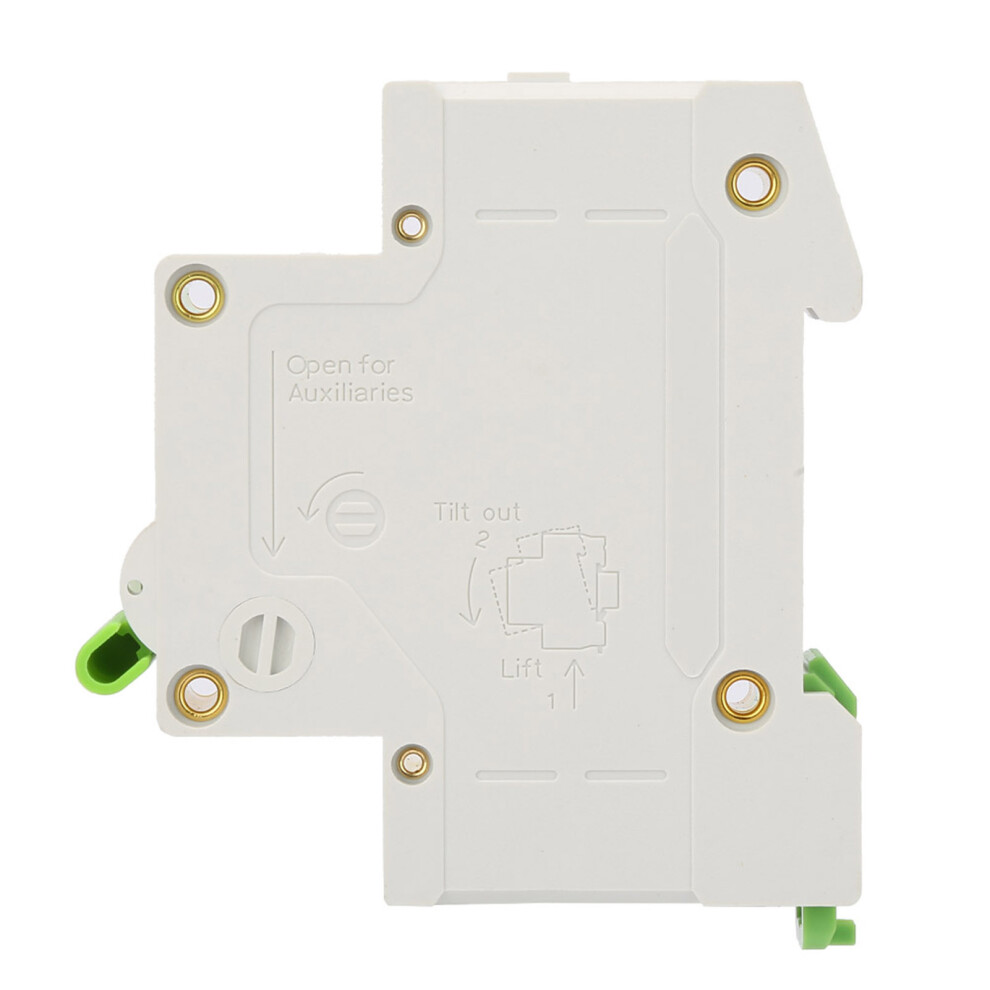

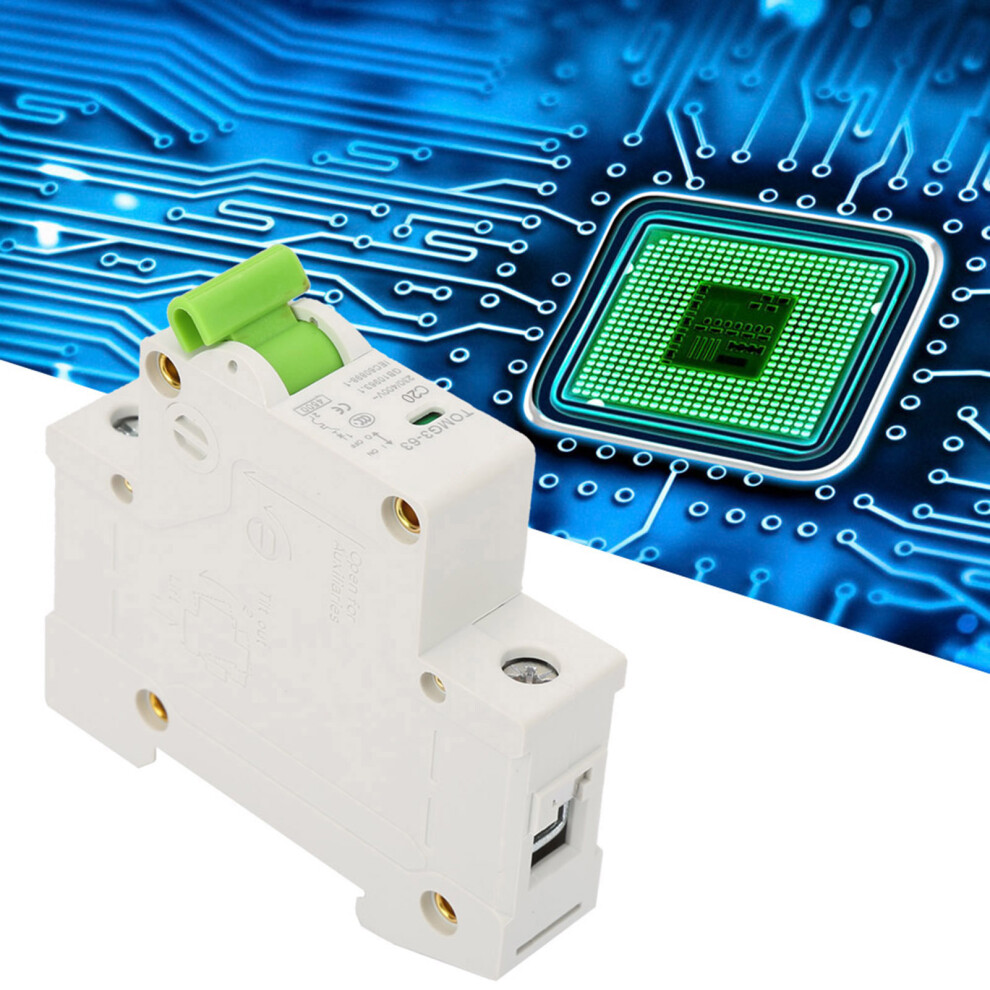

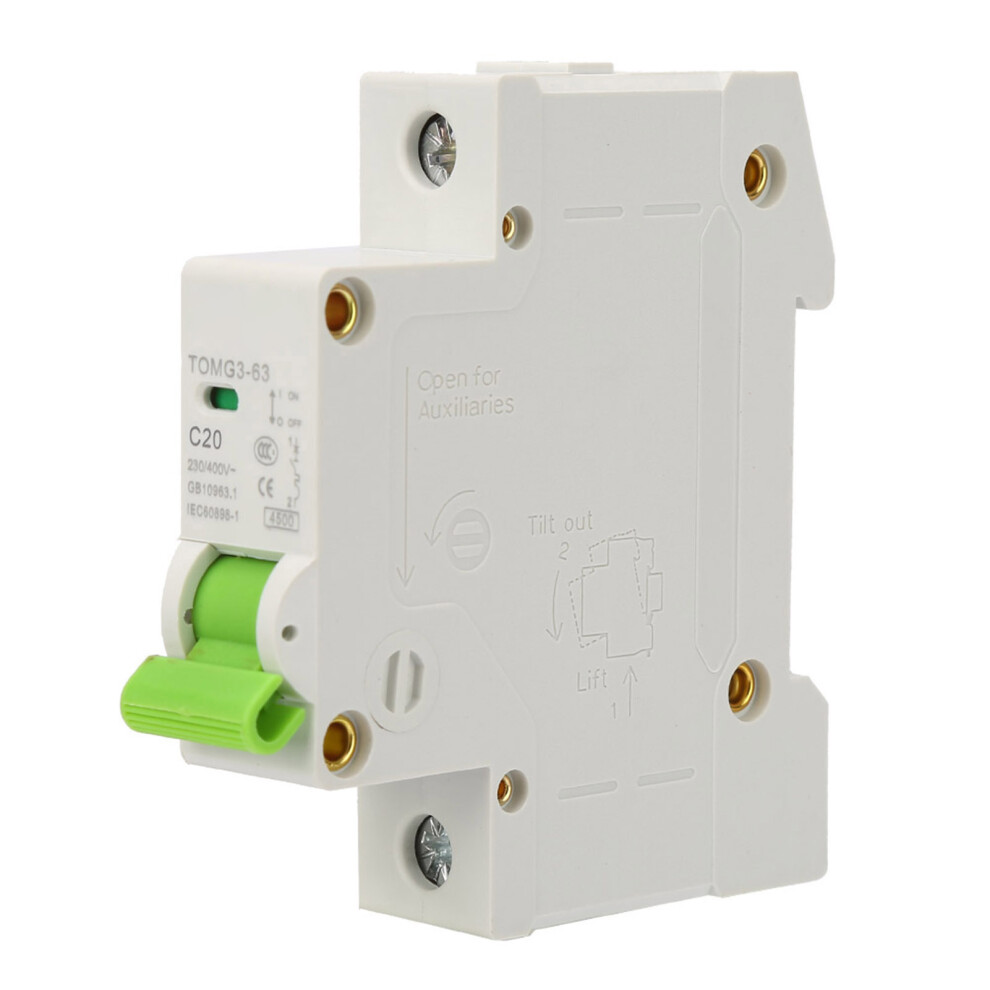

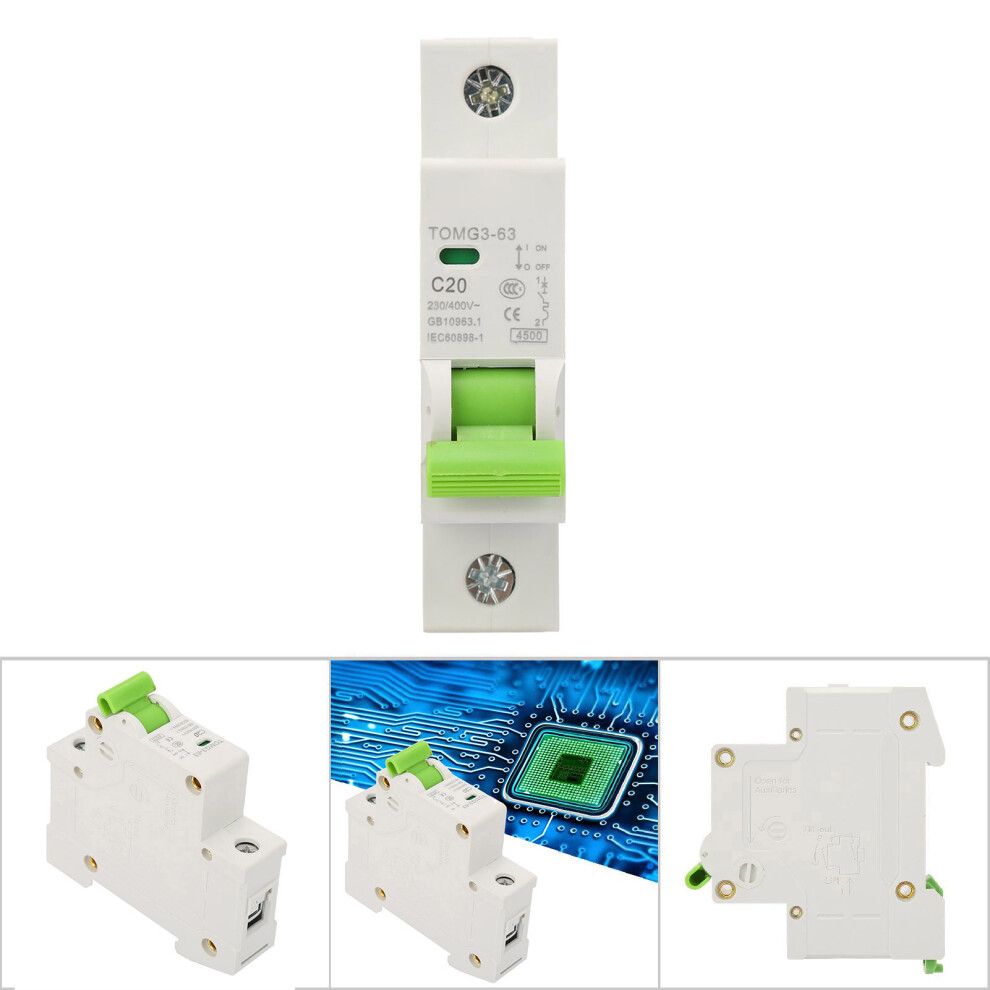

TOMG3-63 1 Pole 20A C Type Miniature Circuit Breaker with Leakage Function

TOMG3-63 1 Pole 20A C Type Miniature Circuit Breaker with Leakage Function Description

TOMG3-63 1P C type Miniature Circuit Breaker Leakage Protection Air Switch (20A)
Features:

High precision copper, low heat, gentle but not hot, more safe for long time power.


Smooth surface, flame-resistant and high temperature resistance, long service life.


Solid structure with tail type port and track clip buckle, easy to install.


With overload protection and short circuit protection,  stable working performance.


Miniature circuit breakers are mainly used in industrial, commercial, high-rise and residential and other places.

Specification:
Condition:
Weight: 88g/3.1oz
Model: TOMG3-63 1P
Product features: C-type
Product poles: 1P
Rated current: 6A / 10A / 16A / 20A / 25A (Optional)
Rated voltage: 230V/400V AC
Wiring mode: clamp board wiring, only connected to live wire
Arc extinguishing mode: magnetic blowing
Installation: guide rail installation
Function: overload/short circuit protection
Product certification: 3C
Routine fault and treatment:
A: can't switch-on
1. Whether there is a short circuit at the load end -- troubleshooting
2. If the operating mechanism fails -- replace the product
3. The rated current of the circuit breaker does not match the load current -- replace the product specification
B: too high temperature
1. Wire screws are not tightened or become loose -- tighten the wire screws
2. The selected wire cross-sectional area is small -- replace the wire specifications
C: no break during short circuit
The selected circuit breaker does not match the working conditions of the load -- replace the product specification
D: no electricity
1. If the wire stripping head is too short -- strip the wire again
2. Wire screws are not tightened or become loose -- tighten the wire screws
Package List:
1 x Circuit Breaker
