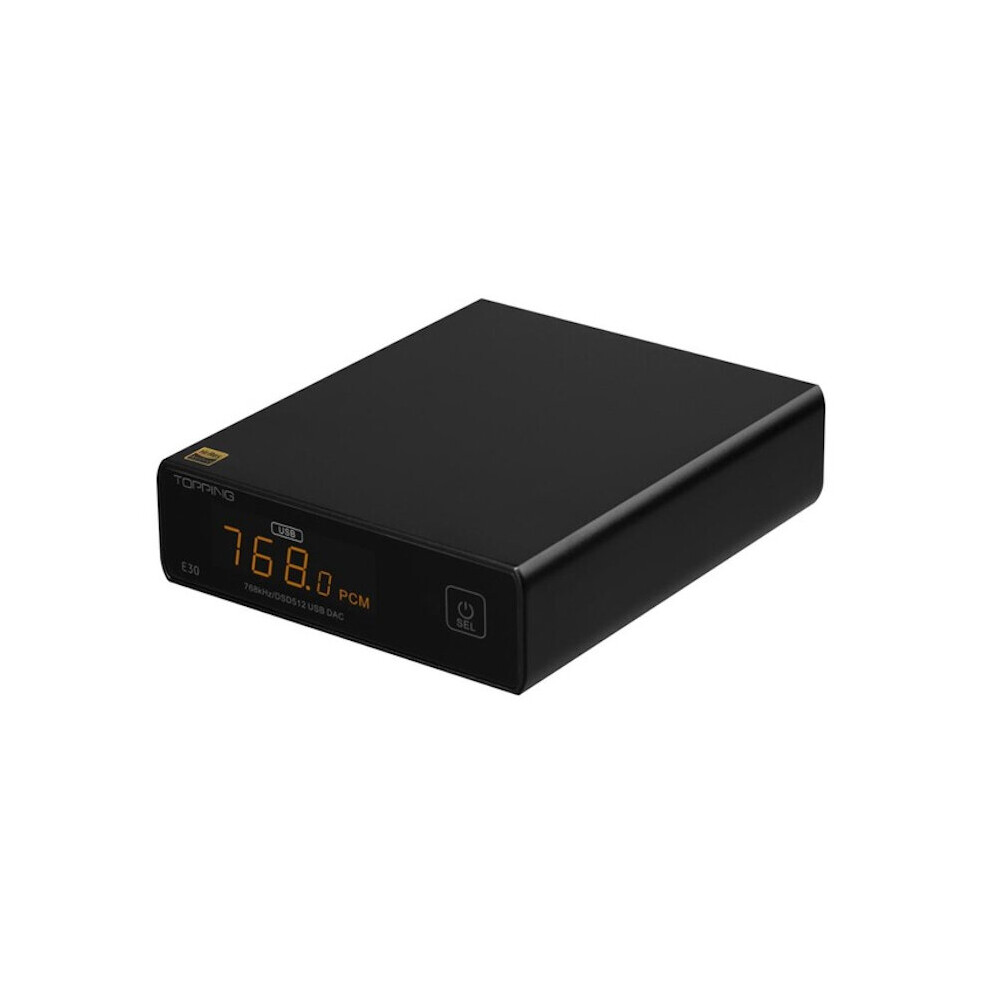

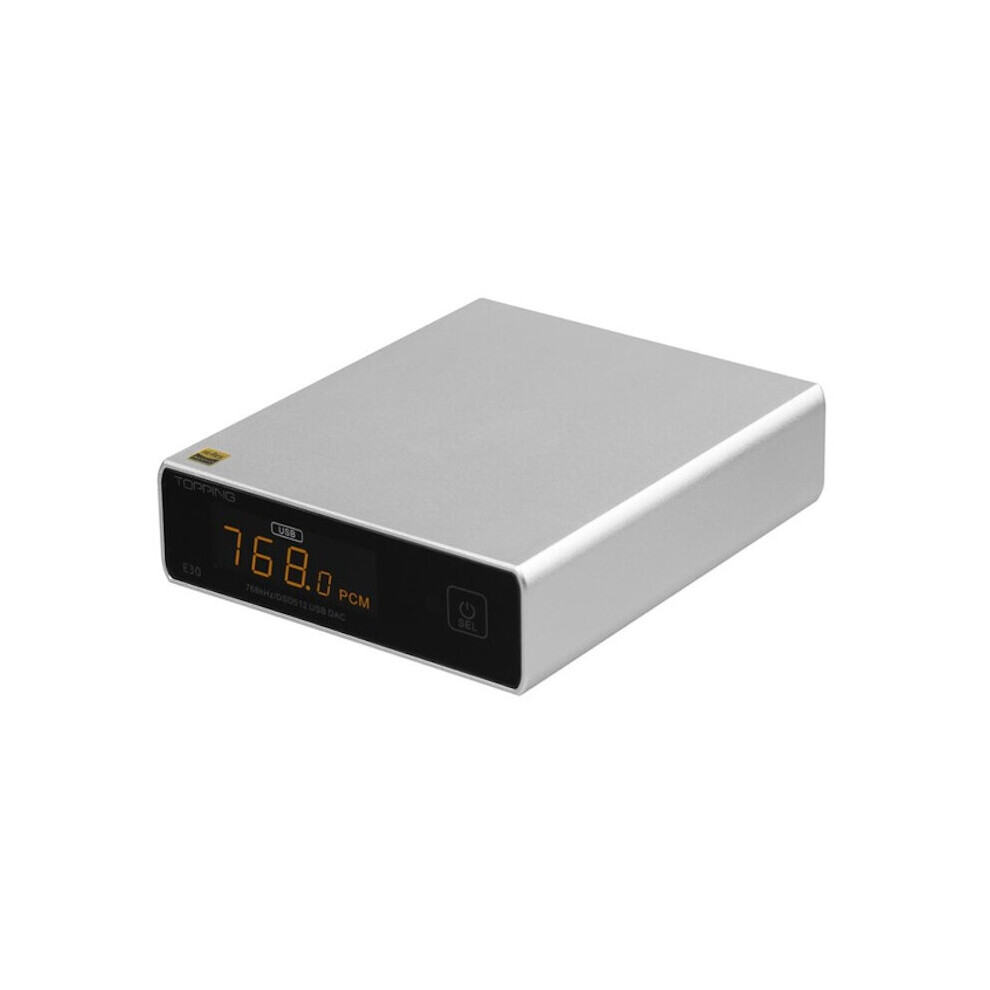

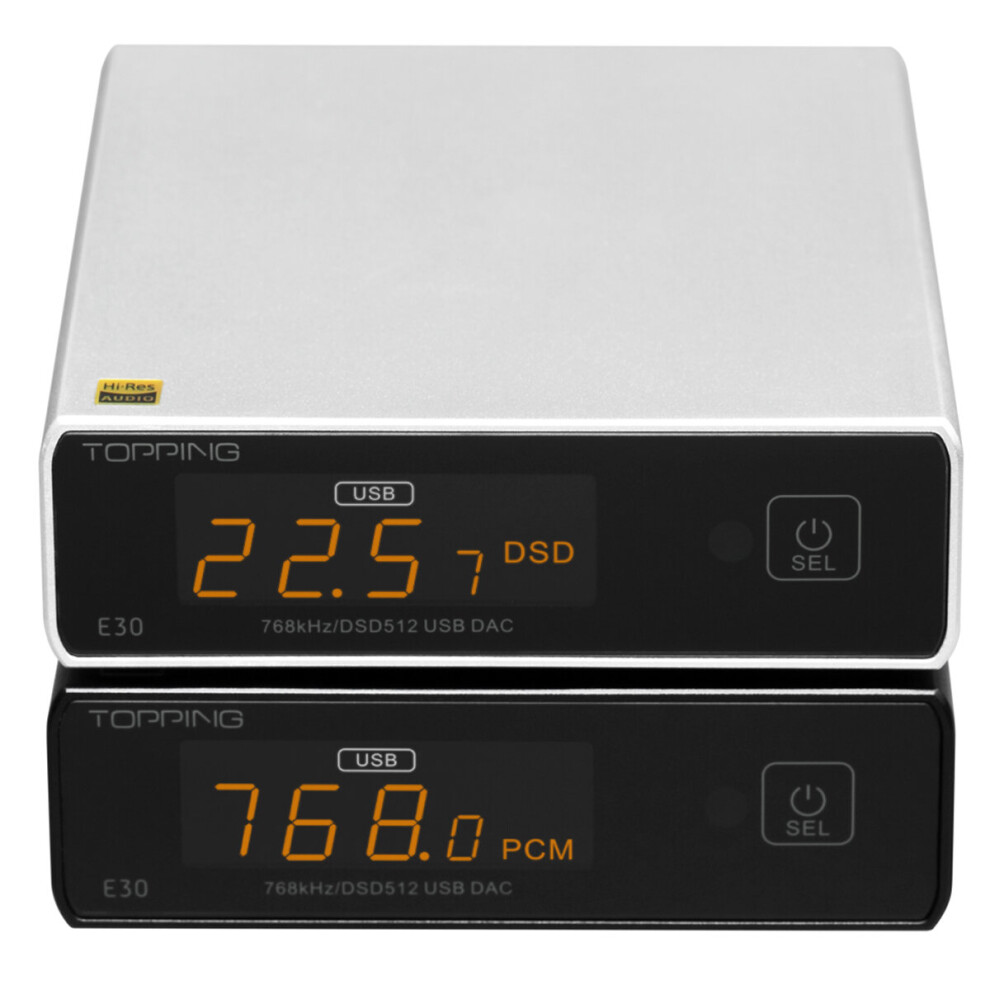

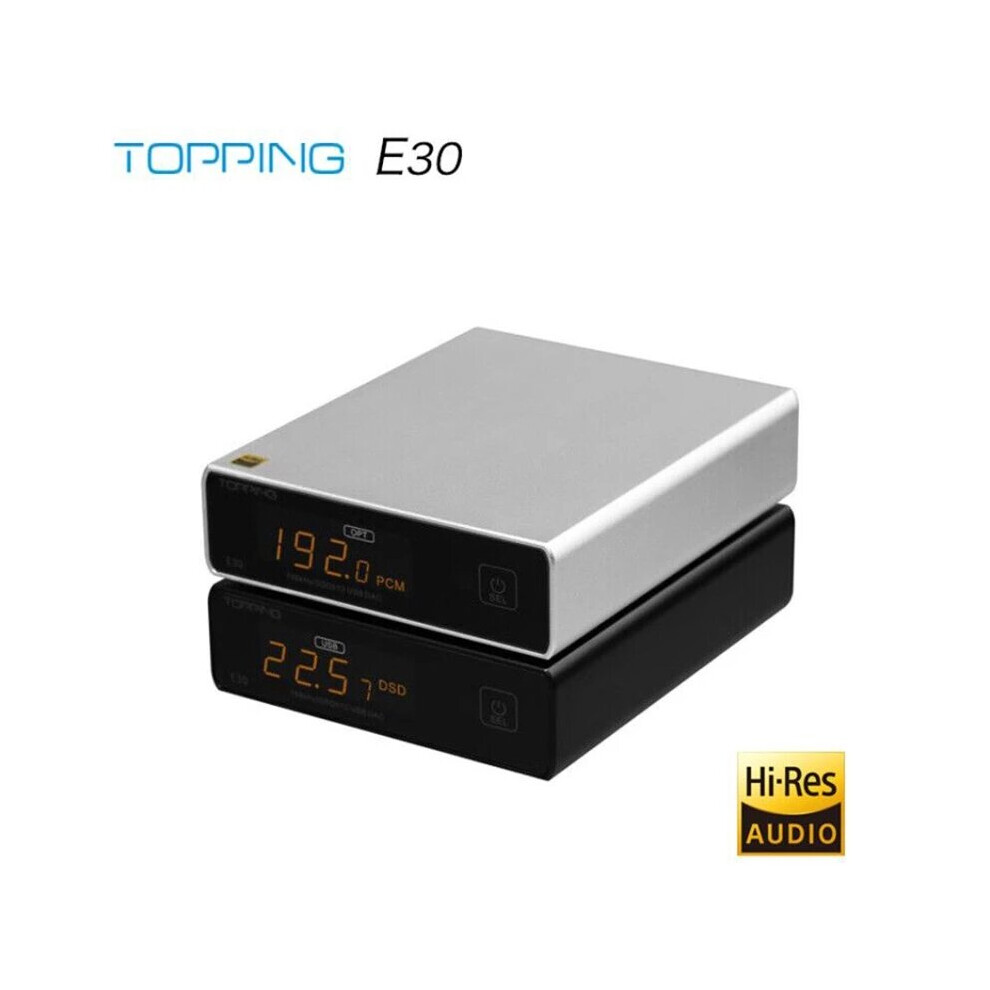

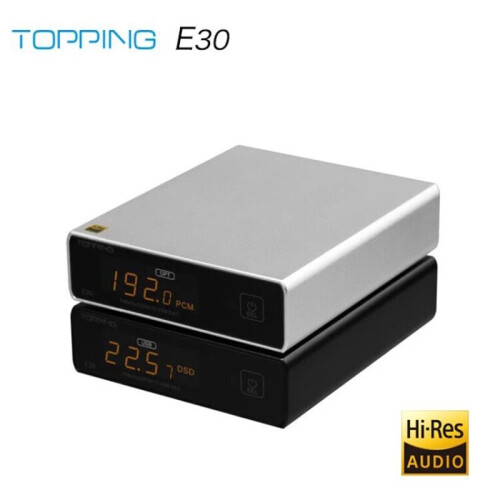

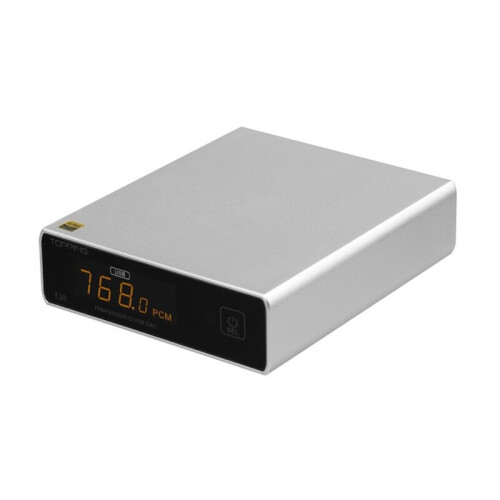

TOPPING E30 DAC Audio Decoder AK4493 XU208 32BIT 768K DSD512 with Remote Control

TOPPING E30 DAC Audio Decoder AK4493 XU208 32BIT 768K DSD512 with Remote Control Description

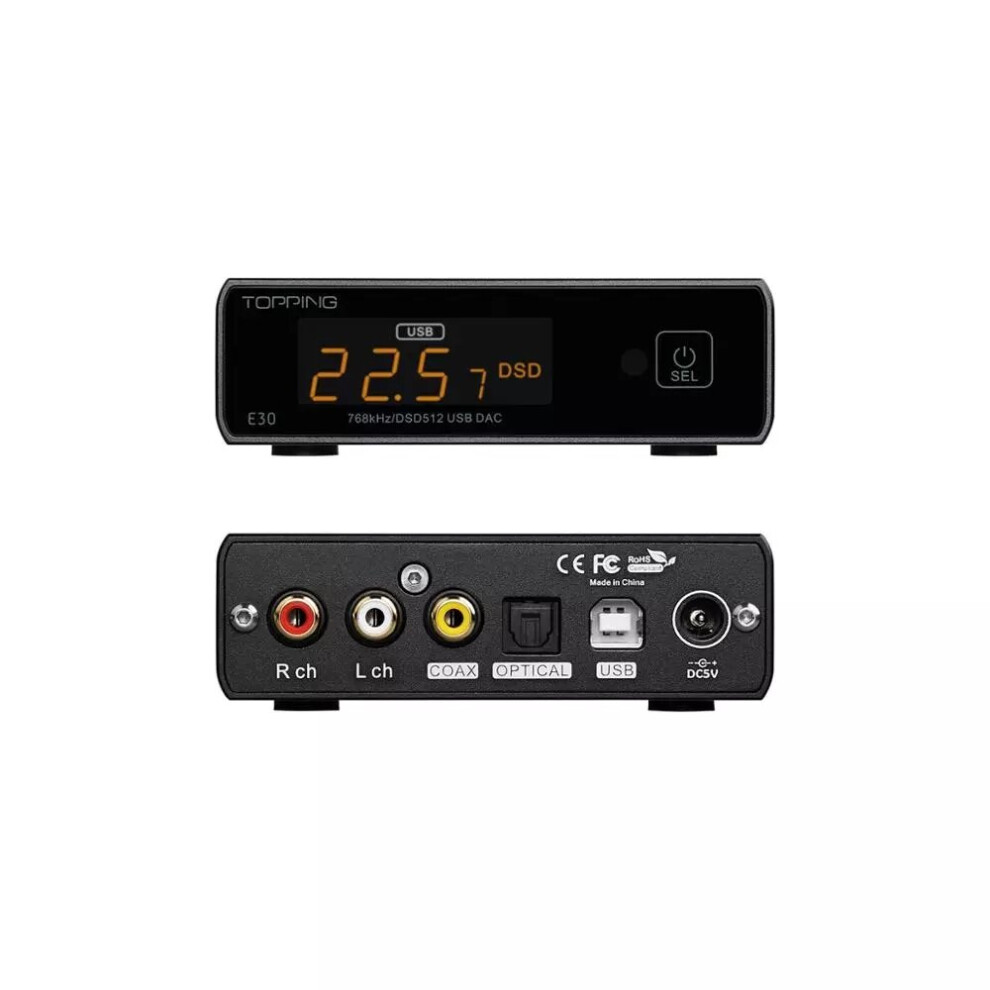

Specifications: PCM USB :44.1kHz-768kHz 16bit-32bit OPT/COAX : 44.1kHz-192kHz 16bit- 24bit DSD (Native) USB :DSD64-DSD512 OPT/COAX :Not supported DSD (DoP) USB : DSD64-DSD256 OPT/COAX :Not supported Output Voltageüš2Vrms@0dBFS THD+Nüš<0.0003% @1kHz A-weighting Noiseüš<2uVrms @A-weighting Crosstalküš-130dB @1 kHz SNRüš>121dB @ 1kHz Dynamic Rangeüš119dB @1kHz Channel Balanceüš<0.3 dB Features: AK4493 DAC chip AK4493 is a new generation of premium model AK4490 from AKM -11 3dB :Distortion 1 26dB* :Dynamic range DSD: Support DSD512 PCM: Support 768k Note: This data is based on the MONO mode of the chip, not equal to the specs of E30 Support DSD512 and PCM32bit/768kHz E30 uses 2nd generation XMOS XU208, USB supports up to PCM32bit768kHz and DSD512, which is far more than CD and SACD. We also customize the driver (for Win7 and above) from Thesycon to get better performance with your computer AK41 18 receiver AK4118 is currently the S/PDIF receiver with the lowest jitter, compatible with an optical and coaxial connection that supports up to 24bit/ 192kHz Commonly used inputs E30 supports USB, optical and coaxial inputs which cover a variety of commonly used occasions, such as computer, mobile phone OTG, digital turntable and media player, TV and set-top box 5V power supply, anytime and anywhere Using a 5V power supply, E30 can easily access the working power supply anytime and anywhere nowadays. You can power the E30 by the USB port of a computer, mobile phone charger, or portable charger. When using a portable charger, E30 turns into a portable DAC and brings the Hi-Res music around DAC filter mode E30 is capable of providing 6 filter modes under PCM decoding,2 filter modes under DSD decoding, which slightly adjust the details. (Note: it is not the same as the EQ function.) Auto turn on/off E30 has the function of an auto turn on and off. It will automatically enter into stand by when the input signal is lost or unavailable in 1 minute. Once detecting any signal of inputs, it will turn on and switch to this input DAC + Pre-amp application E30 has a built-in volume control function that can adjust the volume from -99dB to 0dB by using the remote control, so you are able to directly connect E30 to a power amplifier or active speakers, and control the volume of E30 through remote control Pure DAC application E30 is able to fix to maximum output level so that it can be worked as a pure DAC. In this mode, the DSD signal will bypass the DATT Soft Mute and 02 Modulator to provide you a pure/direct DSD performance Package Included: 1 x E30 Decoder 1 x Remote Control 1 x DC Cable 1 x USB Cable 1 x User's Manual 1 x Warranty Card
