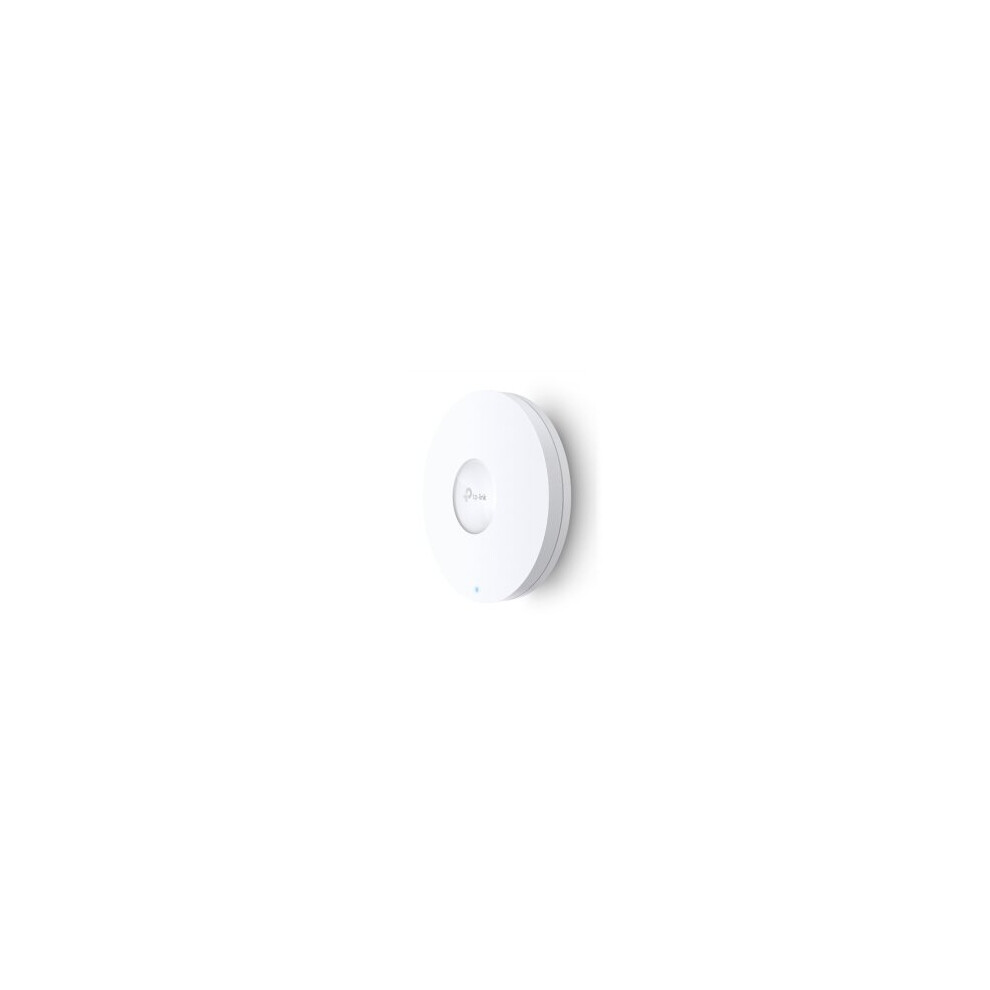

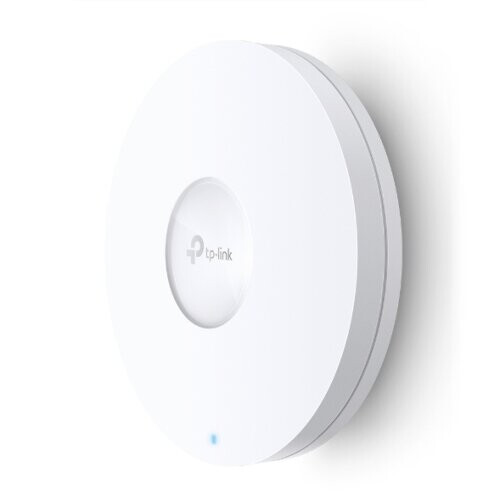

Tp-Link EAP620 HD Ax1800 Dual Band Wireless Ceiling Mount Access Point Poe+ EAP620 HD

Tp-Link EAP620 HD Ax1800 Dual Band Wireless Ceiling Mount Access Point Poe+ EAP620 HD Description

  AX1800 Wireless Dual Band Ceiling Mount Access Point

Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Density Connectivity: 4 increased capacity to connect more devices simultaneously.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

High-Density Connectivity with 4 Increased Capacity

OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4 versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.





Advanced Wi-Fi Speed with 4 Spatial Streams

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.





Omada SDN-Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.





Seamless Roaming

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.





Boost Network Efficiency in All Aspects With Rich Advanced Features

Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.


Load Balance
ensures large numbers of users have smooth network experiences in high-density business networks


Airtime Fairness
Increases average network throughput in heavily congested environments





Secure Guest Network with Facebook Wi-Fi and SMS Login

Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

DescriptionSpecification

Primary Function: Access Point
#Hide#Access Point Mode: Yes (Access Point Mode)
Max Signal Rate: 1200 Mbps
Dual Band: Yes
Interface(s): 1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Antenna: Internal Omni
2.4 GHz: 2 x 4 dBi
5 GHz: 2 x 5 dBi
Button(s): Reset
Power Supply: 802.3at PoE V DC
Power Consumption: 12 W
Dimensions (W x D x H): 243 x 243 x 64 mm
Weatherproof: No
Frequency: 5GHz: Up to 1201Mbps
2.4GHz: Up to 574Mbps
Wireless Functions: "1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming"
.: Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security: "Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
Quality of Service: QoS(WMM)
Management: "Omada App
Centralized Management
Cloud Access
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP v1, v2c, v3
Local/Remote Syslog
SSH
HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN"
Advanced Functions: See Overview
Environment (C): Operating Temperature: 0C
40C (32F4F)
Storage Temperature: -40C
70C (-40F8F)
Operating Humidity: 10%
90% non-condensing
Storage Humidity: 5%
90% non-condensing
Package Contents: EAP620 HD
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
Package Type: Retail
Package Weight: 0.0000 kg
Warranty: Limited Lifetime
