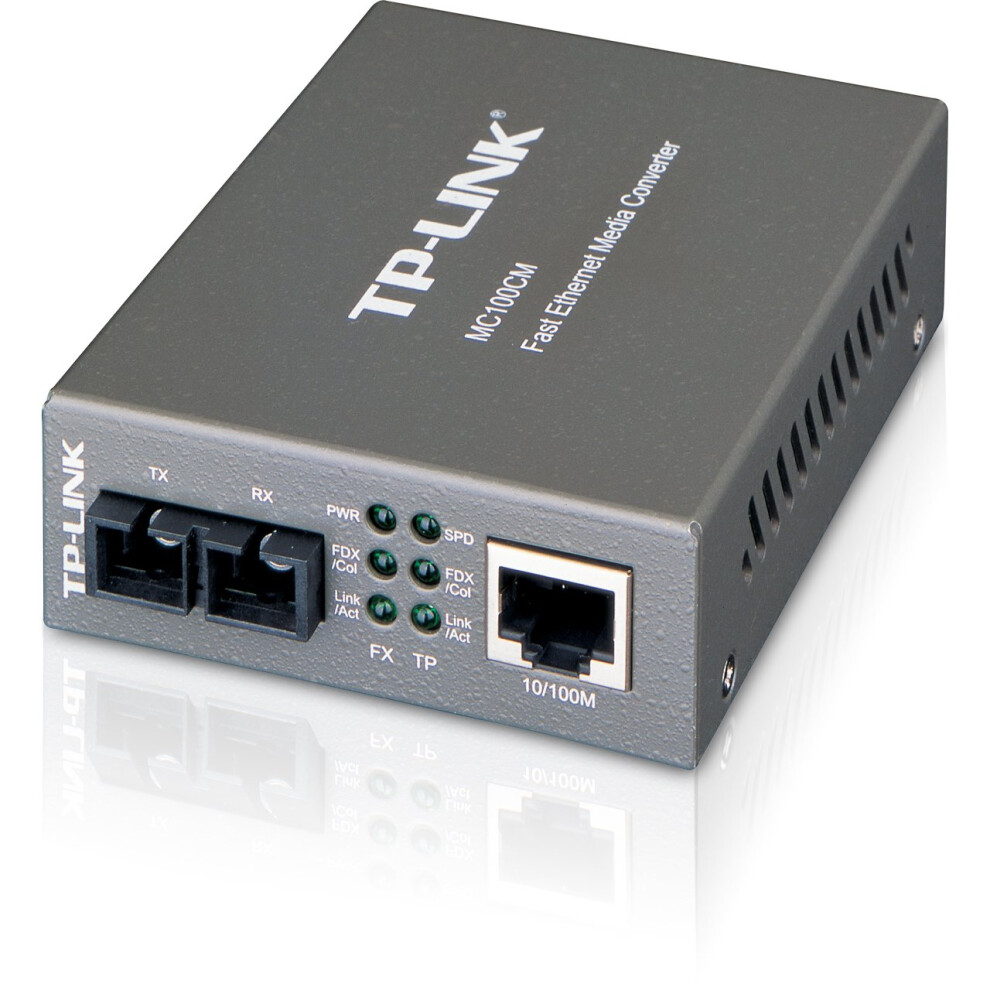

TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter MC100CM

TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter MC100CM Description

TP-Link 10/100Mbps Multi-Mode Media Converter

What This Product Does
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.
Highlights:Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port
Easy-view LED indicators provide status to monitor network activity easily
Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
Extends fiber distance up to 2km

Specification
Media Converter & Module

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Basic Function
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 2km
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Ports
1 100M SC port
1 100M RJ45 port (Auto MDI/MDIX)

Wave Length
1310nm

Network Media 10BASE-T
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-FX
Multi-mode Fiber

LED Indicators
PWR, FDX/Col, Link/Act, SPD

Dimensions (W x D x H)
3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)

Power Supply
External power supply

Safety & Emission
FCC, CE, RoHS

Environment
Operating Temperature: 0℃
40℃ (32℉
104℉)
Storage Temperature: -40℃
70℃ (-40℉
158℉)
Operating Humidity: 10%
90% non-condensing
Storage Humidity: 5%
90% non-condensing
