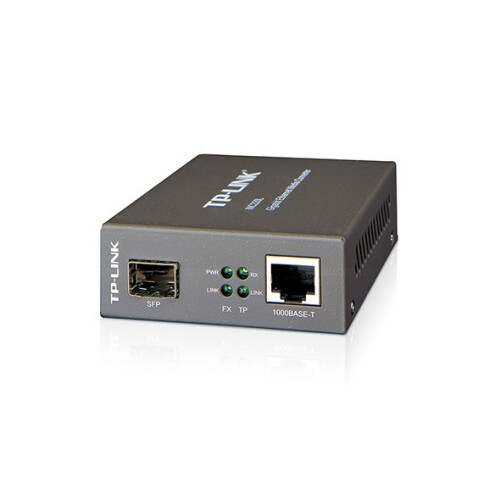

TP-Link MC220L V3 Gigabit SFP Media Converter MC220L

TP-Link MC220L V3 Gigabit SFP Media Converter MC220L Description

Complies with IEEE 802.3ab and IEEE 802.3z
FX port supports hot-swappable
Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
Specifications
Standards and ProtocolsIEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic FunctionFull Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber
Ports1 Gigabit SFP port
1 1000M RJ45 port (Auto MDI/MDIX)
Wave LengthDepends on the used SFP module
Network Media 1000BASE-FXMulti-mode/Single-mode SFP module
Network Media 1000BASE-XMulti-mode/Single-mode SFP module
Network Media 1000BASE-TUTP category 5, 5e, 6 cable (maxium 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
LED IndicatorsPWR, LINK, RX
Dimensions (W*D*H)3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power SupplyExternal Power Adapter
Max Power Consumption3.95W
Safety & EmissionFCC, CE
EnvironmentOperating Temperature: 0
40 (32
104)
Storage Temperature: -40
70 (-40
158)
Operating Humidity: 10%
90% non-condensing
Storage Humidity: 5%
90% non-condensing
